Features:
Easy to Use: after installing the supporting app on your phone, simply insert this device to your phone, then you can easily measure temperatures (-20~170℃ range) of the object and view the infrared images directly via mobile phone .
User-friendly Design: its tiny size makes it extremely portable, plug and play design allows you to use it on the go, taking temperatures anytime anywhere fast and conveniently.
High Definition Image: adopts with self-developed ASIC image processor chip and with powerful core, features of 256*192 infrared resolution.
Full Image Temperature Memory: each frame of 50000 pixels temperature full data storage.
Temperature Analysis Function: powerful post offline temperature measurement analysis function of point, line and surface.
Super Long Endurance: it is directly inserted into the charging port of the mobile phone and works with the mobile phone's own battery, which can continuously work for a long time, no need extra battery.
Specifications:
DETECTOR:
Resolution: 256*192
Pixel Size: 12um
NETD: ≤50mK@25℃, F#1.0
Spectral Response: 8~14um
PERFORMANCE:
Frame Frequency: 25Hz
Working Temperature:-10~55℃
Storage Temperature:-10~55℃
Power Consumption: 350mW
Processor: ASIC
LENS:
Focal Length: 3.2mm
Aperture: F1.1
Field Angle: 56.0°(H)*42.2°(V), 71.3°(D)
Focus: No thermal prime lens
TEMPERATURE MEASURING PERFORMANCE
Measure Range: -20~170℃
Measure Accuracy: ±3℃/±3% (whichever is greater)
Temperature Correction: Distance, circumstance temperature, emissivity
Material: Alloy
Support Device: Android 6.0 and above
Interface: Type-C
Pouch Size: 60 * 40mm / 2.36 * 1.57in
Item Size: 27 * 18 * 9mm / 1.06 * 0.71 * 0.35in
Item Weight: 9g / 0.32oz
Package Weight: 118g / 4.17oz
Package Size: 15 * 8 * 3cm / 5.91 * 3.15 * 1.18in

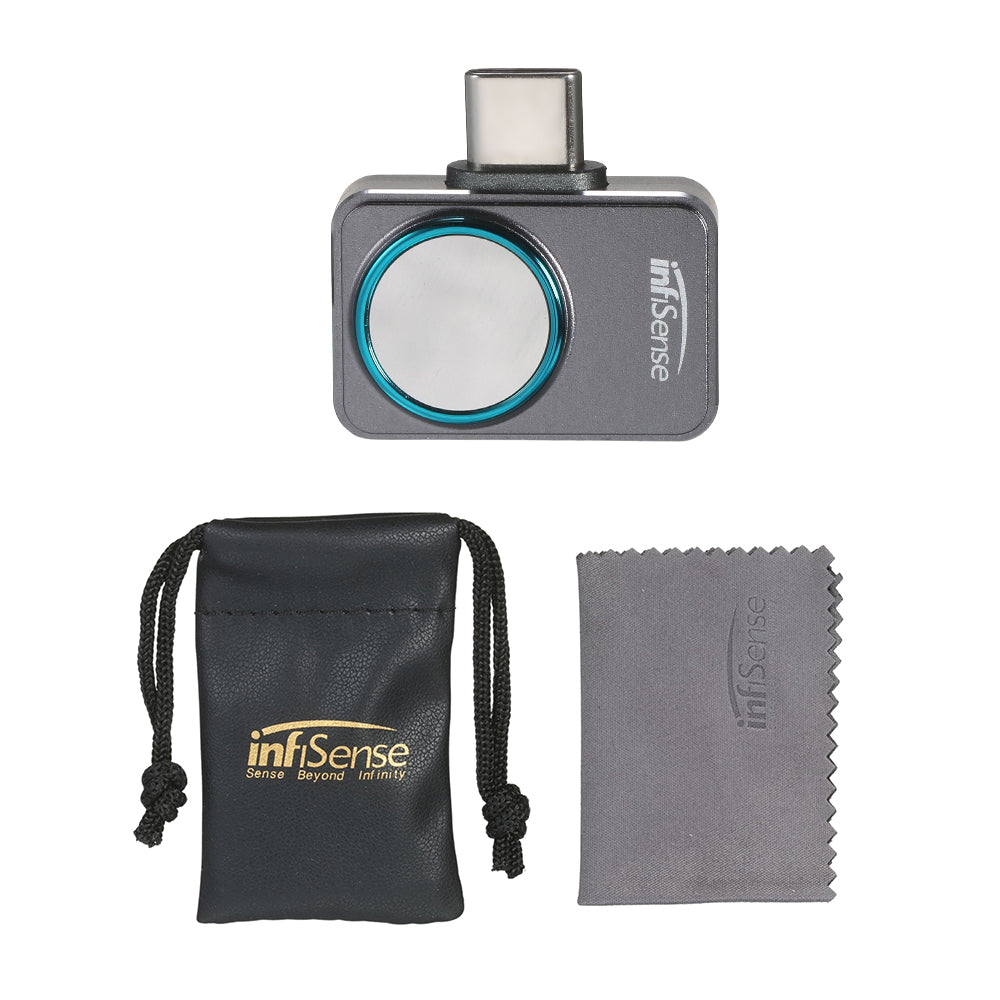

Packing List:
1 * Thermal Imager
1 * Wipe Cloth
1 * Storage Pouch
