Features:
This product combines the functions of surface temperature measurement and real-time thermal imaging, which is suitable for both the human temperature detection function and the industrial temperature detection function.

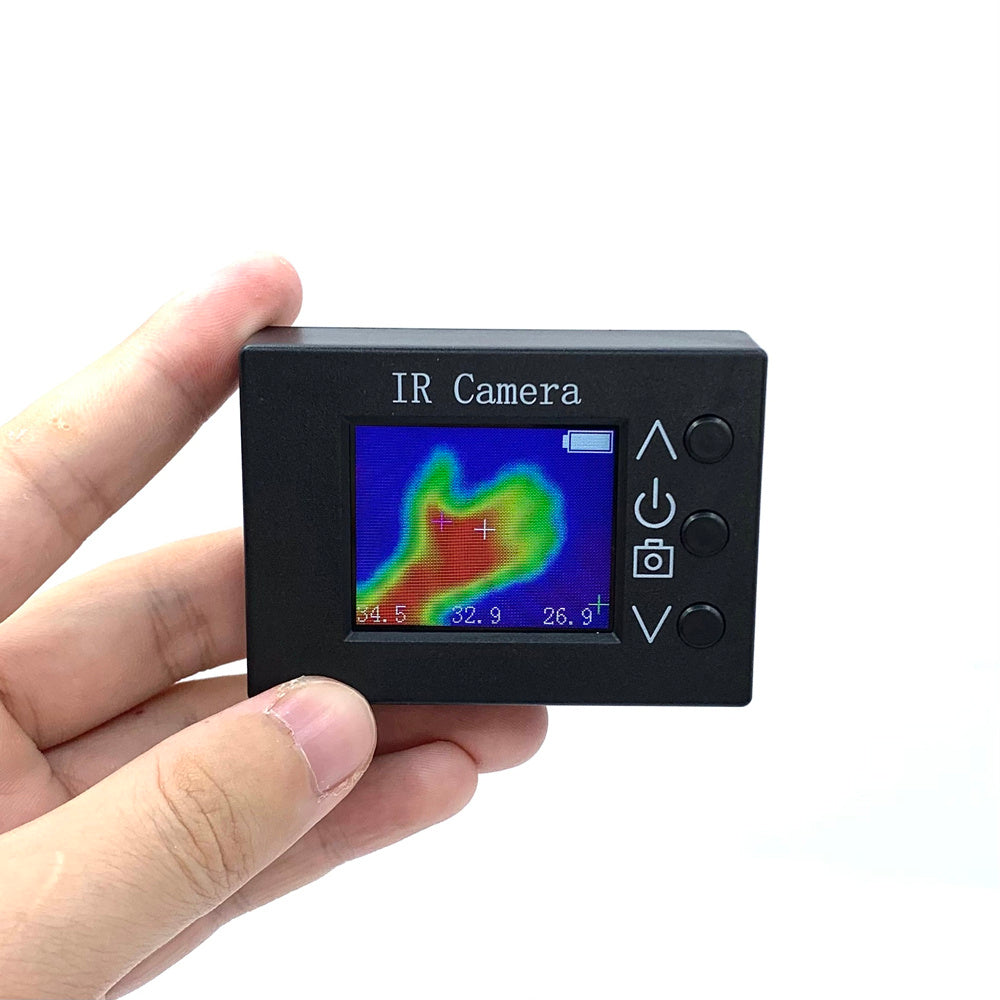

Compact, lightweight, and portable, it is easy to carry and does not take up too much space.
The housing is made of ABS material, wear-resistant and drop-resistant, with long durability and can provide long service time.
Adopt infrared sensors, with high sensitivity, and with a 32*24 resolution ratio for clear imaging.
Real-time measurement, with -40℃ to +300℃ measurement ranges, and an 8Hz dynamic refresh rate.
1.8-inch large TFT color display, with 160*128 resolution, clearly displays and records the maximum temperature, the minimum temperature, and the center point temperature.
Built-in lithium-ion battery, USB Type-C charging design, long battery lifespan, support charging while in use.
This thermal imager has a photo-taking and photo memory function which can store up to 90 pictures.

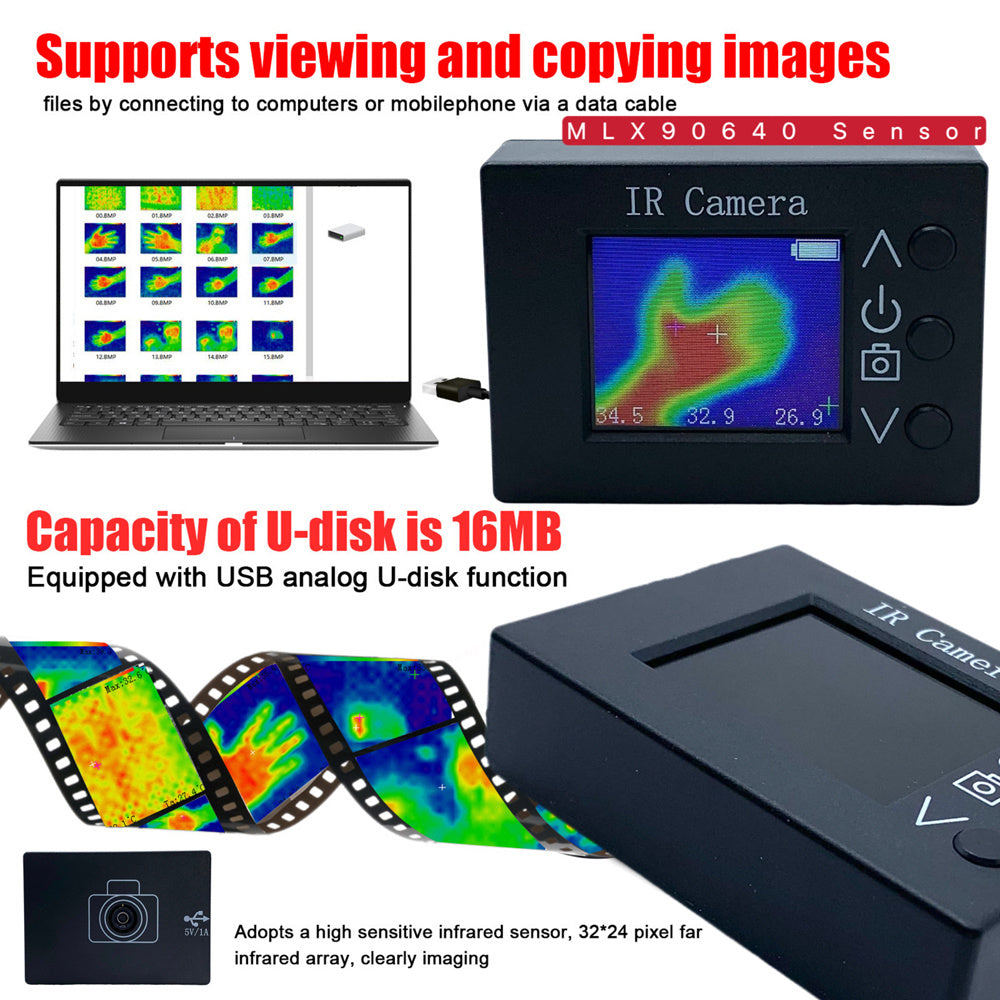

With a data transfer interface, you can view, copy, and delete imaging files by connecting computers or mobilephones with a data cable.
Adopts an integrated design, it can operate smoothly without external devices.

Wide Applications:
High-precise contactless temperature measurement and body temperature detection.

Car repairs and maintenance inspection, automotive parts temperature detection.
Microwave oven and oven temperature detection and control.
Temperature monitoring of industrial parts.
Visual temperature sensors.
Floor heating equipment side leakage and maintenance.
Thermal inspection of circuit board and component.

Specifications:
Name: Thermal Imager
Materials: ABS + printed circuit board
Battery: 1 * 200mAh lithium battery (included)
Infrared sensors: MLX90640ESF-BAB
Hardware resolution: 32*24 pixel far infrared array
Screen resolution: 160*128 pixels
Temperature measurement range: -40℃ to 300℃
Measurement accuracy: ±2℃
Working temperature: 10℃ to 50℃
Working humidity: ≤ 70%
Refresh rate: 8Hz
Field of view: horizontal 55° * 35° vertical
Charging specification: USB Type-C5V/1A
Working time: ≥4 hours
Item size: 66 * 47 * 20mm / 2.60 * 1.85 * 0.79in
Package size: 110 * 170 * 30mm / 4.33 * 6.69 * 1.18in
Package weight: 88g / 3.10ounce

Packing List:

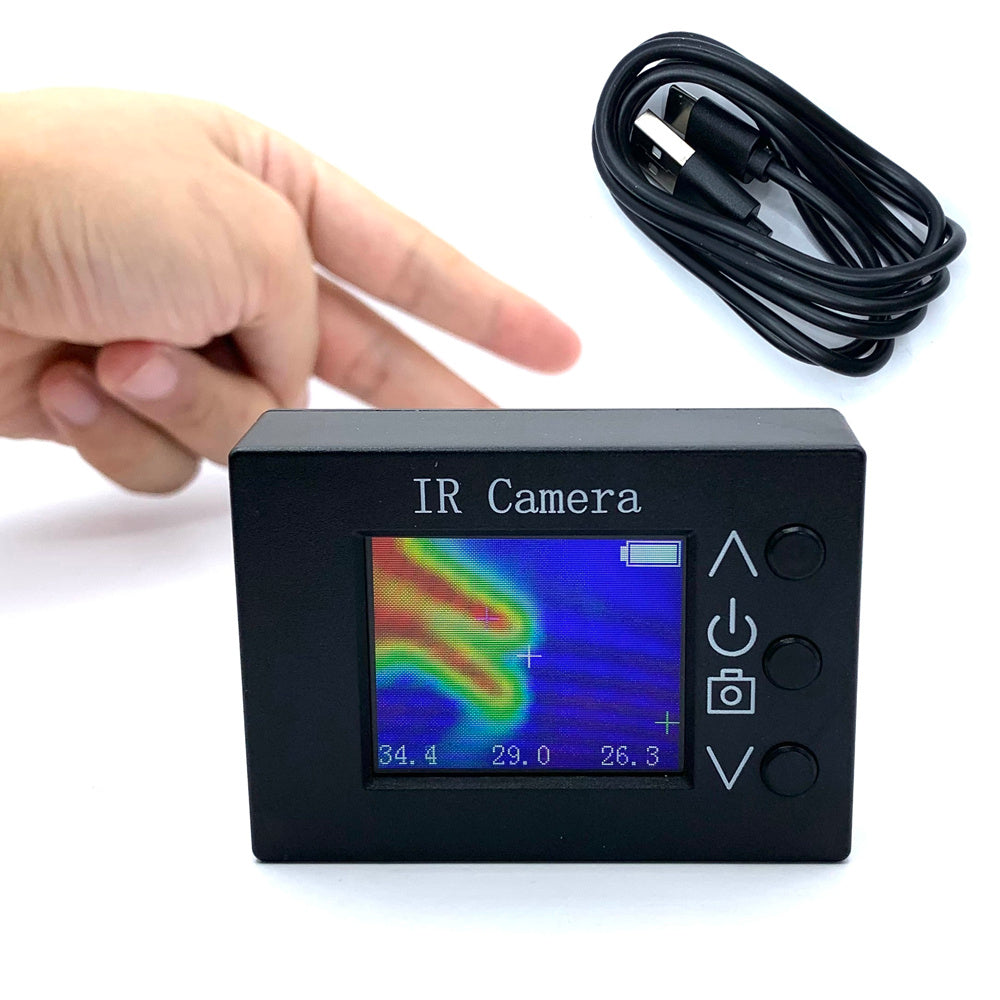

1 * Thermal Imager
1 * USB Type-C Cable
