Features:
Portable size, easy to disassemble, does not take up space, and is easy to carry.

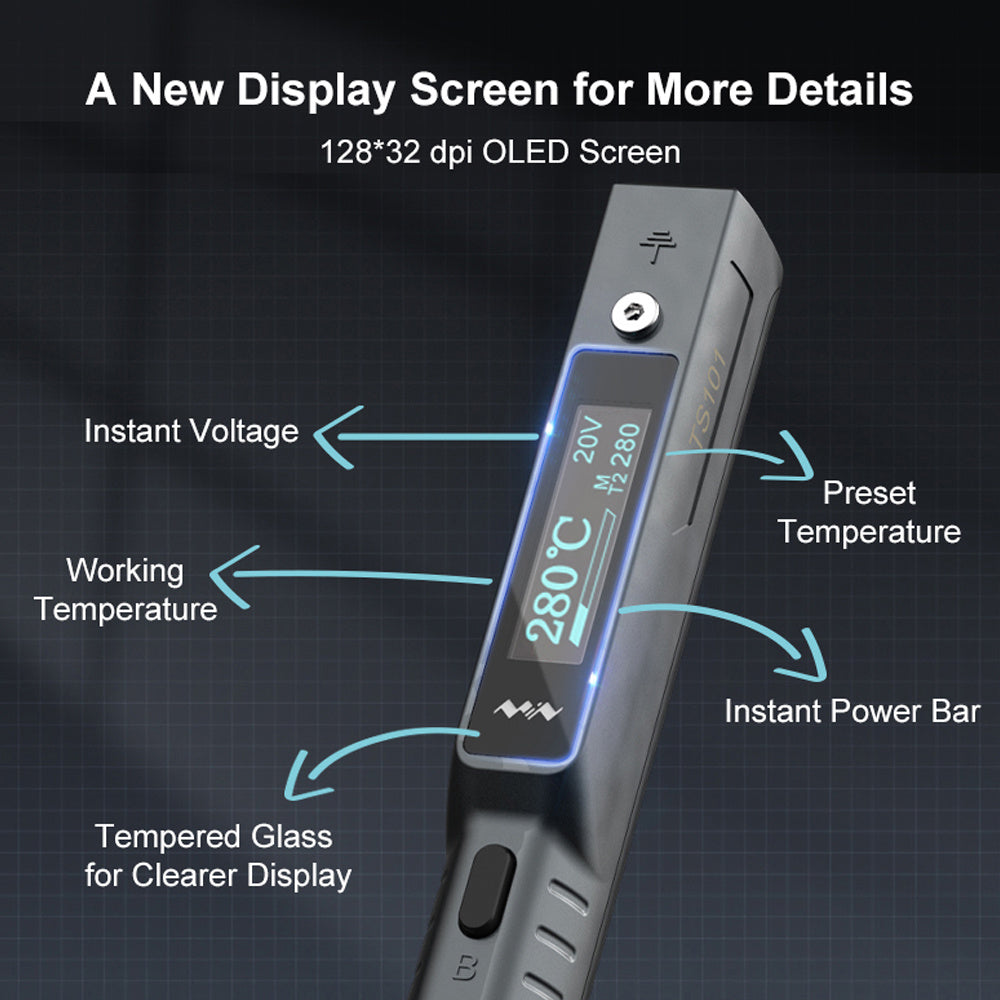

OLED display, 128*32 pixels, tempered glass screen, clearly displays the real-time voltage, preset temperature, operating temperature, and instantaneous power bar.
The design of direct current and PD dual power modes can meet a variety of usage scenarios with a maximum power of 65W.
Three preset working temperatures, adaptive left-and-right hand operation, one button for warm-up, power supplys selection, support for setting sensitivity, etc.
In boost mode, with one button to raise the temperature, the working state continues to hold down the A button to enter the power mode, after releasing the button, the soldering iron will automatically adjust to the preset working temperature.

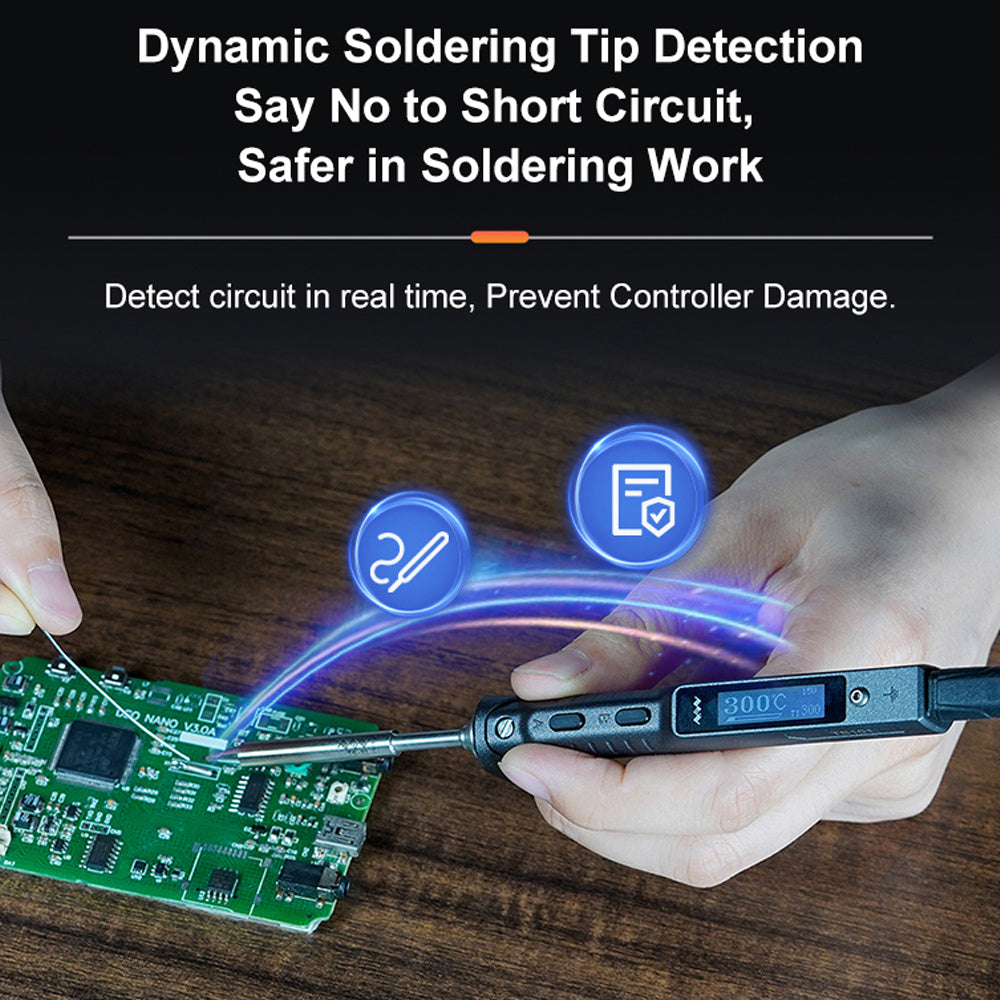

Dynamic soldering bit detection, real-time detection of the circuit, rejection of short-circuiting, preventing direct burning of the control side, so you can solder without fear.
Stainless steel ball screw, stable soldering iron bit, no need to rotate the screw each time, saving physical strength and improving efficiency.

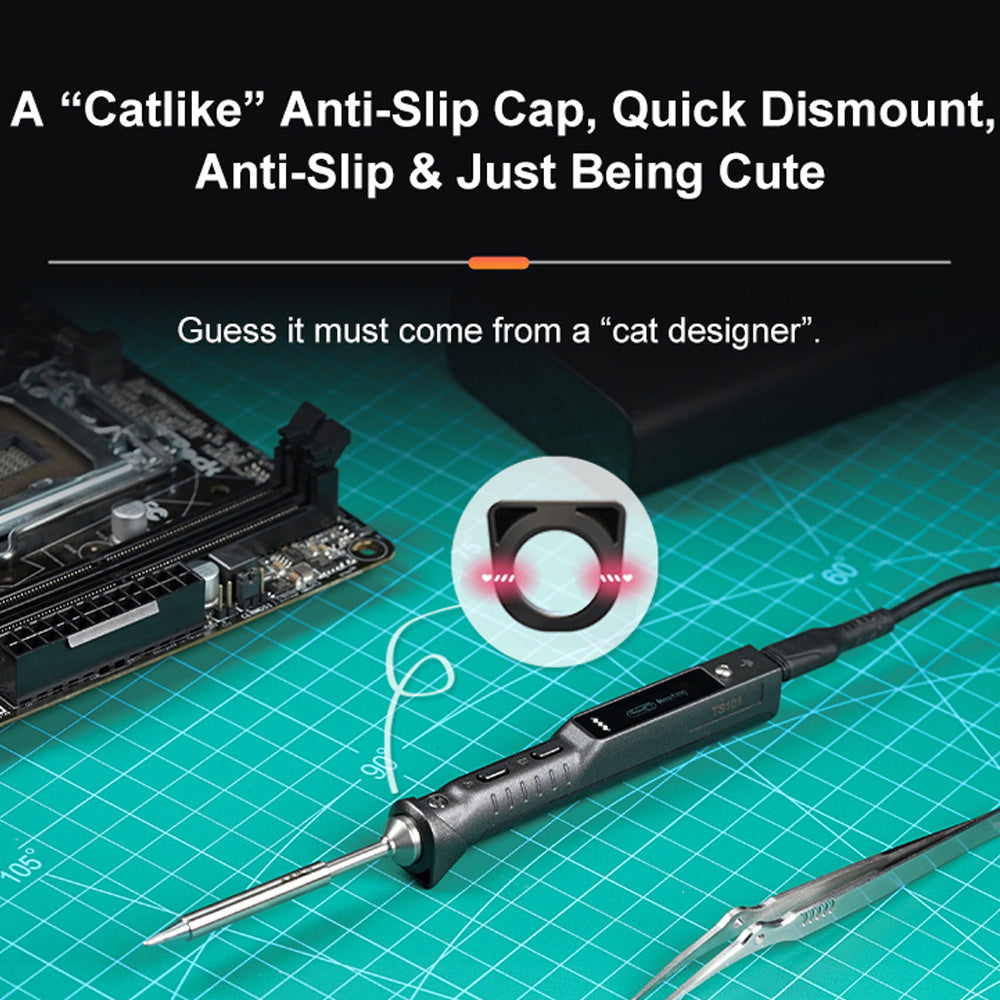

Humanized cover design, quick release, anti-slip, multi-purpose.

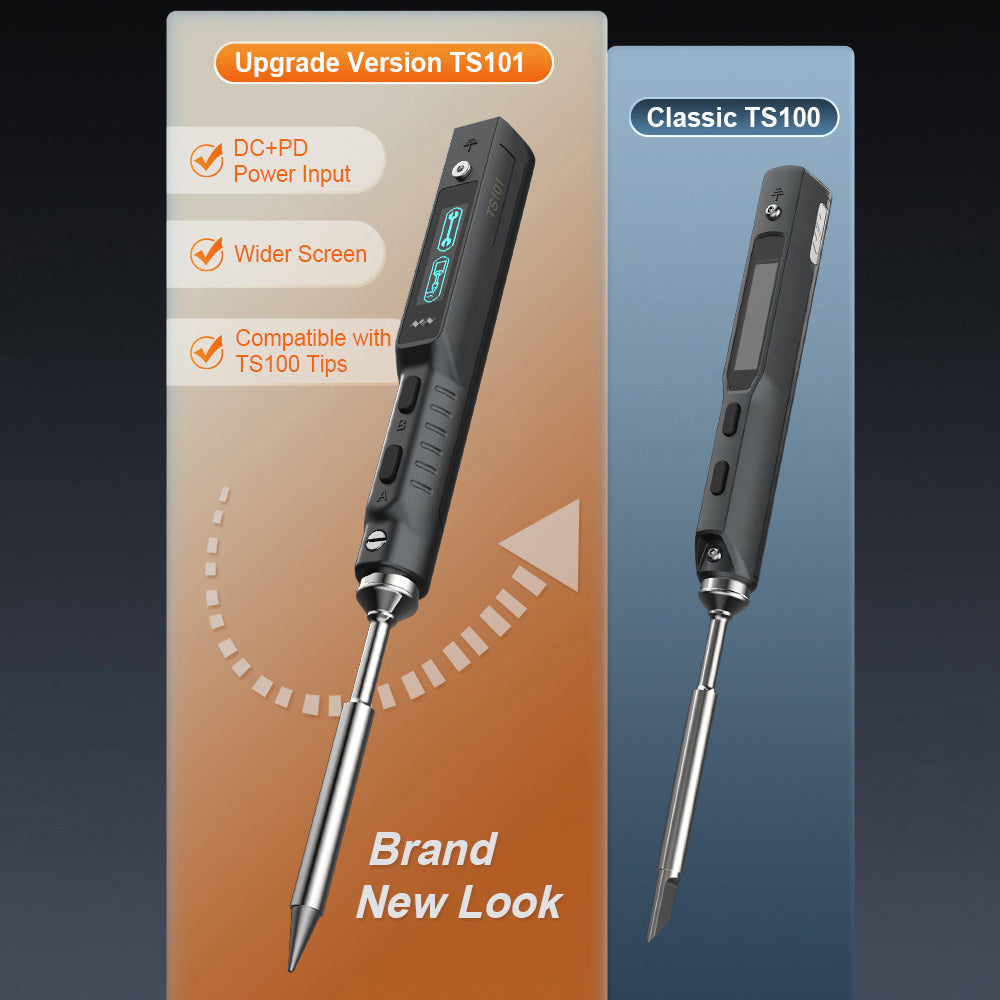

Three soldering bit configurations can be selected, with high-temperature resistance and oxidation resistance, to meet a variety of welding scenarios, compatible with TS100 soldering heads and accessories.
The e-Design self-developed firmware, can be connected to the computers to upgrade the firmware, custom profiles, and boot welcome icons.
Specifications:
Name: Soldering Iron
Material: PC+metal
Soldering bit: TS101-BC2, TS101-B2, TS101-I (optional)
USB interface: USB-C (can be powered and connected to the computers)
Power supplying mode: DC5525 wide voltage; PD3.0
Operating voltage and power ranges: DC9-24V, 9-65W (maximum); PD3.0 9V-20V, 9-45W (maximum)
Temperature control ranges: 50-400℃
Temperature stability: +2%
Soldering iron bit to ground resistance: 2Ω
Item size: 98 * 16.5 * 16.5mm / 3.86 * 0.65 * 0.65in
Item weight: 33g / 1.16ounce
Package size: 140 * 80 * 35mm / 5.51 * 3.15 * 1.38in
Package weight: 118g / 4.16ounce
Packing List:
1 * Soldering Iron
1 * Soldering Bit
1 * Anti-slip Cover
1 * USB Type-C Cable
