battery not included in the package;
|
Product Name
|

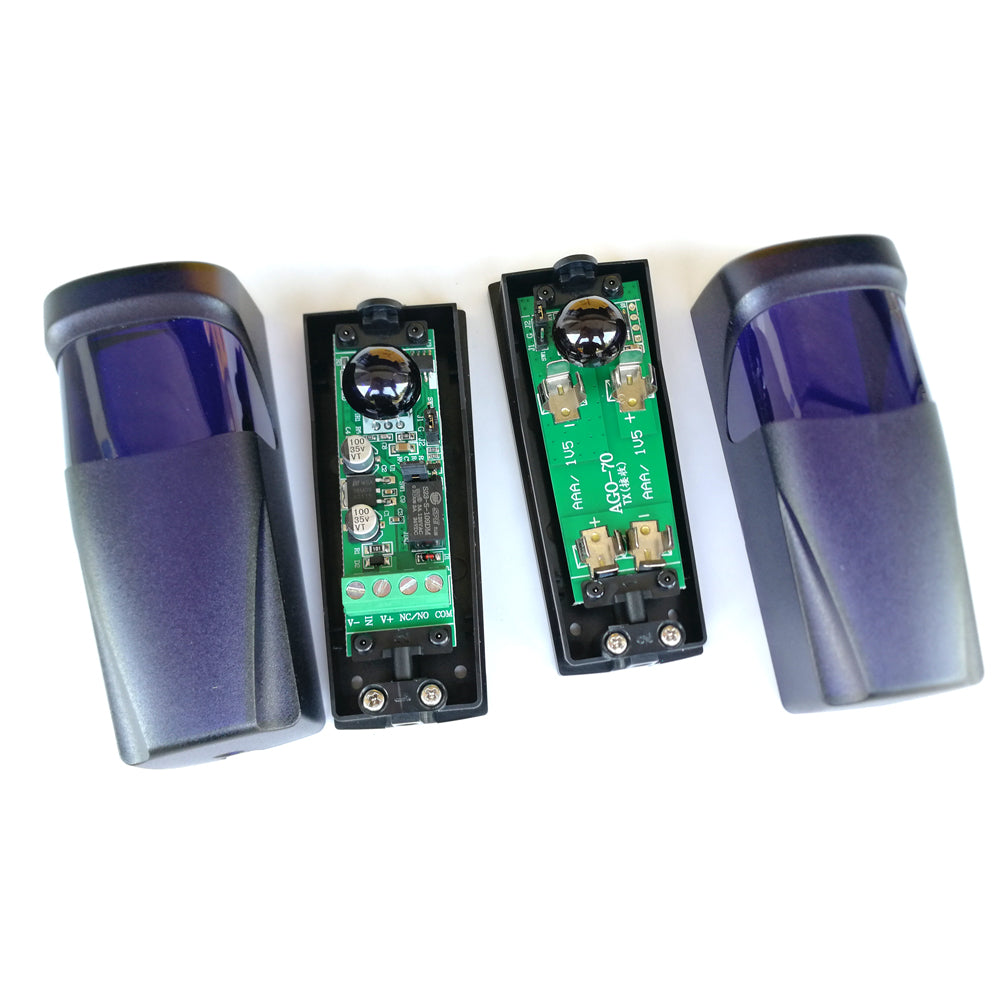

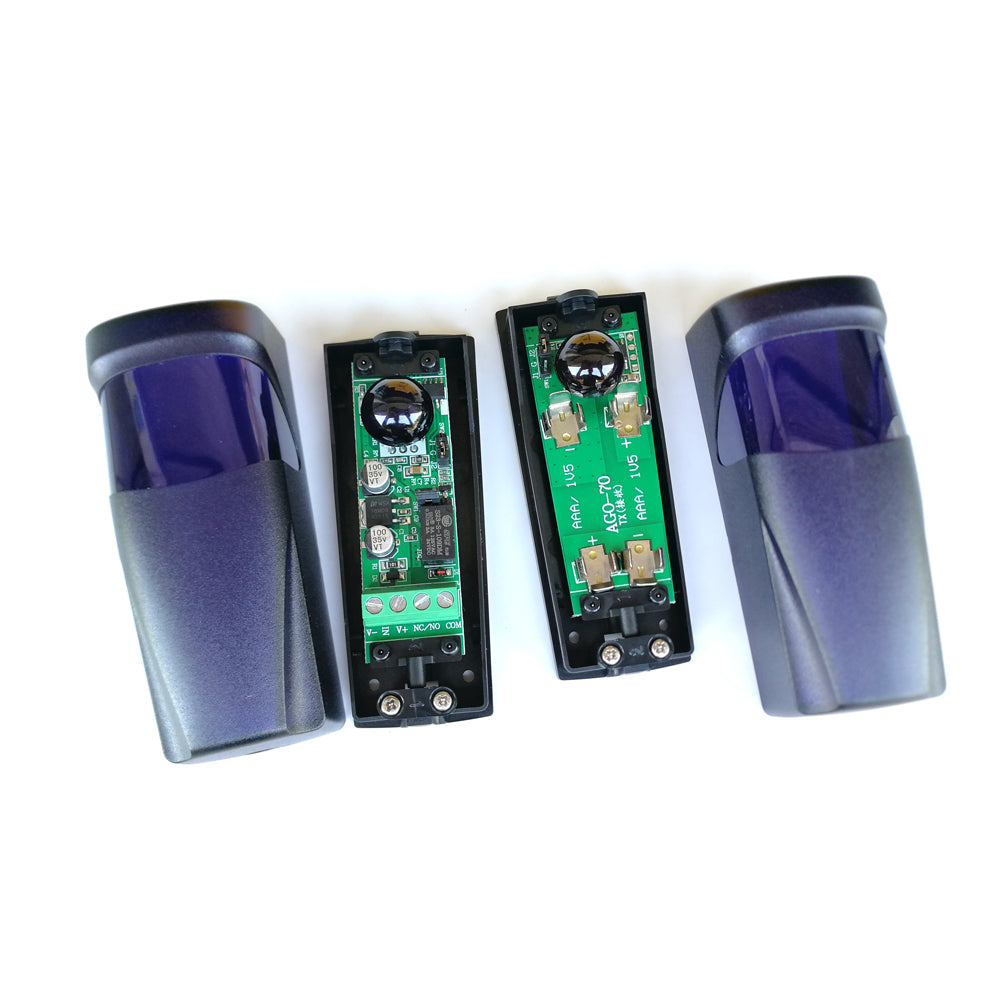

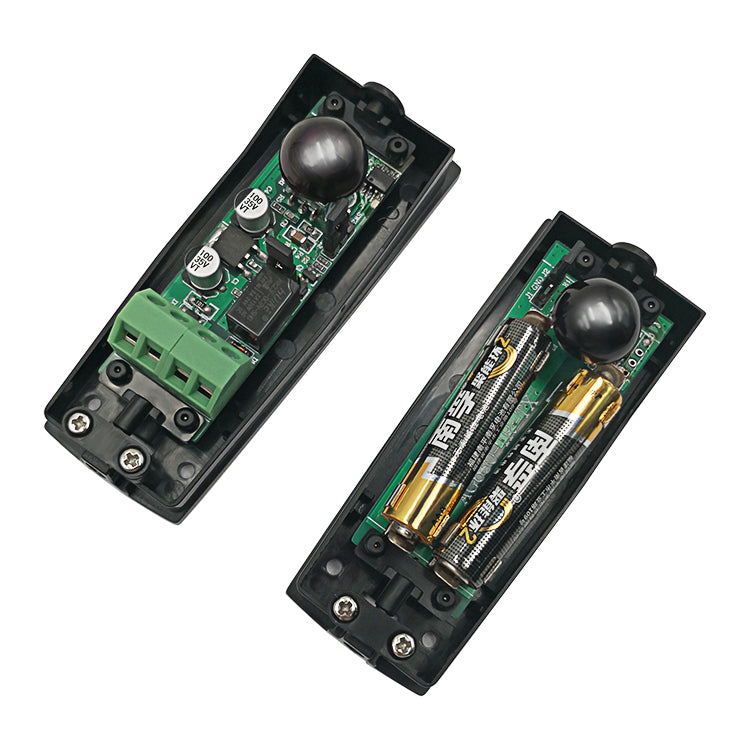

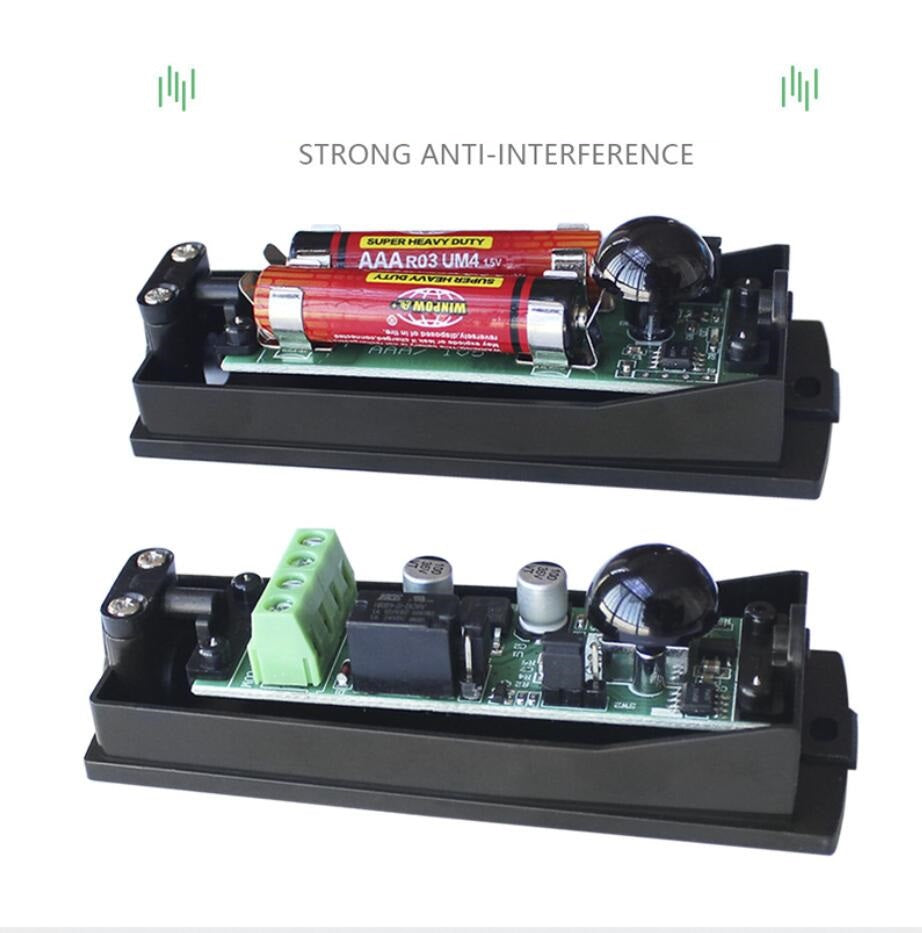

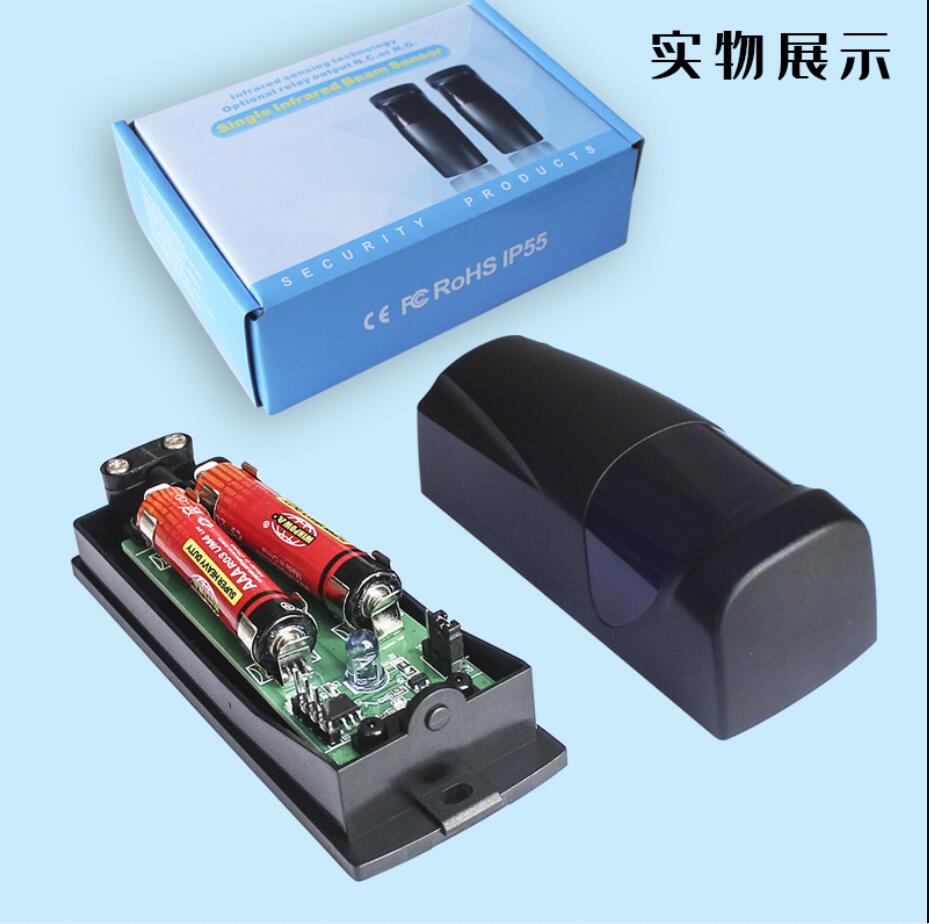

Battery Infrared Sensor
|
|
Function
|
Widely used for automatic garage door opener gates windows for safety
|
|
Package
|
White box, yellow box, color box optional
|
|
Working voltage
|
Transmitter : 3V (2PCS AAA battery 1.5V LR03), Receiver : 12-24V DC
|
|
Working current
|
Transmitter < 85µA, Receiver < 30mA (24V DC)
|
|
Photocell wavelength
|
940nm
|
|
Angle of emission
|
≤±5°
|
|
Receiving range
|
> 12m (range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc)
|
|
Relay contact loading capacity
|
1A/30VDC
|
|
Size
|
100*40*35mm
|
|
Operating temperature
|
-10℃ to +70℃
|
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
