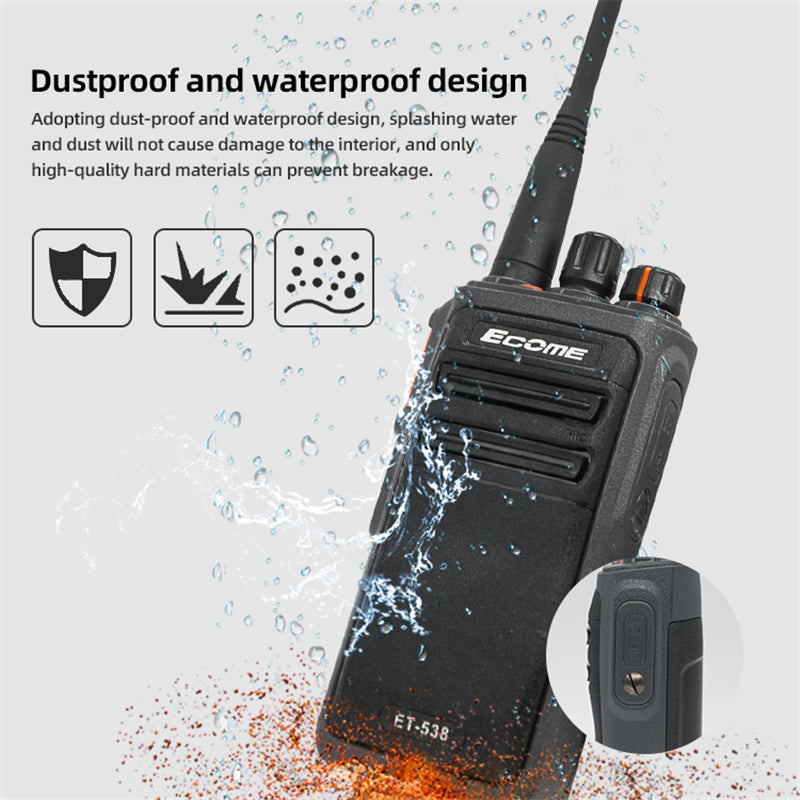

Dustproof and waterproof
ET-538 can withstand long-term immersion under pressure, and put it into 1 meter deep water for a
long time. The time can be up to 1 hour without damaging the radio.

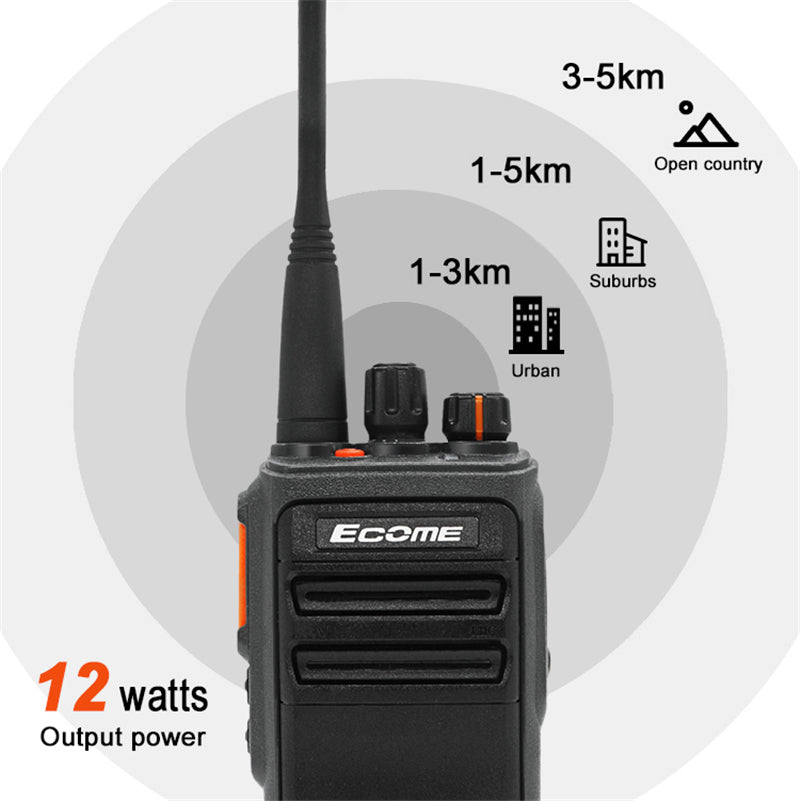

Long distance transmission
ET-538 adopts long antenna design, which effectively improves the transmission intensity and the signal effect is better
4 groups, 128 channels
4 groups, each group can add channels.

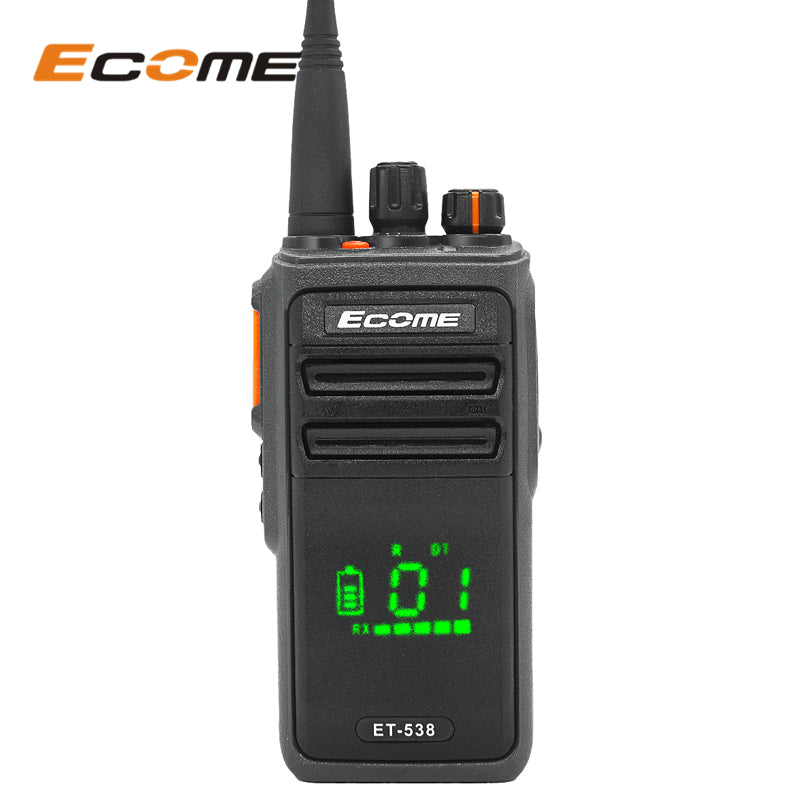

Built-in LED display
Built-in LED display, you can intuitively observe each set value (channel, volume, power).
Emergency button
The distant companion's radio receives the alarm sound from the distressed person, and the general
position of the distressed person can be roughly judged according to the sound strength for rescue.

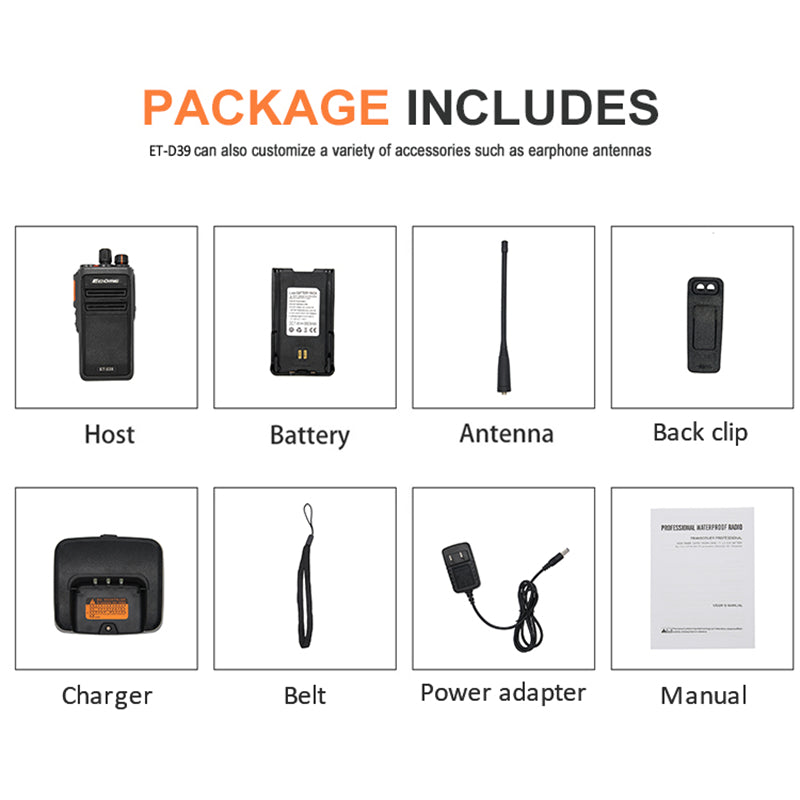

Standard package
ET-538 radio*1
3800mAh Battery*1
Power adapter*1
Charger*1
Back clip*1
English Manual*1
Functions
Waterproof and dustproof
Channel Monitor
High/Low Power
Time-out timer (TOT)
Busy channel lock (BCL)
Voice Operated Transmit(VOX)
Battery saving function
Low battery warning
Emergency
alarm function
ANI Code
Programming password
Specifications
General
Frequency
VHF:136~174MHz
UHF:400~470MHz
Channel Capacity
UHF: 128 / VHF: 16
Operating Temperature
-20℃~60℃
Operating Voltage
DC 7.5V +10%
Frequency Stability
±2.5ppm
Dimension
130*60*39 mm(Not include the antenna)
Weight
Approx 300g
Battery Capacity
3800mAh
Protection Grade
IP68
Transmitter
Carrier output power
UHF:12W / VHF: 5W
Modulation
16KθF3E / 11KθF3E
Maximum Frequency offset
≤5KHz / ≤2.5KHz
Audio distortion
≤5%
Modulation characteristic
±3dB
Adjacent channel power
≥65dB
Occupied bandwidth
≤16KHz
Receiver
Receive Sensitivity
12dB
(SINAD) 0.25μV
Audio Power
1W@10%
Audio distortion
<10%
Audio response
±3dB
Intermediation
≥55dB
Adjacent Channel Selectivity
≥65dB, ≥60dB
Spurious response immunity
>50
Blocking characteristics
≥84dB
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
