JDS8060 8080 DDS Function Arbitrary Waveform Generator CNC Dual Channel Signal Source 275MS/s 14bits Frequency Meter 60MHz/80MHz

Description:

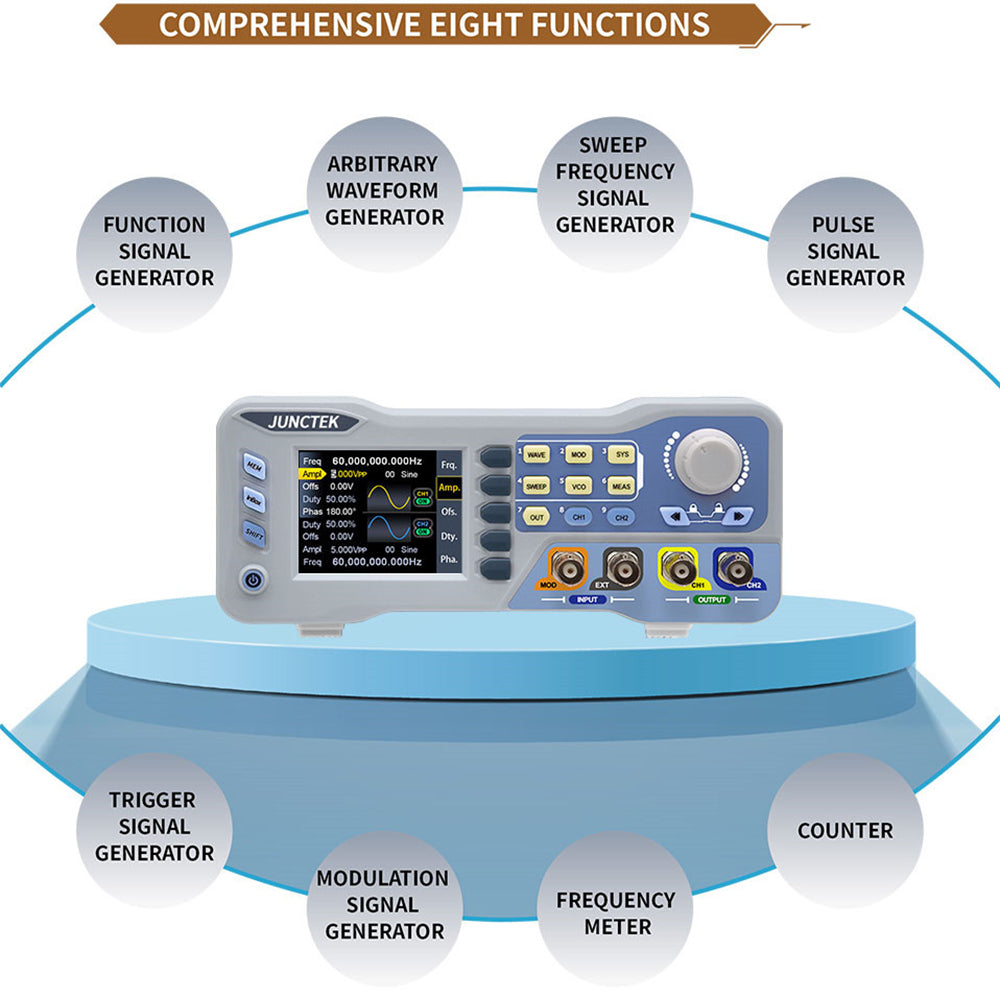

JDS8000 series dual channel function / arbitrary waveform signal generator adopts a 2.8-inch color screen and comfortable silicone keys. It can output sine wave, square wave, triangular wave, pulse wave, DC signal and arbitrary waveform. It has the functions of waveform modulation, burst, digital adjustment of pulse width, scanning frequency, scanning amplitude, scanning duty cycle, VCO voltage controlled scanning, etc. it is equipped with a frequency meter and counter. Suitable for DIY, scientific research, teaching Product development, debugging and other scenarios.

Features:

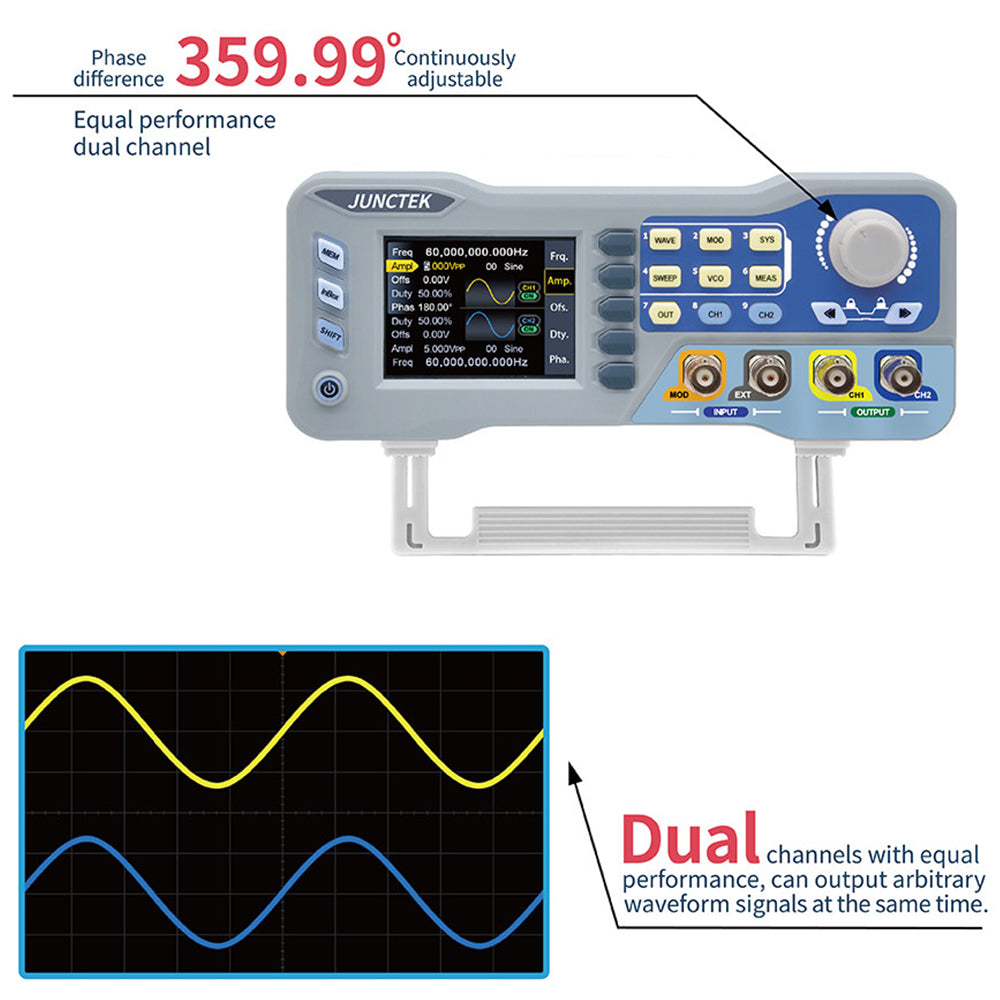

1,The performance of the two channels is exactly the same, and the same or different waveforms can be output at the same time, with the phase difference of 0-359.99 ° freely adjustable;

2,Sine wave output frequency range: 1nhz-60mhz (jds8060) or 1nhz-80mhz (jds8080), Output amplitude: 1mVpp-25Vpp;

3,The sampling rate is up to 275MSa/s, the vertical resolution is 14bits*8192 points, and more waveform data can be obtained per unit time, thus making the waveform more accurate;

4,Modulation function: Both channels can output modulation waveform signals such as AM FM PM ASK FSK PSK;

5,Scanning function: scanning frequency, scanning amplitude and scanning duty cycle, with linear and logarithmic scanning modes;

6,VCO voltage control scanning: Controlling the frequency, amplitude and duty cycle of the output waveform through the change of the external voltage signal;

7,Pulse width modulation function: Digital adjustment of pulse width and pulse cycle time;

8,Burst function: It can be set to output waveform signals of 1-1048575 arbitrary cycles;

9,Arbitrary wave function: More than 160 commonly used arbitrary waveforms are built in the upper computer software, and arbitrary waveforms can be customized and downloaded to the signal generator with one click;

10,Measurement function: Equipped with 1hz-100mhz frequency meter and counter, with AC coupling and DC coupling modes;

11,Firmware update function: New firmware can be obtained through firmware upgrade software to continuously improve product performance;

12,Mobile APP: Built-in Bluetooth chip, It can control and draw any waveform through mobile app;

13,Secondary development function: provide free communication protocol and computer software to facilitate programming control;

14,Multi level synchronization function: Two or more machines can output multi-channel waveform signals after being connected;

Specifications:

      Model

   JDS8060

   JDS8080

       Channel

   2

       Sine wave frequency

   1nHz-60MHz

   1nHz-80MHz

       Sampling Rate

   275MSa/s

       Wave length

   8192 points/channel

       Waveform vertical resolution

   14 bits

       Wave type

   Sine wave, square wave, pulse wave (duty ratio, pulse width and cycle time can be precisely set), triangle wave, rising ramp, falling ramp, CMOS wave, DC level, half wave, full wave, positive step wave, Inverse staircase wave, exponential rise, exponential fall, Lorentz pulse wave, multisonic wave, random noise wave, trapezoidal pulse wave, Sinker pulse wave, and 99 sets of user-defined waveforms.

       Square wave

   1nHz-15MHz

       Triangle wave

   1nHz-15MHz

       Frequency resolution

   1nHz

       Rise/Fall Time

   ≤20nS

   ≤10nS

       Amplitude range

   Frequency＜1MHz,2mVpp~25Vpp

1MHz≤Frequency＜11MHz,2mVpp~10Vpp

11MHz≤Frequency＜60MHz,2mVpp~5Vpp

60MHz≤Frequency≤80MHz,2mVpp~3.6Vpp

       Amplitude resolution

   1mVpp

       Amplitude stability

   ± 1% ±1mVpp (@ 1kHz,>10mVpp)

       Amplitude flatness

   Frequency≤10MHz:±1%(0.1dB)

10MHz＜Frequency≤50MHz:±2%(0.2dB)

50MHz＜Frequency≤60MHz:±10%(0.9dB)

       Offset range

   -9.99V-12.00V

       Offset resolution

   0.01V

       Phase adjustment range

   0°-359.99°

       Resolution

   0.01°

       Output impedance

   50Ω (typical)

       Modulation type

   AM,FM,PM,ASK,FSK,PSK,PWM

       Trigger source

   Manual burst, CH2 burst, external burst (AC), external burst (DC)

       Measurement function

   Frequency, positive and negative pulse width, period, duty cycle

       Counter range

   0-4294967295

       Sweep function

   Sweep frequency, sweep amplitude, sweep duty

       Sweep mode

   Linear, logarithmic

       VCO function

   Frequency control, amplitude control, and duty cycle control

       Running mode

   Debugging,normal

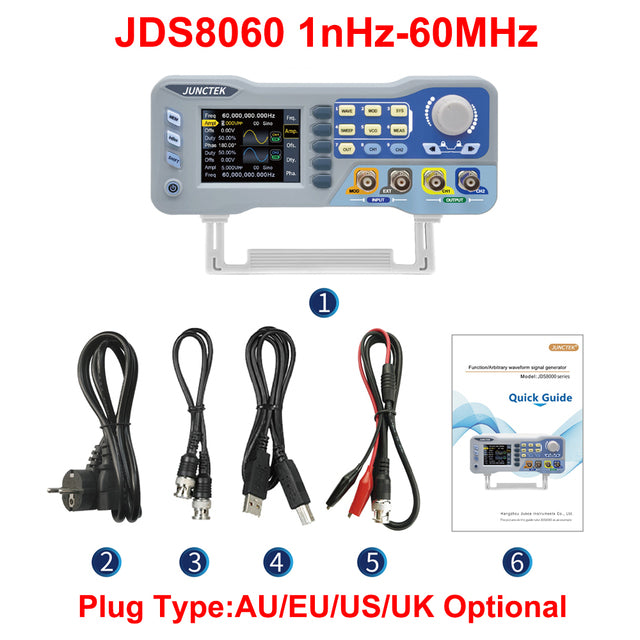

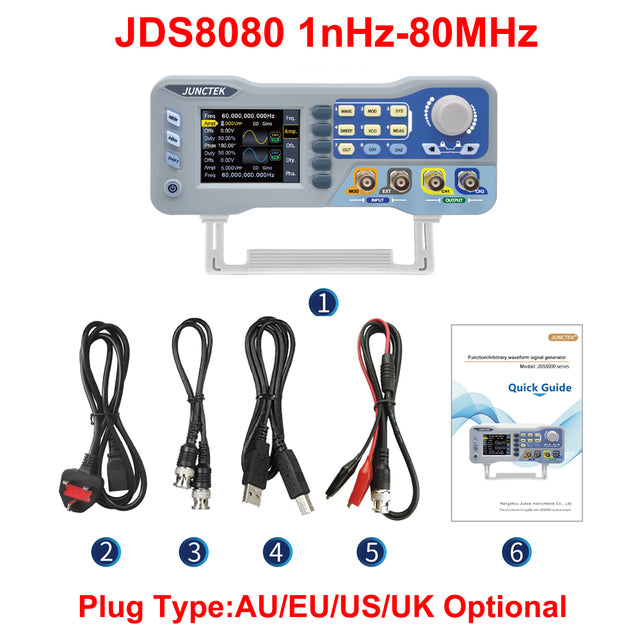

Package Included:

Signal generator X1

Power cord X1

Q9-Q9 straight-through cable X1

USB data cable X1

Clip cable X 2

User's guide X1
