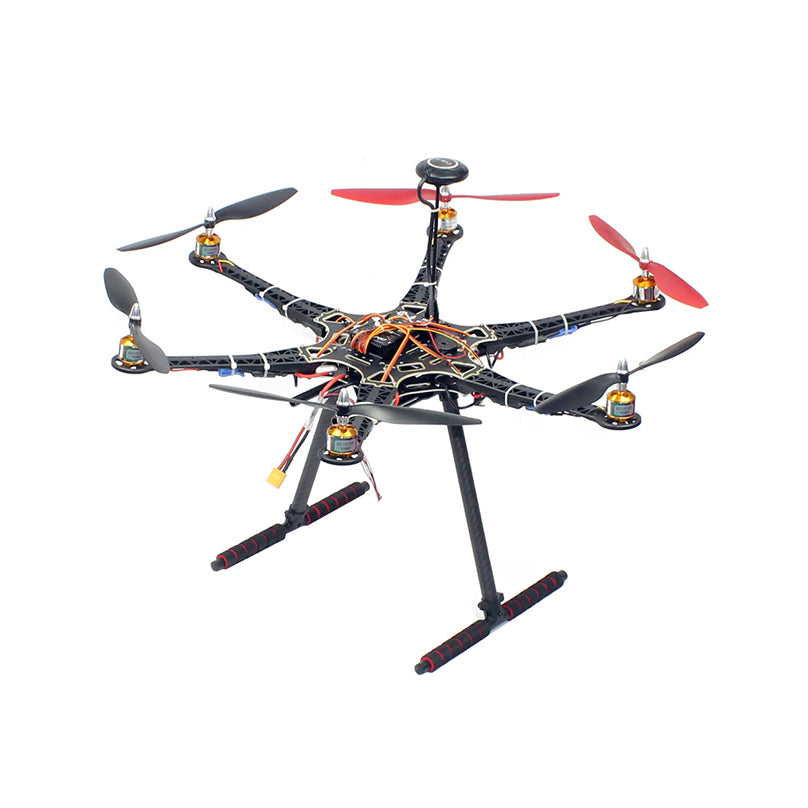

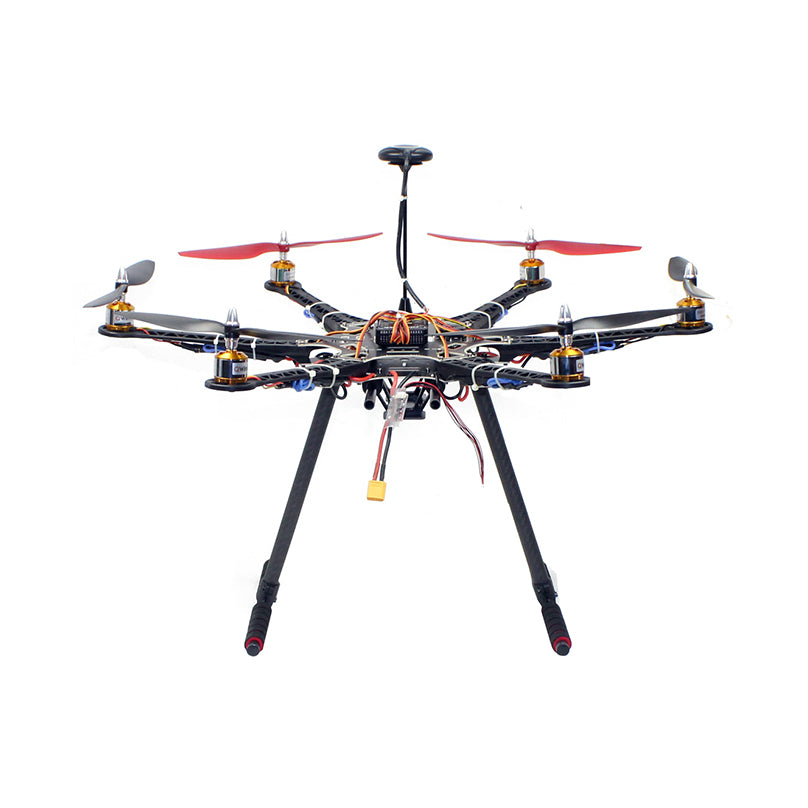

S550 DIY Drone Kit Unassembly PNF 6-Axle Aircraft AirFrame with PIX4 Flight Control 30A ESC 930KV Brushless Motors 1045 Paddles

  DIY Drone kit and unassembled, comes with high quality electronic accessories;

  ESCs and Motors was soldered with 3.5mm banana connectors, Effectively avoid welding problems;

  Only need to add a 2-3S Lipo battery and 6CH above radio system to complete assemble and fly;

  Have Set Up The ESCProgram, Do Not Need Additional Program;

  Colored Paddles for orientation to keep you flying in the right direction.

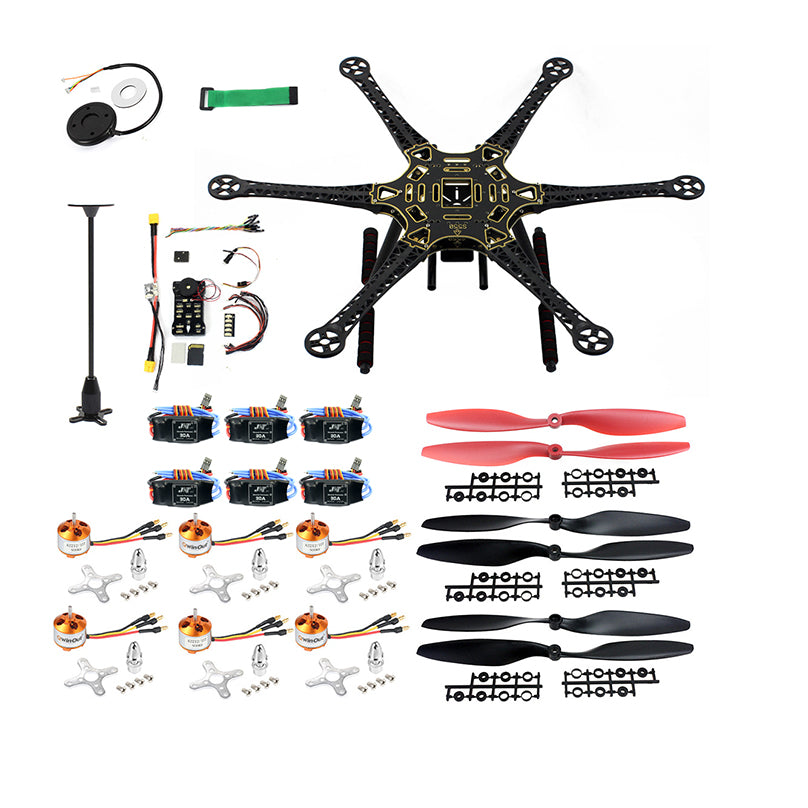

  Package listing:

  1* HMF S550 Hexacopter 6-Axle Frame Kit (F550 Upgraded) with Landing Gear

  2* Pairs of 1045 CW+CCW Propellers (Black)

  1* Pairs of 1045 CW+CCW Propellers (Red)

  6* A2212 930KV Brushless Motor 15T

  6* 30A Brushless ESC Speed Controller

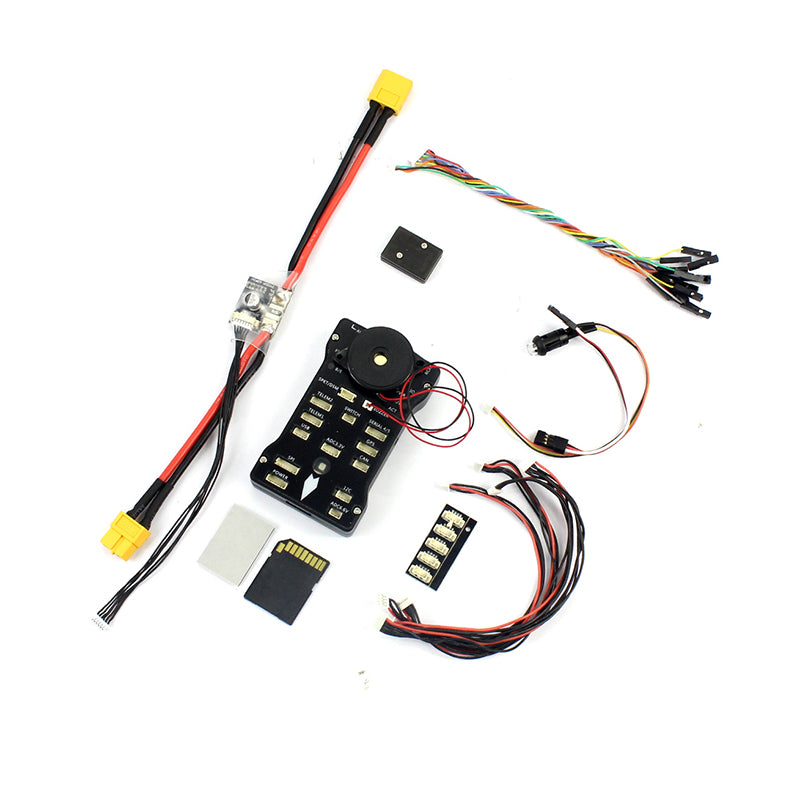

  1* Flight Controller Compatible for PIXHAWK

  1* GPS with Compass

  1* GPS folding antenna Mount

  Parameters:

  Brand: QWinOut

  Wheelbase: 528mm

  Flight Control: Flight controller compatible for Pixhawk

  Motor: A2212 930KV Brushless Motor 15T

  ESC: 2-4S 30A Brushless ESC Simonk Firmware with 5V 3A BEC

  Paddle: 1045 2-blade Plasic

  Loading weight: Up to 1KG under 3S battery (Battery Not included)

  Airframe:

  Wheelbase: 528mm

  Weight: 550g

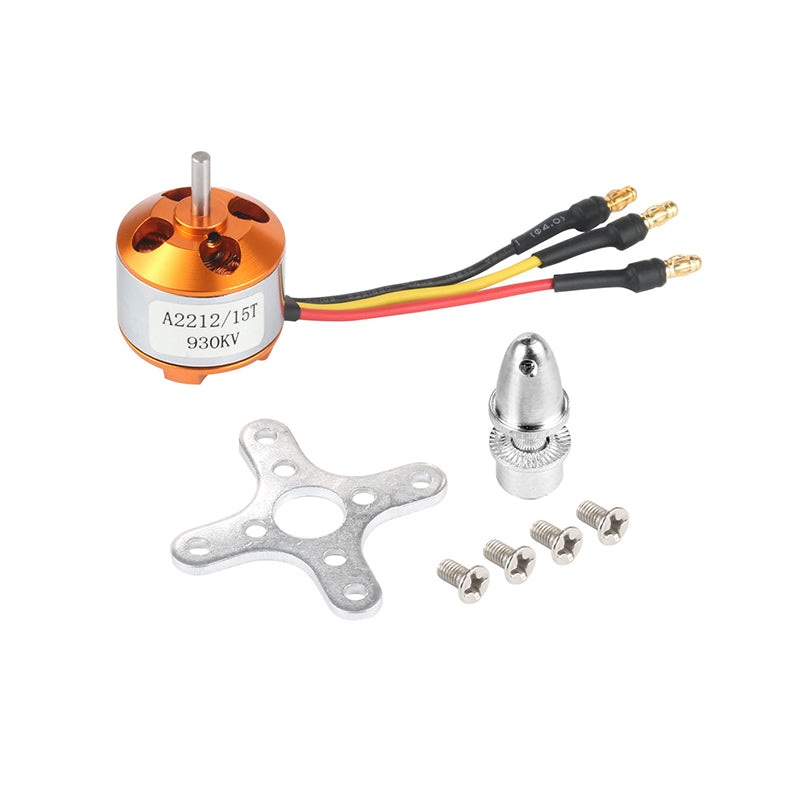

  Motor:

  KV: 930rpm/V

  Min Current:  4A

  Max Current 10A

  Max Efficiency: 80%

  No. Of Cells: 2-3 Li-Poly

  Motor Dimensions: 27.5x30mm

  Shaft Diameter: 3.17mm

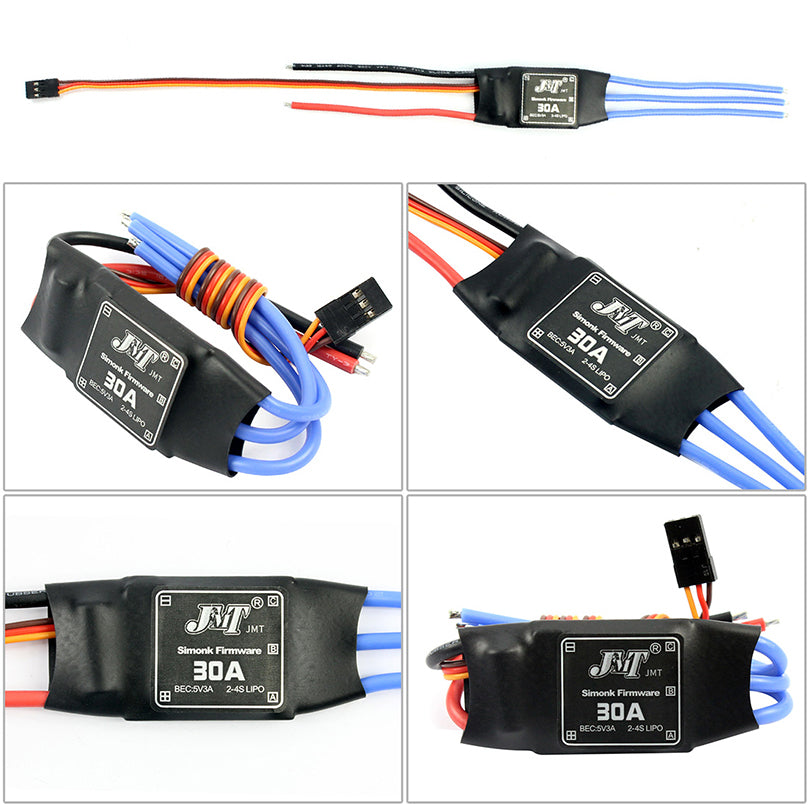

  ESC:

  Working current: 30A

  Output: Continuous 25A, Burst 40A up to 10 Secs

  Input Voltage:2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery

  BEC:5V 3A

  Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM,35,000rpm for 12 poles BLM.(BLM: BrushLess Motor)

  Features

  1.Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.

  2.Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.

  3.Programmable Items:Brake Setting:brake enabled/brake disabled. Battery Type:Li-xx(Li-ion or LiPo)/Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode):Gradually reduce the output power/Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold):low/medium/high. Start Mode: normal/soft/very soft. Timing:low/medium/high. Reset: reset all the programmable items to their default settings.

  4.Full Protection Features: Low voltage cutoff protection/Over-heat protection/Throttle signal lost protection.

  Precautions:

  1. Do not modify any parameters and wiring without knowing the flight control and remote control.

  2. The product is already welded, you only need to assemble it, and bind the receiver with transmitter, then could fly.

  3. Do not charge the battery when you are not at home. Do not charge the battery immediately after flying. Do not over-discharge the battery. (Over-discharge may cause the battery to be charged and become obsolete.) If the battery is fully charged, it may not be charged for a long time.

  4. Turn on the remote control before powering the aircraft. After the flight is over, unplug the power supply and turn off the remote control to prevent accidents.

  5. You can fly it on open space when there is no wind, do not fly in the crowd and surrounding areas with interference.

  6. The product is unassembled. Please watch the teching video before you assemble it, we have the instructions, which would come with the products, and we have a professional dedicated technical team to help solve the relevant questions.

  7. If the customer needs to assemble, we will give a reasonable quotation for additional logistics freight and technical assembly fees.

  8. This product is not a toy and is not suitable for children under 14 years old.

  9. If you are a beginner, it is recommended to be assisted by experienced adults.

  10. Novices should pay attention to the fact that when the plane is turning, do not take the plane with your hand or let the child take it to prevent it from being scratched.

  11. When the aircraft falls into the wall or hit other objects at high altitude, please close the start switch in time. Otherwise, it may cause damage to the flight control motor. Check the aircraft for damage. If the screw is loose, wait until everything is normal before you can take off again.
