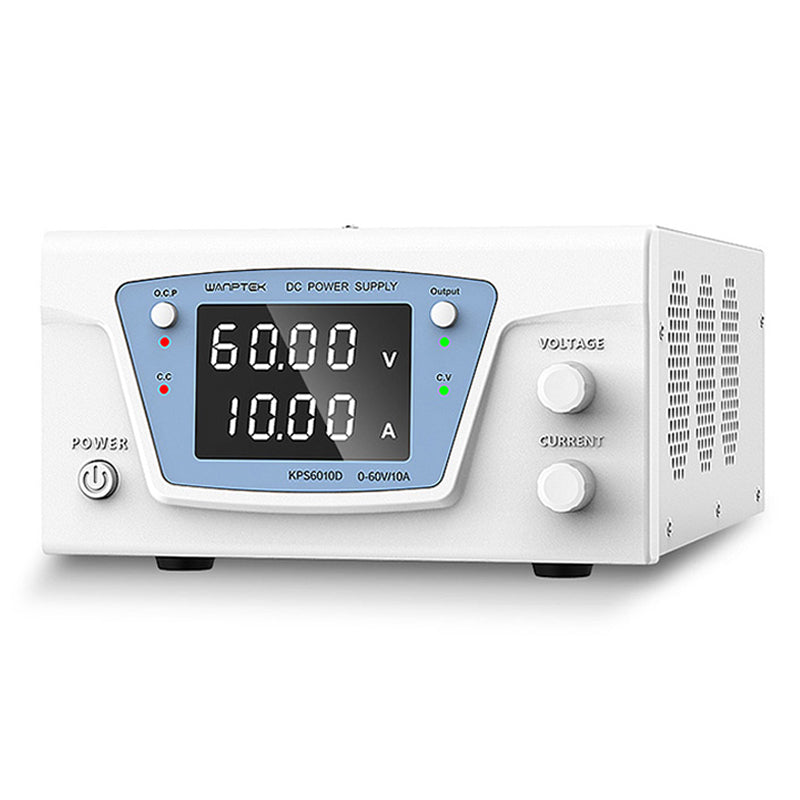

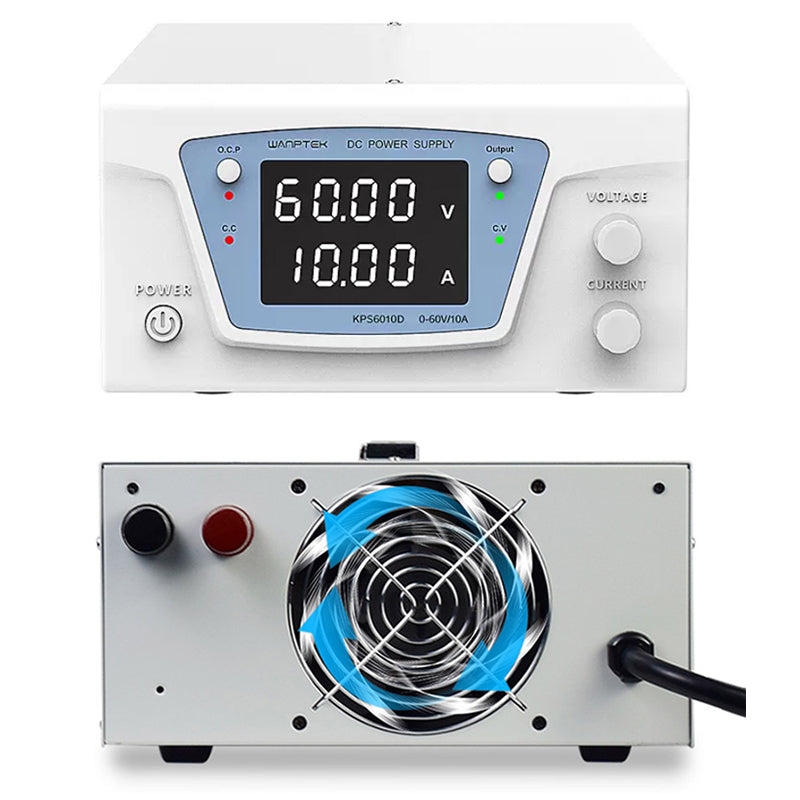

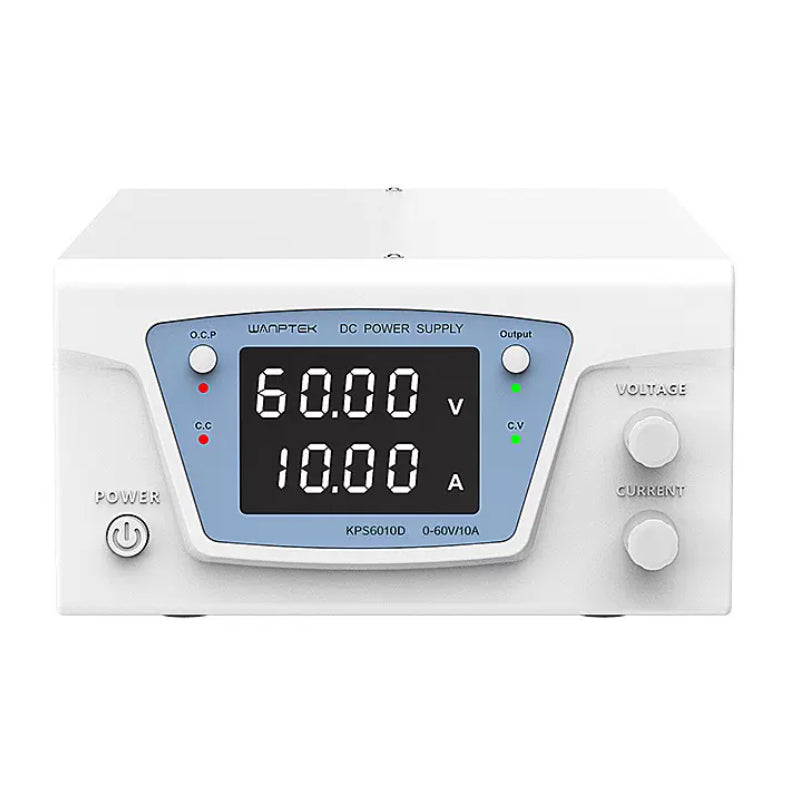

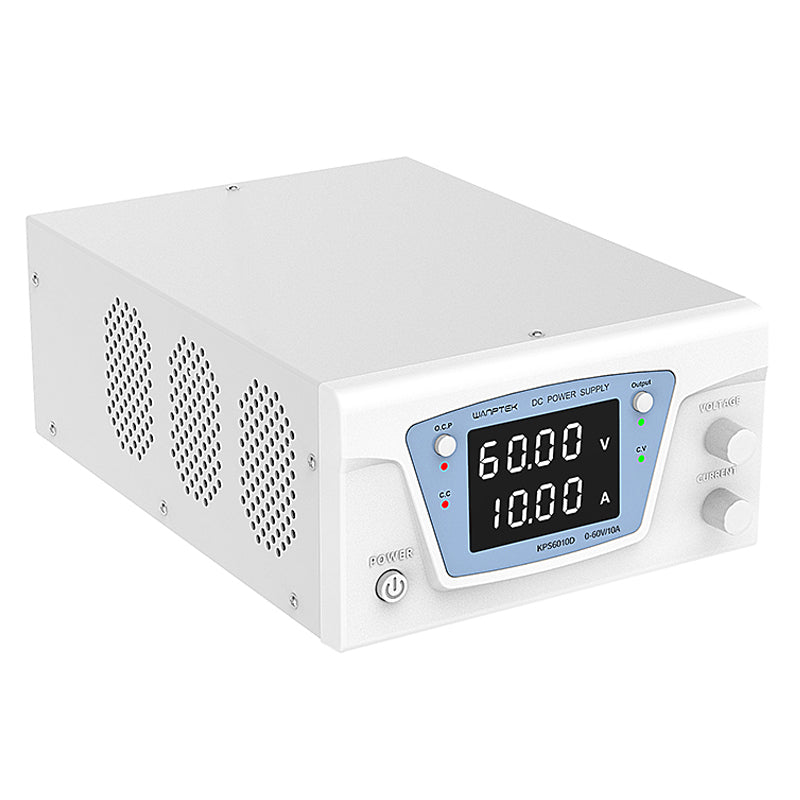

Power Supply 220V EU 60V/10A
KPS series is a single set of output, high precision double display switch dc power supply.Machines have complete operating protection function, with high performance, low ripple, high stability , light weight and small volume etc. Current limiting protection
can make KPS power supply and load against accidental damage. KPS series power supply with low temperature control circuit, a cooling fan noise is low.
Features：
1, small size, light weight, low ripple;
2, PWM modulation, high-performance, power foot, stable performance;

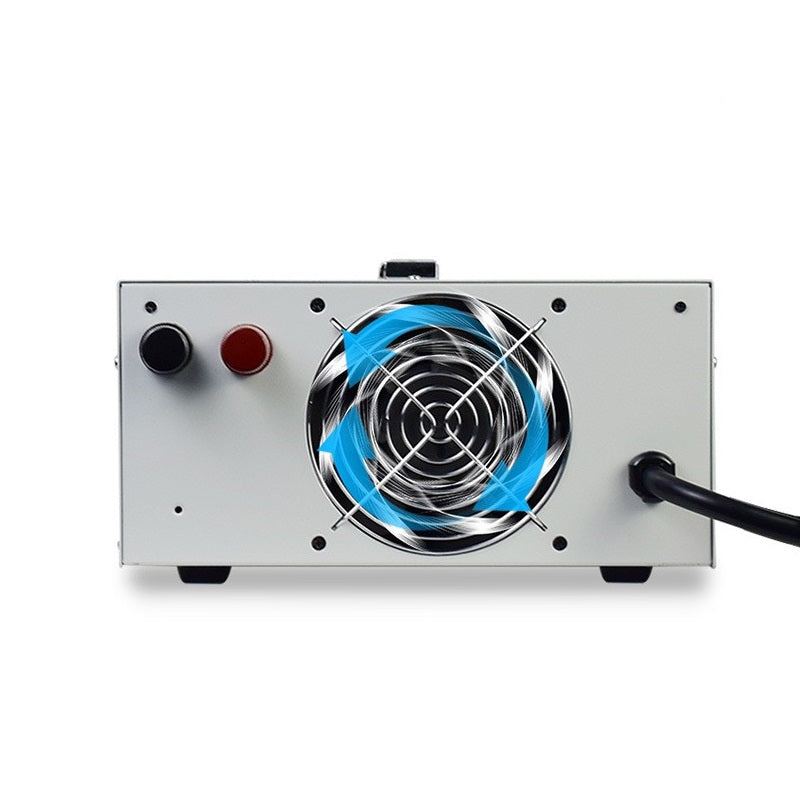

3, intelligent temperature control circuit, a cooling effect, low noise;
4, voltage, current dual LED display and intuitive;
5, voltage regulation, current limiting, simple operation;
6, over-voltage, current limiting, over temperature, over power, short circuit, such as multiple protection;
Technical indicators
Input voltage:AC 220V10%,50Hz
Output voltage:0 ~60V
Output current:0 ~ 10A
Voltage resolution:0.1V
Current resolution:0.1A
Power effect:CV0.3%+10mV
Effect of load:CV0.5%+30mV
Ripple and noise:Vp-p0.5%+10mV
Voltage display precision:1%+1digits
Current display precision:1%+1digits
Net/gross Weight (KG):5.0-5.3/6.2-6.5
Product size(mm):260W×160H×375L
Package size(mm):340W×240H×415L
Operating environment:(-10~45)C Rh<90%
Working time:a long time

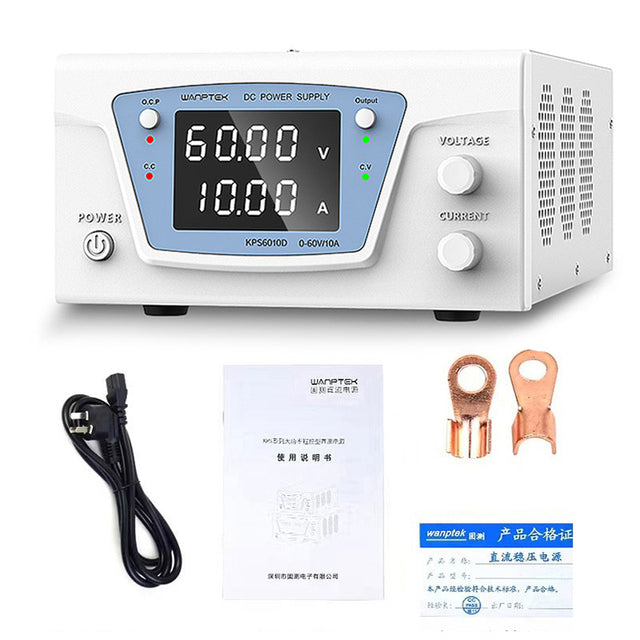

Standard Accessories:
Power cord×1 Instruction book×1 Warranty card certification×1
Product Model
Model
Output
Model
Output
voltage
current
Rated power
voltage
current
Rated power
KPS1530D
15V
30A
450W
KPS3020D
30V
20A
600W
KPS1540D
15V
40A
600W
KPS3030D
30V
30A
900W
KPS1550D
15V
50A
750W
KPS3040D
30V
40A
1200W
KPS1560D
15V
60A
900W
KPS3050D
30V
50A
1500W
KPS6010D
60V
10A
600W
KPS3060D
30V
60A
1800W
KPS6020D
60V
20A
1200W
KPS1005D
100V
5A
500W
KPS6030D
60V
30A
1800W
KPS10010D
100V
10A
1000W
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
