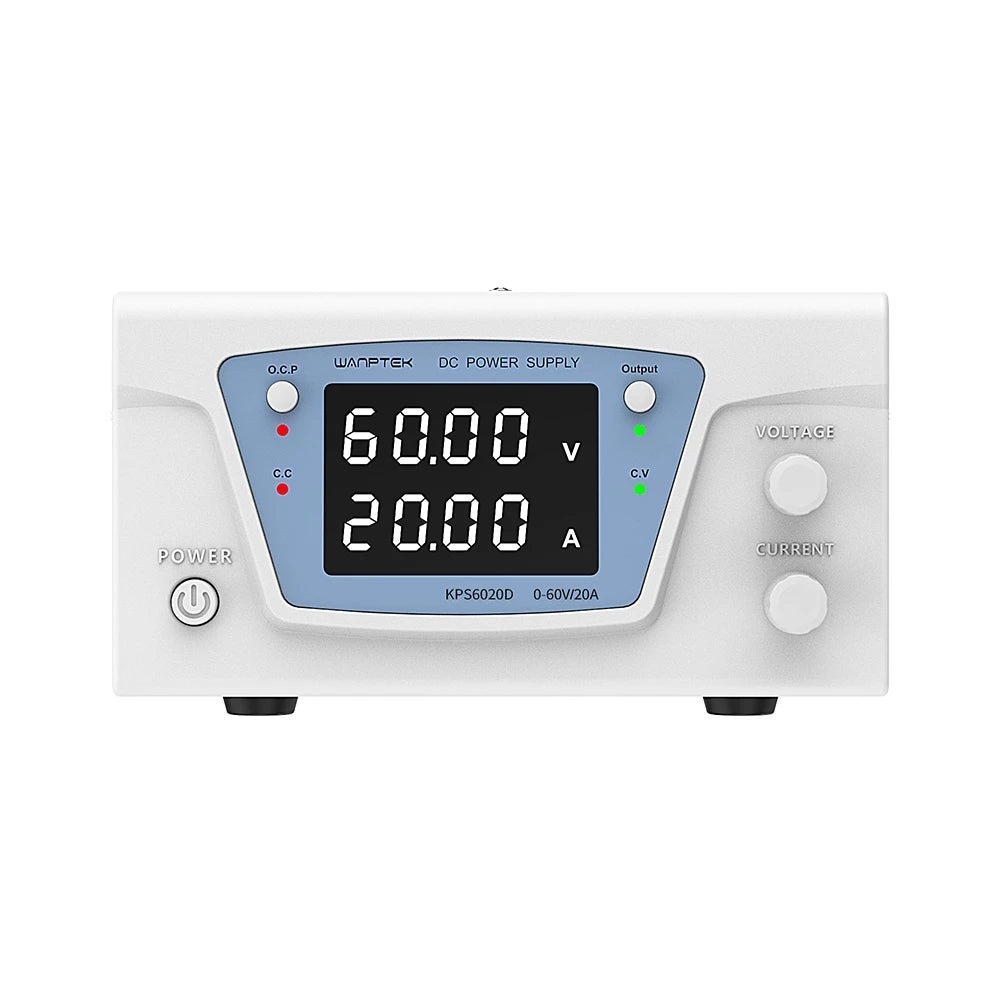

Power Adjustable LED Display Switching DC Power Supply 220V 0-60V/0-20A For Laboratory and Teaching

Summary:

KPS series is a single set of output, high precision double display switch dc power supply.

Machines have complete operating protection function, with high performance,

low ripple, high stability, light weight and small volume etc..

Current limiting protection can make KPS power supply and load against accidental damage.

KPS series power supply with low temperature control circuit, a cooling fan noise is low.

Special point:

1, have complete operating protection function

2, highly efficient, low ripple, small volume, light weight

3, double display voltage, current, and high precision

4, voltage stabilization, current limiting, simple operation

5, dual voltage input and convenient choice

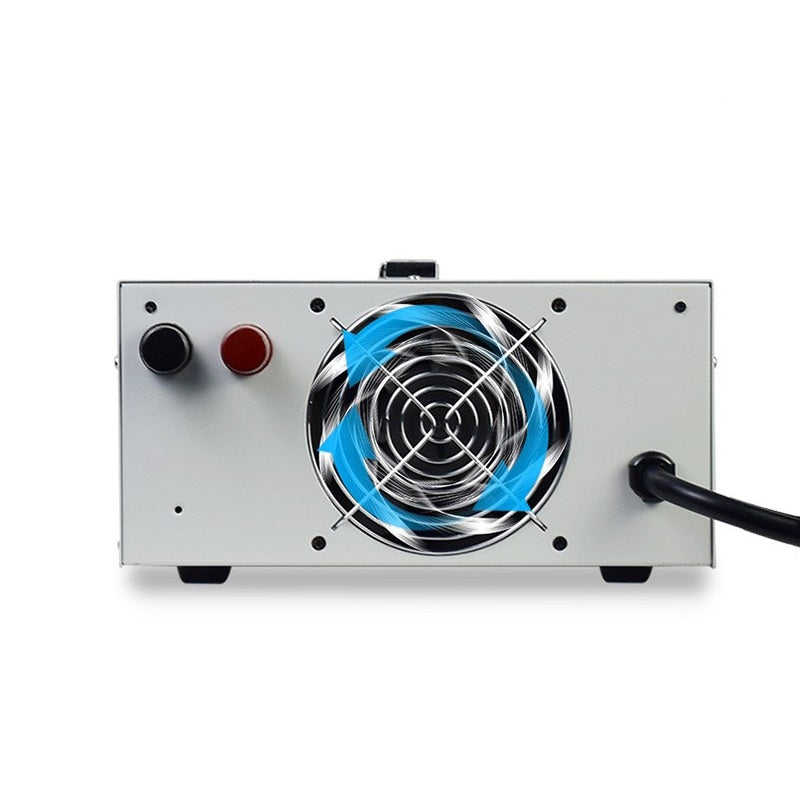

6, temperature control fan heat dissipation, low noise

7, Double potentiometer more precise adjustment

Product application:

1, production line test

2, electrical maintenance

3, life products aging test

4, battery charging

5, laboratory, research and teaching

6, all other needs DC power supply

Technical indicators:

Input voltage:AC 220V±10%,50Hz

Output voltage:0 ~ Nominal value

Output current:0 ~ Nominal value

Voltage resolution:0.1V

Current resolution:0.1A

Power effect:CV≤0.3%+10mV

Effect of load:CV≤0.5%+30mV

Ripple and noise:Vp-p≤0.5%+10mV

Voltage display precision:±1%+1digits

Current display precision:±1%+1digits

Net/gross Weight (KG):5.0-5.3/6.2-6.5

Product  size(mm):260W×160H×375L

Package size(mm):340W×240H×415L

Operating environment:(-10~45)C Rh<90%

Working time:a long time

Standard Accessories:

Power cord×1  Instruction book×1  Warranty card certification×1

Product Model:

      Model

   Output

   Model

   Output

       voltage

   current

   Rated power

   voltage

   current

   Rated power

       KPS1530D

   15V

   30A

   450W

   KPS3020D

   30V

   20A

   600W

       KPS1540D

   15V

   40A

   600W

   KPS3030D

   30V

   30A

   900W

       KPS1550D

   15V

   50A

   750W

   KPS3040D

   30V

   40A

   1200W

       KPS1560D

   15V

   60A

   900W

   KPS3050D

   30V

   50A

   1500W

       KPS6010D

   60V

   10A

   600W

   KPS3060D

   30V

   60A

   1800W

       KPS6020D

   60V

   20A

   1200W

   KPS1005D

   100V

   5A

   500W

       KPS6030D

   60V

   30A

   1800W

   KPS10010D

   100V

   10A

   1000W

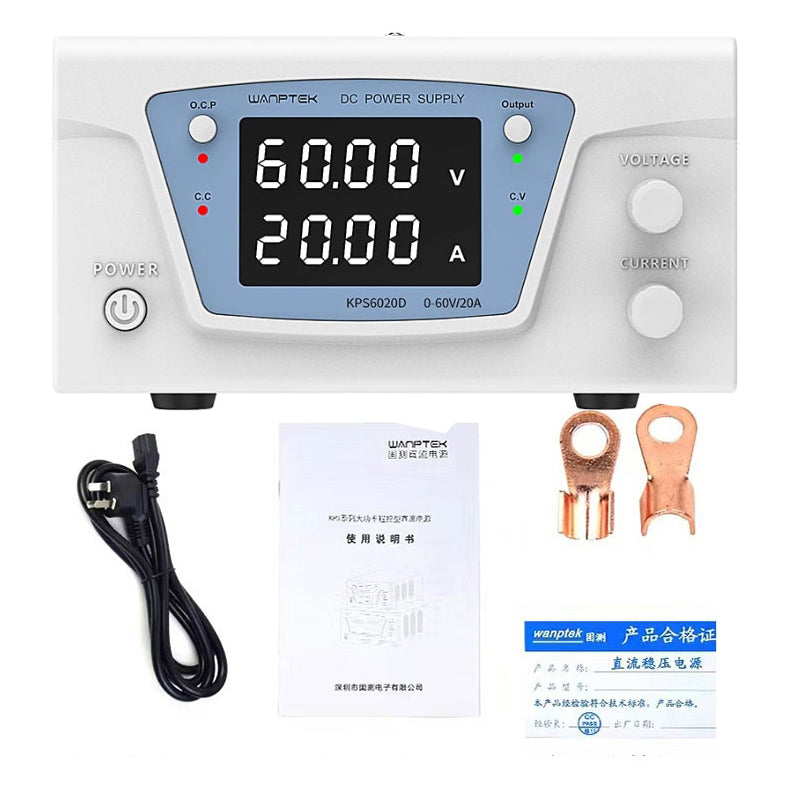

 Package include:

 1 x  DC Power Supply

 1 x EU Power cable

 1 x User Manual
