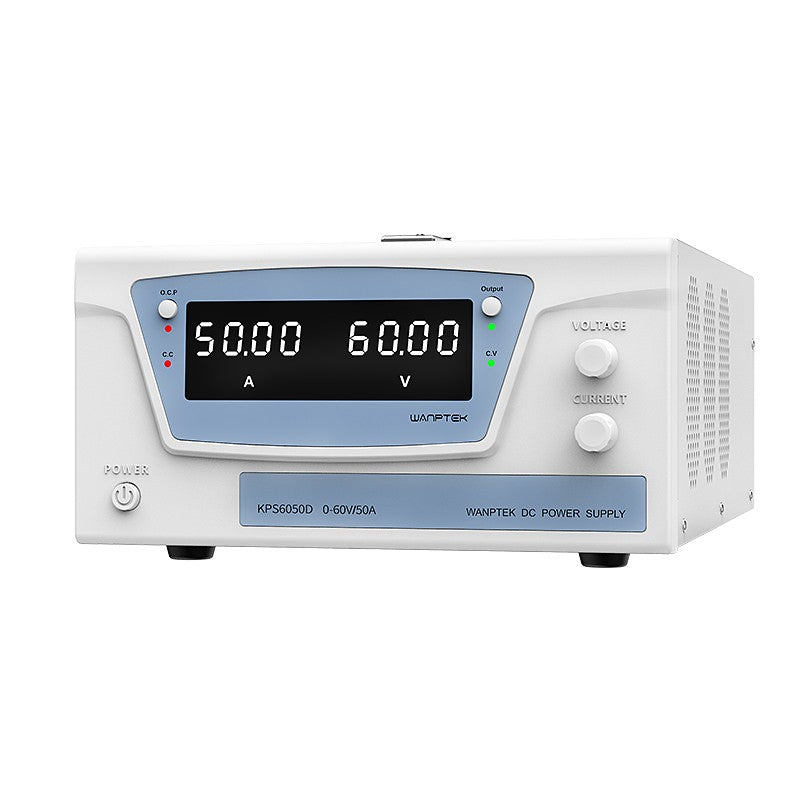

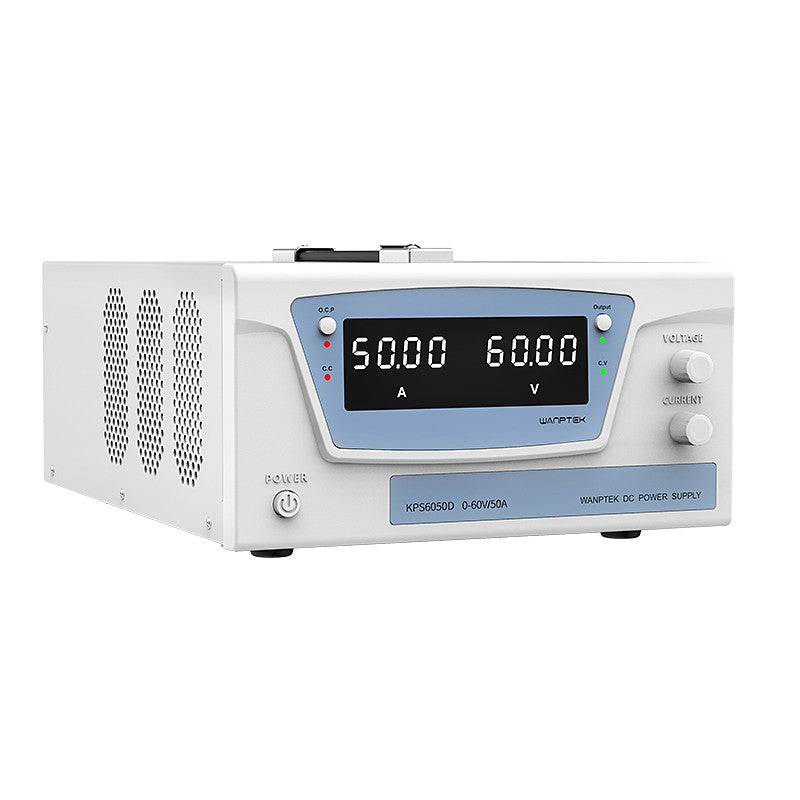

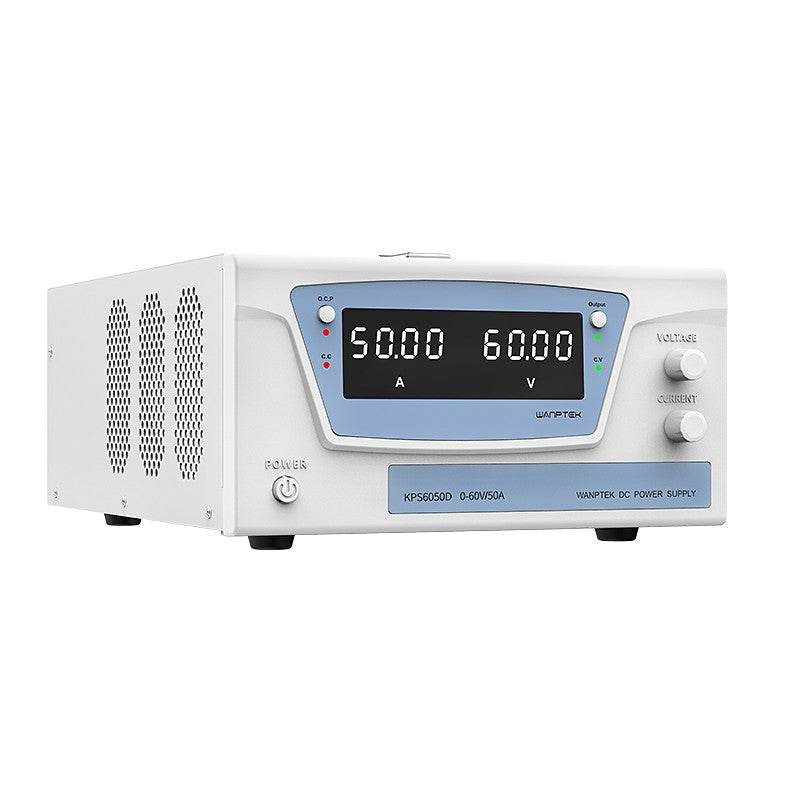

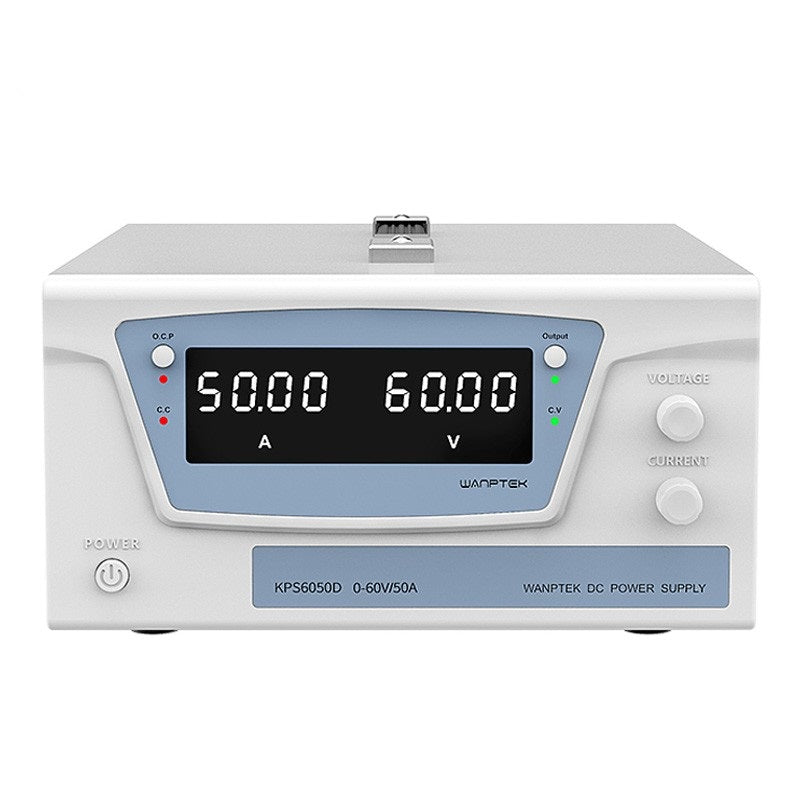

KPS series is a single set of output, high precision double display switch dc power
supply.Machines have complete operating protection function, with high performance,
low ripple, high stability , light weight and small volume etc. Current limiting protection
can make KPS power supply and load against accidental damage.
KPS series power supply with low temperature control circuit, a cooling fan noise is low.
Special point
1, have complete operating protection function
2, highly efficient, low ripple, small volume, light weight
3, double display voltage, current, and high precision
4, voltage stabilization, current limiting, simple operation
5, dual voltage input and convenient choice

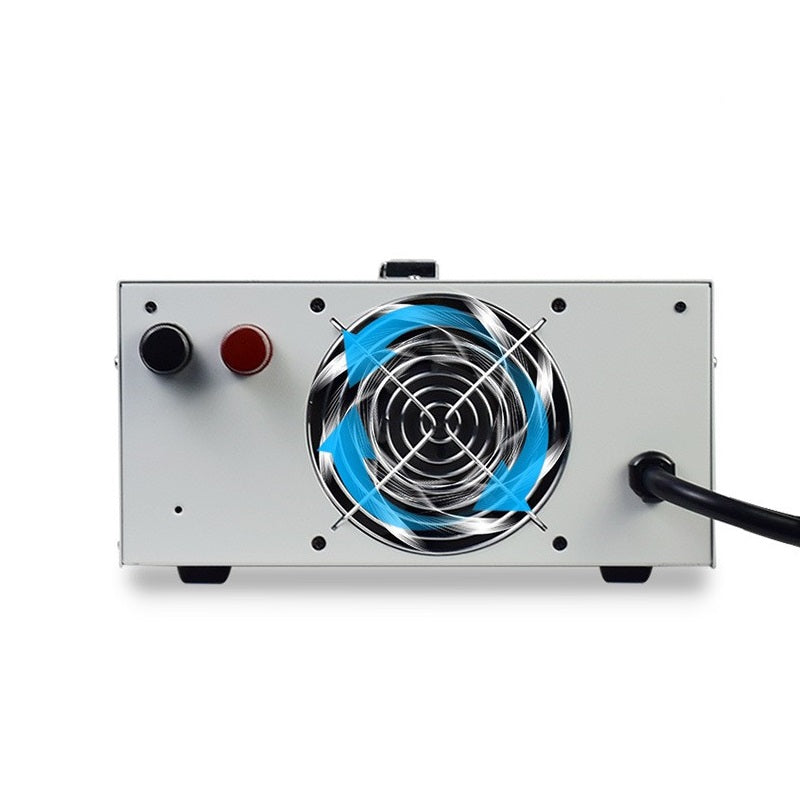

6, temperature control fan heat dissipation, low noise
7, Double potentiometer more precise adjustment
Product application
1, production line test;
2, electrical maintenance;
3, life products aging test;
4, battery charging;
5, laboratory, research and teaching;
6, all other needs DC power supply;
Technical indicators
Input voltage:AC 220V±10%,50Hz
Output voltage:0 ~ Nominal value
Output current:0 ~ Nominal value
Voltage resolution:0.1V
Current resolution:0.1A
Power effect:CV≤0.3%+10mV
Effect of load:CV≤0.5%+30mV
Ripple and noise:Vp-p≤0.5%+10mV
Voltage display precision:±1%+1digits
Current display precision:±1%+1digits
Net/gross Weight (KG):5.0-5.3/6.2-6.5
Product size(mm):260W×160H×375L
Package size(mm):340W×240H×415L
Operating environment:(-10~45)C Rh<90%
Working time:a long time
