I. Technical Parameters

                              Parameters

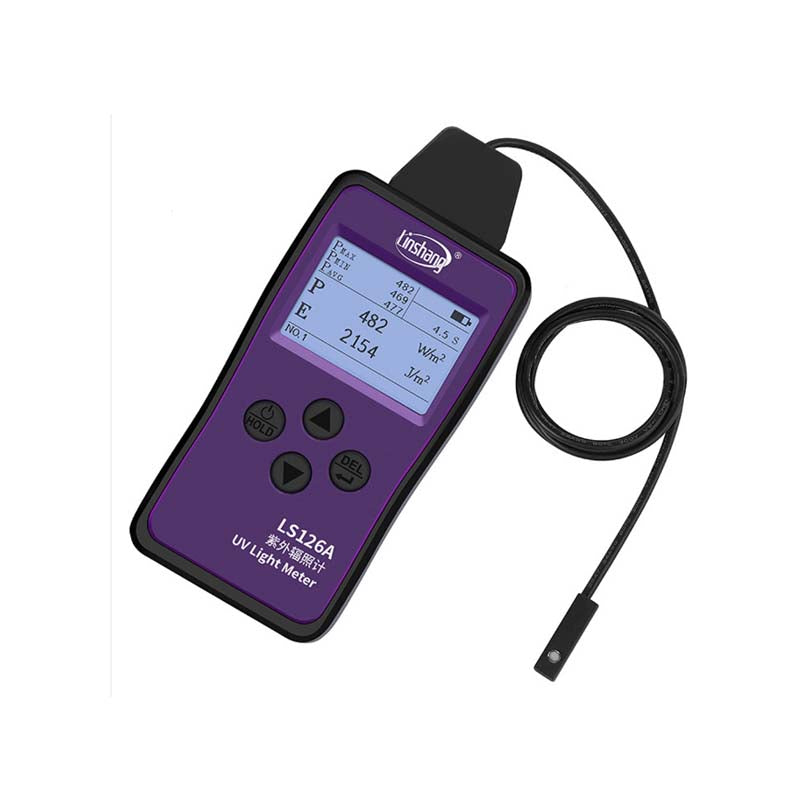

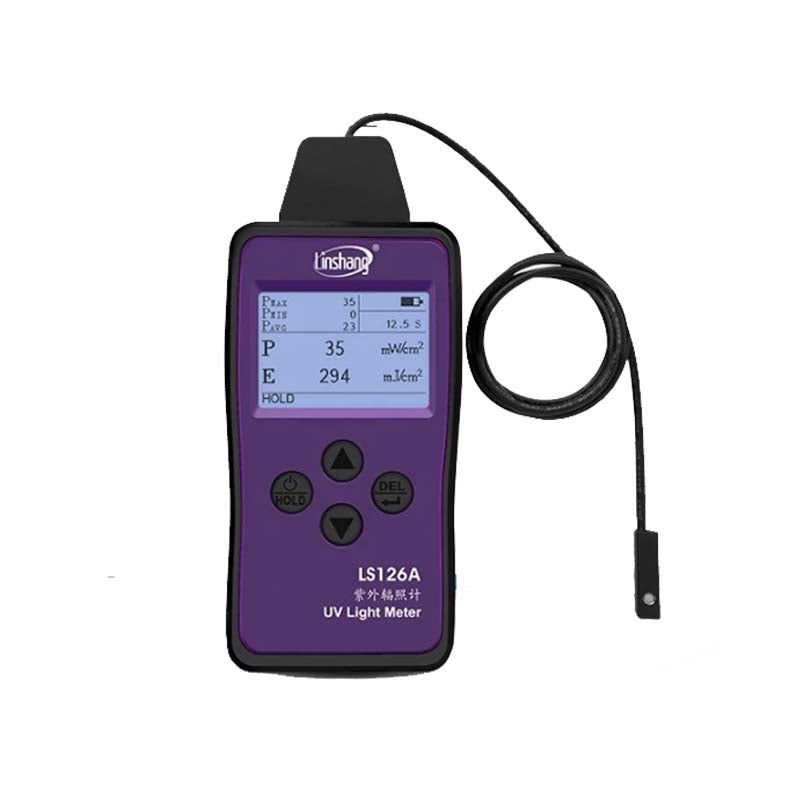

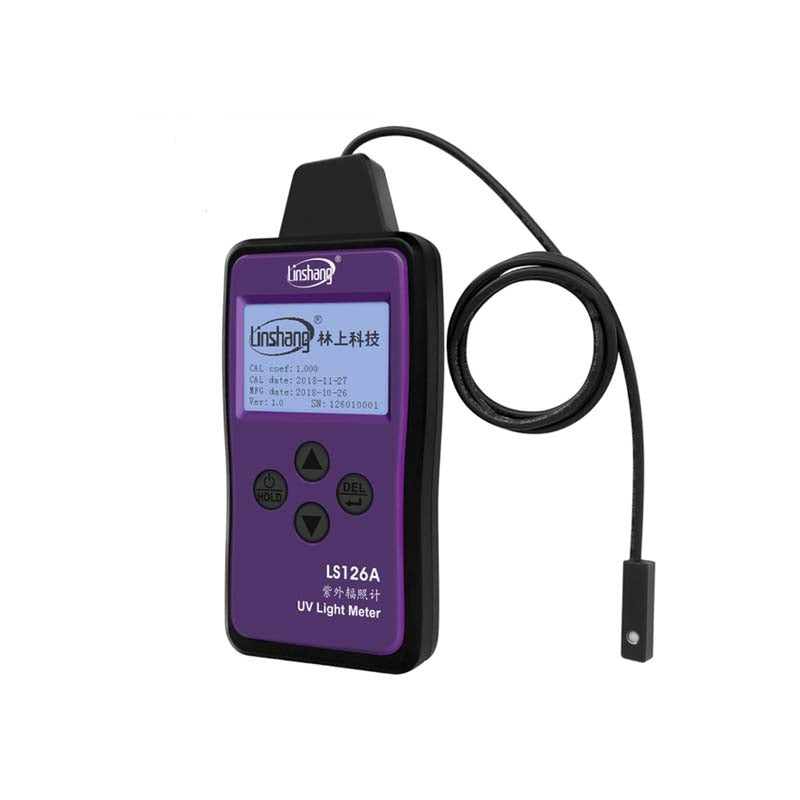

        LS126A UV Light Meter

                      Spectral response

        340nm-420nm, calibrated with 395nm UV LED light source

                      Measuring range

        0 - 20000mW/cm2

                      Resolution

        1mW/cm2

                      Energy measuring range

        0-9999999mJ/cm2

                      Record time

        0-99999s

                      Accuracy

        ±10 %

                      Sampling speed

        2000times/second

                      Optional unit

        mW/cm2 (default), W/cm2, W/m2

                      Test Hole Diameter

        ￠=3mm

                      Probe size

        28mm long×7.2mm wide ×6.5mm thickness

                      Instrument size

        148mm long ×76mm wide ×26mm high

                      Probe wire length

        0.8m

                      Instrument weight

        About 232 grams

                      Display

        240*160 dot matrix LCD

                      Battery

        4 AAA alkaline dry batteries (Not including package)

       II. Spectral response curve

            III. Product features

         1. The probe is designed with ultra-small size; the narrowest width that can be put in is 7.2mm.

               2. With a high-speed sampling speed of 2000 times per second, accurately calculate the UV energy value.

           3. Have statistical function, directly display real-time value, maximum value, minimum value, average value and measurement duration.

           4. Suitable for measuring the intensity and energy of UV LED light source for UV curing machine.

           IV. Precautions

           1. When not in use, please power off the instrument.

           2. Avoid contacting with corrosive materials and keep away from high humidity.

           3. After shutdown, store it in a special packing box and keep it in a safe place. Protect the photosensitive part of the probe from polluting.

           4. The recommended period of calibration is one year.

           5. Because the UV probe is sensitive to humidity, the environment in which it is stored is important. When not in use for a long time, be sure to store the instrument in a low humidity environment.

           6. When the instrument displays low battery, replace the battery.

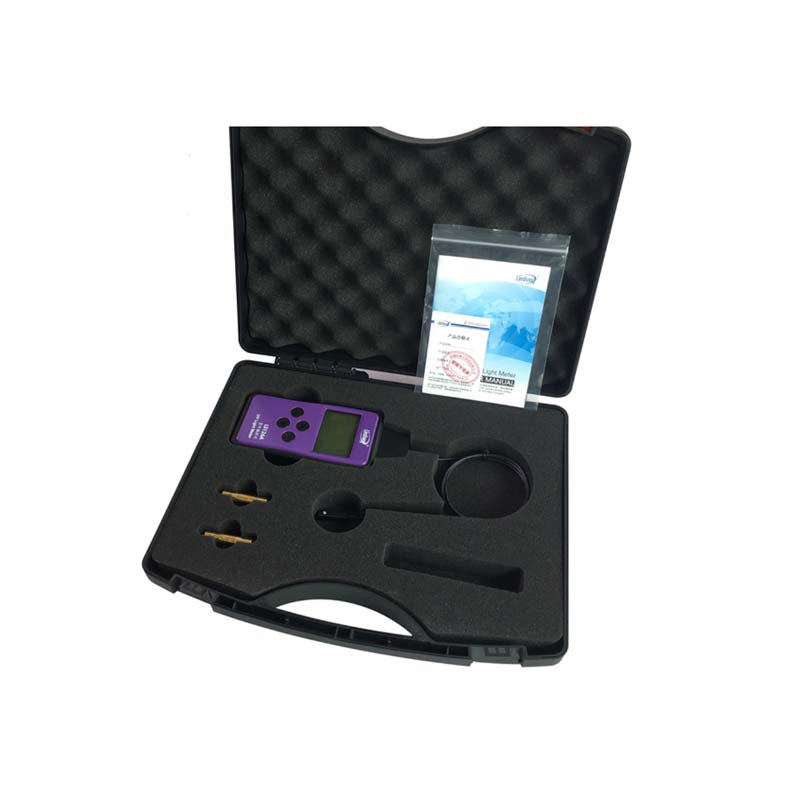

           V. Packing list

                              No.

        Item

        Quantity

        Unit

                      1

        LS126A UV light meter

        1

        Pcs

                      2

        AAA battery

        4

        Pcs

                      3

        User manual

        1

        Pcs

                      4

        Certificate/Warranty card

        1

        Pcs

                      5

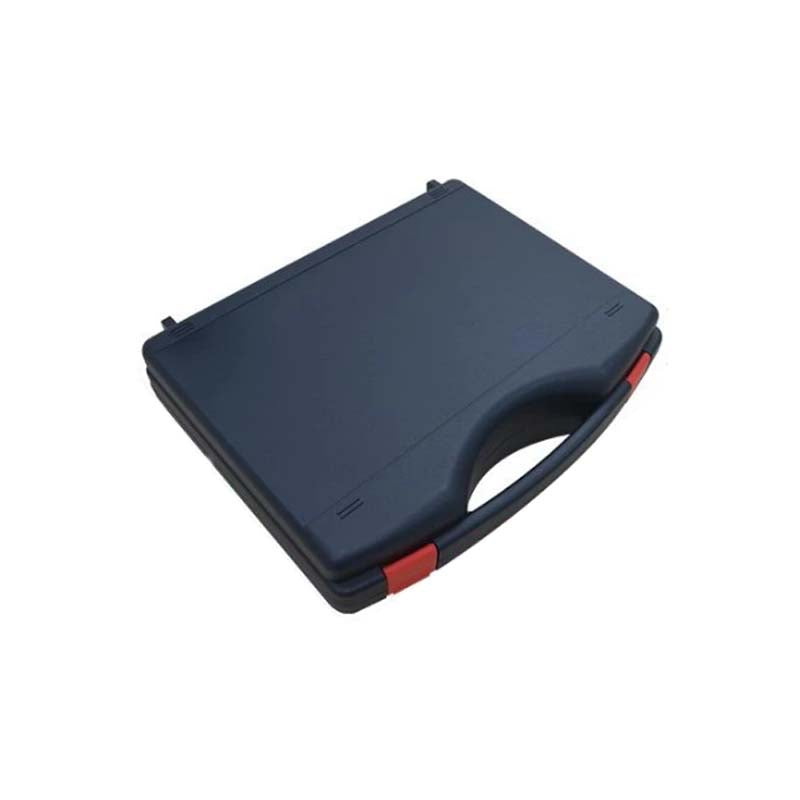

        Plastic box

        1

        Pcs

           VI. Service

           1． The instrument has one-year warranty. If the instrument works abnormally, please send the whole instrument to our company for maintenance

           2． Provide users with spare parts and lifelong maintenance services

           3． Provide the users with the instrument calibration service

           4． Free technical support for long term
