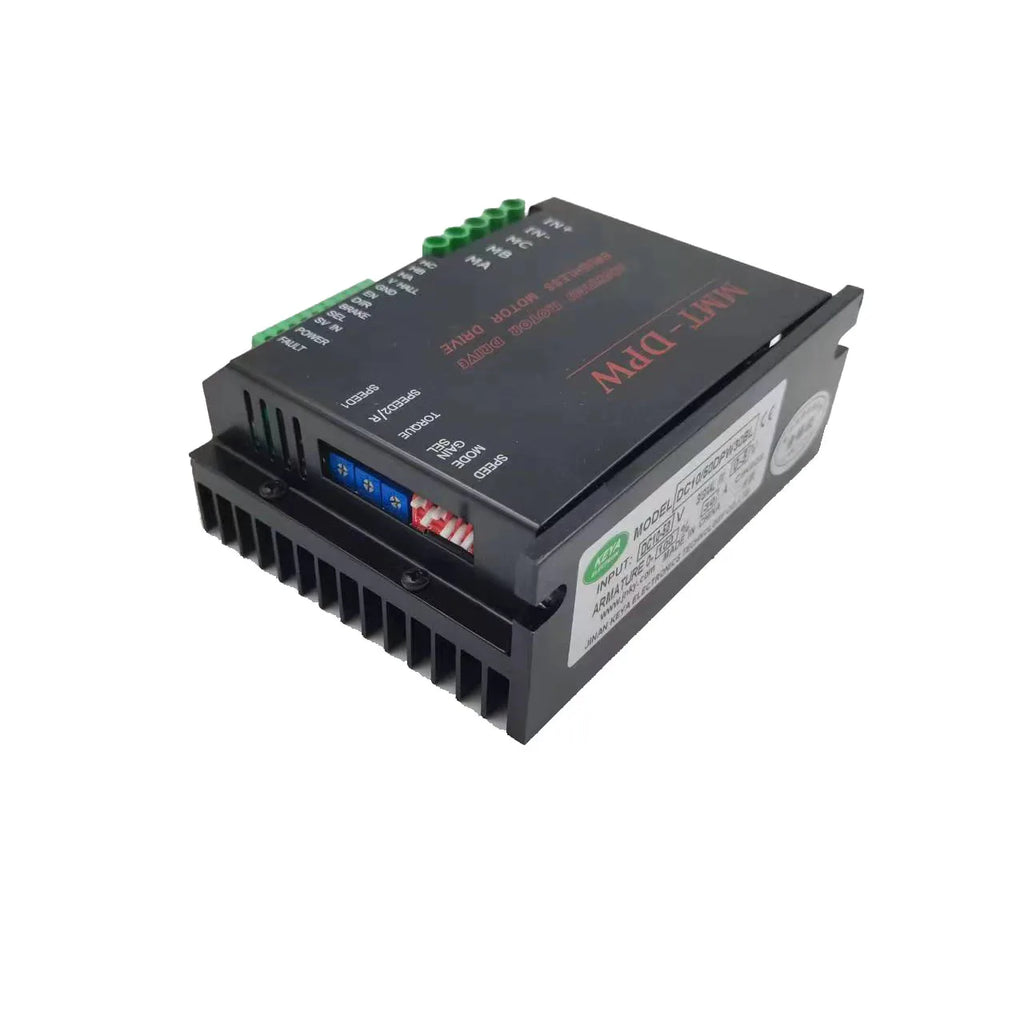

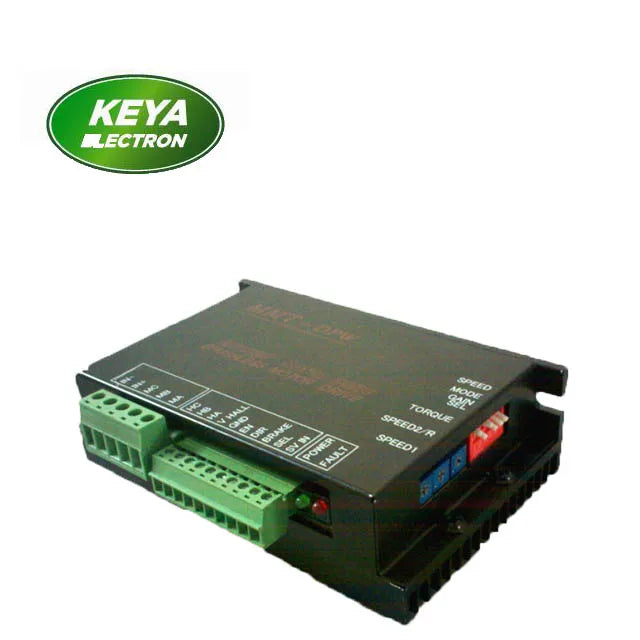

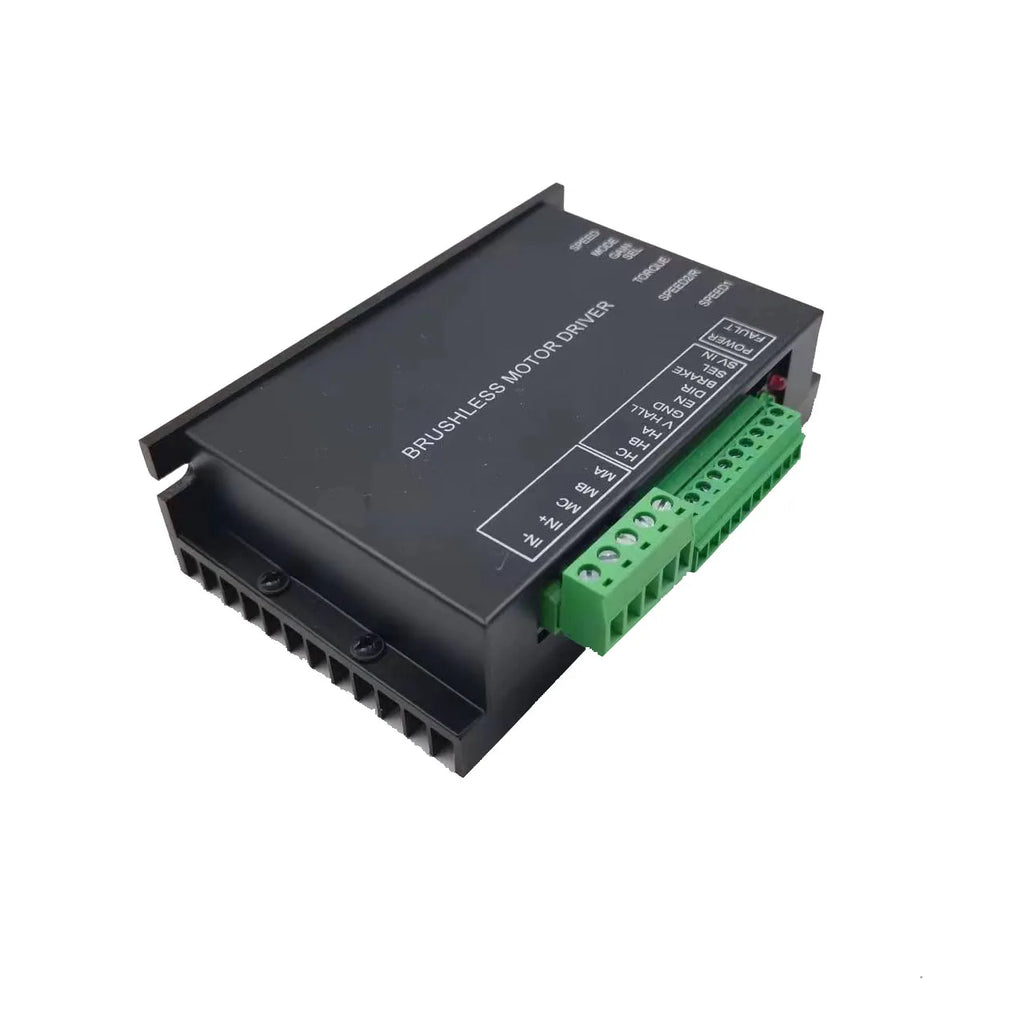

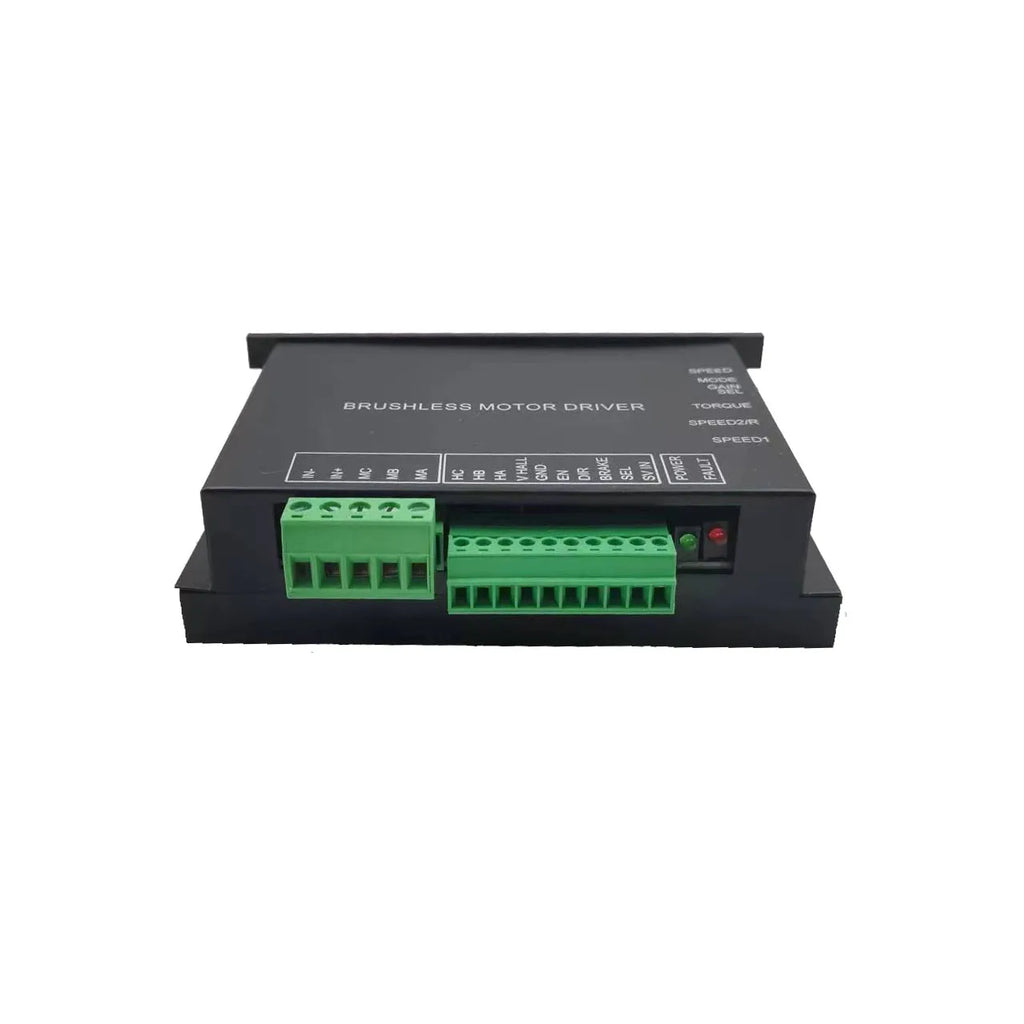

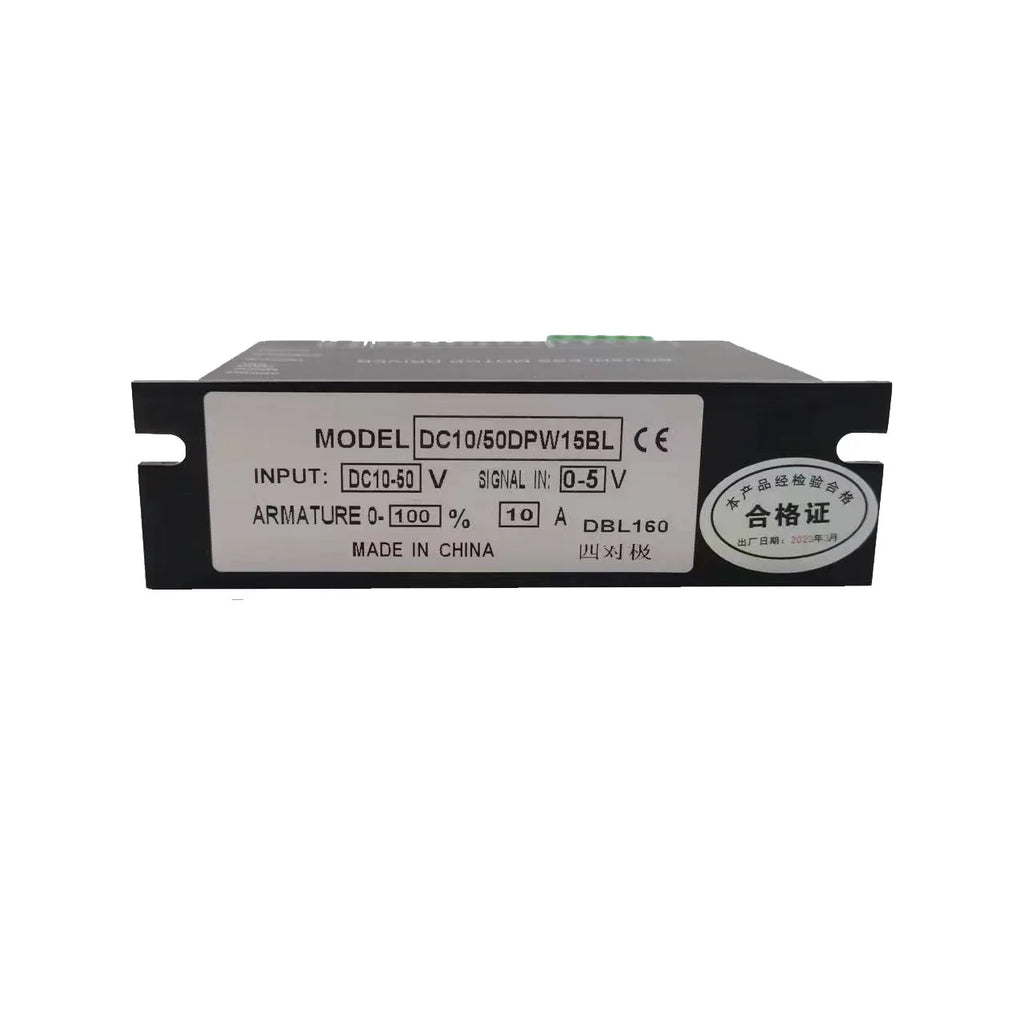

Low Voltage 24v 15A DC Brushless Motor Controller/BLDC Motor Controller

Low Voltage 24v 15A DC Brushless Motor Controller/BLDC Motor Controller

Name: Low Voltage 24v 15A DC Brushless Motor Controller/BLDC Motor Controller
Brand: mickcara
SKU: 45731792158857
Price: 141.41 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code:

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$141.41

Quantity:

Subtotal: $141.41

283 customers are viewing this product

Tags:

Description

BLDC drives is a powerful driver designed by keya Technology independence which is assorted with the advanced motion control industrial. The drives adopt the latest DSP specialized for motor as the core technical matched with high speed digital logic chips and high quality power module. It gets the advantage on highly integration,small volume, well protection, high reliability etc. This drives can provide: panel speed adjust command, external simulative voltage, external potentiometer, pulse width speed adjust etc. 1.This produce has three manners of working: speed control, current control and open-loop control. 2.Control functions of braking, direction, enable, first-magnification, dual speed setting, etc. can be realized. 3.Maximum current limit can be adjusted. 4.0-5V signal control mode for external potentiometer, interior potentiometer and external analog quantity and soft start function. 5.Time setting function for soft start. 6.Overcurrent protection function and locked-rotor protection. 7.High-speed control, which has a full speed of one pole pair motor can reach 120000RPM. II: Performance Indexes: 1.Power supply voltage VCC: 10—50VDC (error <5% is better). 2.Maximum output voltage: Vout=0.95 VCC. 3.Maximum output current: 15A. 4.Switching frequency: 39KHz. 5.Maximum speed (one pole pair motor): 120,000rpm. 6.Hall power supply voltage range: 7—12VDC Maximum output current is 30mA. 7.Locked-rotor protection time: 1.5 seconds. 8.Ambient temperature: -10-- +600C. Ambient humidity: relative humidity≤80RH. 9.Analog quantity output: 0-- +5VDC. 10.Soft start time: 20ms—10S. 11.Regulation voltage of external potentiometer: 0--+5V potentiometer (10KΩ/2W). 10.Overall dimension (including radiator): 122*35*72mm. 11.Weight: approximate 300g. we have a series of these controller for you to choose as follows:
