Features:

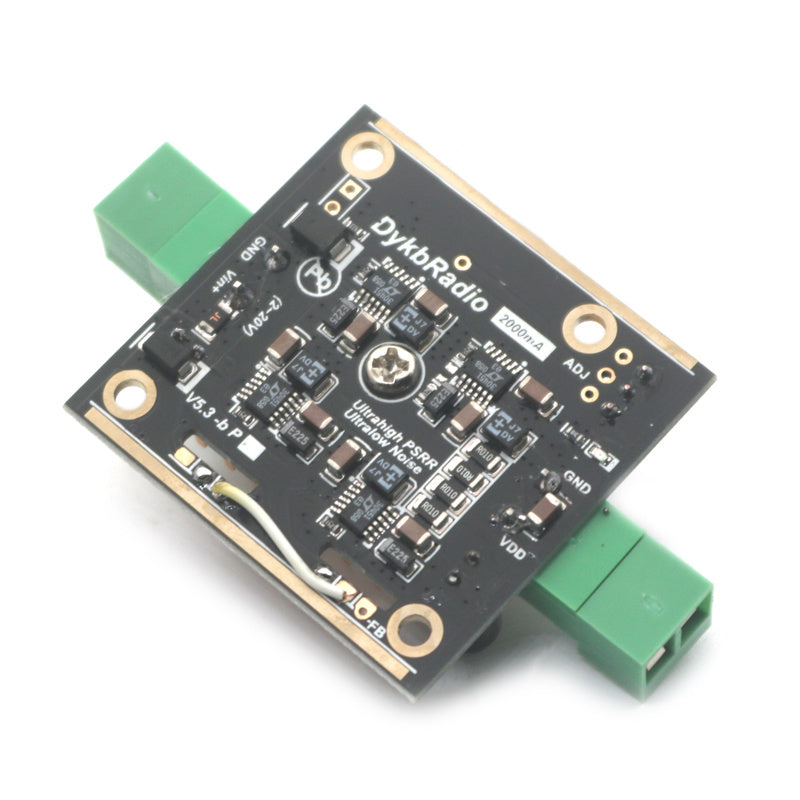

The module uses 4LT30451 chips in parallel to form 2A current outputs. The module has input reverse protection and safety circuit. The module uses an impedance regulating filter circuit to improve the ripple suppression ability.
The module uses a Bourns 3296 multi-turn trimmer potentiometer to adjust the positive output voltage. The module supports adjusting the output voltage with a fixed resistance value resistor. Module support power status LED indicator function.

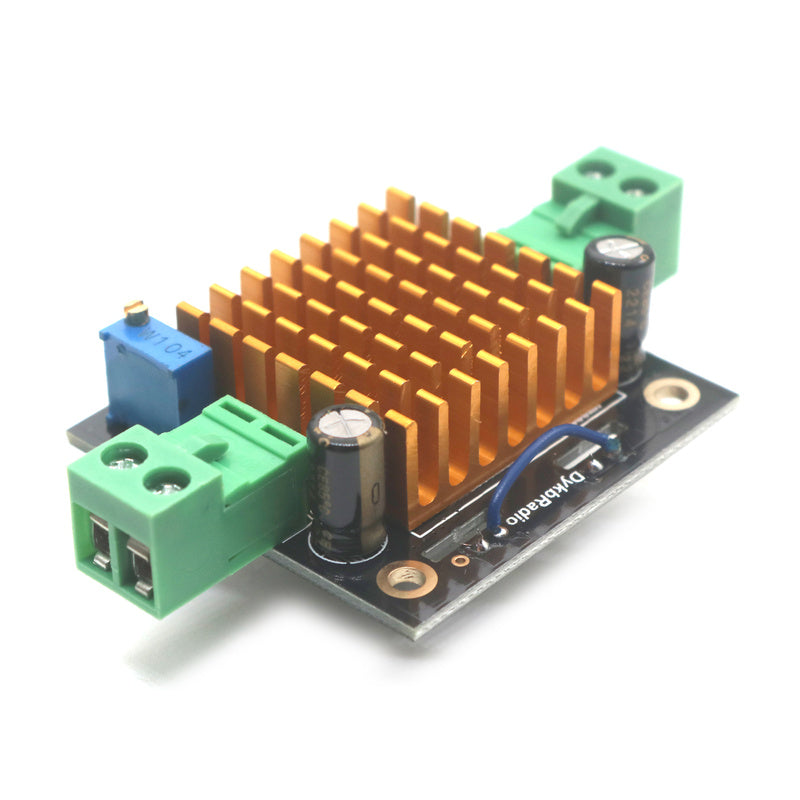

Modules use international standard 5.0 pitch pins. The module is equipped with connection terminals and high current pins for various application requirements.

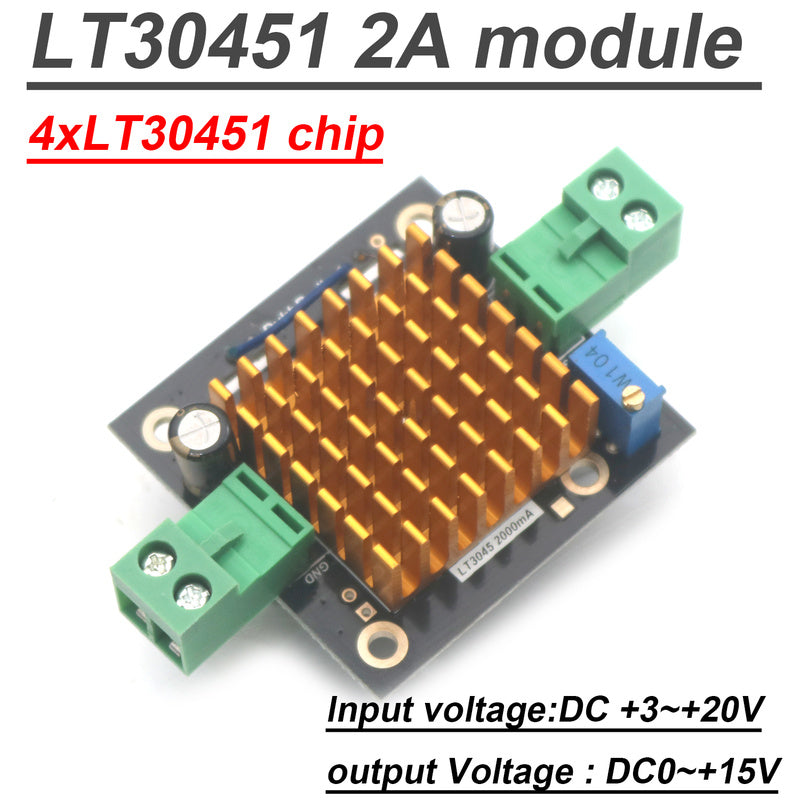

Module Name: LT30451P2A

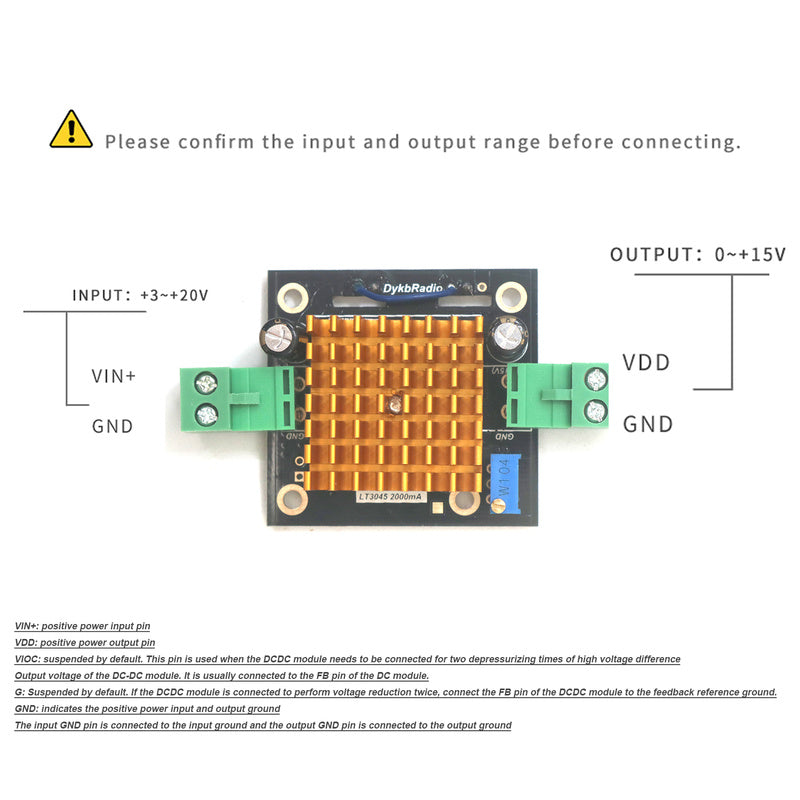

Interface Mode: 5.0mm x2pin connector
lnput voltage:DC +3~+20V
output Voltage : DC0~+15V
output Current: +2A
SIZE : 44.5X33X30MM
Output Accuracy : 0.01V
Dropout Voltage :+0.7V
IQ : 14mA (input 17V, output 15V)
PSRR :~STD
Vrms : ~0.8uV ( Min )
Line Transient : +/-0.02%(2A/0-2000mV)
Load Transient : +/-0.3% (5V/0~2A)
EN : Not Support
Vloc : Support
Electrical lsolation : NO
