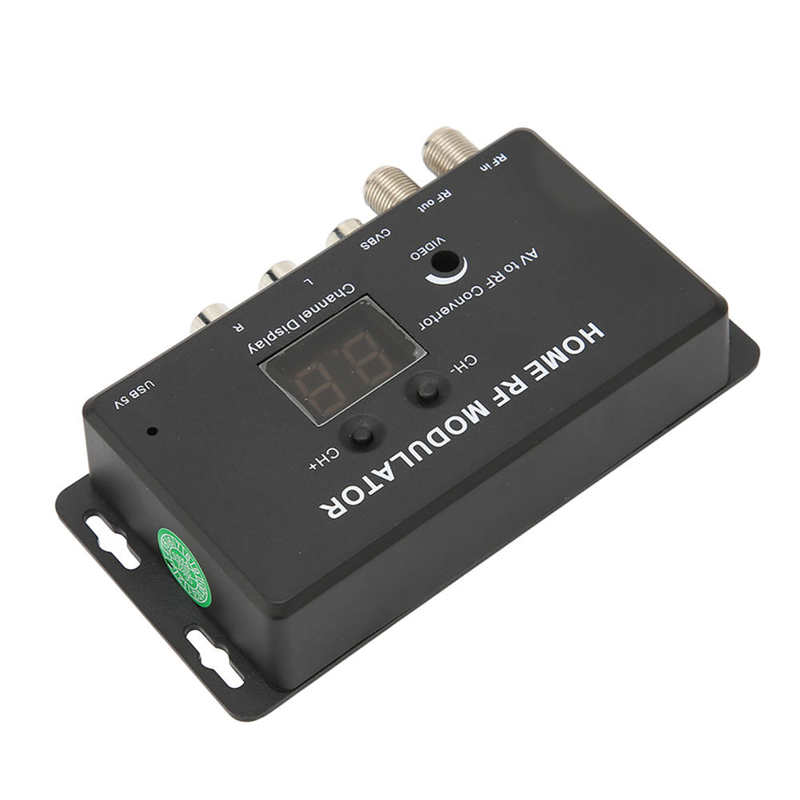

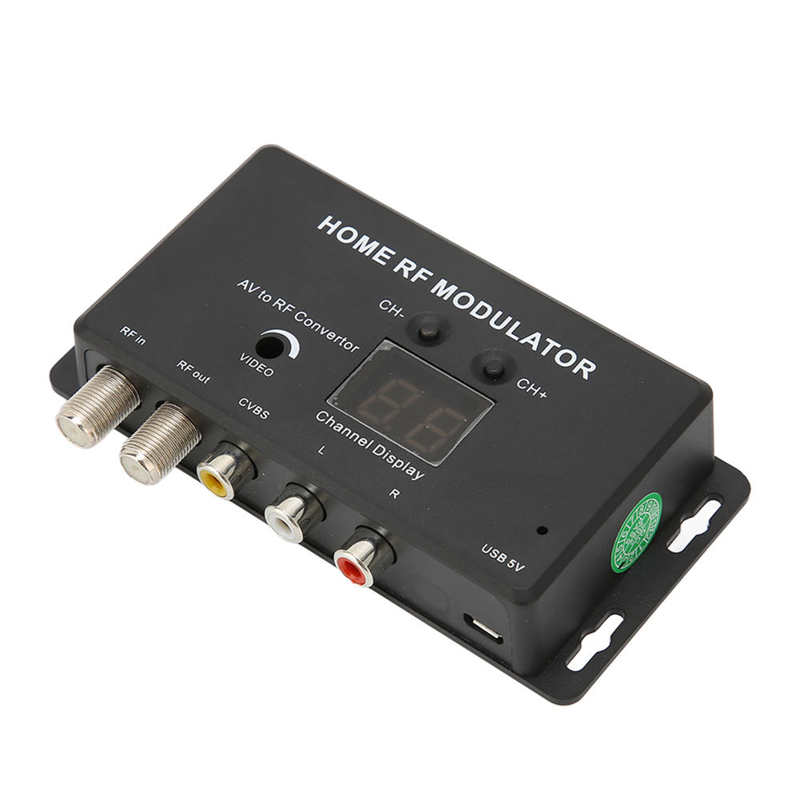

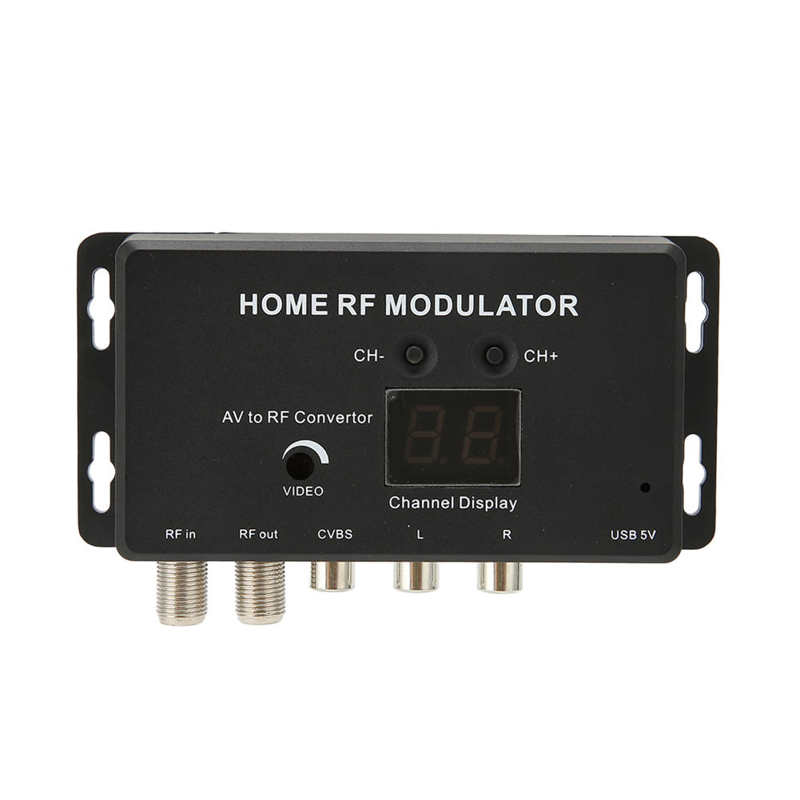

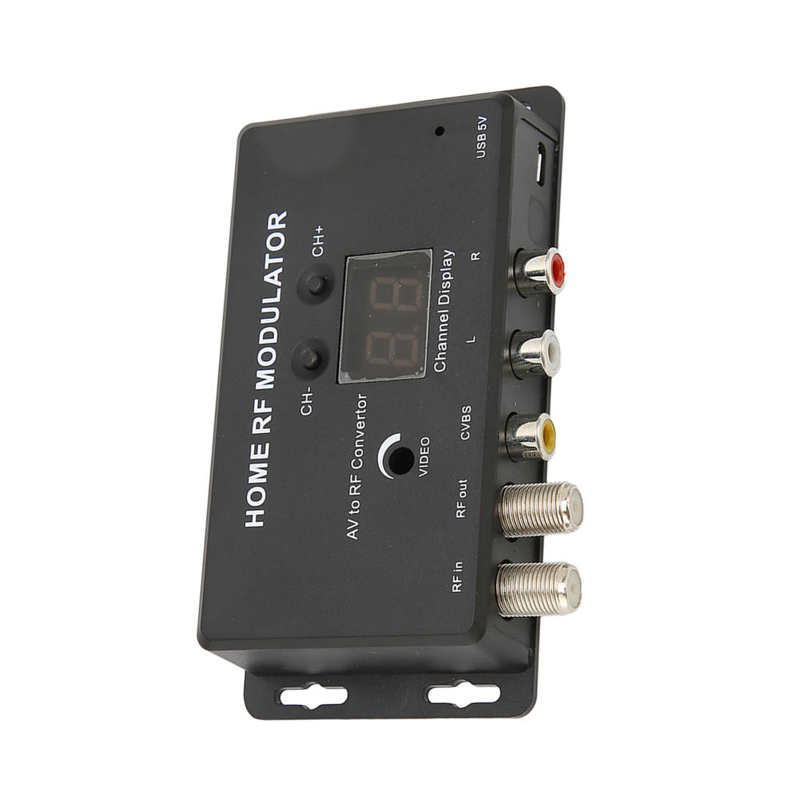

M70RV TV Link Modulator Support PAL/NTSC Professional AV to RF Converter for AV Source Set Top Boxes
Feature:
1. [PERFECT FIT] UHF modulator, PAL/NTSC optional, applicable for your own local CATV system.
2. [BROAD COMPATIBILITY] TV link modulator compatible with set top box and other A/V sources, more reliable to use.
3. [PRACTICAL] The AV to RF converter designed with adjustable output level, and optional output channel.
4. [SIMPLE DESIGN] The RF TV micro modulator has simple appearance design, exquisite workmanship, making you fondle admiringly.
5. [PREMIUM MATERIAL] The RF modulator adopts high quality plastic material, sturdy and durable, and you can use for a long time.
Specification:
Item Type: TV Link Modulator
Material: Plastic
TV Standard Format: PAL /NTSC
Channel Range: PAL: 471.25~865MHz（21~69ch）
NTSC: 471.25~885MHz(14~83ch)
Output Level: 85±5dBuV
Accompaniment System: M=4.5MHz, B/G=5.5MHz, I=6.0MHz, D/K=6.5MHz
A/V Connection: RCA Female
RF Input: F female
RF Output: F female
RF Output Impedance: 75 Ω (Unbalanced)
Video Input Impedance: 75 Ω
Default Factory Setting: Channel 21(471.25MHz), PAL
Energy: USB DC 5V
Power Consumption: <1W
Operating Temperature: 0℃ ~ +40℃

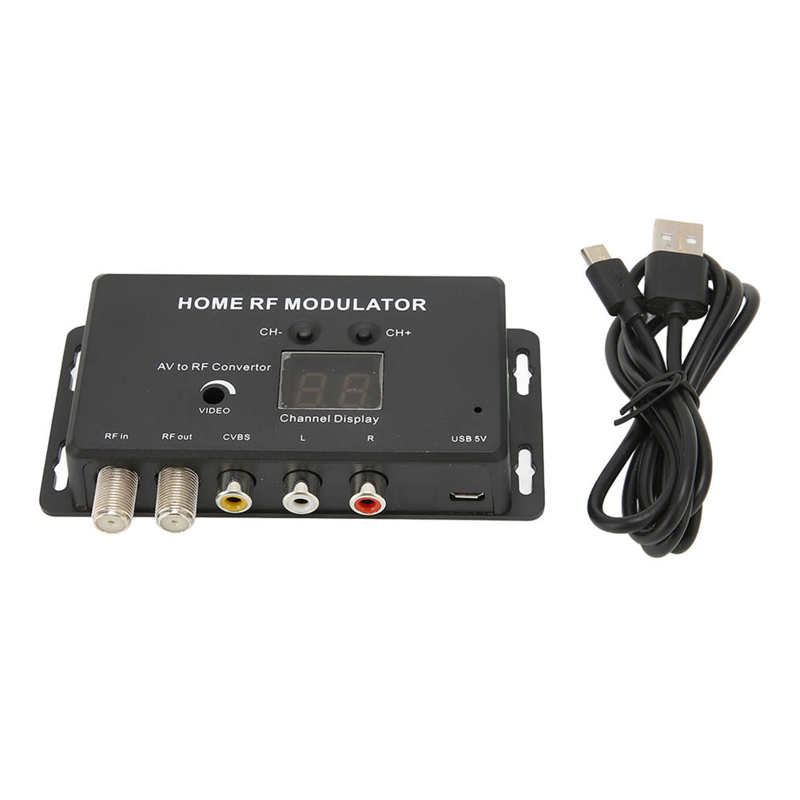

Package List:
1 x TV Link Modulator
1 x Transmission Cable
1 x English Manual

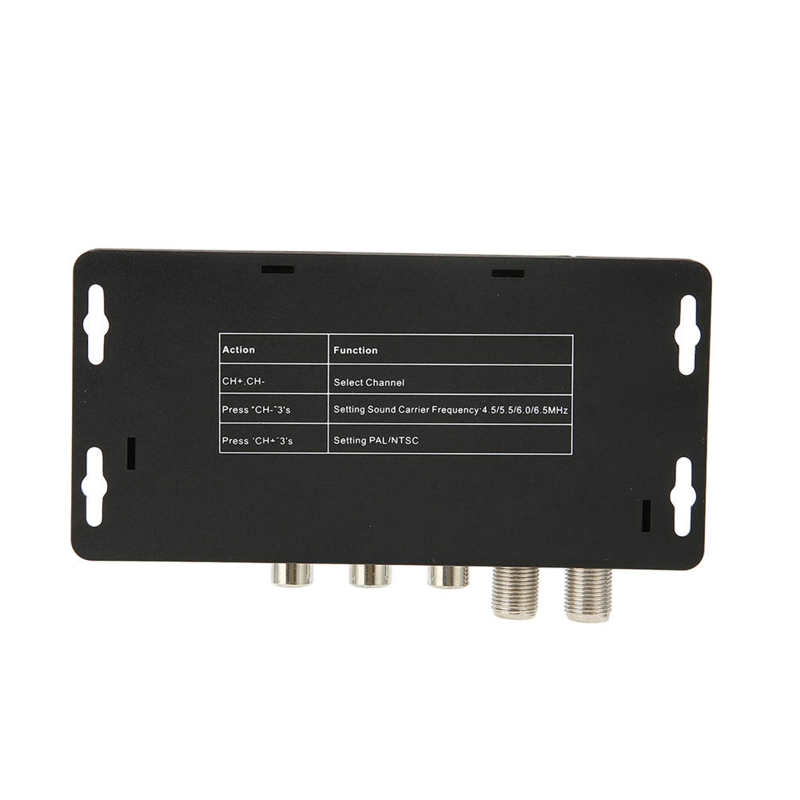

How to use: There are 2 keys for setting, default setting: Channel 21.
1. Set channel: Press "CH +" or "CH‑" to set the channel.
2. Drive frequency: Press "CH‑" 3 to select 4.5 / 5.5 / 6.0 / 6.5MHz.
3. TV format (PAL / NTSC): Press "CH +" 3 to select PAL / NTSC.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
