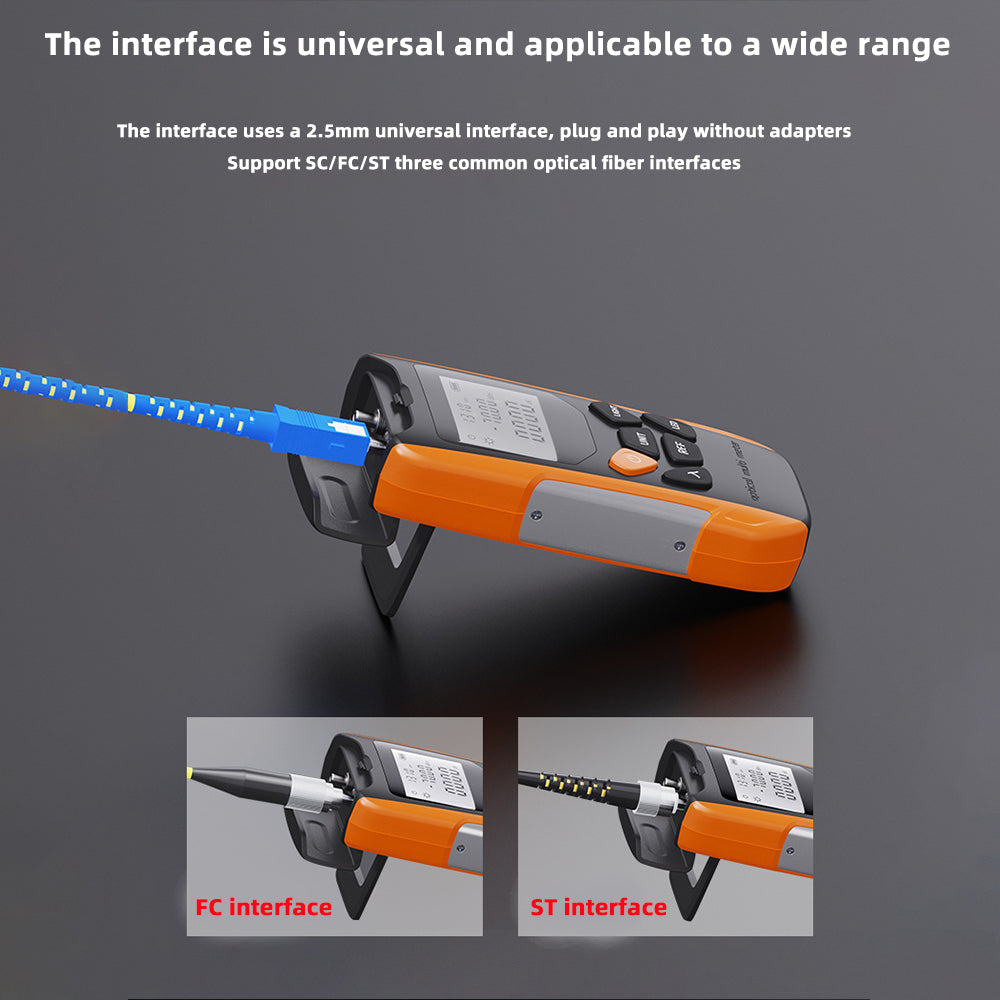

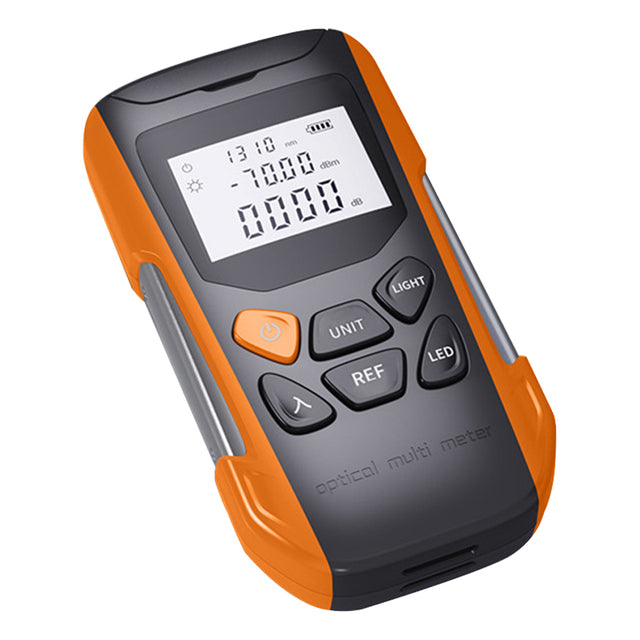

MINI OPM Handheld Mini Fiber Optical Power Meter Fiber Optical Cable Tester -70+6dBm SC/FC/ST Universal interface Connector
Technical index
Wavelength range:800~1700
Type of Detector:InGaAs
Power measurement range:-70~+6 or -50~+26
Uncertainty:5%

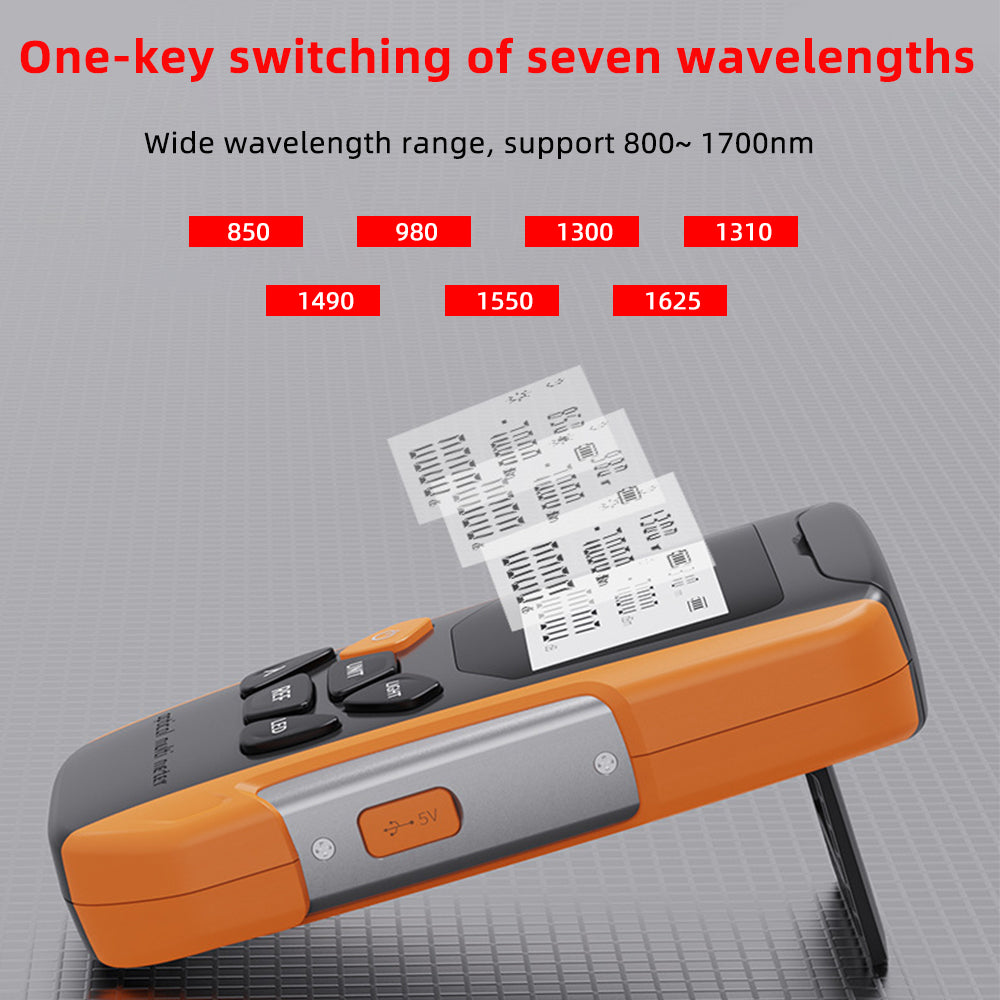

Standard wavelength(nm):
850,980.1300,1310,1490,1550,1625
Display resolution:
Linear indication:0.1%
Logarithmic indication:0.01dBm

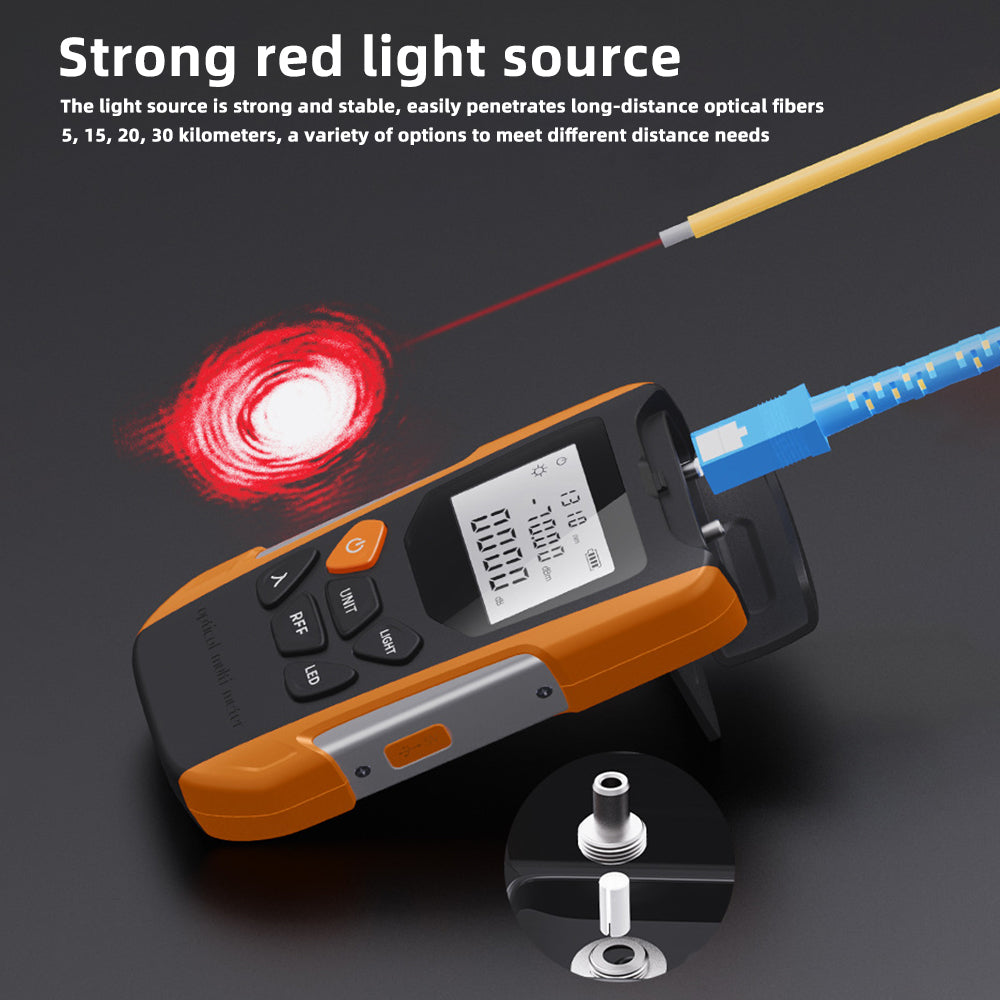

Workingw avelength of red light(nm):650
Red power:1MW,5MW,10MW,20MW,30MW( Selectiveconfig uration)
Frequencyidentifi cation(HZ):270,1000,2000
Save the number of data(pcs):20
Input voltage(V):3~6
working temperature(℃):-10～+60
Storage temperature(℃)：-25～+70
Auto off time (min):10
Battery Working Time (h):≥48
lnstrumentsize (mm):142*76*30
Power Supply:3 section 5 battery, rechargea blelithium battery ( selective configurationy) and external input
weight(g):212/224
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
