Feature:

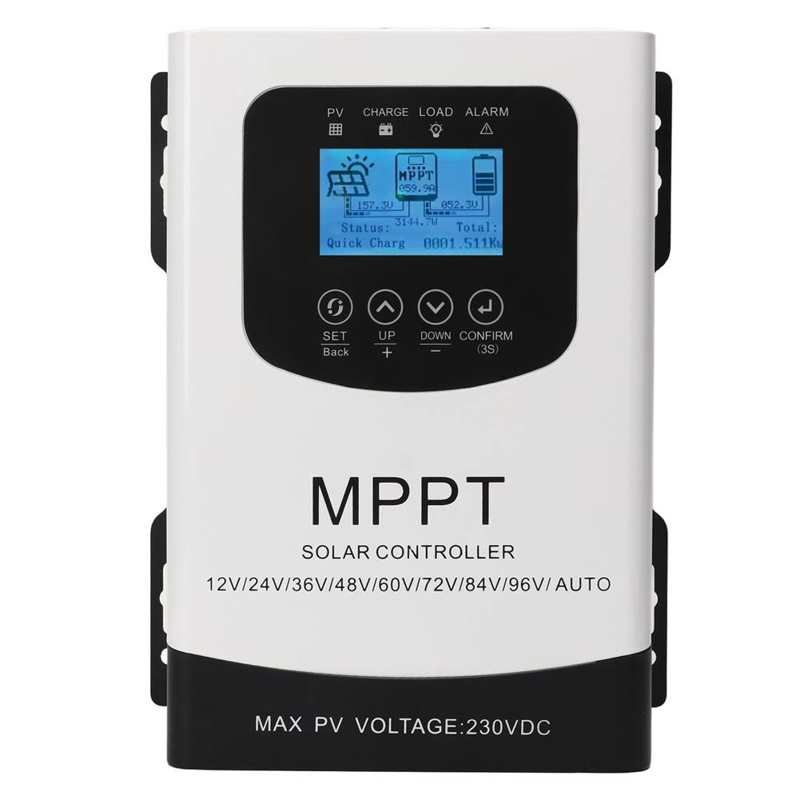

1. LED HD Touch Display: Chinese and English system switch with one key. Display: power generation, photovoltaic state, battery state, charging state, system operation state and other information, a comprehensive grasp of power generation information.
2. Protection Function: High temperature protection, overload protection, fault alarm, under voltage protection, short circuit protection, over voltage protection, over current protection, over charge protection, over discharge, lightning and backflow prevention, overheating protection.
3. Compatible With Various Battery: Colloid, lithium iron phosphate, ternary lithium battery and other batteries. Charging voltage adjustable 0‑30A. Dc continuous output current 25A.
4. Lithium Battery Activation Function: With photovoltaic input, there is a charging voltage (lithium battery activation) without battery DC output. The charging efficiency of solar energy to electric energy is higher, safe and reliable.
5. Advantages: Maximum high power point tracking function to maximize solar panel utilization efficiency. 12V 24V 36V 48V 60V 72V 84V 96 battery system automatic adaptation. Additional compatible with 36V 60V 72V 84V battery systems.
6. Application Scenarios: off grid solar power supply system for households and farms, off grid solar power supply system for small workshops and factories, RV, boat and off grid solar power system.
Specification:
Item Type: MPPT Solar Controller
Material: Metal Plate
Weight:Approx.2822g/99.54oz

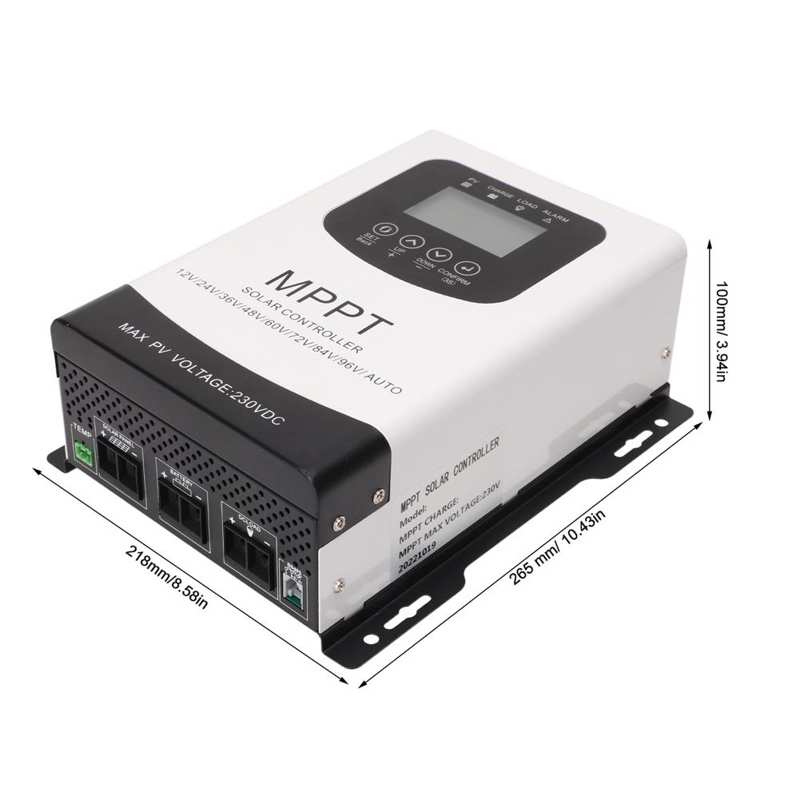

Size: 218x265x100mm/8.58x10.43x3.94in
PV Open Circuit Voltage: 0V-230V
Battery Charging Voltage: 12V 24V 36V 48V 60V 72V 84V 96V
Power: 12V 360W; 96V 2880W
Solar Input Voltage: Solar panel open circuit voltage 0V-230V
Charging Mode: MPPT tracking to high power, fast charging, balanced charging and floating charging
Scope of Application: Power station, plant, plantation, villa, RV, yacht
Package List:
1 x Solar Controller
1 x Description
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
