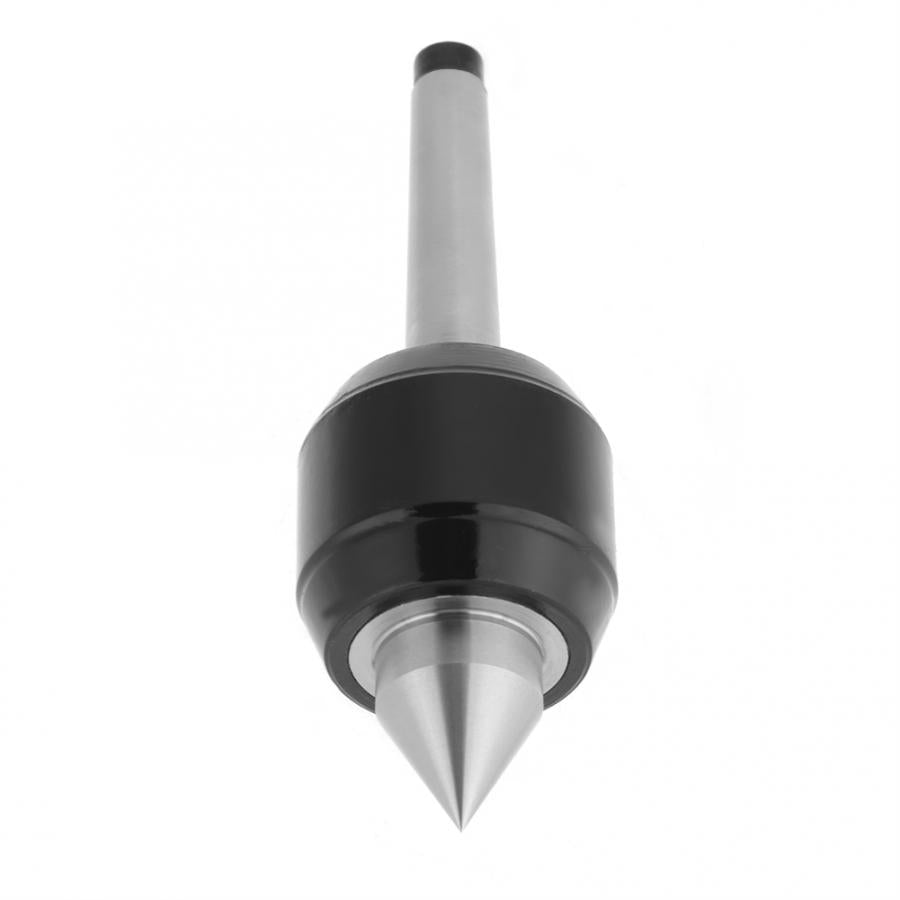

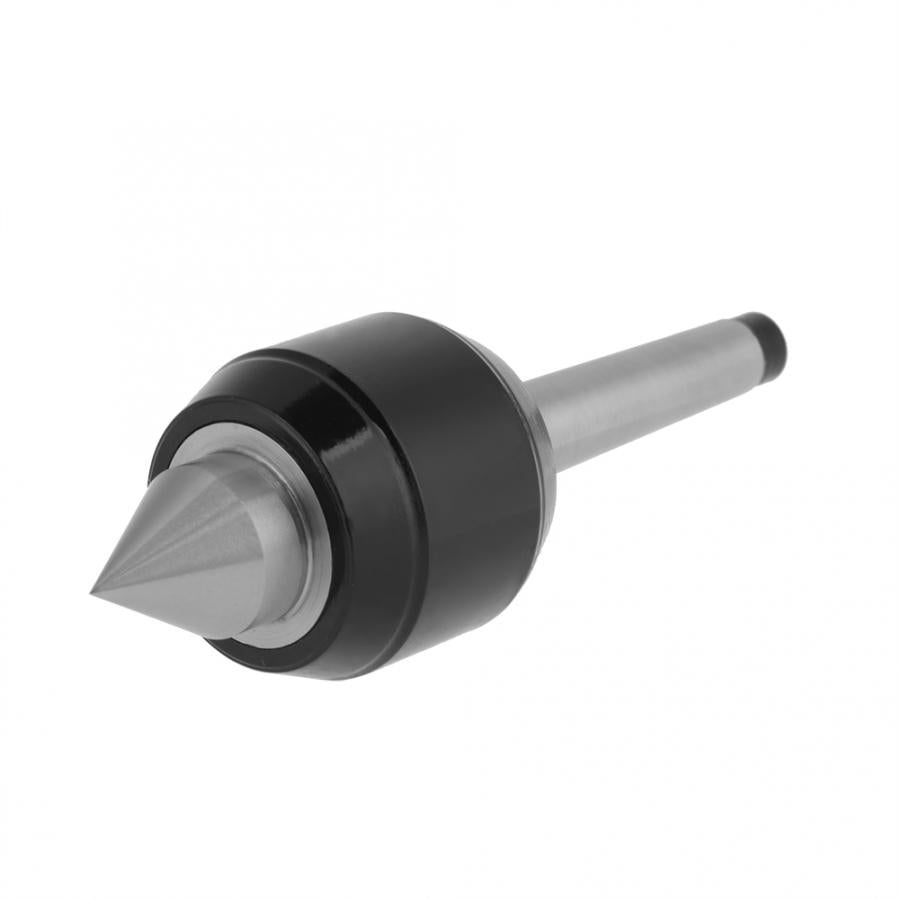

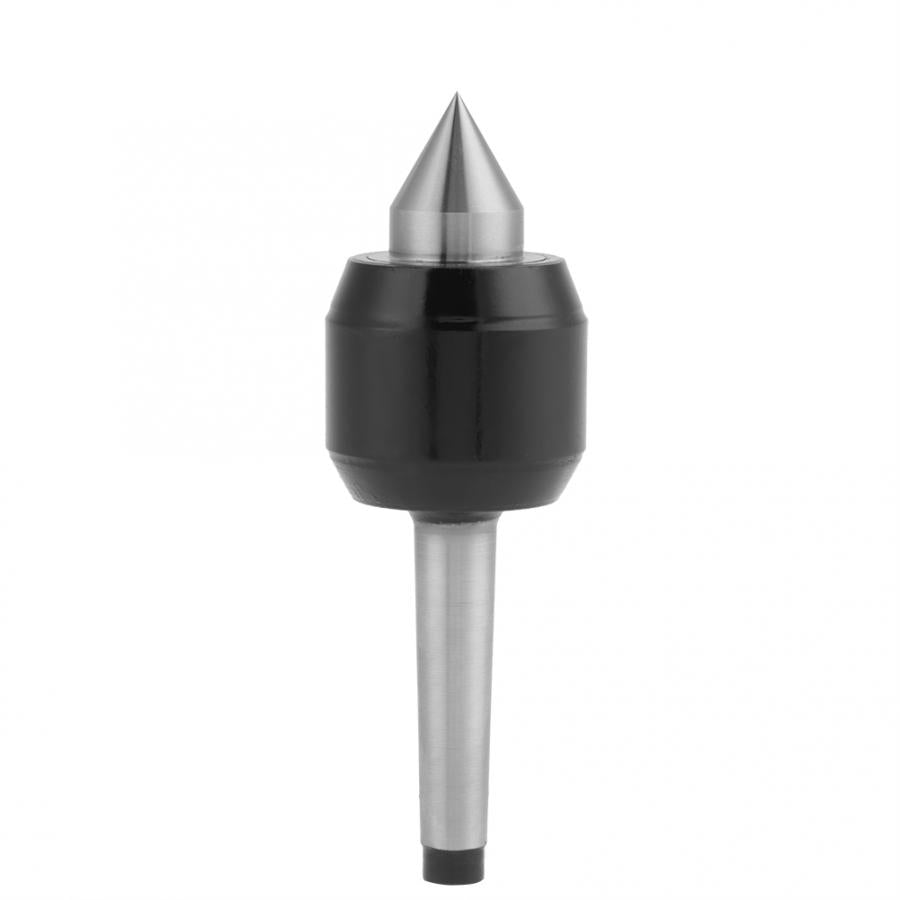

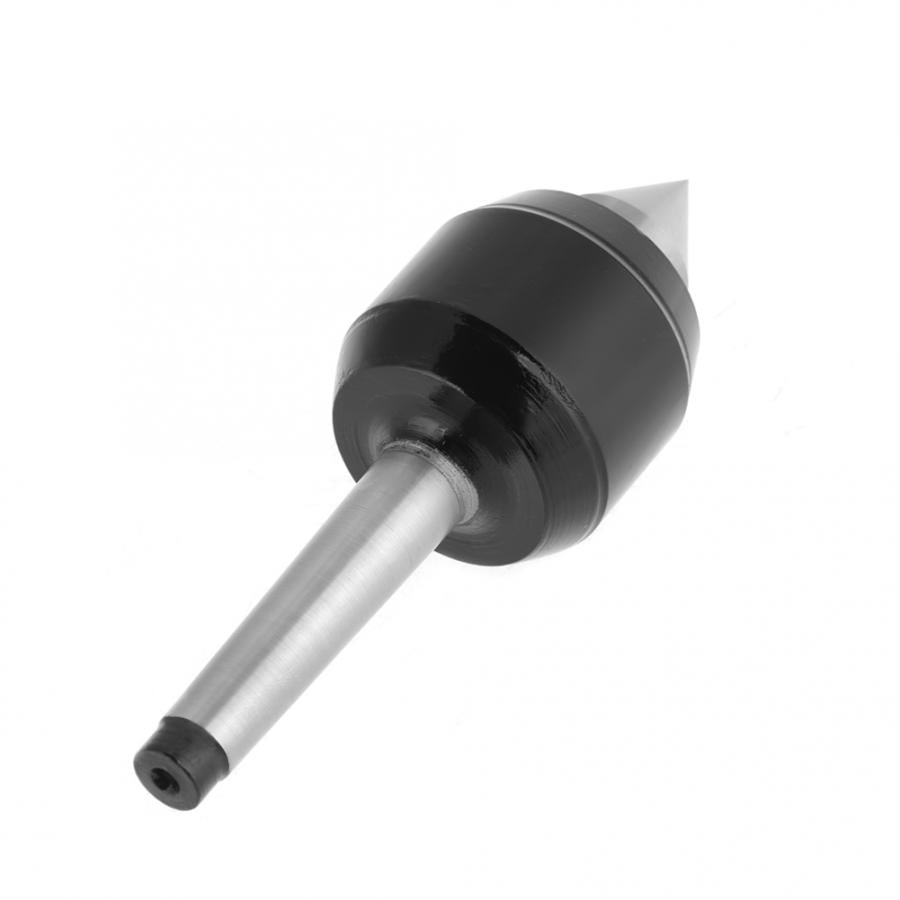

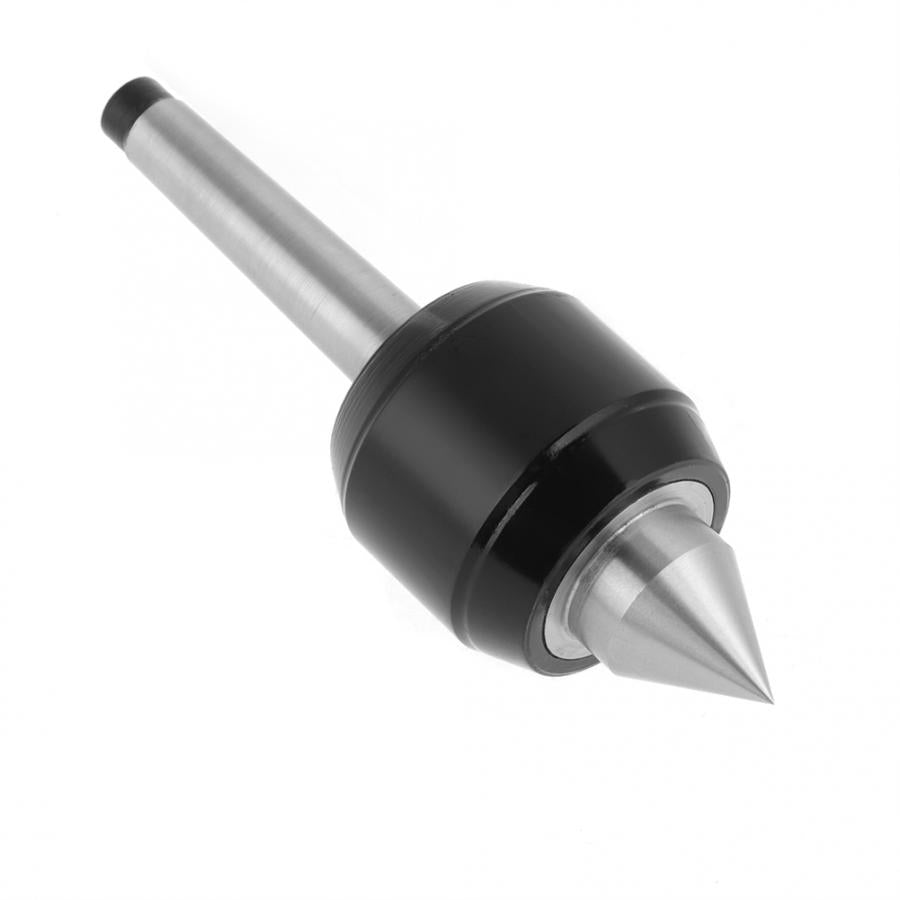

MT1 Precision Rotary Live Revolving Milling Center Taper Metal Work Lathe Tool
Description:
A lathe center is a tool that has been ground to a point to accurately position a workpiece on an axis. It has an included angle of 60°. The primary use of a center is to ensure concentric work is produced; this allows the workpiece to be transferred between machining operations without any loss of accuracy. A part may be turned in a lathe, sent off for hardening and tempering and then ground between centers in a cylindrical grinder. A center is also used to support longer workpieces where the cutting forces would deflect the work excessively, reducing the finish and accuracy of the workpiece.
Features:
1. Conical part is made from T10 steel, quenching hardness 61 to 65 HRC, the main body part is made from #45 steel, durable to use.
2. High quality bearing design, using high speed bearing for high accuracy.
3. Dust proof seal preventing cutting dust enter into bearing thus prolong service time.
4. Designed for lathe in medium speed and medium load environment.
5. Well balanced and smooth for effective turning. Ideal to support your work at the tailstock end of your lathe.
Specifications:
Type: MT1
Material: Alloy steel
Accuracy: 0.005
. RPM: 5000
Angle: 60°
Load Capacity: 660 pounds

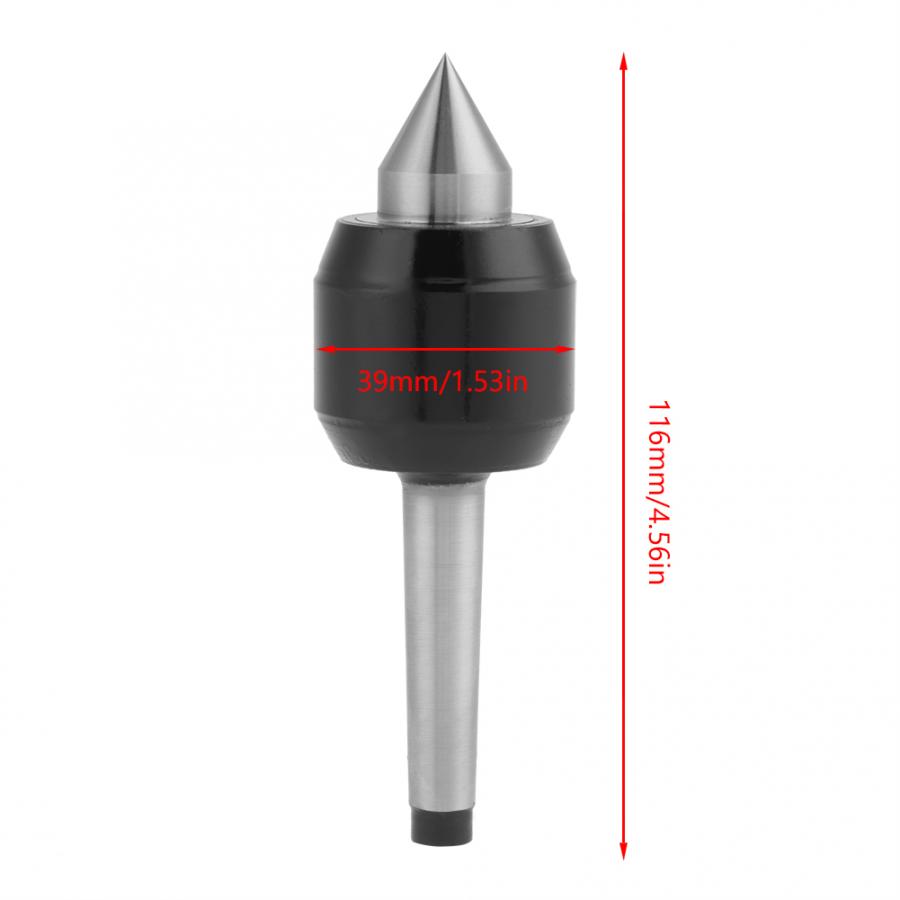

Length: Approx. 116mm / 4.56inch
Outer Diameter: Approx. 39mm / 1.53inch
Weight: Approx. 360g
Package Included:
1 x MT1 Live Center
Note:
1. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
