Multifunction CO2 Meter Digital Temp Humidity Tester 3 in 1 Air Quality Monitor Carbon Dioxide PM2.5 Fast Measurement Meter

Features

 Product Specifications

 Detection method for CO2 : Infrared (NDIR)

 Detection method for PM: laser scattering

 Sampling time: 1.5 seconds

 Detection temperature: -10°C to 50°C;

 Relative humidity: 20% - 85%

 Storage temperature: -10°C to 60°C;

 Concentration unit for CO2:PPM

 Concentration unit for PM: ug/m3

 Power source: Lithium battery with 2000 mAh capacity;

 5V DC power charging with micro USB port

 Product Size: 267*140*30mm

   Product weight: 300g

   Product Description

   This product is an air quality monitor that detects

   Carbon dioxide (CO2),Particulate Matter

   (PM2.5),Temperature and Humidity. it combines sensors

   real-time monitoring of Carbon dioxide (CO2),

   PM2.5,temperature and humidity on its display.

   Considerations

   Please read the instructions carefully before using this

   device.

   Please keep the manual handy for quick reference and

      troubleshooting

     Precautions

     Avoid covering the air intake areas during use to avoid

     inaccurate measurements.

     Avoid use of solvents to clean the product as residual

     fumes will skew air quality readings.

     Avoid water or other liquids near the product to avoid

     electrical damage.

     Do not allow unauthorized modifica tion or repair of

     this product.

     Features:

     CO2 indicator   ：

     -Big screen display

     -Support test variables:Carbon dioxide(CO2),PM2.5,

     temperature and humidity

     -Support CO2 exceeding alarm

     -CO2 alarm threshold can be set

     Green: 400ppm to 1000ppm

     Yellow: 1001ppm to 2000ppm

     Red: 2001ppm to 5000ppm

     PM2.5 indicator:

     Green: 0~74 ug/m³

     Yellow: 75~299 ug/m³

         Red: 300~999 ug/m³

       Time setting

       After turn on, the device auto accesses the interface

       which can show CO2 current value, PM2.5,

       temperature, humidity, and time. In this state, when you

       long-press set button, the digits of hour will flash, press

       up button to increase digits or press down button to

       decrease digits, and press set button to confirm and

       switch to next option.

       CO2 alarm threshold Setting

       After setting time, the digits of CO2 will flash, then you

       can press up button to increase CO2 alarm threshold,

       or press down button to decrease CO2 alarm threshold.

       (CO2 alarm threshold can be set to 800ppm, 900ppm,

       1000ppm, 1100ppm, 1200ppm, 1300ppm, 1400ppm,

       1500ppm, 1600ppm, 1700ppm, 1800ppm, 1900ppm,

       2000ppm). After setting CO2 alarm threshold, press set

       button to confirm setting.

       Turn off/on CO2 alarm sound

       Single press set button, to turn on/turn off the alarm

            sound.

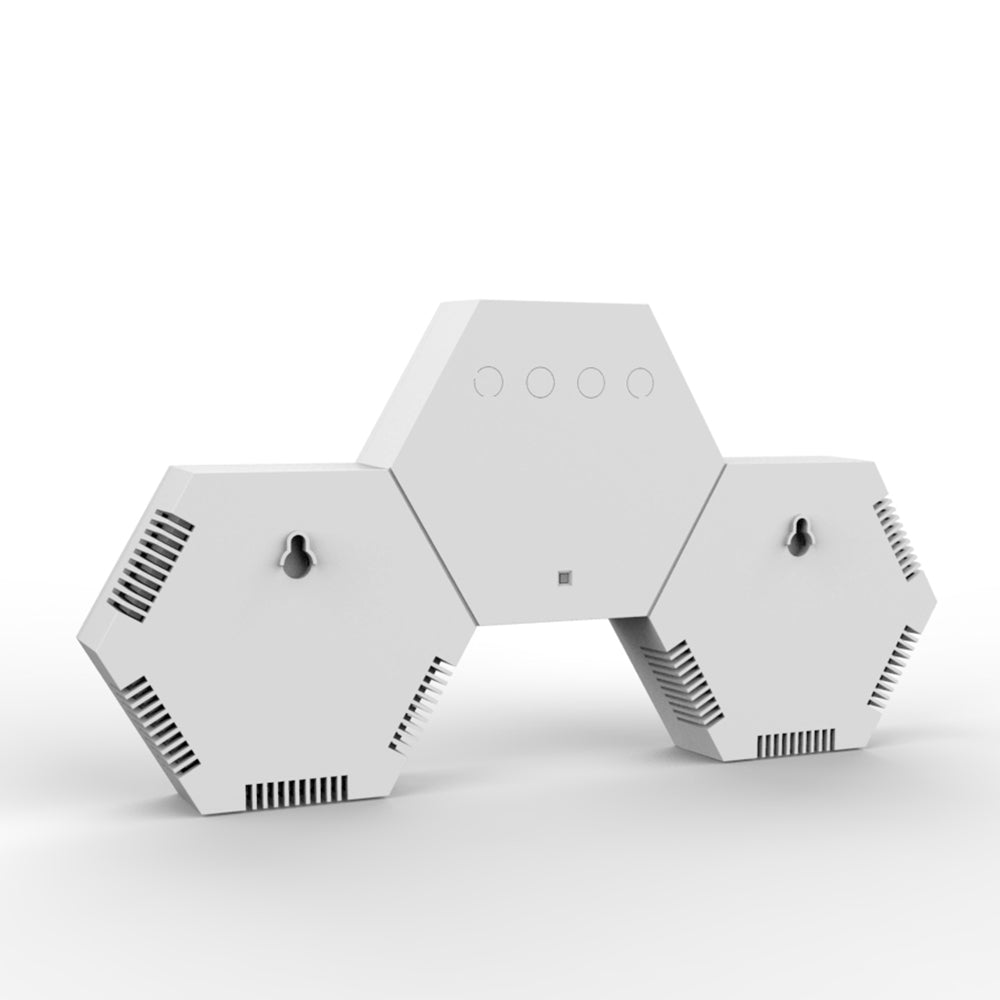

         Installation Notes

         1)The positioning sticker is attached to the position to be

               installed.

           2)Punch a 6mm hole at the 2 marked positions of the

           positioning sticker and drive the rubber plug

           3)Drive in the screws, and pay attention to about 4mm

                  exposed. Then hang up the device.

             Working method

             Under normal working conditions, we suggest don't do

             any setting. You can test the current CO2/PM2.5 value

             and temperature and humidity. (Factory default CO2

             alarm threshold is 1000PPM)

             Automatic calibration

             During the first time use, please turn on device and keep

             it working for more than 24 hours, the device will

             automatically calibrate. (Do not power off and restart

                     halfway when calibration)

               About Charging

               When low battery icon is displayed, the device needs to

               be charged.

               Insert the included or another compatible micro USB

               charging cable into the device.

               Attach the other end to a USB DC charger (such as a

               smart phone charger that outputs DC 5V at >=1000mA.

               Fully charge for at least 2-3 hours before use.

               Avoid charging with a USB computer port which only

               outputs 500mA.
