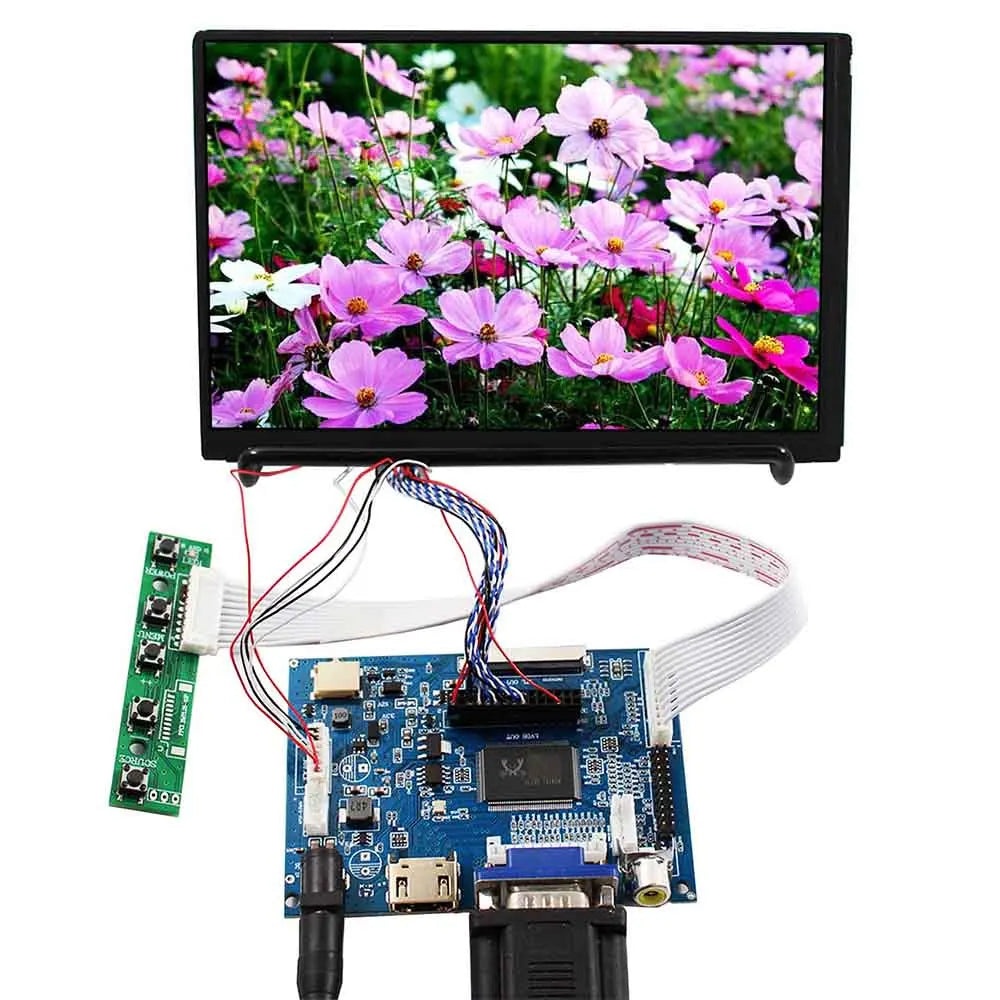

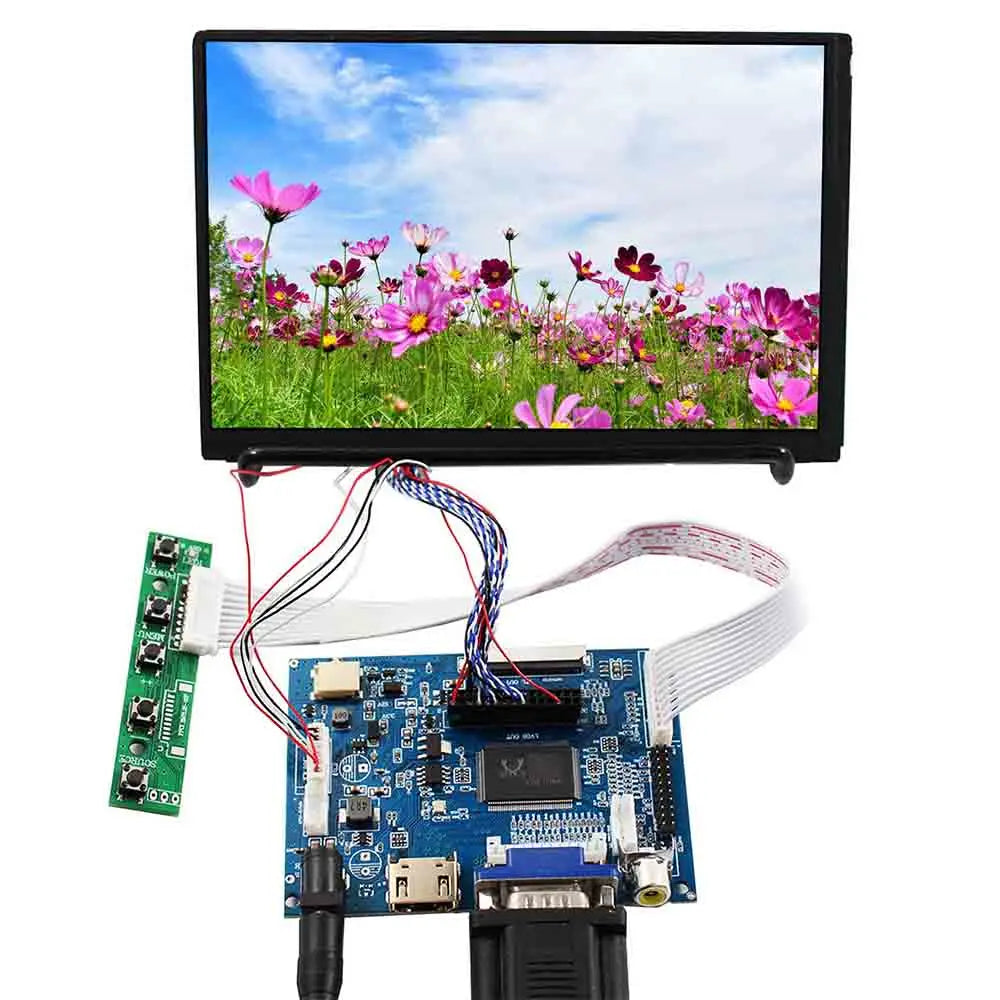

LCD Controller Board:
H/D VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H/ VGA AV1 AV2
Reversing: SupportAutomatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language:English French German Spanish Italian And So On

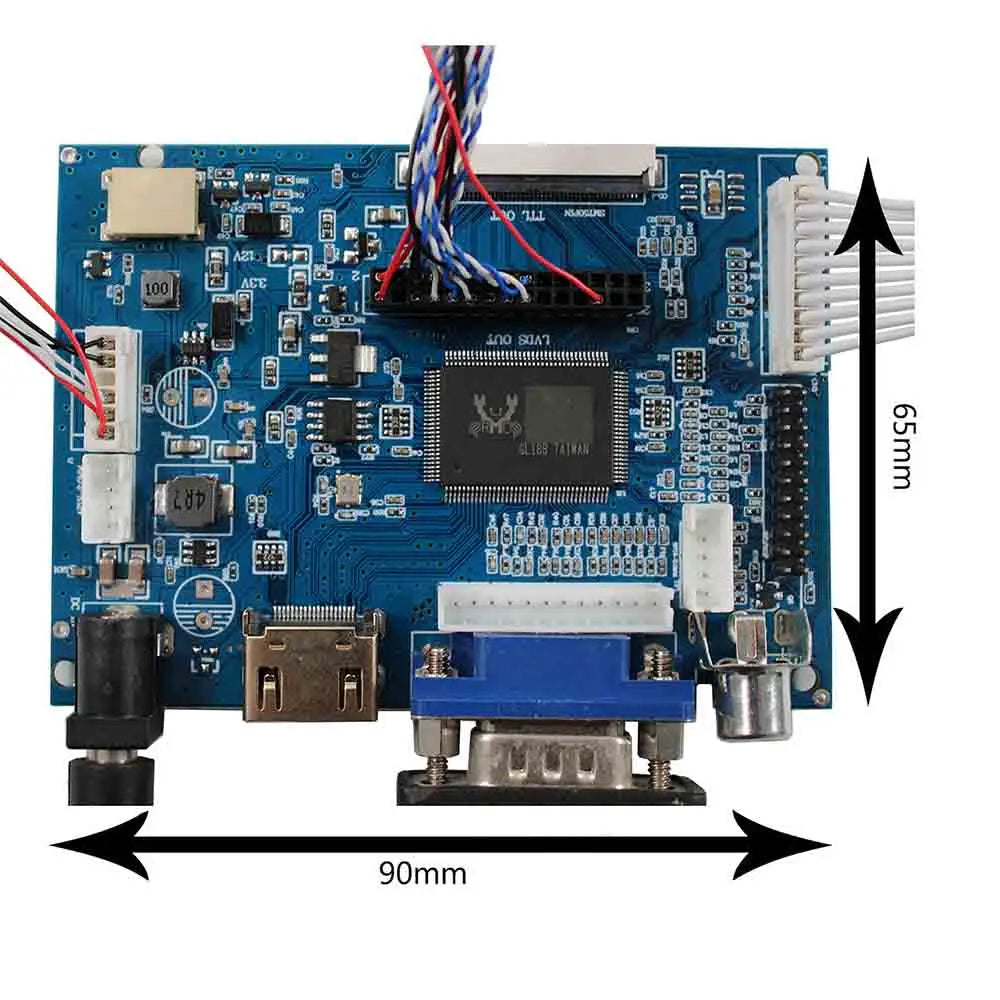

Board Size:91mm x 66mm x 12mm
7"N070ICG-LD11280X800 LCD Screen:
Display Mode HS-IPS, Normally Black, Transmissive
Resolution 1280RGB)×800

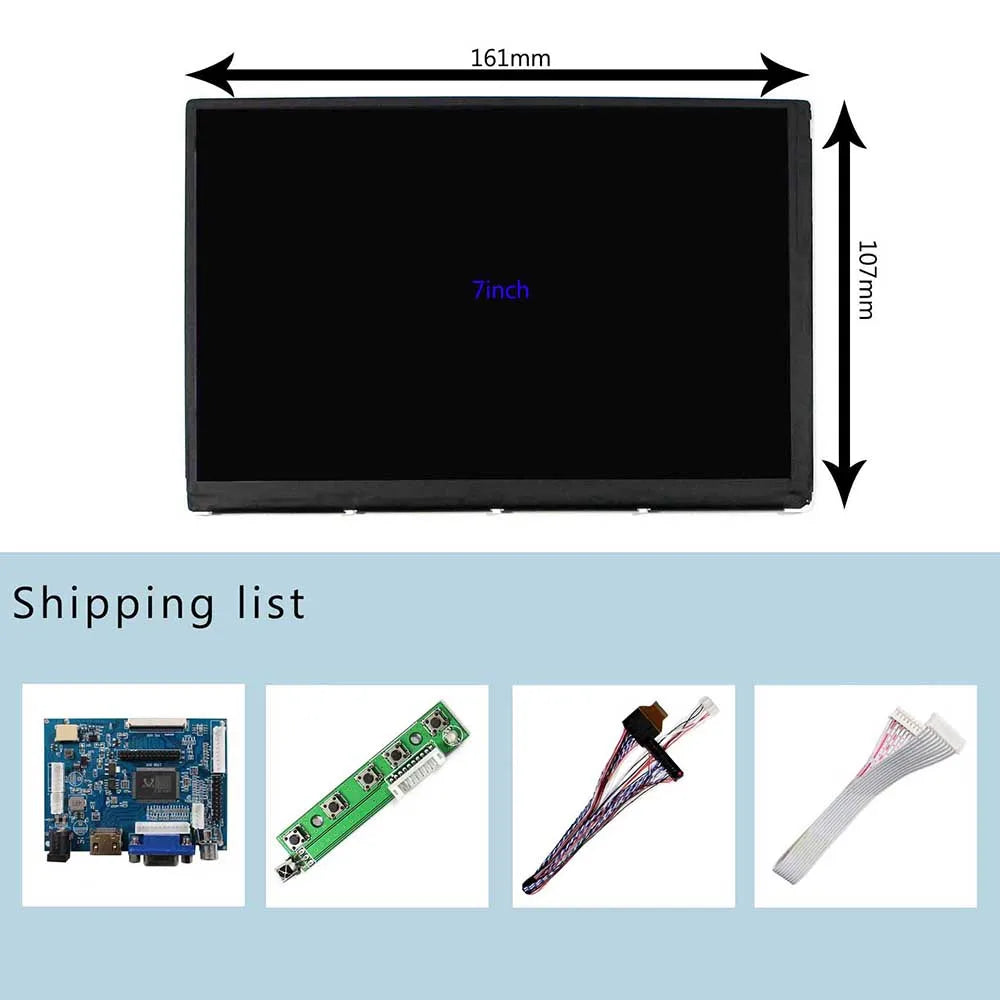

Outline Size 161 ×107×4.5 (H×V×D)
Display Area 149.76× 93.6 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 39 pins
Backlight LED
Input Voltage 3.3V (Typ.)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
