Optical coupling isolation version of ultra-wide voltage motor driver (theory up to 60V), generally can reach 48V, the module uses a version of 10M high-speed optical coupling to isolate the input signal, effectively prevent interference from the driver board interference signal to the control board, so that the system is more stable and reliable, and this module uses high-quality new original power tube, therefore, Maximum rated current up to 100A.
This module can be used for the general high-power DC motor drive, the maximum current can reach 100A, stable performance, is the general integrated motor drive can not be matched, therefore, very suitable for robot competition, tank competition and so on.
Specifications:

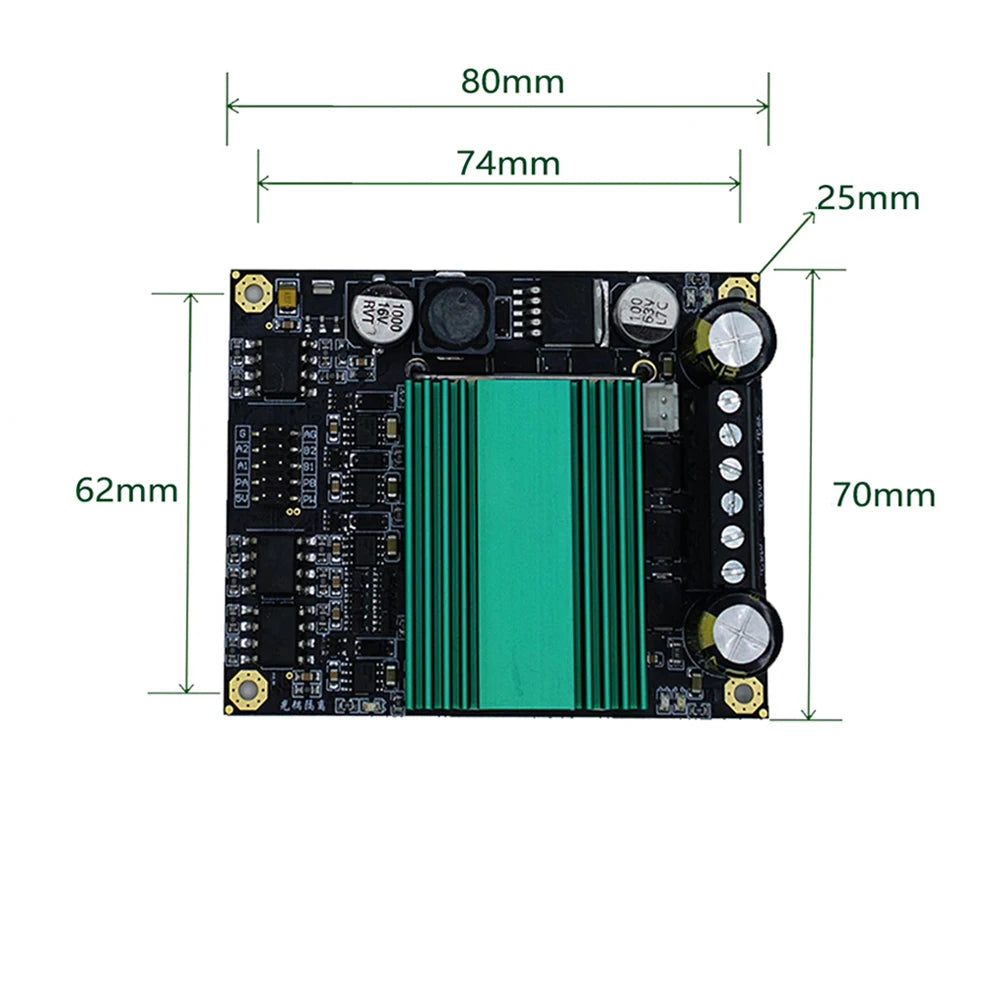

The basic component of the drive module is the patch, the integration is high, the layout of the board is well-designed, it is very beautiful, the size is small, the board is driven by two high-power DC motors, the size of the drive module is only 82mm*70mm.
The wide heat sink can effectively dissipate heat for the drive module at high current and maintain good stability of the module.
When driving the motor, the maximum rated current of the module can reach 100A, and the on-resistance is only 0.0015 ohms.
The switching frequency is high, up to 60KIIZ, which effectively avoids the unpleasantness caused by the low frequency of debugging the motor.

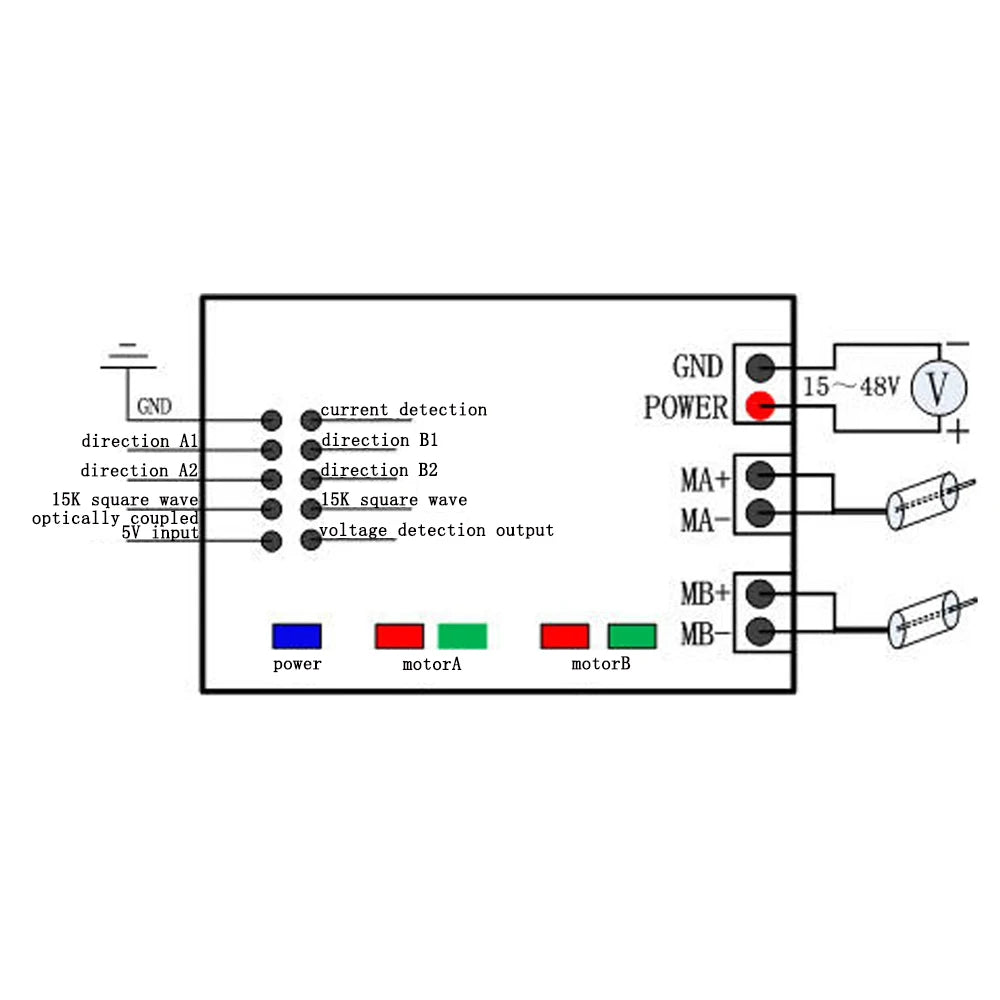

The control interface is very simple:
A1. A2=0.0 is the brake;
A1. A2=1.0 is positive rotation;
A1. A2=0.1 is inverted;
PA is PWM wave input (motor speed regulation);
G is the common pin with the control board (route B is the same control);
3.3V and 5V single-chip microcomputer can control this module, and only one motor power supply (12V~ 48V)
