Product Attributes

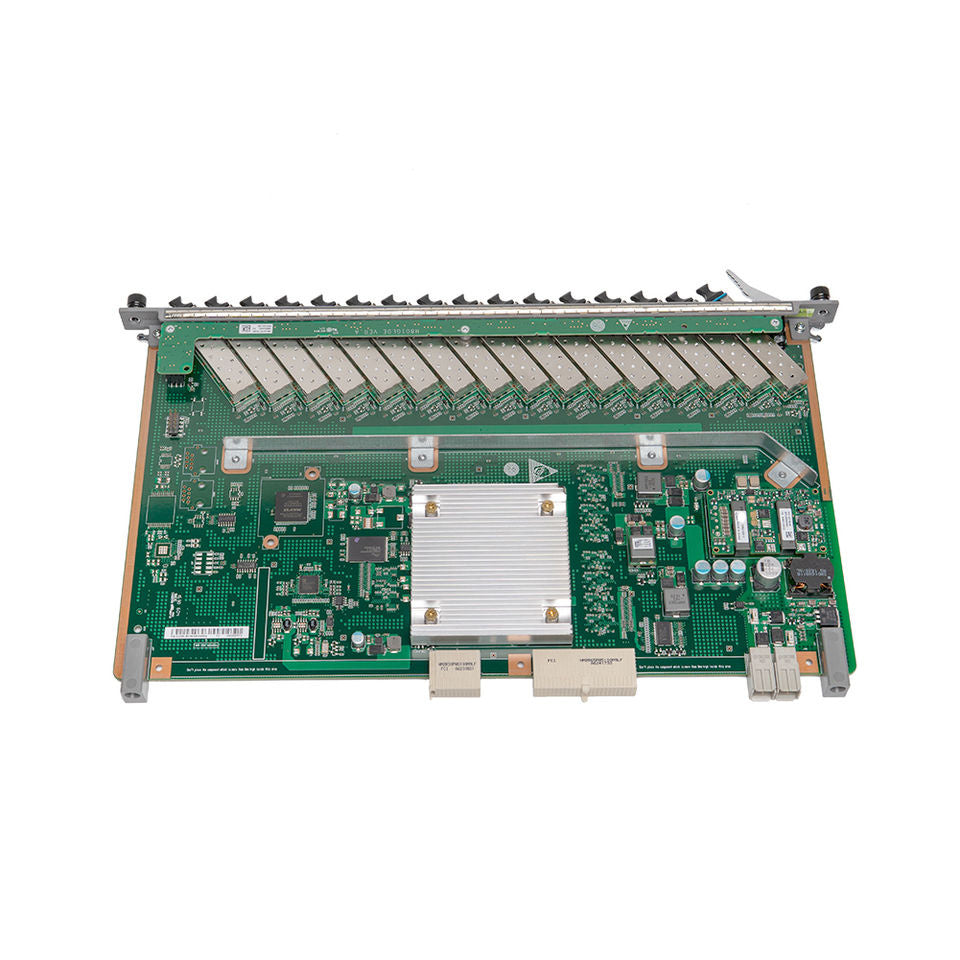

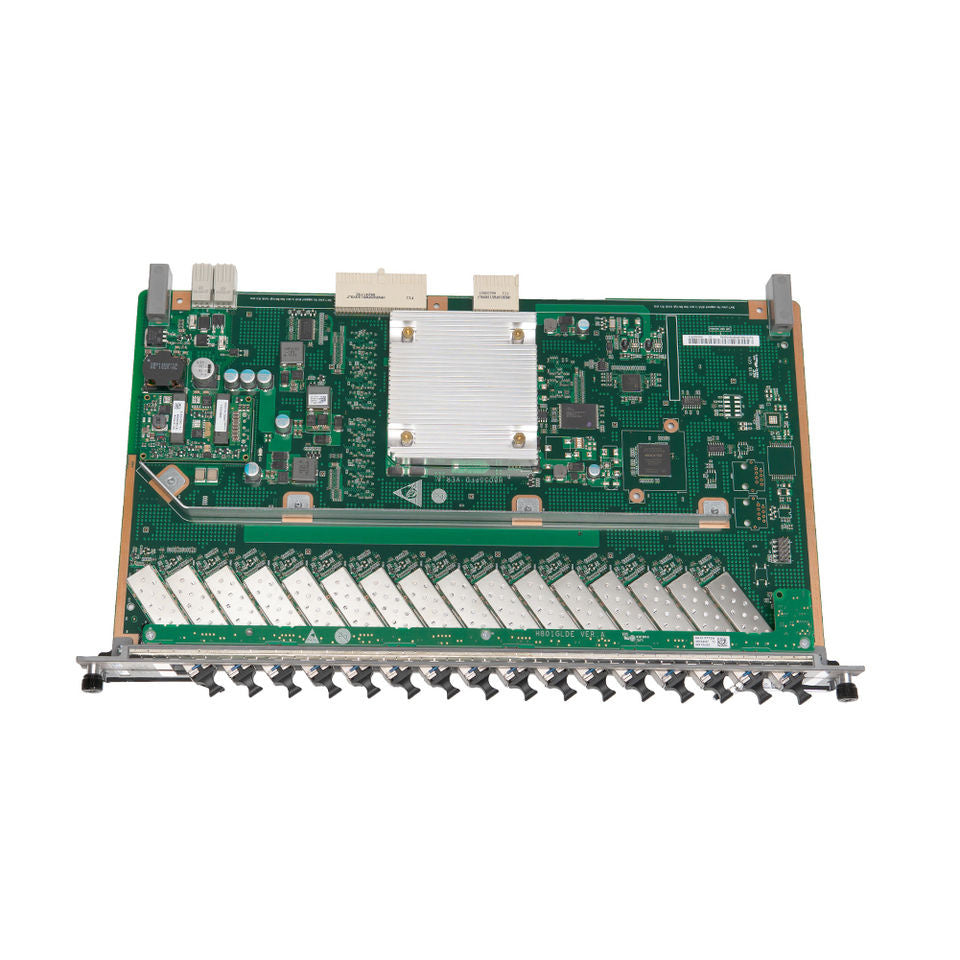

GPFD 16 Ports OLT Interface Board 16 Ports C+/C++ with 16 SFP Modules for MA5680T/MA5683T/MA5608T OLT Service Board GPFD
|
Brand |
|
|
Model |
GPFD |
|
GPON Port |
16-GPON Port |
|
Type |
C+ Module : One-fiber bi-directional optical module, class C+ |
|
Operating Wavelength |
Tx: 1490 nm, Rx: 1310 nm |
|
Encapsulation Type |
SFP |
|
Port Rate |
Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
|
Minimum Output Optical Power |
C+ Module : 3.00 dBm |
|
Maximum Output Optical Power |
C+ Module : 7.00 dBm |
|
Maximum Receiver Sensitivity |
C+ Module : -32.00 dBm |
|
Optical Connector Type |
SC/PC |
|
Optical Fiber Type |
Single-mode |
|
Reach |
20.00 km |
|
Overload Optical Power |
C+ Module : -12.0 dBm |
|
Extinction Ratio |
8.2 dB |
|
Dimensions (W x D x H) |
22.86 mm x 237.00 mm x 395.40 mm |
|
Maximum Frame Size |
2004 bytes |
|
Operating temperature |
-25°C to +65°C |
|
GPFD Service Board Feature |
|
|
16-GPON Port Interface Card with B+/C+/C++ SFP module |
|
|
Apply to MA5683T, MA5680T, MA5608T OLT system |
|
|
Available version: H806GPFD |
|
|
Support split ratio 1:128 |
|
|
Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s |
|
|
Interface Type: SC/PC |
|
|
Max Transmit Distance: 20KM |
|
|
Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm |
|
|
Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4 |
|
|
C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm |
|
|
Exchanging module to achieve the convergence of 16 GPON port signals. |
|
|
|
|
|
providing a working power supply for each function module in a single board. |
|
|
Realizing the mutual conversion between GPON optical signal and Ethernet message. |
|
|
Providing a working clock for each function module in a single board. |
|
|
All the Service Board we are offering: |
|
|
For MA5680T 5608T 5683T |
|
|
(GPBD, GPBH, GPFD, XGBD, EPSD, EPBD, EPFD, XEBD) |
|
|
For MA5800 X17 X15 X7 X2 |
|
|
(GPHF, GPSF, GPUF, GPLF, CSHF, CGHF, CGUF) |
|
|
|
|
