batteries(4.35V).
It can connect with up to four batteries at the same time. The maximum output power is up to 3000W, and users can choose between
four modes of Fast Charge/Standard Charge/Charge/Storage.

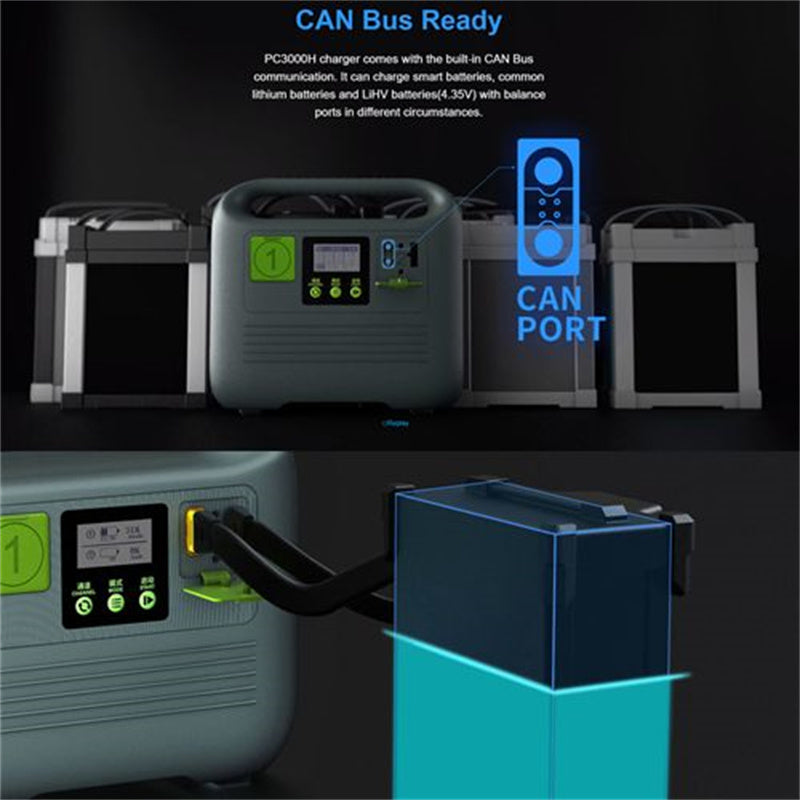

The charger can recognize the batteries instantly and charge automatically with customized CAN communication. Charging should be a
more convenient and straightforward experience.
- Housing Material: Plastic (Flame Retardant PC+ABS)
- Size: 294mmx139mmx282mm
- Weight: 6Kg
Battery
- Type:Lithium Battery
- LiPo Battery Cells:12S/14S (4.2V)
- LiHV Battery Cells:12S/14S (4.35V)
Charge/Discharge
- AC 220V
Fast Charge Current: max. 60A single channel
Standard Charge Current: max. 30A single channel,max. 60A Dual channels in total
Slow Charge Current: max. 20A single channel; max. 60A multi channels in total
- AC 120V
Fast Charge Current: max. 1200W single channel
Slow Charge Current: max. 20A single channel; max. 1200W multi channels in total
- Storage Discharge Power
Main Port: 50W Max.
Balance Port: 80W Max. (The current will be adjusted based on the balance port’s temp)
- Max Charge Output Power
AC220V Output Power: 3000W
AC120V Output Power: 1200W
- Discharge Power:60W

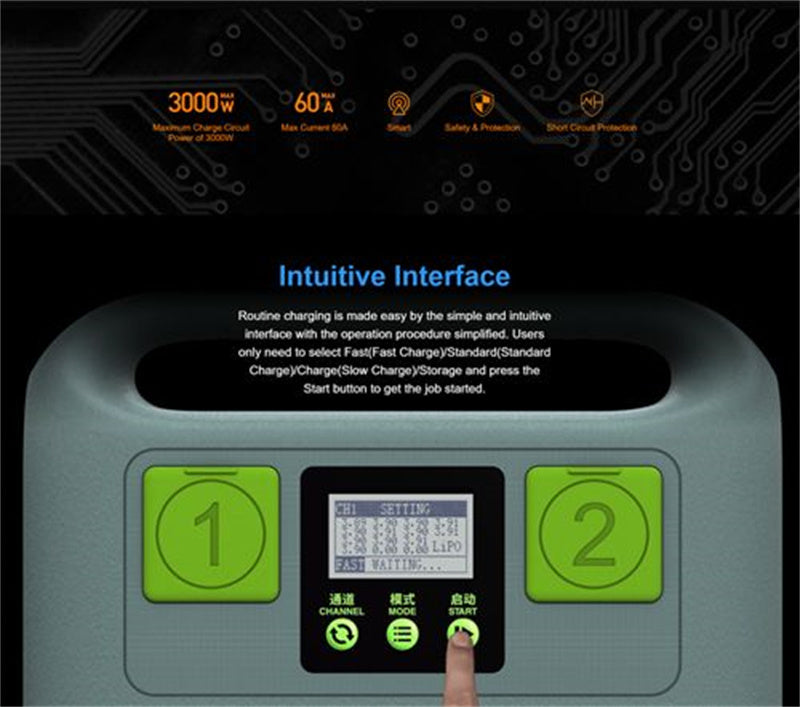

- Charging Mode:Fast charge /Standard Charge/ Charge / Storage
Working and Storage
- Working Temperature: 0℃-40℃
- Working Humidity: 0%-75%
- Storage Temperature: -10℃-70℃
- Storage Humidity: 0%-75%
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
