System Features
UHF 600-937MHz frequency range (region dependant)
PLL Synthesized, pre-set 100 selectable frequencies
Aluminum Alloy Bodypack
Built-in Rechargeable Lithium Battery
OLED Display
Support accompaniment input
Support In-ear monitoring
4 Optional Audio Modes: Mic, Music, Mix, Mute

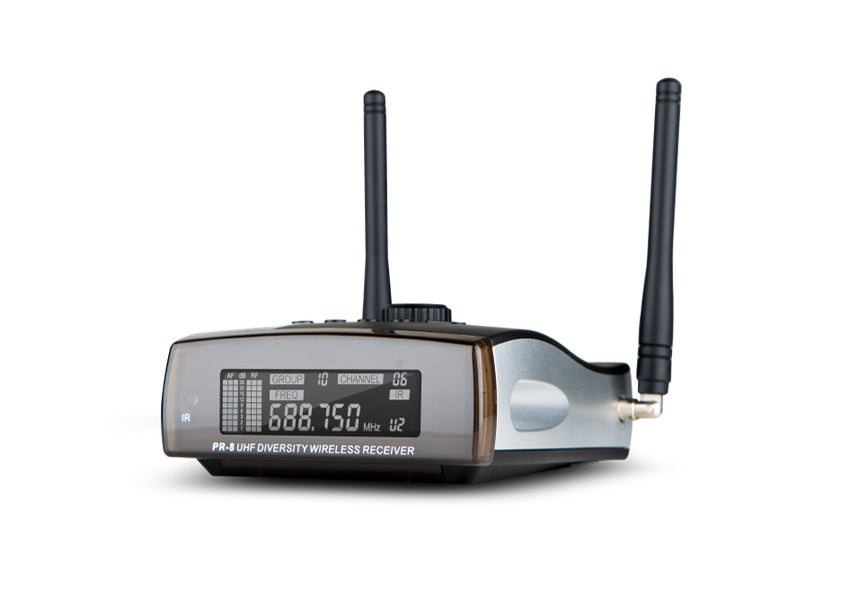

RECEIVER
Frequency range: 660-690MHz (region dependant)
Frequency Preparation：PLL Synthesized Control
Frequency Range：600-937MHz (Region dependant)
Frequency Type：F3E
Modulation Type：FM
Channels：100(10x10)
Oscillation System：VCO
Type of reception：Antenna Diversity
Receive Sensitivity：-110dBm (sinad≥30dB)
Frequency Response：60Hz-17KHz+/-3dB
S/N Ratio：≥105dB (-60dBm)
T.H.D：<0.5% at 1KHz
Dynamic Range：> 100dB
Operating Temperature：-10-+50°C
Display：Backlit LCD (63mm*22mm)
Audio Output：1*6 35mm Jack
Antenna：2 pcs
Power Supply：DC9V/200mA
Dimensions( L*W*H)：100* 130* 35mm
Dimensions: 185*20*10mm

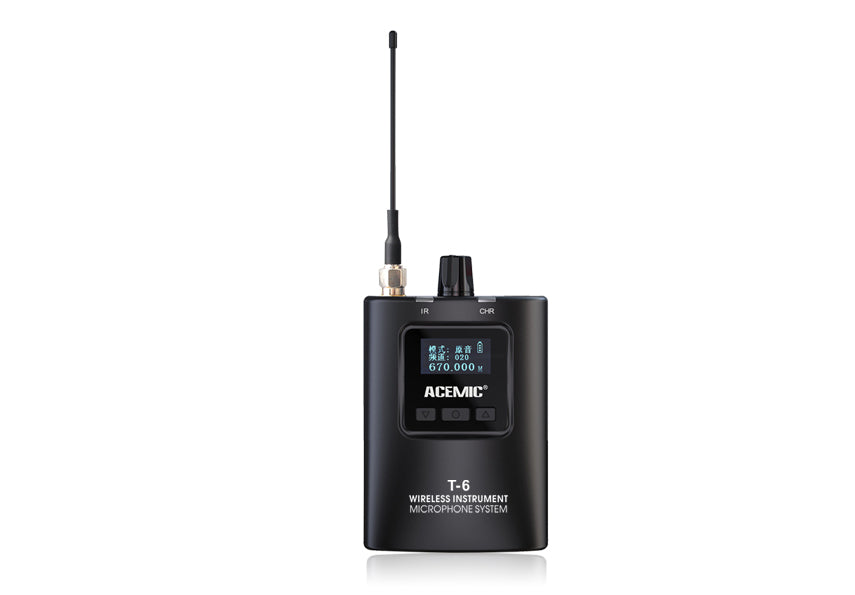

TRANSMITTER
Frequency range: 660-690MHz (region dependant)
Frequency Preparation：PLL Synthesized Control
Frequency Range：660-690MHz
Frequency Deviation：士48KHz
Input：3.5mm input and mini XLR 3-pin input
RF Output：10mW
Control：Power on/off, volume,frequency set,linear audio set
Interface：Infrared
Antenna：SMA dechatable antenna
Power Supply：Lithium battery
Operating Voltage：3.7V
Operating Time：6h
Material：Aluminum alloy
Dimension：102*64*24mm
ST-30 Wired Mic for Saxophone
Capsule: Condenser
Capsule dimension:Φ14.0 *6.5mm
Polar Pattern: Unidirectional
Sensitivity: -47dB+2dB
Frequency response: 40Hz-16kHz
Working voltage : 2.0V-10V.DC
S/N : > 63dB
Output impedance: ≤680KΩ
Cable length: 3m
Maximum vocal level: 120dB
For musical instrument: saxophone,tuba, trumpet and other brasswind instruments
Note：Not include mobile phone!
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
