Features:
Backlight LCD Screen shows test results clearly, simple and easy to use.
Trace and locate RJ45 (STP / 4-core), RJ11, USB, BNC cables.
Anti-jamming, capable of working on the exchanger and PC startup.
Measure cable length for RJ45, BNC cable.
Check open, short, cross, crosstalk for RJ11, RJ45, BNC Cable.
Locate short and breakage point accurately.
Specifications:
LCD screen: 53 * 25mm / 2.1 * 1.0in
Tone frequency: 225Hz
The Max. distance of tracing cable electrified wire: 3000m
Non-electrified wire: 2000m
The Max. distance of cablemapping: 2500m
The Max. distance of cable length testing: 1000m
Compatible with connectors: RJ11,RJ45,BNC,USB
Voltage protection: AC 60V/DC 42V
Transmitter size: 185 * 80 * 32mm / 7.3 * 3.1 * 1.3in
Receiver size: 218 * 47 * 29mm / 8.6 * 1.8 * 1.1in
Remote size: 107 * 30 * 24mm / 4.2 * 1.2 * 0.9in
Package size: 230 * 135 * 85mm / 9.1 * 5.3 * 3.3in
Package weight: 540g / 1.2lb

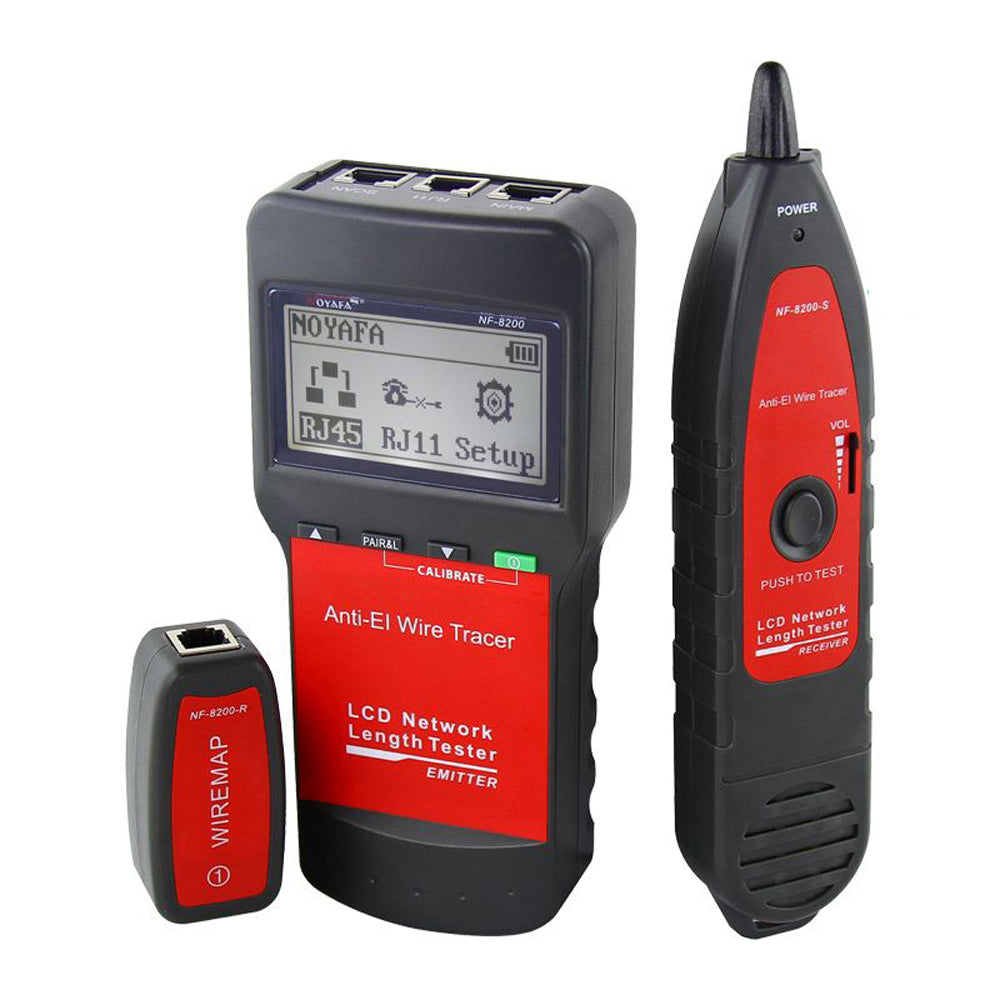

Packing List:
1 * Transmitter
1 * Receiver
1 * Remote Recognizer
1 * User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
