Parameter
Machine size: Length 485mm* Width 415mm* Height 374mm
XYZ axis actual stroke: 300*180*80mm (If install limit switch. Z axis stroke about 78mm).
Aluminum Table Size: 300*180mm
Material: Aluminum
Control Card: 3 Axis 5.2 GRBL 1.1f
Driver Clip: A4988
Maximum operating speed: 5000mm/min
Maximum processing speed: 2000mm/min
Stepper motor: Nema17 42mm Stepper motor. Length 48mm
Screw: T8 stainless steel screw, lead 4MM
Screw Nut Type: Double nut clearance adjustment
Spindle hole diameter: 52mm
Laser module diameter: 40mm
Control software: Laser: GRBL control, CNC: CANDLE control

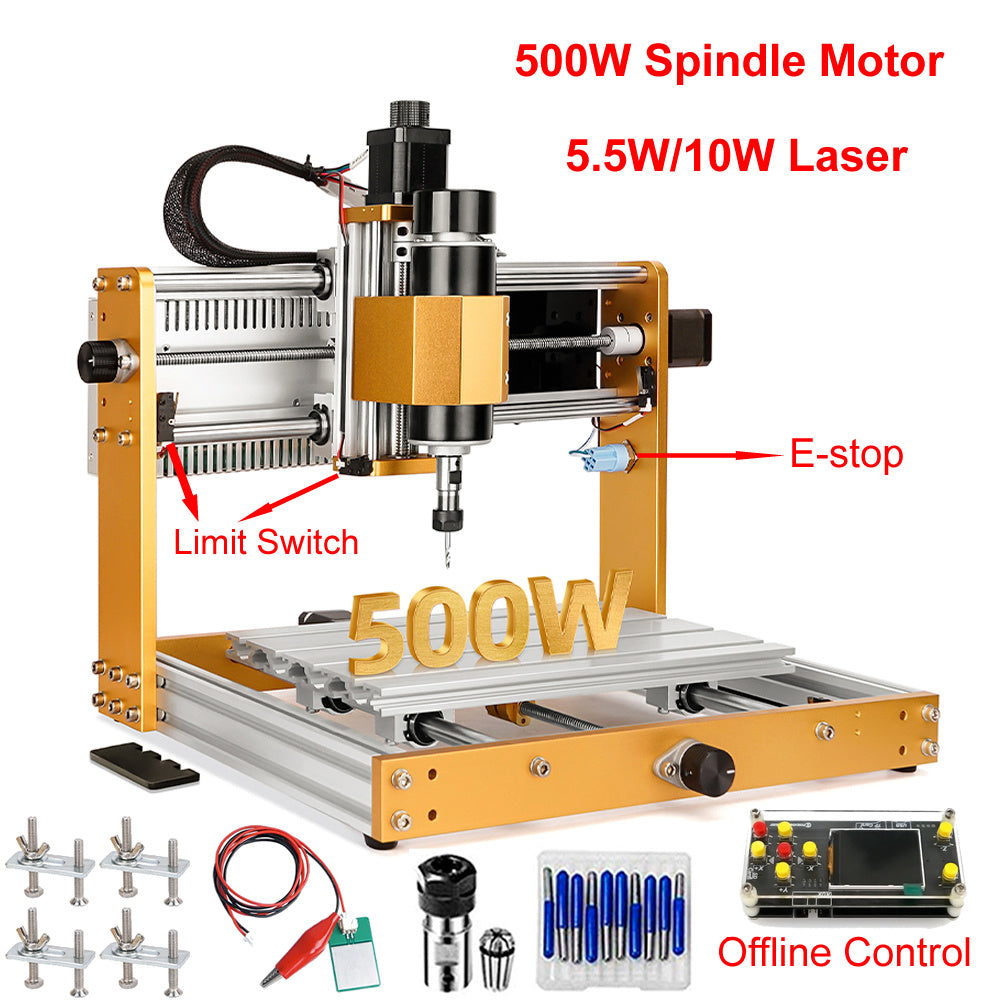

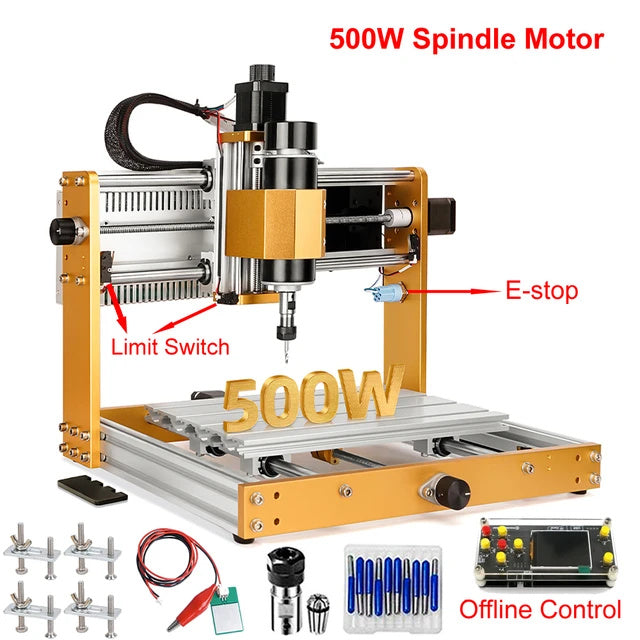

Spindle: 500W(ER11)

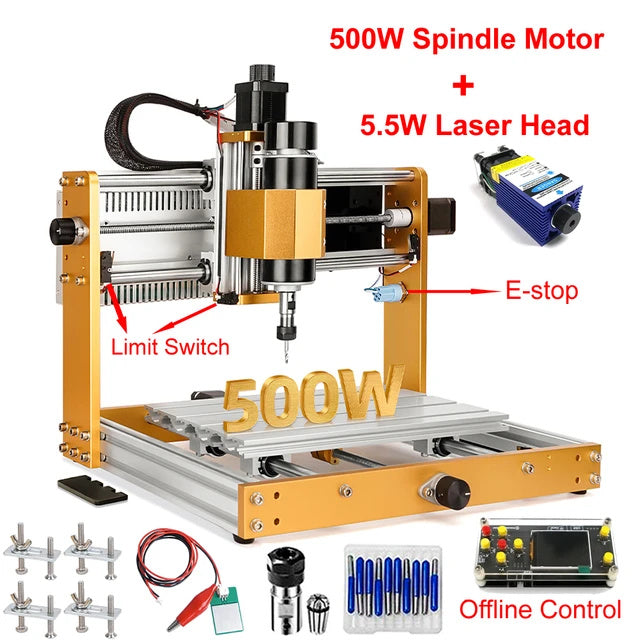

Laser: 5.5W/10W Optional
Power Supply: 48V 500W
Supported System: Windows XP/ Win 7/ Win 8/ Win10
Suitable for material: CNC: Wood, Aluminum, Copper, Acrylic, PVC, Nylon, Epoxy Resin, Glass Fiber PCB, POM, Carbon Fiber Board….
Laser: Wood, Plastic, Anodized, Stainless steel(only can marking)
3018Plus2.0 Product Features
1. The installation of the control board eliminates the use of isolation columns, making it convenient for installation and use
2. The new generation of spindle wiring terminals are easy to use and not easy to loosen when pressing wires
3. Using a power supply bracket, the power supply can be fixed on the back of the machine
4. Z-axis travel is 78-80mm (with limit switch installed)

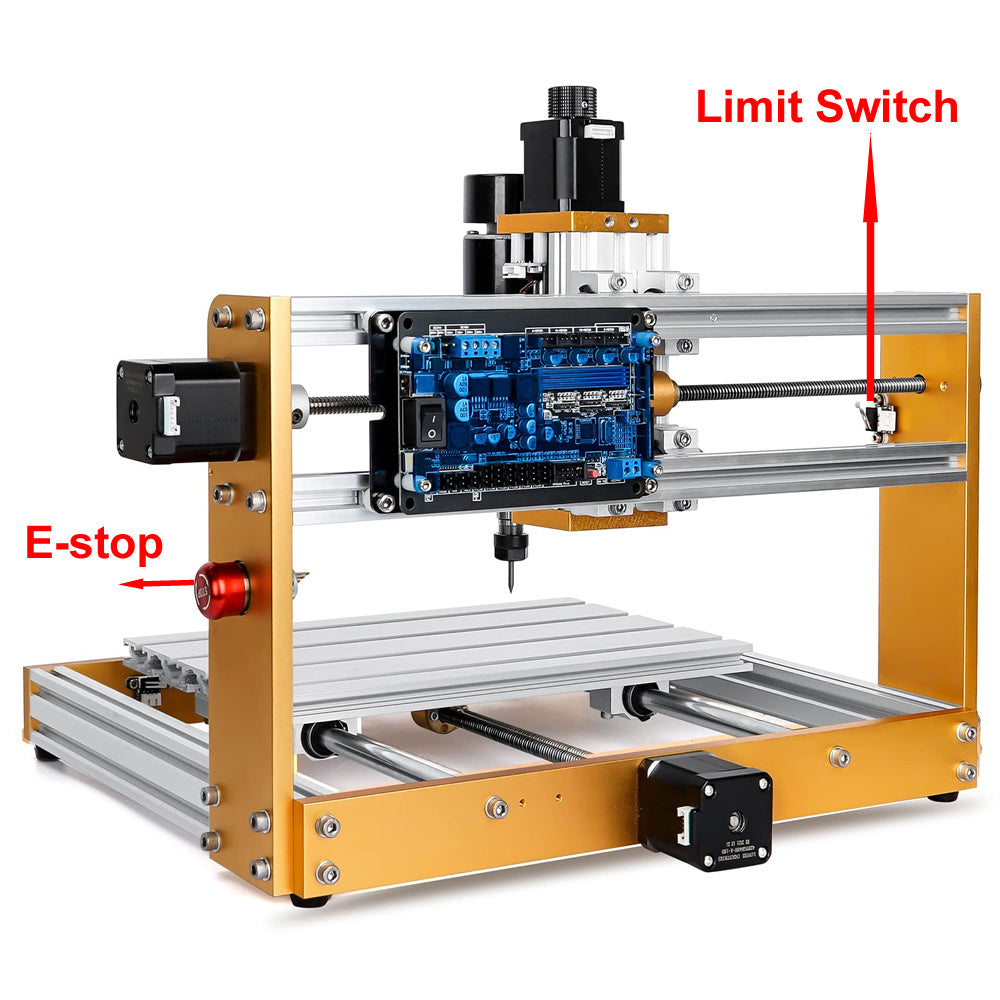

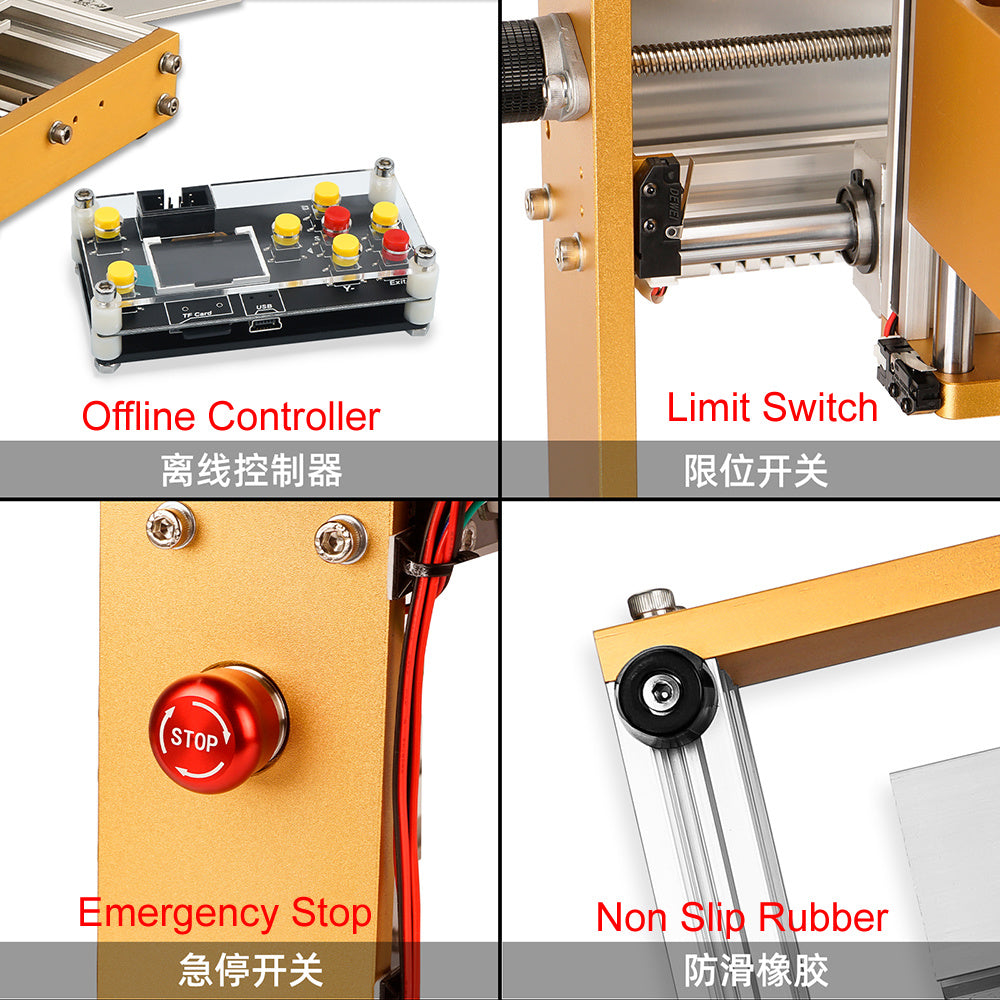

5. Use a new integrated limit switch to prevent the impact of metal debris on the false triggering of the limit switch
6. Greatly improved Z-axis strength

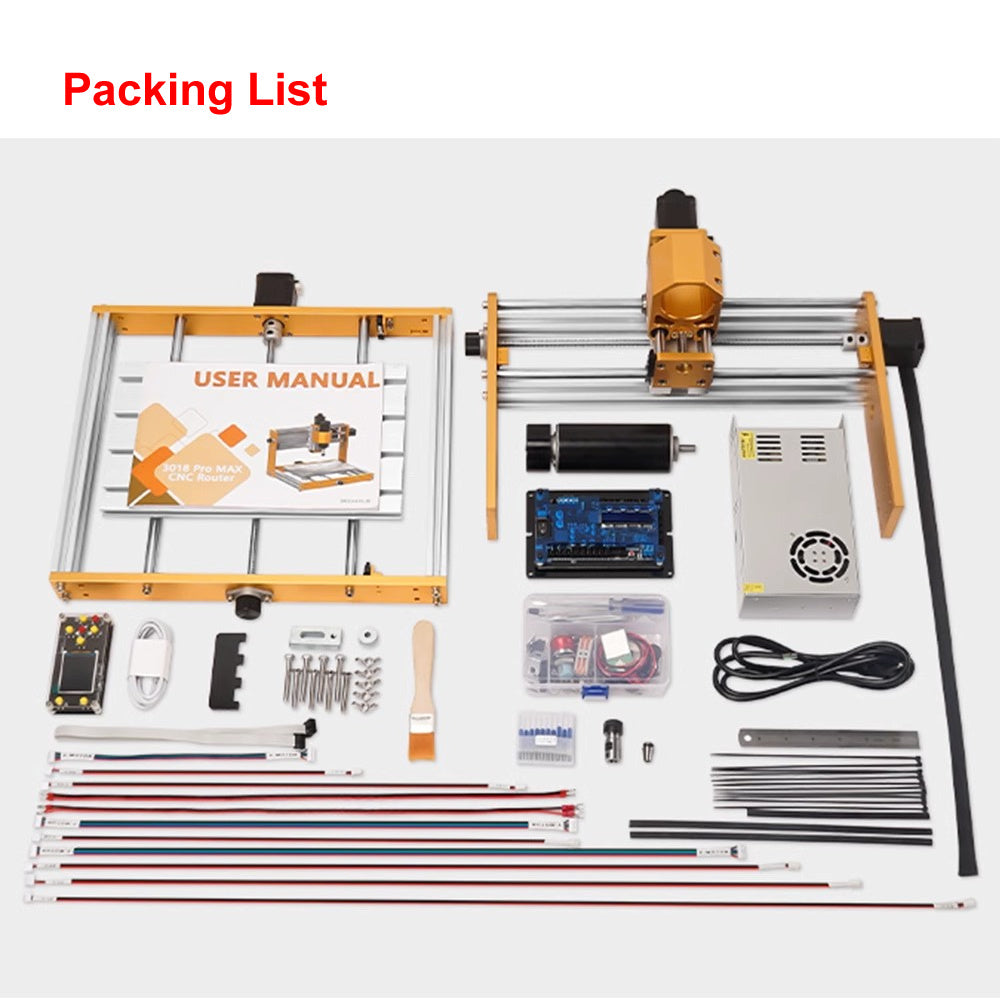

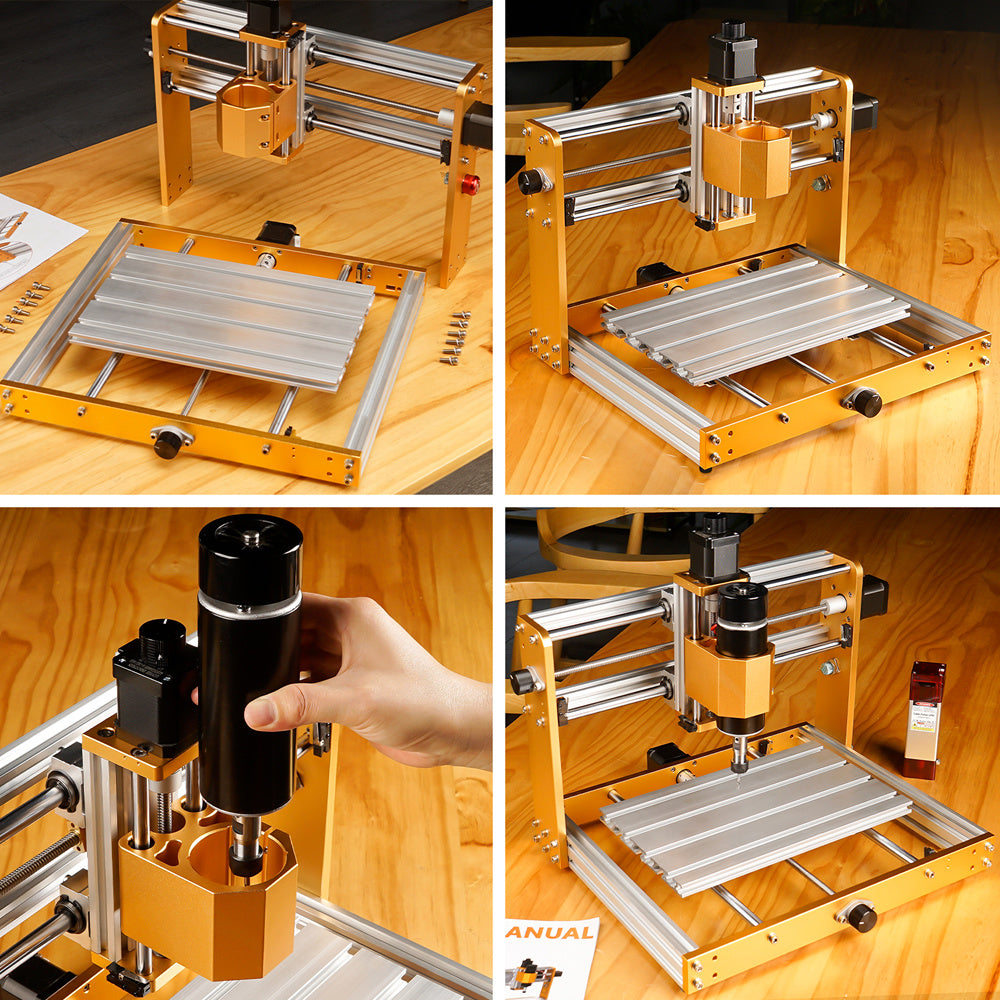

7. Convenient shipment and installation of semi-finished products, saving installation time
8. Adjusting the clearance structure of the screw nut and improving the carving accuracy

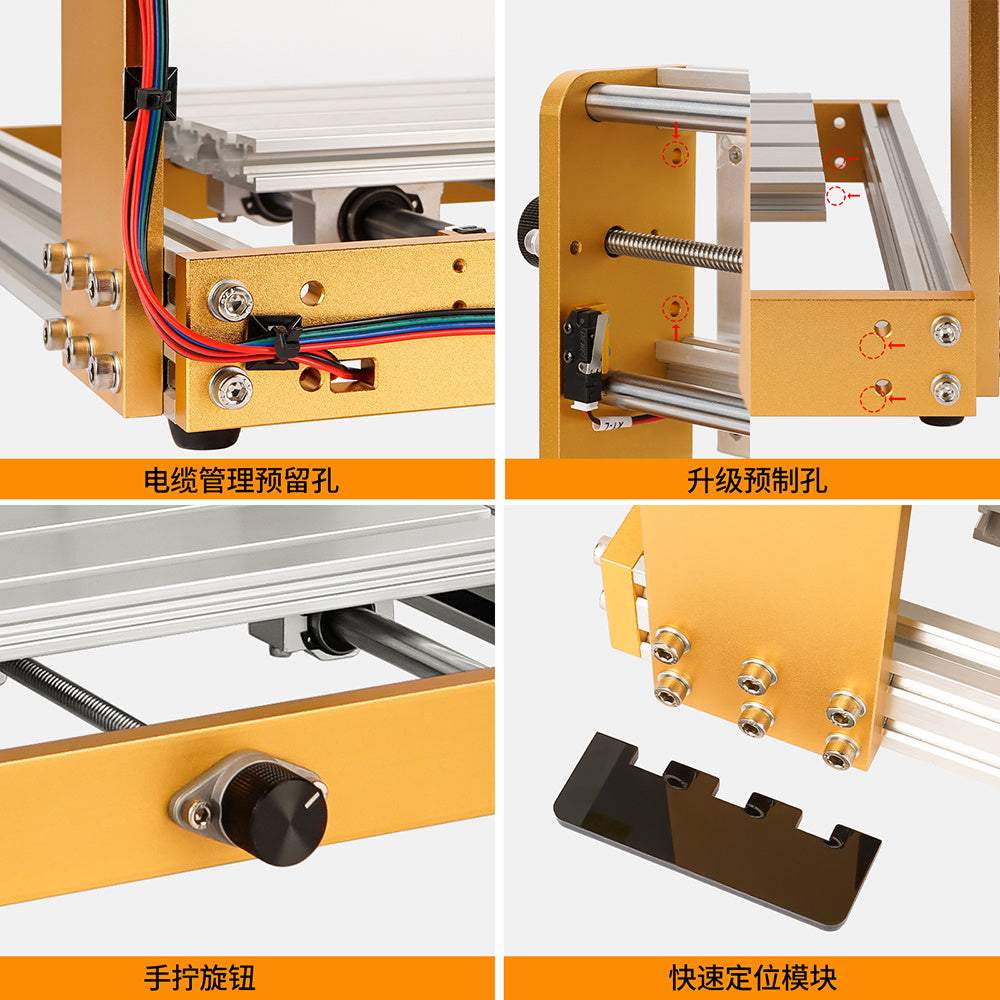

9. Auxiliary tools can sort out the spacing between slider nuts, making it convenient for machine assembly
10. Limit switch wires and motor wires are all custom lengths
11. Use tie straps to secure the base and trunking for easy wiring management
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
