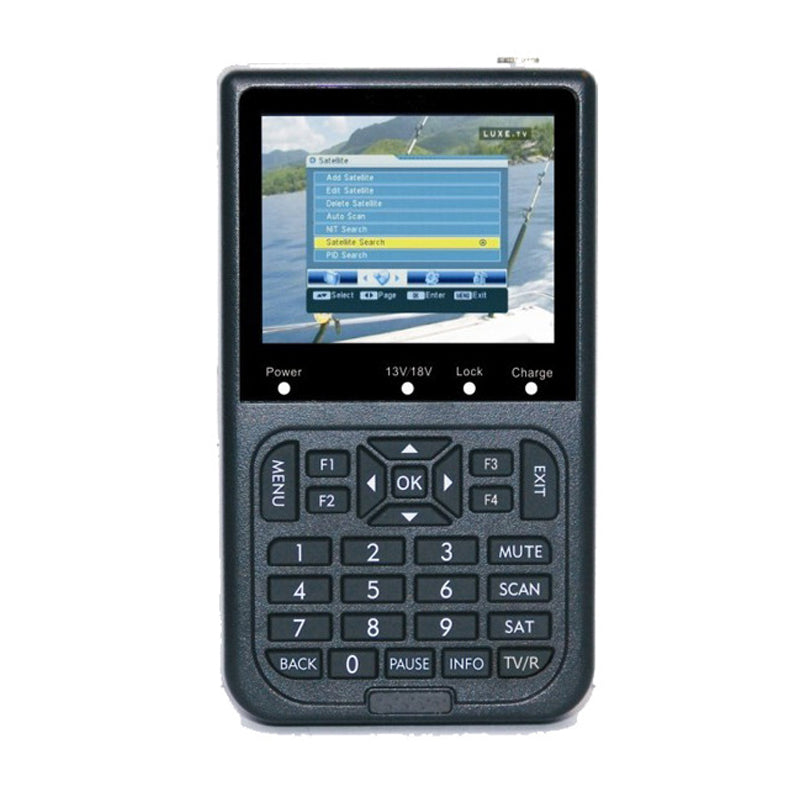

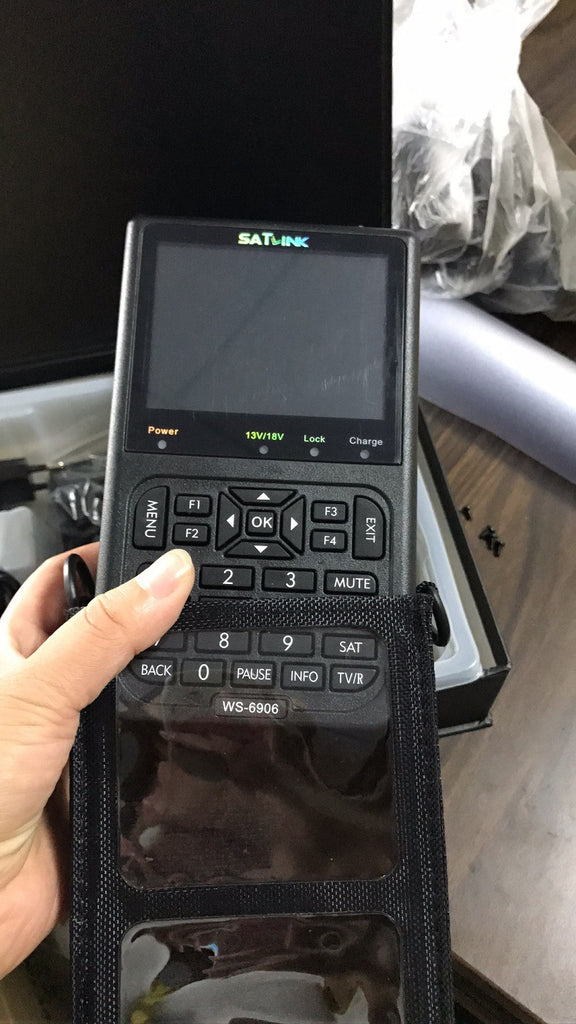

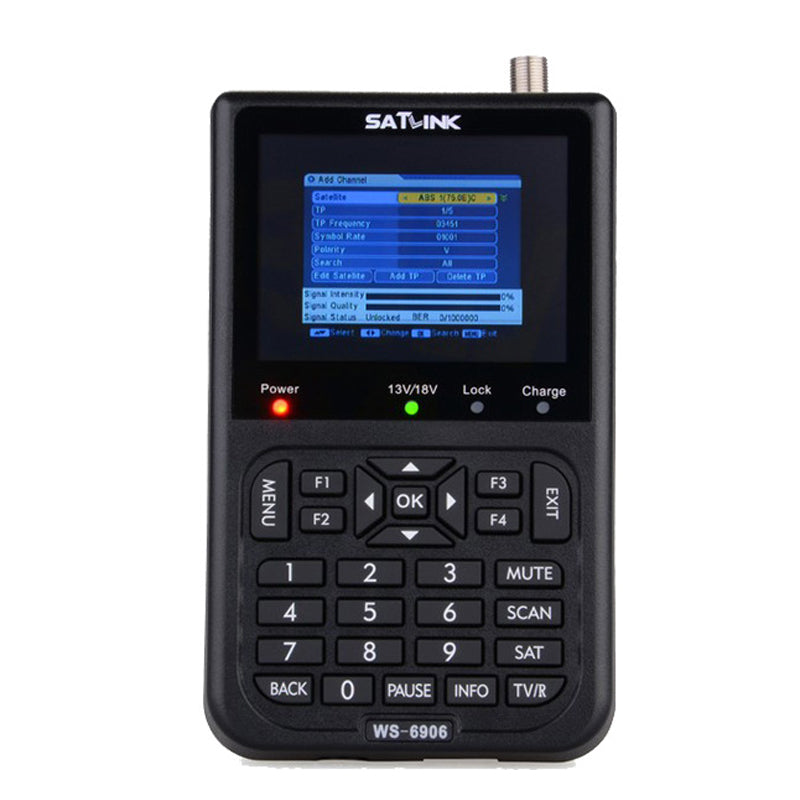

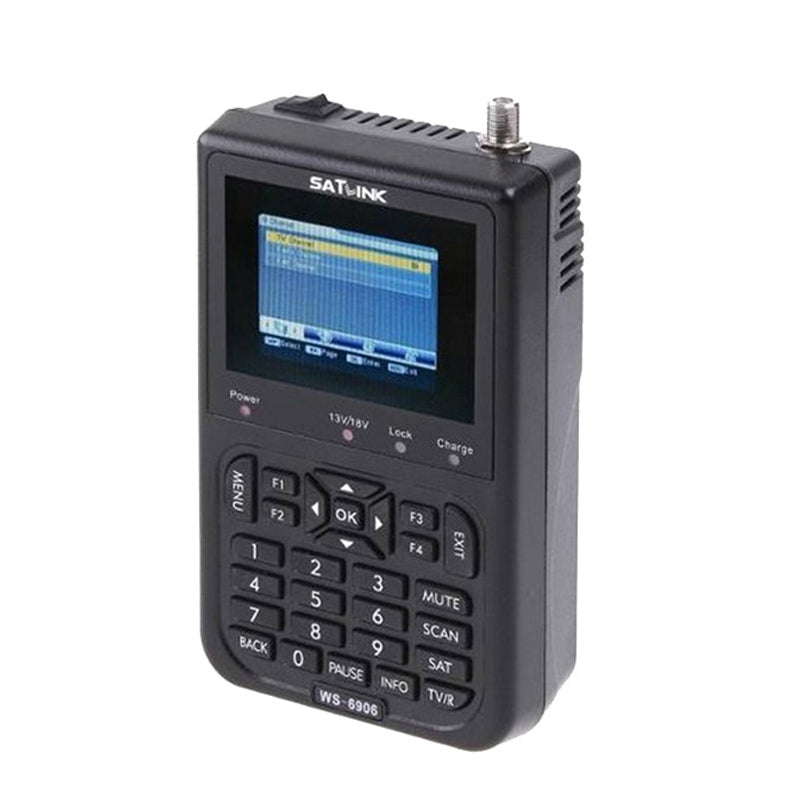

Original Satlink WS-6906 satellite finder 3.5" DVB-S FTA 6906 digital satellite meter ws 6906 satlink

   AV-IN & OUT PUT

  Satlink WS-6906 DVB-S FTA can be connected as a standard satellite receiver to a TV. In addition, the device has an AV input. At this, other media players or AV surveillance cameras to be connected !

  - Color TFT LCD display with 3.5 "/ 8.9 inch

  - Built-in speaker

  - Display the signal strength in percent and as a bar

  - Display of signal quality as a percentage and as a bar

  - Acoustic signal when a transponder is locked

  - Automatic Channel Search TV + Radio

  - Reception and playback of DVB-S Free to Air TV programs

  - Reception and playback of DVB-S Free to Air Radio Programs

  - Using an adapter cable can be connected to the device to the TV set and satellite receiver are used as normal

  - Firmware update via RS232 interface

  - 7 Menu Languages: English, French, Russian, Arabic, Farsi, Portuguese, Turkish

  - Built-in 8.4V / 3000mA / h Li-Ion battery for up to 6 hours operating time

  - Charging time 4 hours

              System capabilities

     Fully DVB compliant

     Yes

             LNB/Tuner input

     Connector

     F type,male

             Frequency range

     950MHz-2150MHz

             Signal lever

     -65dBm~-25dBm

             LNB supply

     13/18V,max400mA

             LNB switch control

     22KHz

             DiSEqC

     Ver 1.0

             Demodulator

     Front end

     QPSK

             Symbol rate

     2Mbps~45Mbps

             SCPC and MCPC Capable

     Yes

             Spectral inversion

     Auto conversion

             System resource

     Processor

     32bit processor (200MHz)

             SDRAM

     16Mbyte

             FLASH

     2Mbyte

             EEPROM

     8Kbyte

             Video decoder

     MPEG 2

     Main Proflie@Main Level

             Data Rate

     up to 15M bits/s

             Resolution

     720*576,720*480

             Video format

     PAL/NTSC/SECAM

             MPEG Audio

     MPEG 1 layer 1&2

             Type

     Mono

             Sampling rates

     32,44.1 and 48KHz

             Serial data interface

     Connector

     USB type

             Power supply

     Li-oN Battery

     3000 mA

             Supply voltage

     12.6Volt

             charger

     90-240V

             Panel connectors

     Digital tuner input

     F type, male

             Physical Specification

     Size

     9.5x15.5x4.5 (cm)

             Weight(Net)

     0.5 Kg

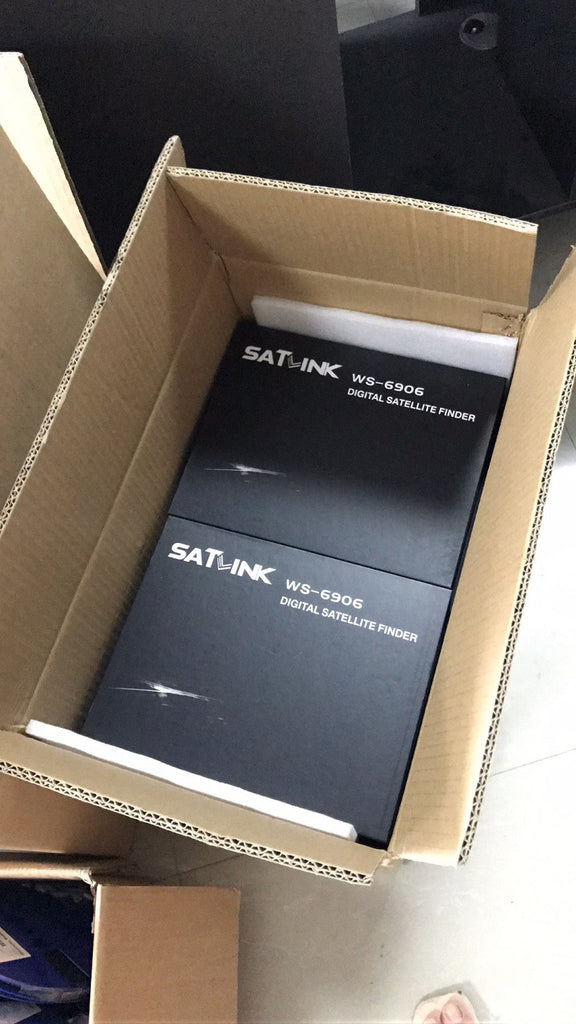

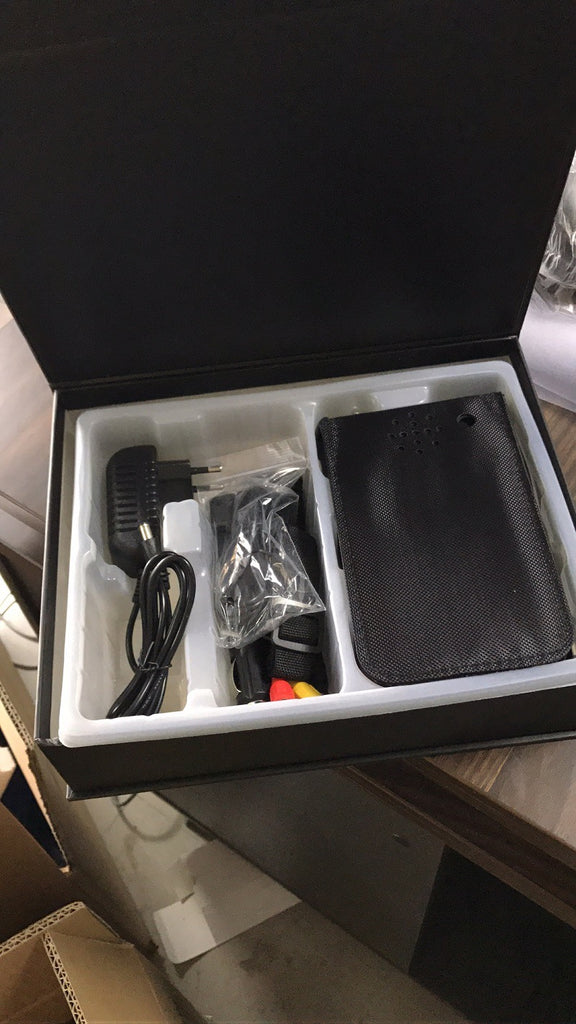

   What's In the Box?

  - 1 x WS-6906 Satellite Finder

  - 1 x Black Protective Bag

  - 1 x USB Upgrade Cable

  - 1 x Strap

  - 1 x Car Charger

  - 1 x Power Adapter

  - 1 x AV Cable

  - 1 x English User Manual
