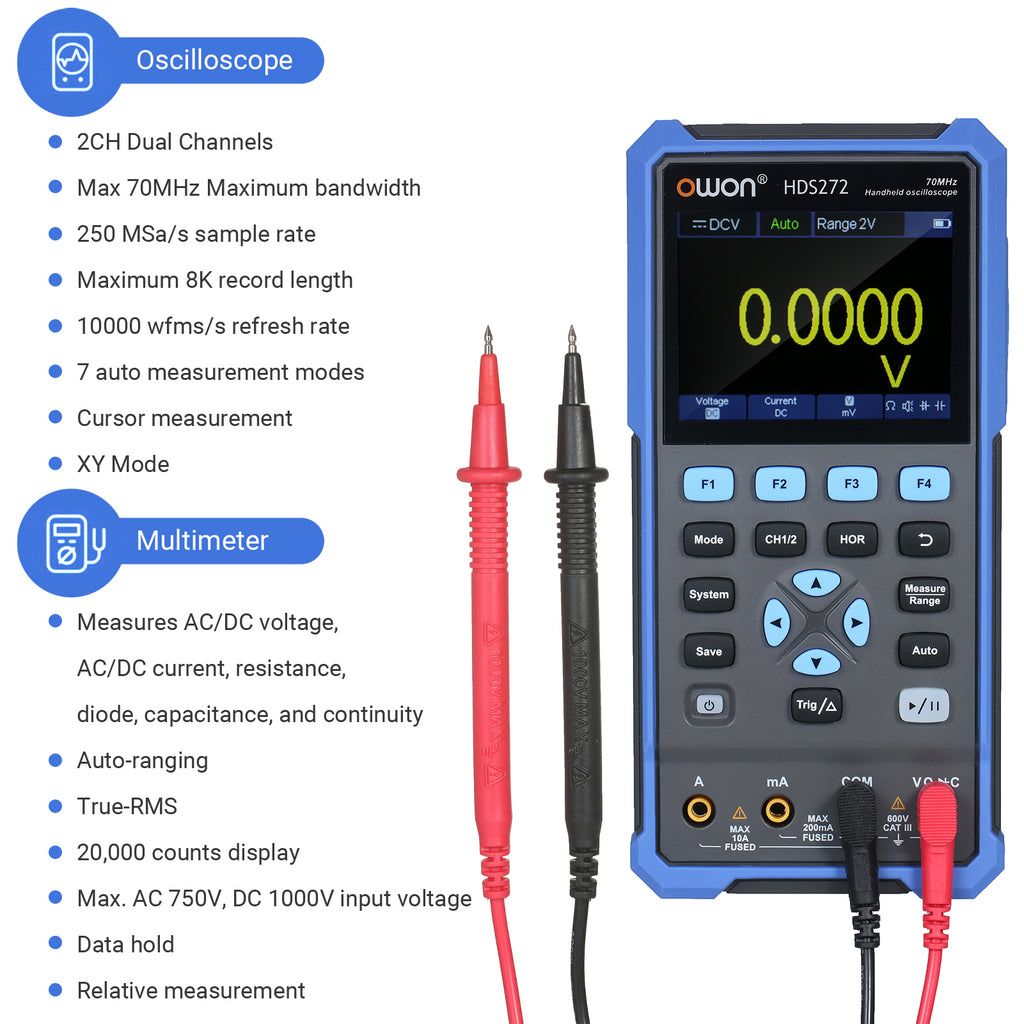

Features:

The 2-in-1 versatile unit combines the function of oscilloscope and multimeter in one.

3.5 inches color LCD display, bright and clear to read for waveform details even out of doors.

2CH dual channels input, bandwidth up to 70 MHz, real-time sampling rate is 250MSa/s.

Maximum 8K record length, and 10000 wfms/s refresh rate, easy to capture exceptional and low probability events.

Easy to use, provided with 7 kinds of auto measurement - frequency, period, amplitude, max, min, mean, and PK-PK, perfect for professionals and novices.

More functions of the oscilloscope - cursor measurement, XY mode, and data save.

20,000 counts true-RMS multimeter able to measure AC/DC voltage, AC/DC current, resistance, diode, capacitance, and continuity.

Support maximum AC 750V, DC 1000V input voltage. Auto-ranging function, easy to detect and debug.

More functions of the multimeter - data hold, and relative measurement.

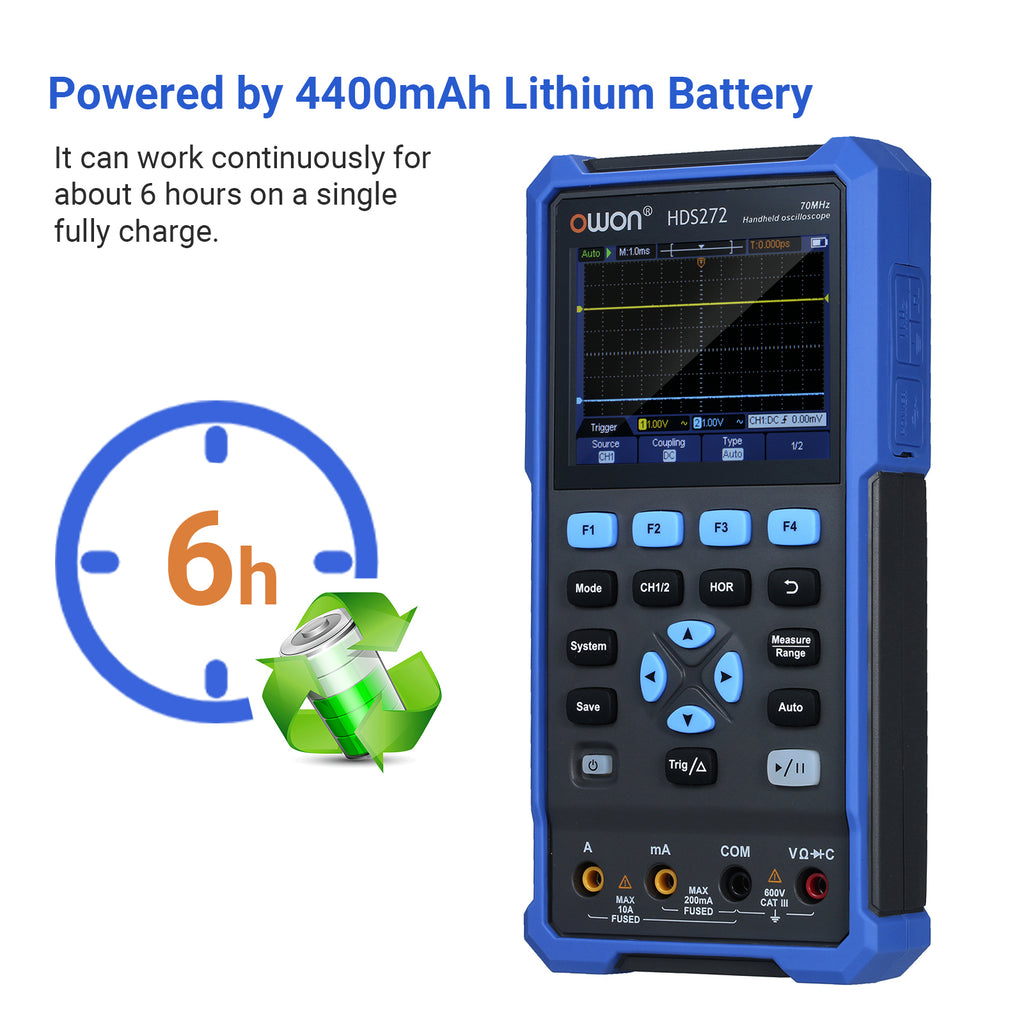

Powered by 4400mAh lithium battery, it can work continuously for about 6 hours on a single fully charge.

USB type-C interface can be charged by an adapter or a power bank, and supports PC software connection.

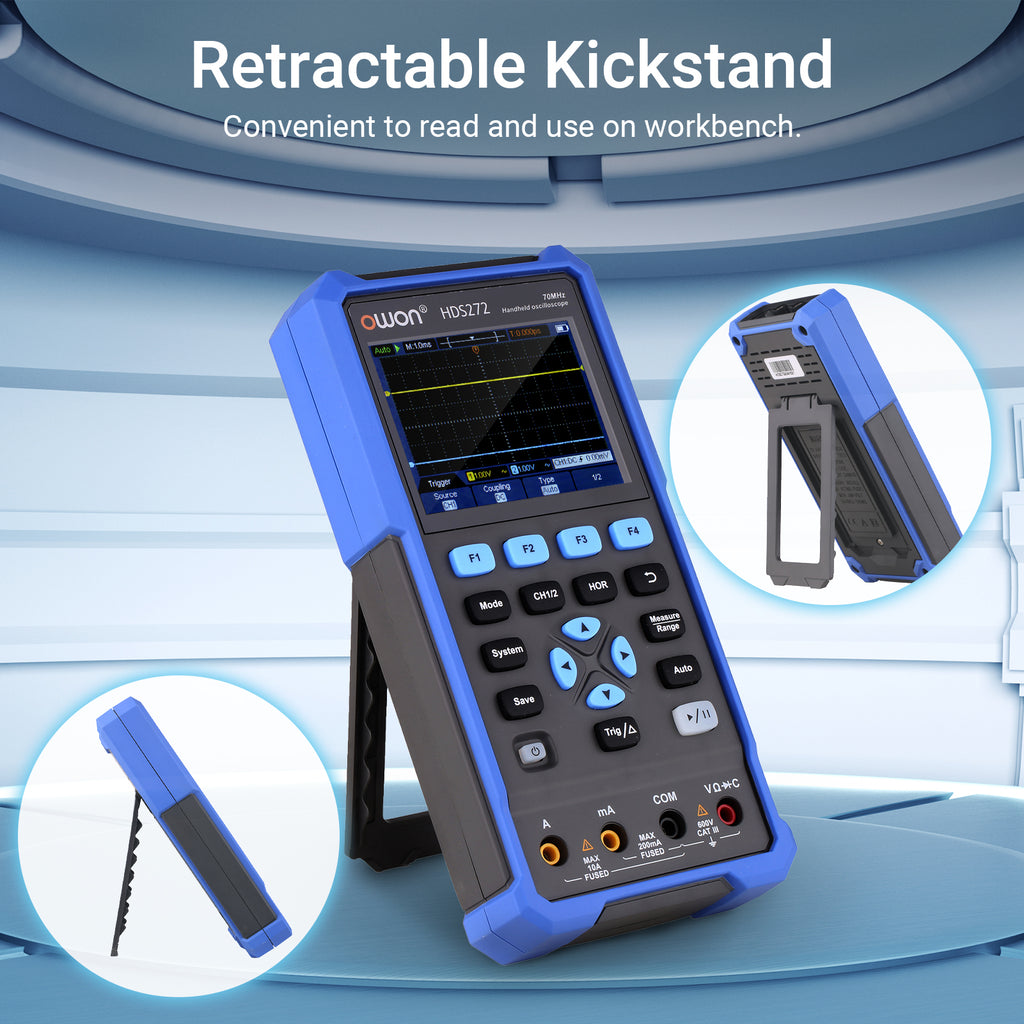

Compact and portable for travel, with solid kickstand on the back for easy reading on workbench.

Applied for the maintenance of sound systems, electronics, automobile, transceiver, etc.

Parameters:

[Oscilloscope]

Bandwidth: 70MHz

Channels: 2CH

Sample Rate: 250MSa/s

Acquisition Model: Normal, Peak detect

Record Length: 8K

Display: 3.5-inch LCD

Waveform Refresh Rate: 10000 wfrms/s

Input Coupling: DC, AC, and Ground

Input Impedance: 1 MΩ±2%, in parallel with 16pF±10pF

Probe Attenuation Factors: 1×, 10×, 100×, 1000×

Max. Input Voltage: 400V(DC+AC, PK-PK, 1MΩ input impedance)(10:1 probe attenuation)

Bandwidth Limit(typical): 20MHz

Horizontal Scale: 5ns/div - 500s/div, step by 1-2-5

Vertical Sensitivity: 10mV/div - 10V/div

Vertical Resolution: 8 bits

Trigger Type: Edge

Trigger Modes: Auto, Normal, Single

Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK

[Multimeter]

Max. Resolution: 20,000 counts

Testing Mode: Voltage, Current, Resistance, Capacitance, Diode and Continuity

Input Impedance: 10MΩ

Max. Input Voltage: AC 750V, DC 1000V

Max. Input Current: DC: 10A, AC: 10A

Diode: 0-2A

Specifications:

Brand: OWON

Material: ABS

Color: Blue

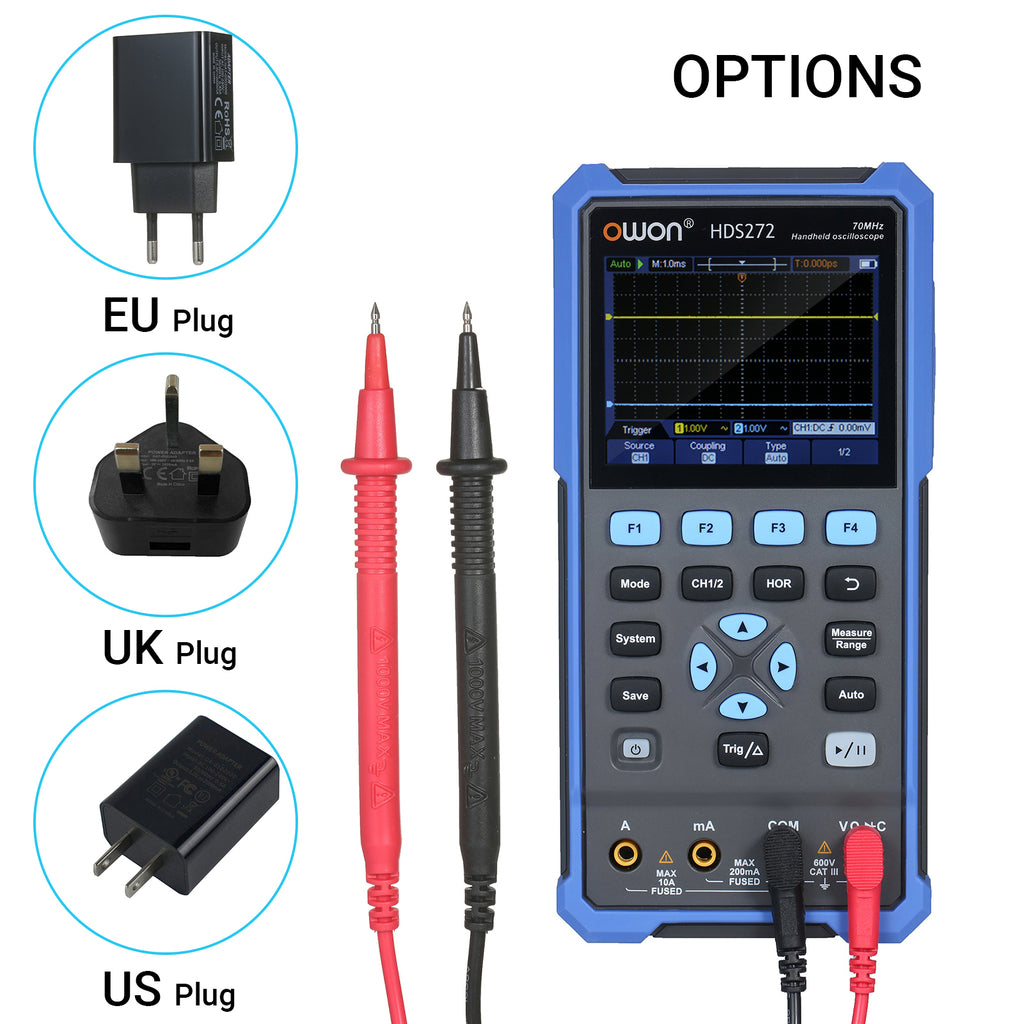

Plug Type: UK

Battery Capacity: 4400 mAh

Chaging Time: approx. 4.5 hours

Battery Life: approx. 6 hours

Item Size: 19.8*9.6*3.8cm / 7.79*3.77*1.49in

Item Weight: 504g / 17.77oz

Tool Bag Size: 21*14*6cm / 8.26*5.51*2.36in

Package Size: 24*16*9.5cm / 9.44*6.29*3.74in

Package Weight: 1049g / 37oz

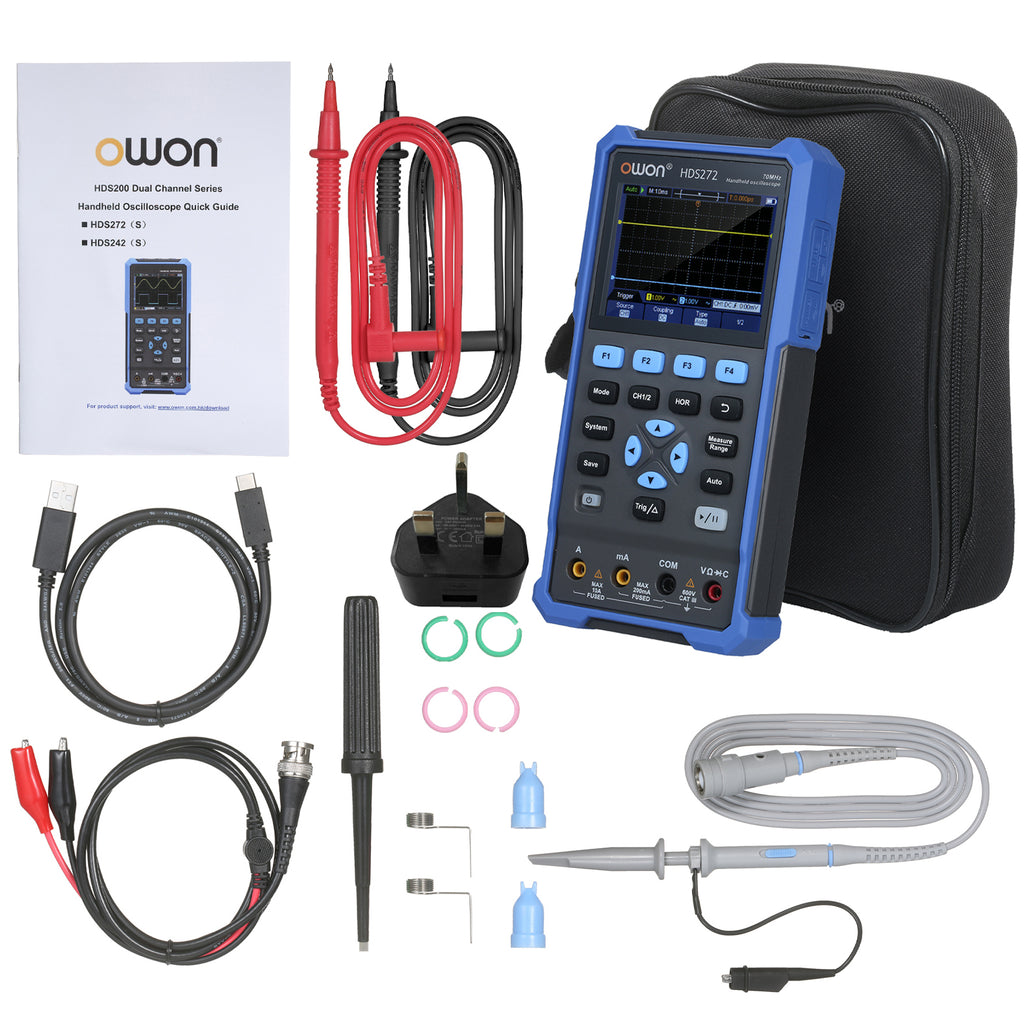

Packing List:

1 * Oscilloscope

1 * Probe

1 * Probe Adjust

1 * USB Cable

2 * Test Lead

1 * BNC to Alligator Clip

1 * Carrying Bag

1 * User Manual(English)
