Features:

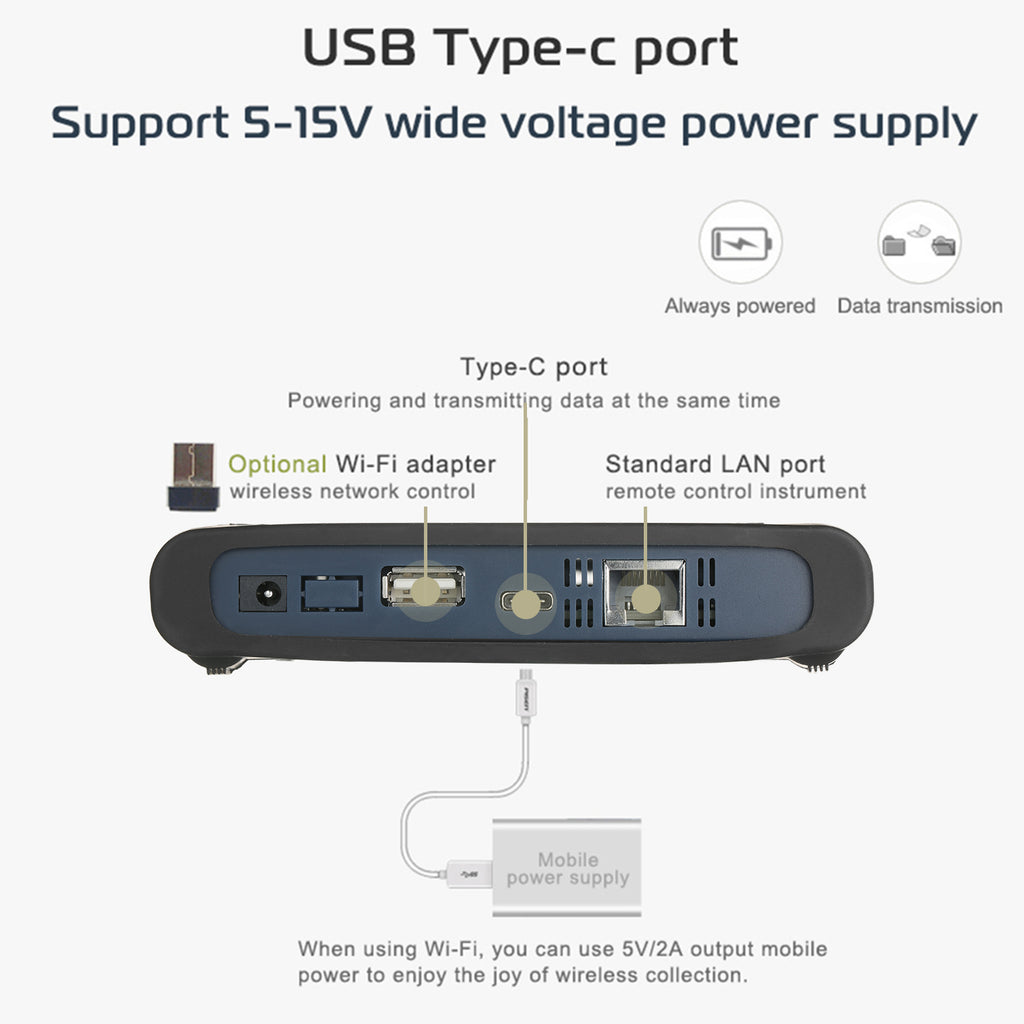

 2 channel ultra thin and lightweight design with USB Type-C connect which can be powered by a 5V/2A power bank, so you can use this PC oscilloscope in any workplace. Furthermore, the type-c port support data transform, so you can share oscilloscope data with the computer for secondary analysis.

 Up to 100MHz bandwidth, and max 1GS/s real-time sample rate, 8-bit vertical accuracy, more accurate measurement. Standard built-in 5MHz signal generator. Max. 10M record length. Friendly UI, X-Y and waveform can be displayed on the same screen.

 Standard SCPI protocol supported, LabVIEW supported.

 Secondary development supported on Windows, Linux, Android, and iOS platform.

 Multiple Trigger Functions, Supports trigger functions such as edge, video, slope and pulse. Trigger types include NTSC, PAL, and SECAM standard. The trigger mode is automatic, normal, and single adjustable.

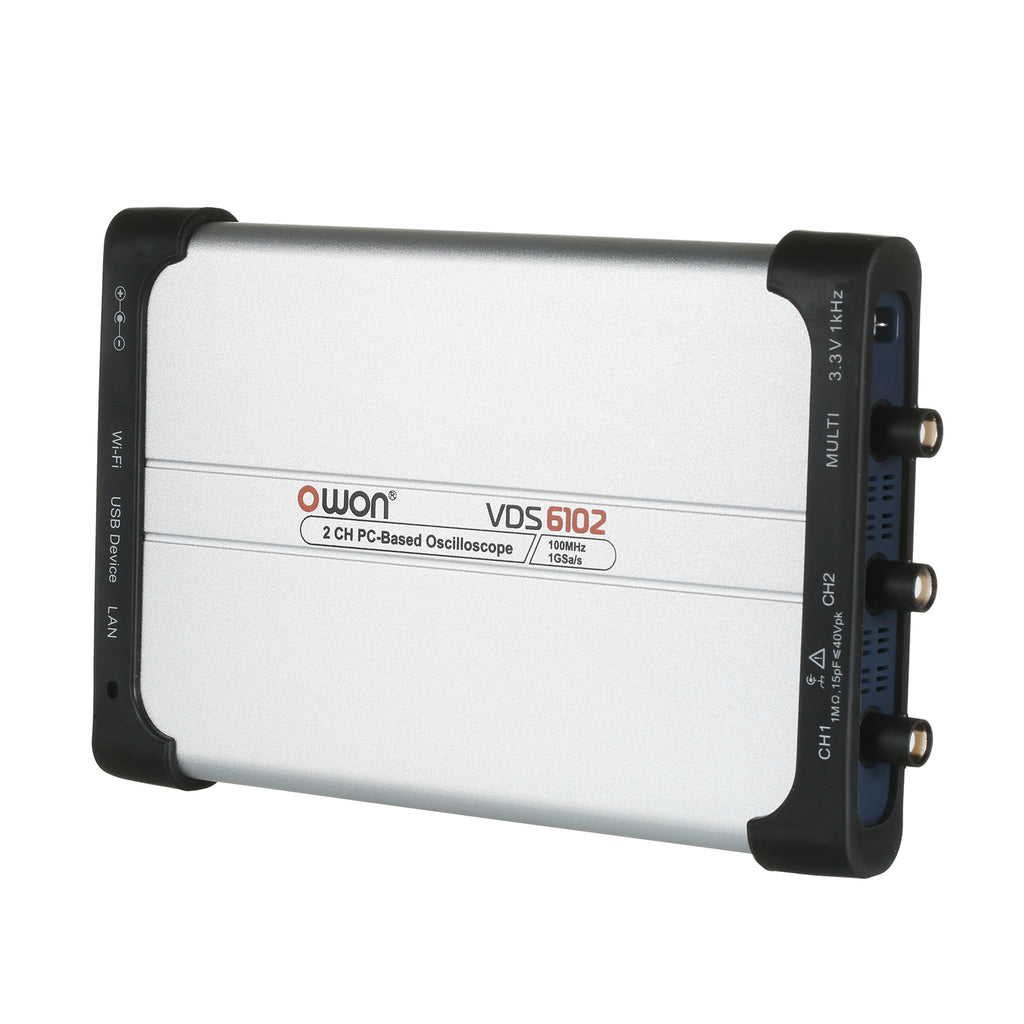

 This VDS6102 oscilloscope is widely used in electronic circuit testing, circuit function testing, design and manufacturing testing, education and technical training.

 Speicification:

 Brand: OWON

 Model: VDS6102

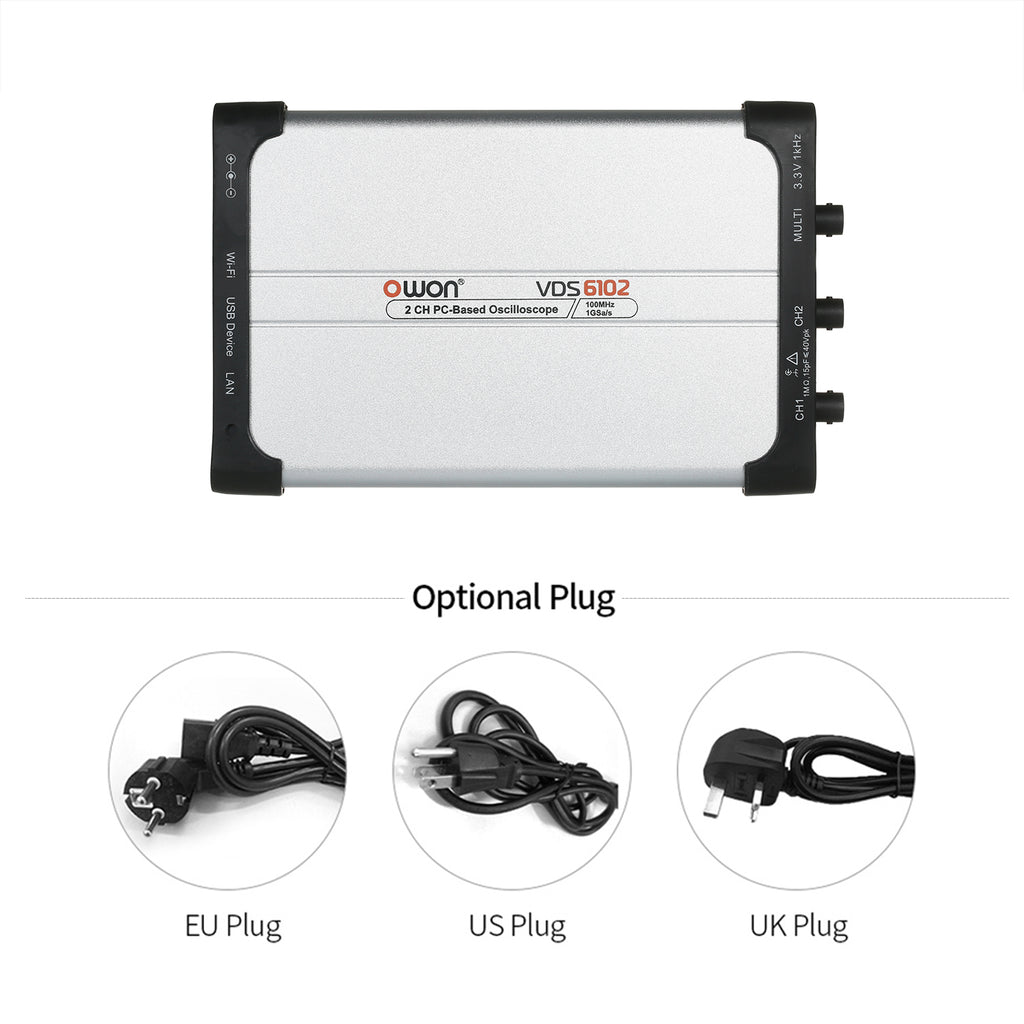

 Plug: EU/US/UK (optional)

 Model:VDS6102

 Bandwidth: 100MHz

 Vertical Resolution (A/D): 8bits

 Channel: 2+1 (signal source)

 Sample Rate: 1 GS/s

 Rise Time: ≤3.5 ns

 Horizontal Scale (s/div): 5ns/div～100s/div, step by 1～2～5

 Sampling Mode: General sampling, peak detection, average

 Record Length: Max 10M

 Input Coupling: DC, AC, GND

 Input Impedance: 1MΩ±2%, in parallel with15pF±5pF

 Max Input Voltage: 40V Peak value(DC + AC Peak value)

 DC Gain Accuracy: ±3% when ≥2mV

 Vertical Sensitivity:2mV/div～5V/div

 Trigger Type:Edge, Pulse,Video, Slope

 Trigger Mode :Auto, Normal, and Single

 Line / Field Frequency (video):NTSC, PAL, and SECAM standard

 Automatic Measurement:Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty

 Time Base Accuracy: ±25ppm

 Interval (△T) Accuracy(full bandwidth):Single:±(1interval time+100ppm×reading+0.6ns),

 Average >16:±(1 interval time+100ppm×reading+0.4ns)

 Bandwidth limitation:20 MHz,full bandwidth

 Probe Attenuation Factor:1X,10X,100X,1000X

 Isolation between channels:50Hz: 100 : 1,10MHz: 40 : 1

 Interpolation:Sin(x)/x

 Displacement range:±20 V (100 mV/div – 500 mV/div);

 ±40 V (1 V/div – 5 V/div)

 Single Bandwidth:full bandwidth

 Low frequency response(AC coupling, - 3dB):≥5Hz(in BNC )

 Cursor Measurement:△V, and △T between cursors

 Communication Interface:USB (Typ-c);LAN, WIFi

 Power Source: 5-15V DC/1.2A

 Power Consumption:≤8W

 Dimensions (W × H × D):190mm×120mm×18mm

 Device Weight:384g

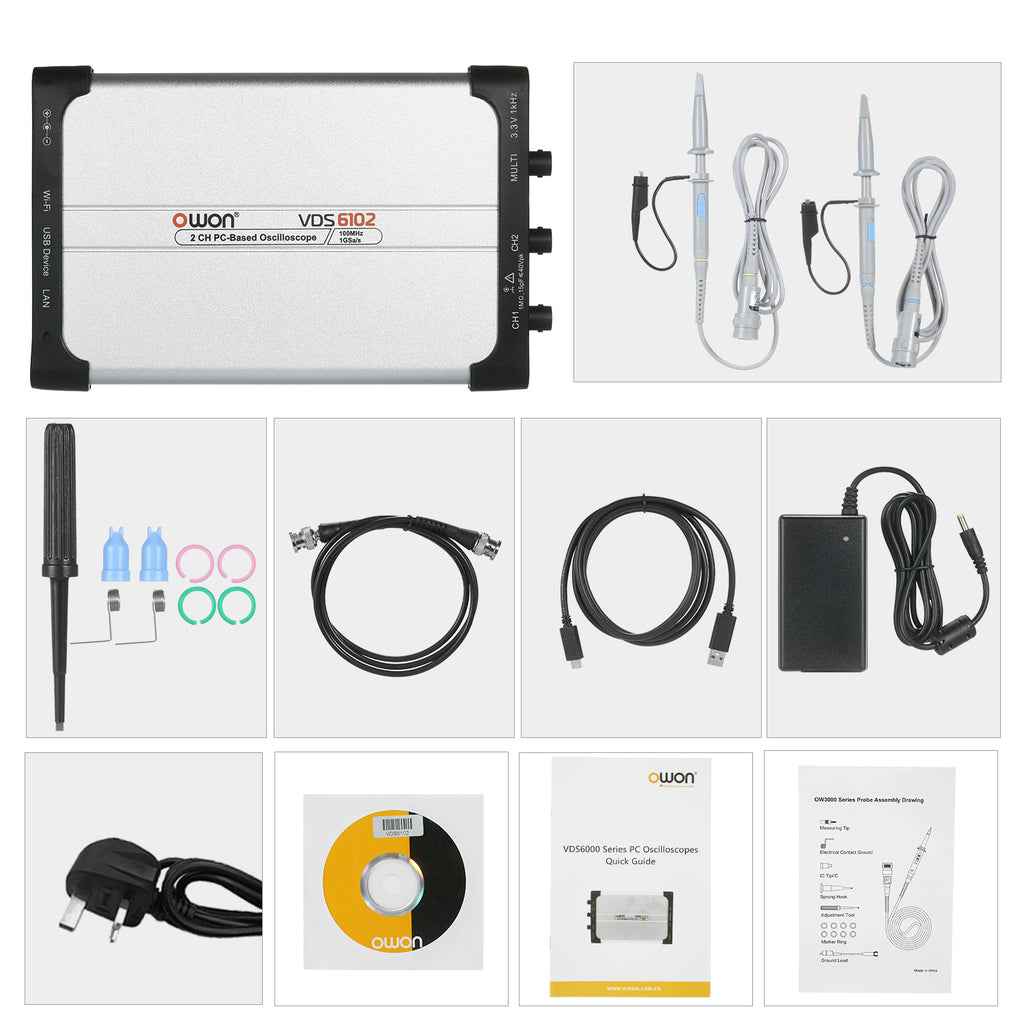

 Packing List:

 1 * VDS6102 PC Oscilloscope

 1 * Power Cord

 1 * Adapter

 1 * Type-C Cable

 1 * Q9 Cable

 2 * Probes

 1 * Probe Adjust

 1 * CD

 1 * User Manual
