OWON XDM3041 XDM3051 4 1/2 Bench-Type Multimeter High Accuracy Digital Option Wifi Transmission Digital Multimeter
Features：
+ 4 inch 480 x 320 pixels high resolution LCD
+ resolutions up to 4 1/2 digits
+ reading rates up to 150 readings/s
+ true RMS AC voltage / current measurement
+ dual line display supported
+ the change trend analysis accessible via special chart mode
+ SCPI supported - remote control, and data-sharing
possible via LAN, USB, RS232 port, and WiFi*
* WiFi module is optional

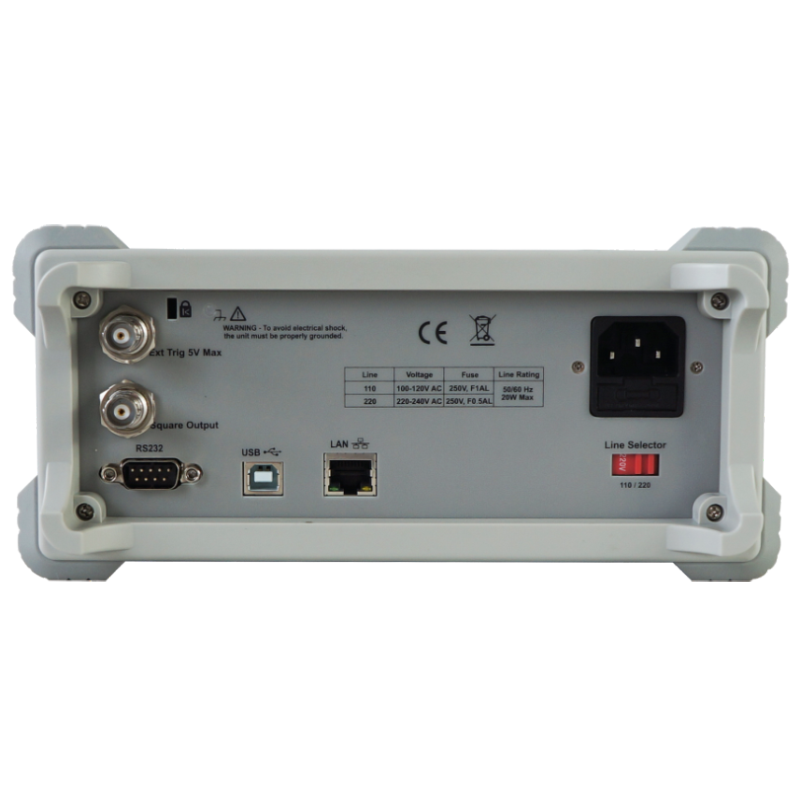

+ multi- IO interface: USB Device / Host, RS232, LAN, and ext.
trigger input

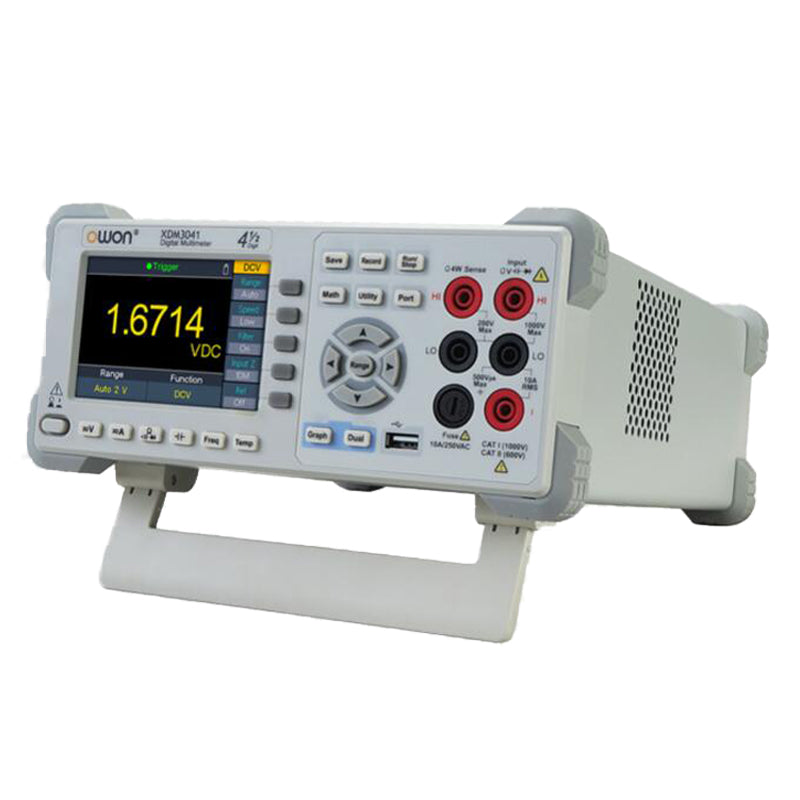

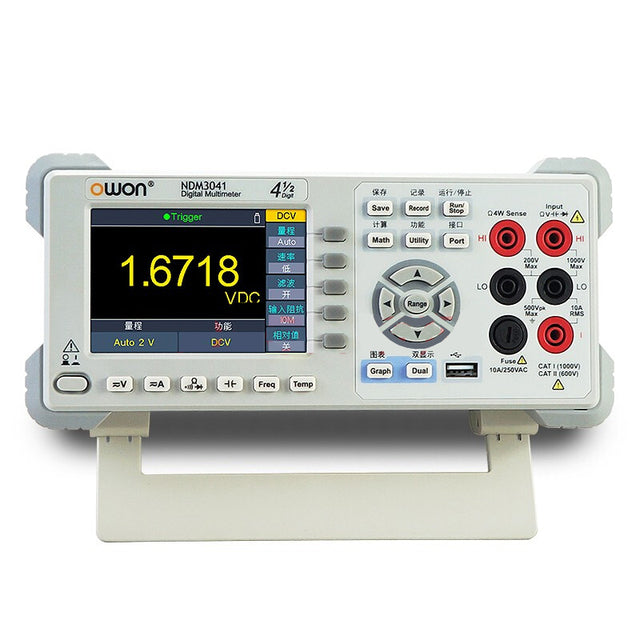

Model XDM3041：
Specification
Measurement Range
Basic Accuracy:±(% of reading +% of range)
DC Voltage
600mV/6V/60V/600V/1000V
0.02±0.01
True RMS AC Voltage
600mV/6V/60V/600V/750V
0.2 + 0.06
DC Current
600μA/6mA/60mA/600mA/6A/10A
0.1 + 0.05
True RMS AC Current
60mA/600mA/6A/10A
0.50 + 0.10
Resistance
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ/100MΩ
0.040 + 0.01
Diode Test
3.0000 V
0.5 + 0.01
Continuity
1000 Ω
0.5 + 0.01
Capacitance
2nF/20nF/200nF/2μF/200μF/10000μF
1 + 0.5
Frequency Period
20Hz/2kHz/20kHz/200kHz/1MHz
0.01 + 0.003
Temperature
Temperature sensors under 2 categories supported - thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type), and thermal resistance (RTD sensor conversion between Pt100 and Pt385 type)
Other functions
Bar meter, histogram, trend chart, Max. Min. value, average value, standard deviation,DB / DBm, Pass / Fail

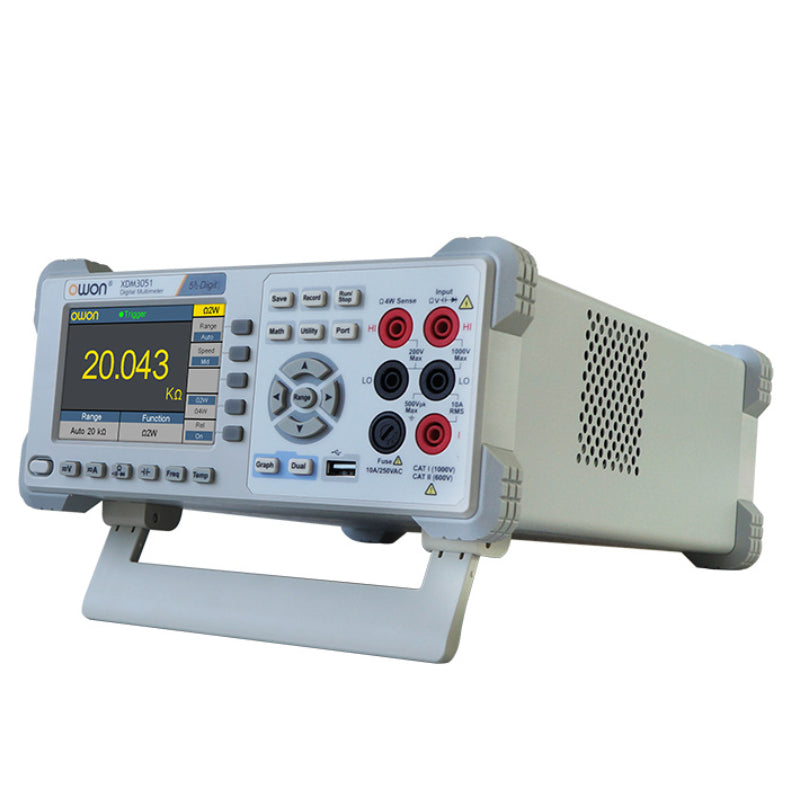

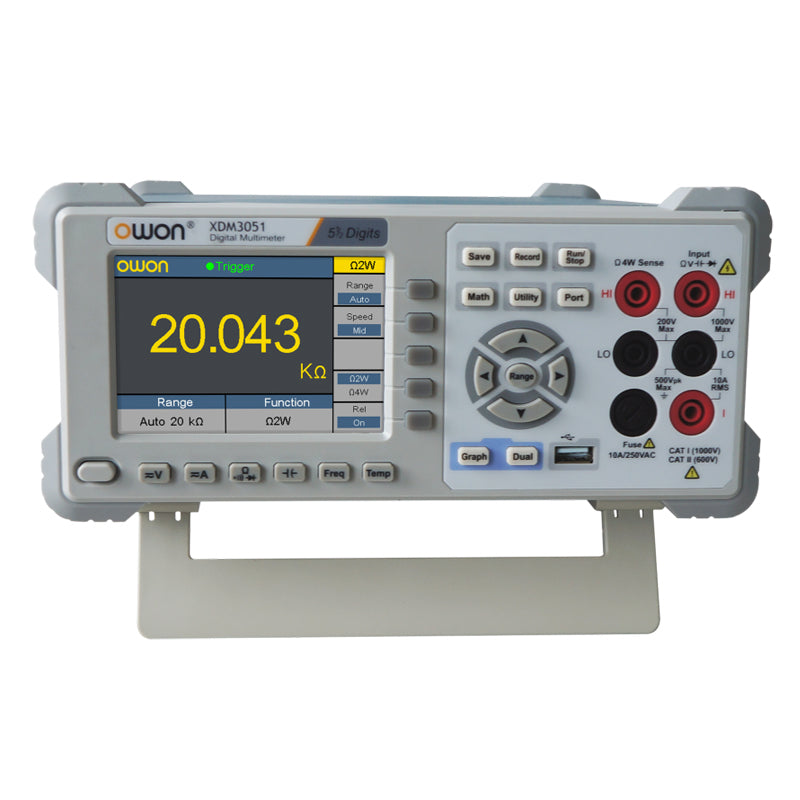

Model XDM3051：
Specification
Measurement Range
Frequency Range
Accuracy: 1 Year ±(% of reading +% of range)
DC Voltage
200mV, 2V, 20V, 200V, 1000V
/
0.015±0.004
True RMS AC Voltage
200mV, 2V, 20V, 200V, 750V
20 Hz - 45 Hz
1.5 + 0.10
45 Hz - 20 kHz
0.2 + 0.05
20 kHz - 50 kHz
1.0 + 0.05
50 kHz - 100 kHz
3.0 + 0.05
DC Current
200.000 μA
/
0.055 + 0.005
2.00000 mA
0.055 + 0.005
20.0000 mA
0.095 + 0.020
200.000 mA
0.070 + 0.008
2.00000 A
0.170 + 0.020
10.0000 A
0.250 + 0.010
True RMS AC Current
20.0000 mA, 200.000 mA,
20Hz~45Hz
1.5 + 0.10
2.00000 A, 10.0000 A
45Hz~2kHz
0.50 + 0.10
2kHz~10kHz
2.50 + 0.20
Resistance
200.000 Ω
/
0.030 + 0.005
2.00000 kΩ
0.020 + 0.003
20.0000 kΩ
0.020 + 0.003
200.000 kΩ
0.020 + 0.003
2.00000 MΩ
0.040 + 0.004
10.0000 MΩ
0.250 + 0.003
100.000 MΩ
1.75 + 0.004
Diode Test
2.0000 V
/
0.05 + 0.01
Continuity
2000 Ω
/
0.05 + 0.01
Frequency Period
200mV~750V
20Hz~2kHz
0.01 + 0.003
2kHz~20kHz
0.01 + 0.003
20kHz~200kHz
0.01 + 0.003
200kHz~1MHz
0.01 + 0.006
20mA~10A
20Hz~2kHz
0.01 + 0.003
2kHz~10kHz
0.01 + 0.003
Capacitance
Test Current
2.000 nF
200 nA
3 + 1.0
20.00 nF
200 nA
1 + 0.5
200.0 nF
2 μA
1 + 0.5
2.000 μF
10 μA
1 + 0.5
200 μF
100 μA
1 + 0.5
10000 μF
1 mA
2 + 0.5
Temperature
Temperature sensors under 2 categories supported :
1,Thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type)
2,Thermal resistance (RTD sensor conversion between Pt100 and Pt385 type)
Other Functions
Bar meter, histogram, trend chart, Max. Min. value, average value, standard deviation, DB / DBm, Pass / Fail
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
