Features:

       With protection settings, more safty.

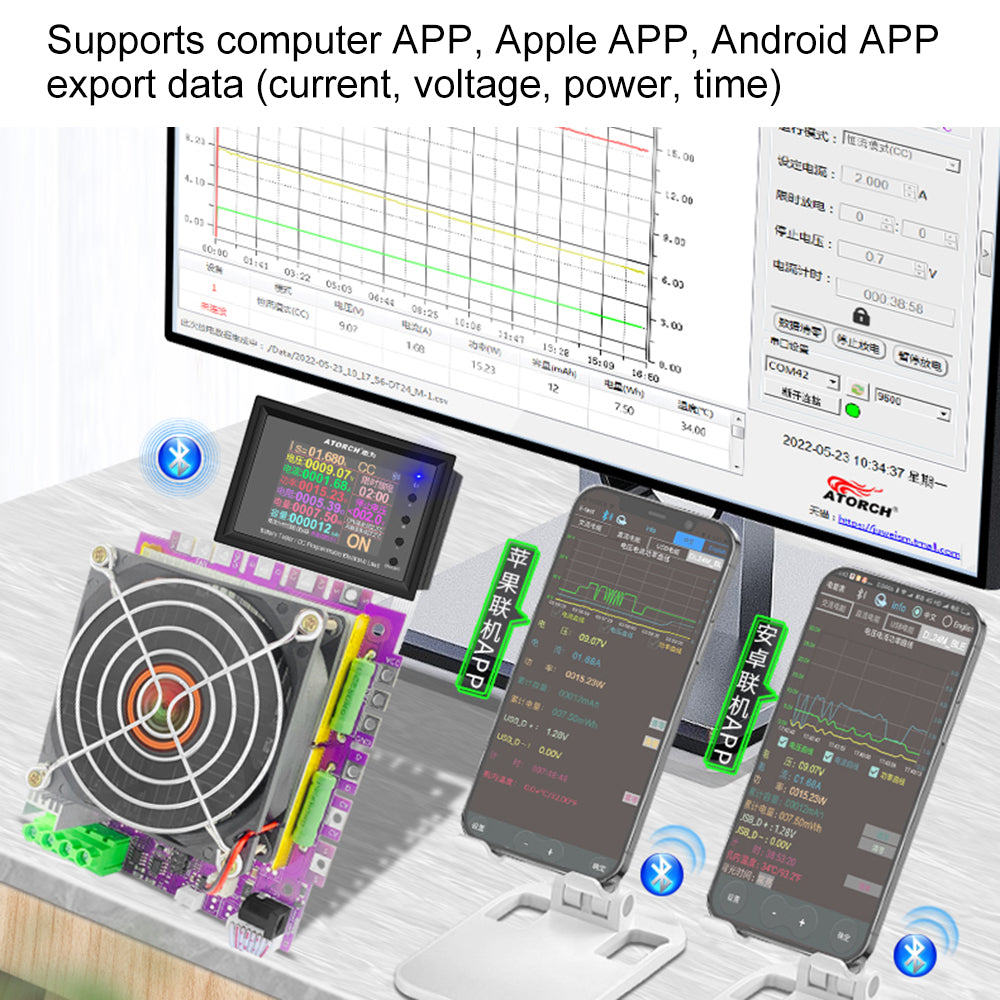

    Supports computer APP, Apple APP, Android APP

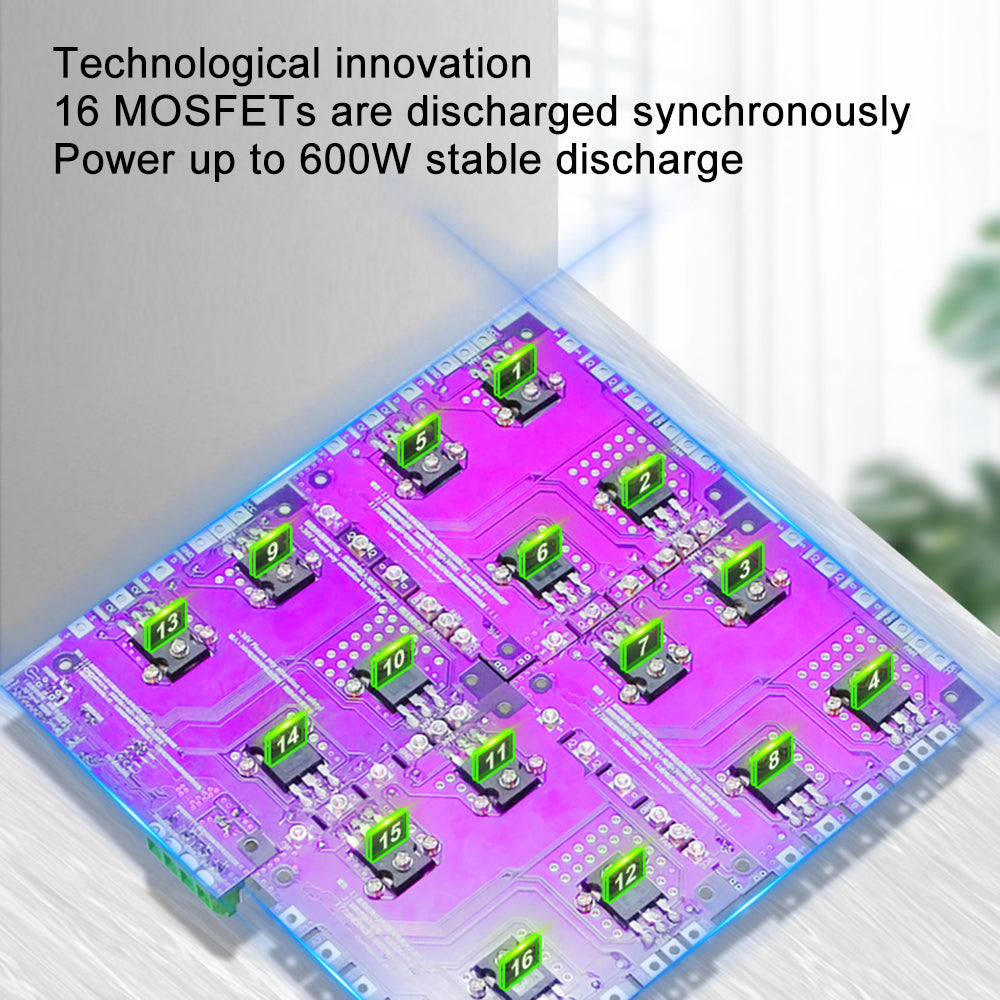

    16 MOSFETS are discharged at the same time, which power up to 600W stable discharge.

    Product jumper position and setting method(300W~600W).

    When product leave the factory, the default is: 150W (the jumper has been set to 150W)

When this product is at different powers, you need to set the jumper, please follow the following method to set！

300W 3mA~30A (V*A<300W) 300W/3mA-30A/2-200V constant current discharge

600W 3mA~40A (V*A<600W) 600W/3mA- 40A/2200V constant current discharge

    Test all kinds of data cables/chargerss.

1.Test various DC power inputs

2.MiNi USB detection port inputs

3.Micro USB detection port inputs

4.Type-c USB detection port inputs

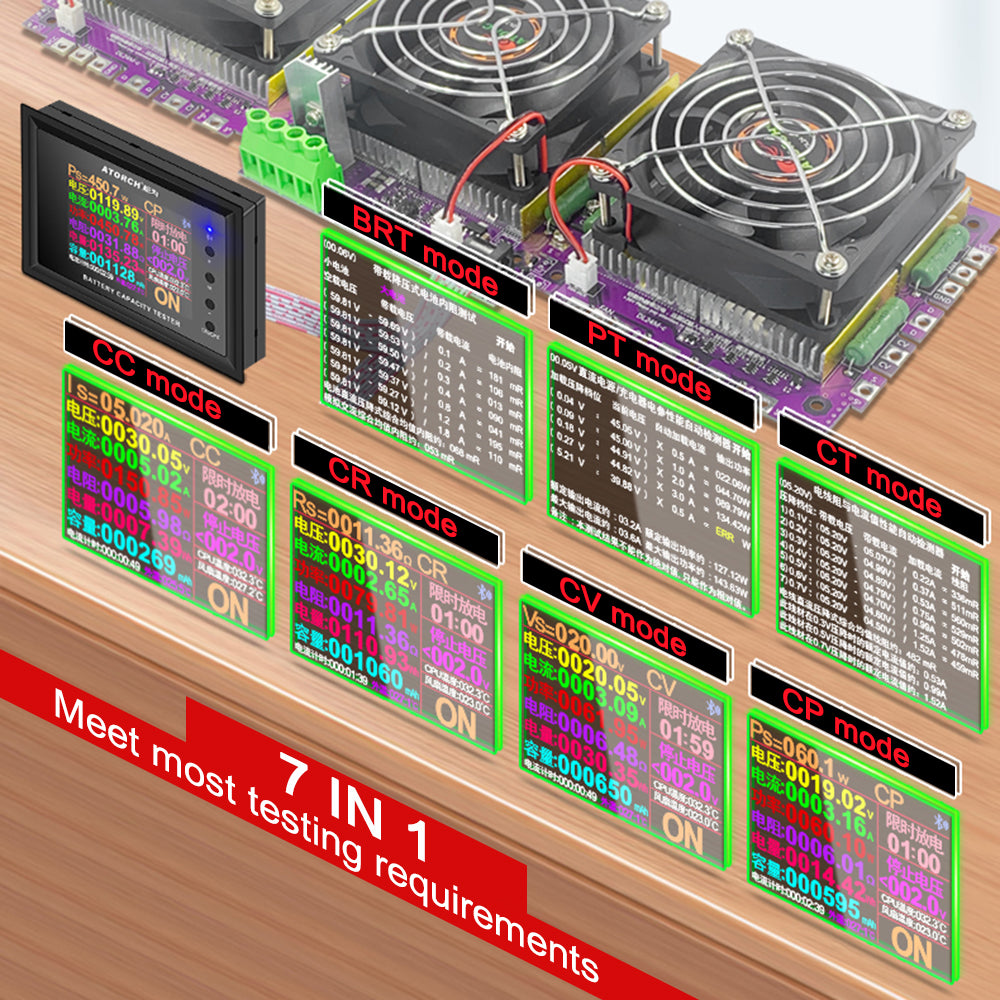

    7 IN 1 opertion mode, meet most testing requirements.

1.Constant current operation（CC）

2.Constant resistance operation（CR）

3.Constant power operation（CP）

4.Constant voltage operation（CV）

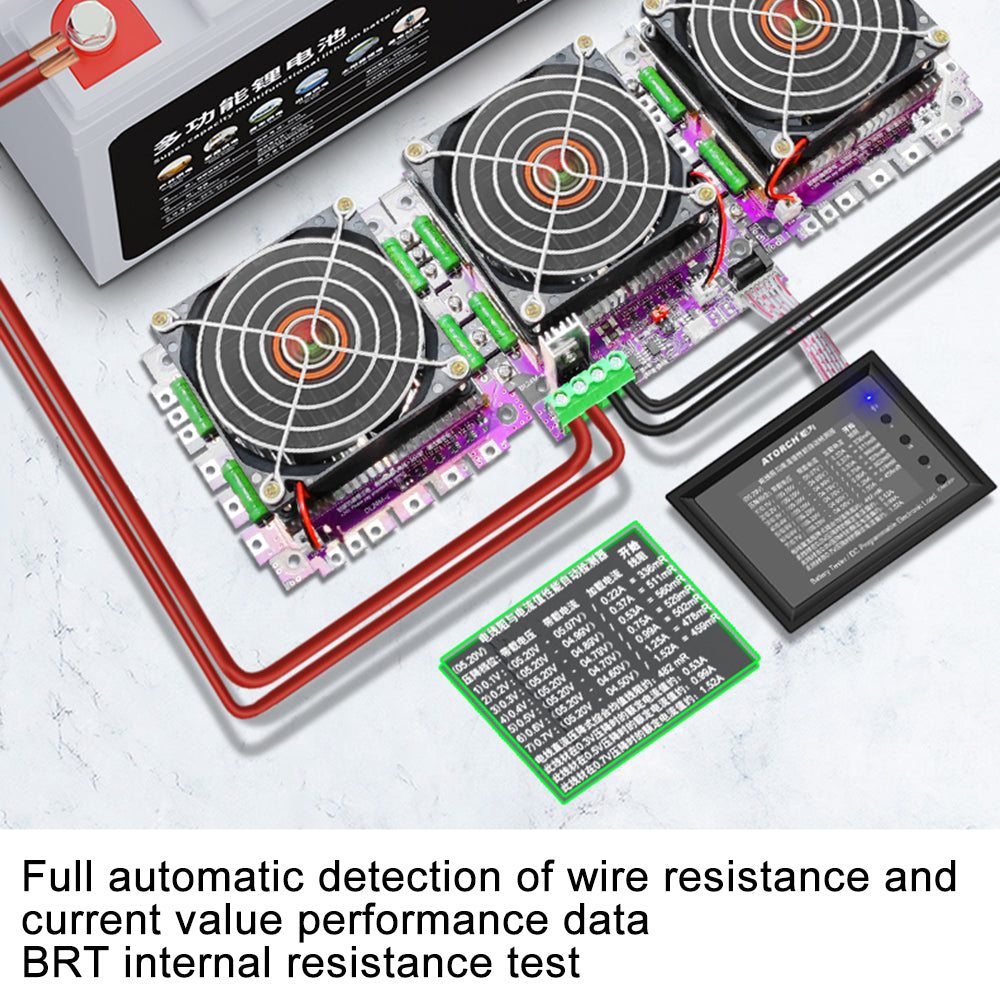

5.Battery Internal Resistance Test Mode (BRT)

6.PT electrical parameters automatic test mode (PT)

7.CT Cable resistance test mode(CT)

   Specifications:

       Model: DL24M

    Origin: Mainland China

    Measuring voltage range: 2-200V

    Type: Electronic Device Battery Tester

    300W Measuring current range: 3mA~30A & 300W

    600W Measuring current range: 3mA~40A & 600W

    Support Bluetooth APP: Apple IOS & Android & PC Computer

   Note:

       User manual, PC software installation instruction and PC software and Android APP download link : https://www.mediafire.com/folder/yhumeijk86fj8/DL24MP

    IOS APP: search E_test on iphone APP store to download

    Android APP: https://www.mediafire.com/file/0jiio43c0vuu1wx/U_Meter-Phone_mobile.apk/file

    Android APP: search E-test at Google play to down load

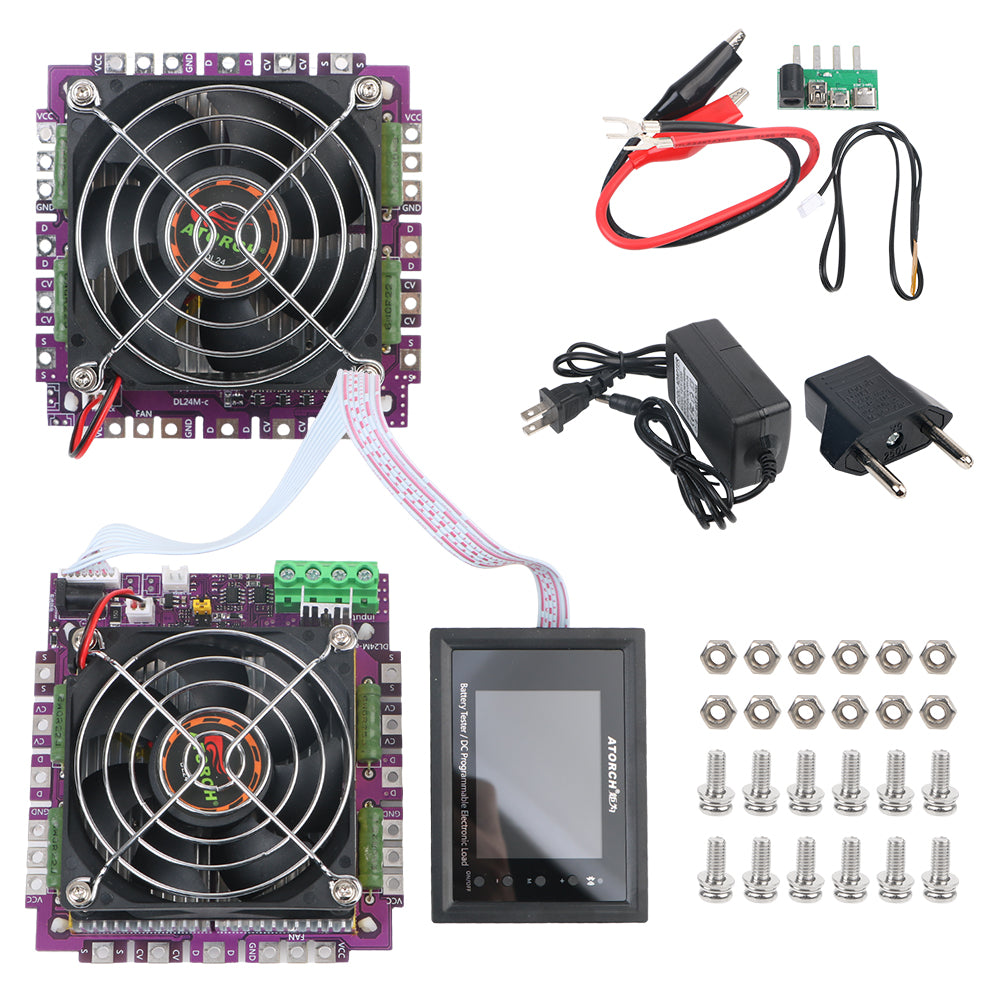

   Package Included:

   600W：

       1 x US to EU adapter

    1 x Temperature probe

    1 x DC12V 2A power supply

    3 x DC 12V 0.19A fan accessories

    4 x 6 pcs/sets Male and female screws

    1 x Red and black single line crocodile clip line

    1 x DL24M-150W Host Color Display Bluetooth Digital Control Curve Version Load Tester

       300W：

         1 x US to EU adapter

     1 x Temperature probe

     1 x DC12V 2A power supply

     1 x DC 12V 0.19A fan accessories

     2 x 6 pcs/sets Male and female screws

     1 x Red and black single line crocodile clip line

     1 x DL24M-150W Host Color Display Bluetooth Digital Control Curve Version Load Tester
