Function

*Charge:Active, pre-charge, constant current and constant voltage are the stages of charging mode. The initial charging mode depends on the battery voltage, so active and pre-charge don't happen to every batteries.

*Discharge:Constant current discharge for double loads.

*Test:Testing time is 30 seconds and the purpose is to check both the charging and discharging performances.

*Capacity Correction: The battery capacity value in the battery management chip will different from the actual capacity after a battery goes through many recycling cycles. It will affect the use of the battery when the difference reaches a certain degree. Capacity correction is to deep discharge a battery and then fully charge, which will correct the capacity value in the battery management chip.

*50% Capacity:

CD50%: charge firstly, and then discharge to 50% capacity

DC50%: discharge firstly, and then charge to 50% capacity

*Online Functions:Tester can be connected with master machine via a USB port. Users can monitor, control and set parameters via Battery Manager software in the master machine.

*Monitoring:Battery information can be monitored via three windows.

*Control:Battery Manager can control slave machine completely. Right-click menu on the battery bar includes the related commands.

*Parameters:Users can set working parameters via set parameter window in Battery Manager.

Features

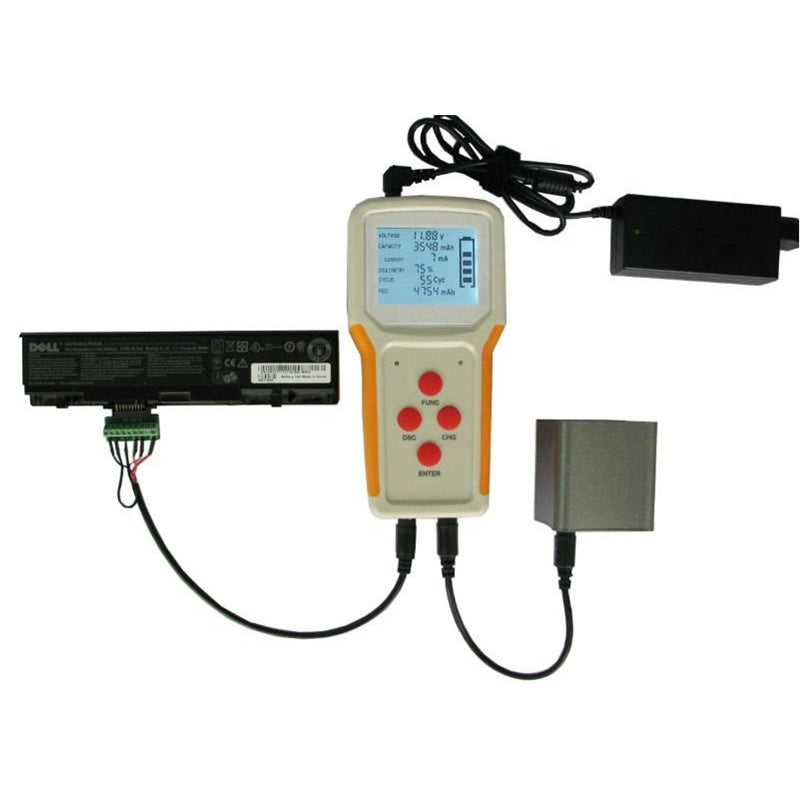

*With one channel, supporting one intelligent battery

*Supporting charge, discharge, test, capacity correction, charge / discharge 50% capacity

*LCD for displaying battery informaiton

*LED for indicating working status

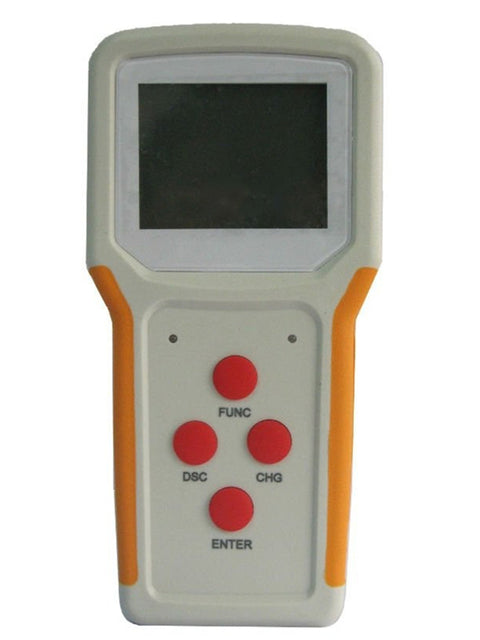

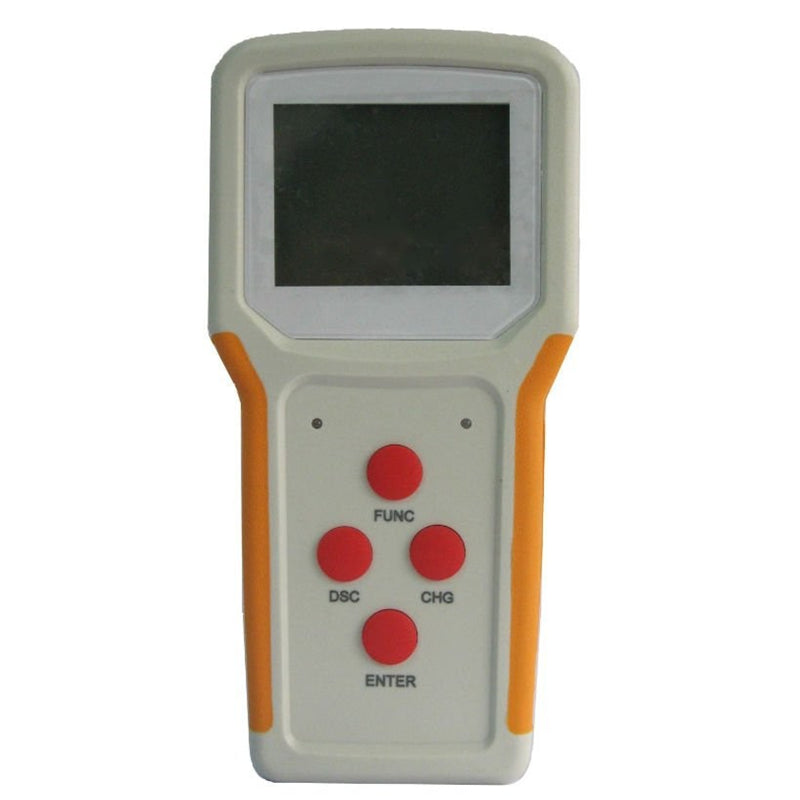

*With charge-key, discharge-key, backlight-key and function-key

*Pre-charge, fast charge and constant voltage charge for charging stages and the variation range of the values of the

constant current and the constant voltage is less than 1%

*Constant current for discharging

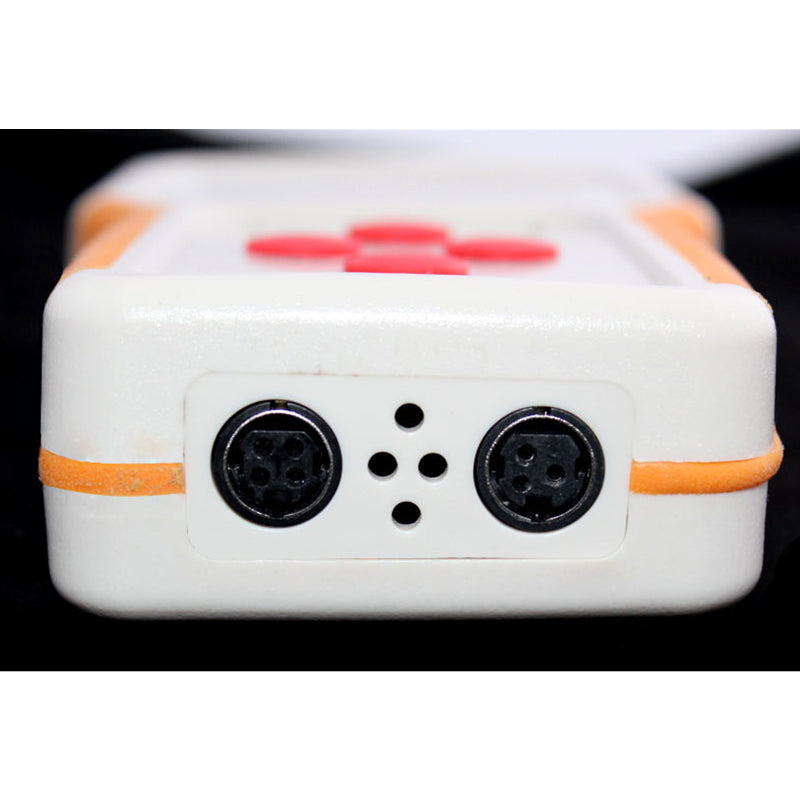

*With a USB port for connecting with computers, master machine can monitoring and control slave machine

Basic Parameters

*Dimensions: 201 x 99 x 35 mm

*Weight: 333g

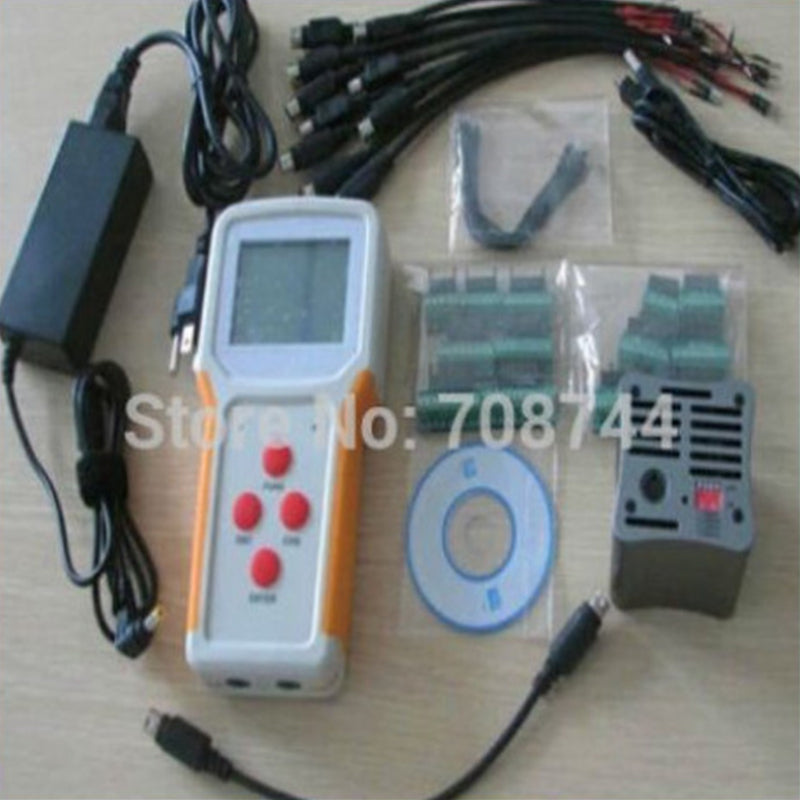

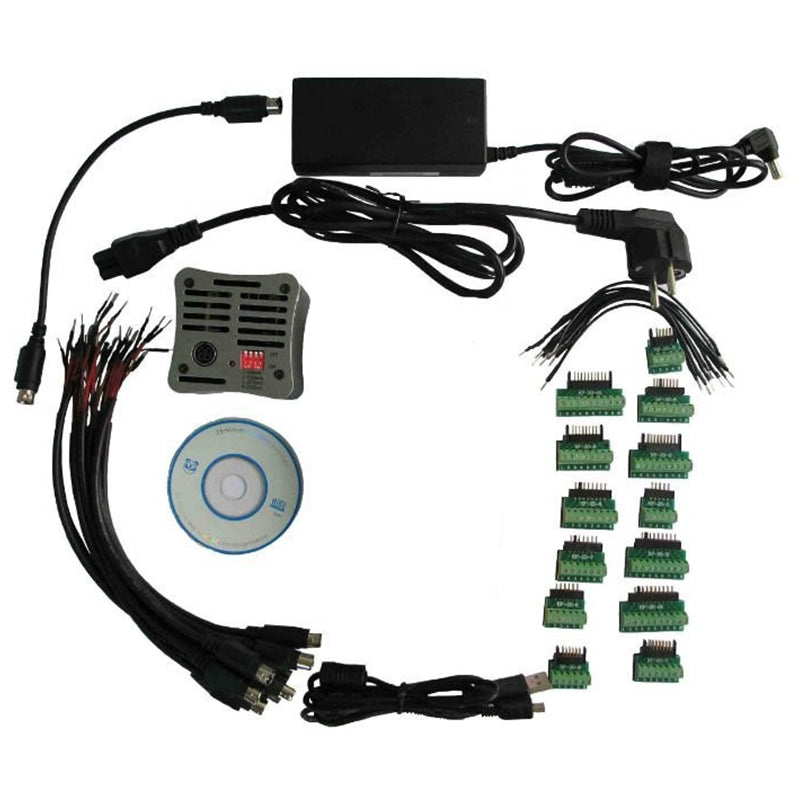

*Adapter

Input: AC 100 ~ 240 V

Output: DC 24V 2.65A

*Display mode

Segment LCD with white backlight + LED in red and green

*Discharging mode

Constant current discharge for double loads, inner load & external load

Maximum charging current: 3A

*Charging mode

Constant current + constant voltage. Active charge and pre-charge are available according to different battery voltage.

*Charging current

There is a connection between current intensity and charge mode. The details as below:

 Nominal capacity Pre-charge current Fast charge current End charge current

 >6000 400 mA 2500 mA 300 mA

 >3500 400 mA 2000 mA 200 mA

else 200 mA 1000 mA 100 mA

*Standby power consumption

≤1W

*Working temperature

0~40°C 20%-90% RH (Non condensation)

*Storage temperature

-20°C~65°C 10%-95% RH (Non condensation)

*Maximum charging time

Time limit for charging: 8.8h

Time limit for discharging: 8.8h

Time limit for testing: 20s + 10s = chg + disc

Time limit for capacity correction: 8.8h + 20s + 8.8h = disc + pause + chg

Auto quit time for function menu: 10s
