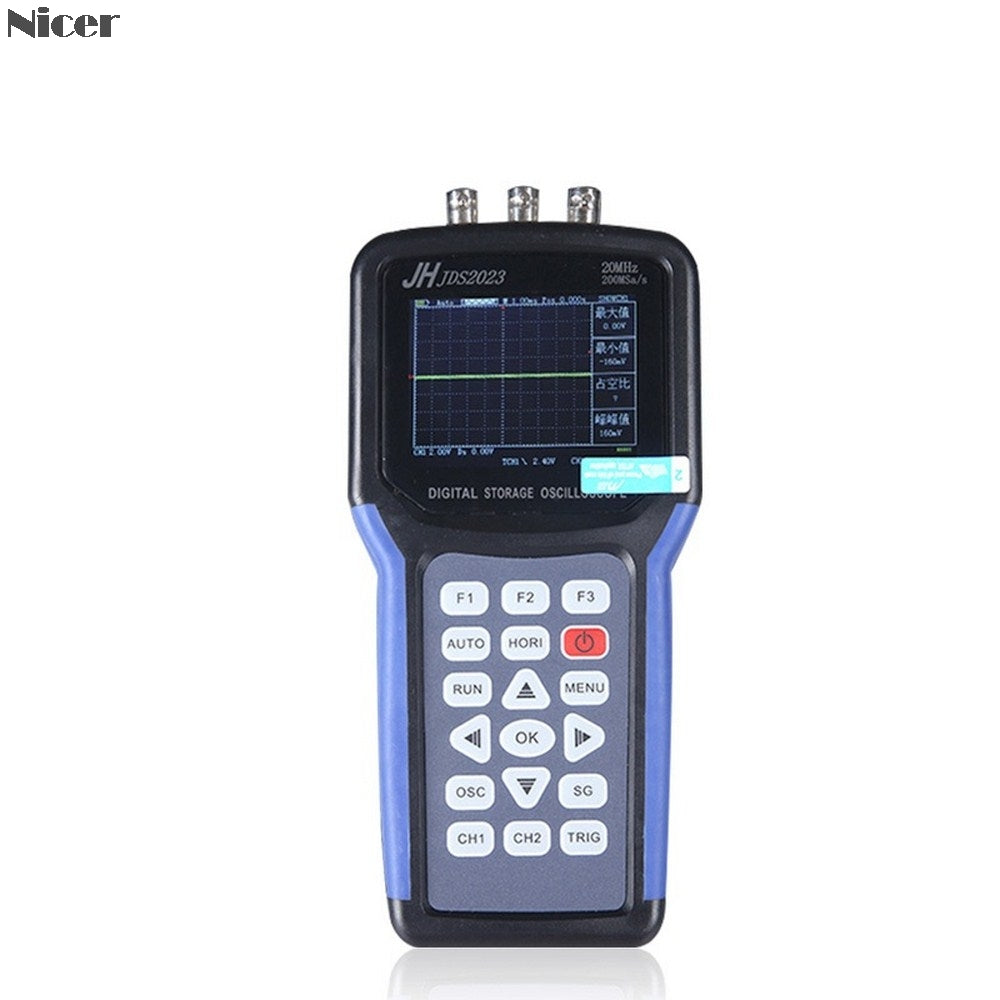

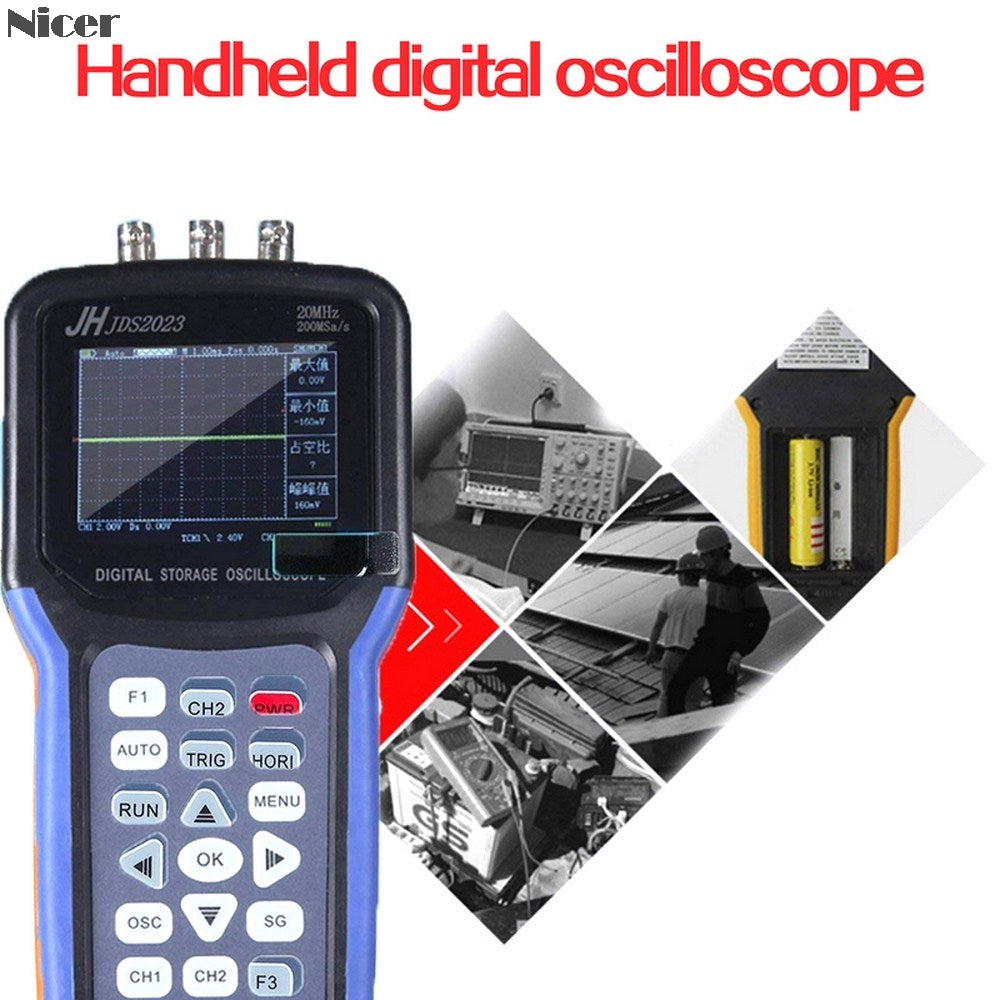

cilloscope  Jinhan JDS2023 Digital Storagesignal Function Generator 20MHz Oscilloscope AC/DC Input Coupling

• Professional digital oscilloscope with 1CH, 200MSa/s Max. sampling rate and 20MHz bandwidth.

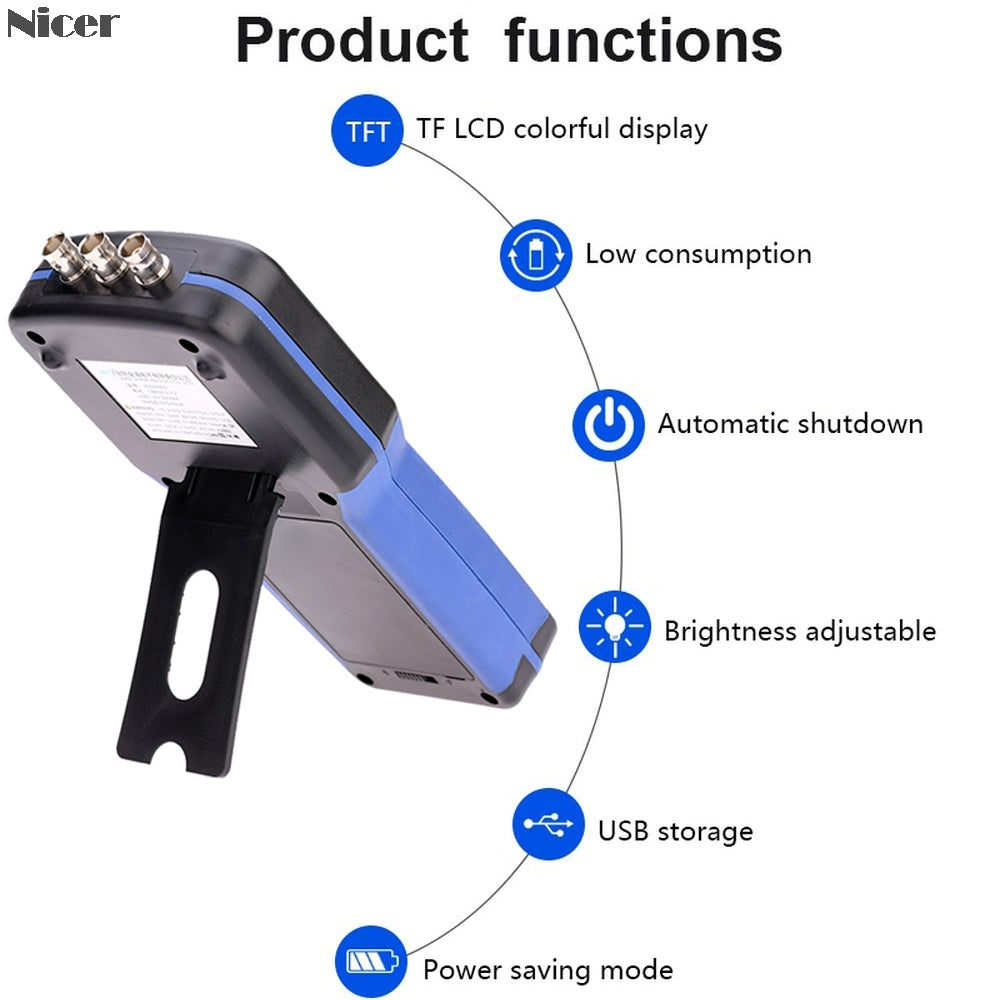

• Colorful TFT LCD display with 320*240 pixels resolution, easy and clear for reading.

• Backlight brightness can be adjusted; color display/black and white display for selection.

• Supports Chinese and English menu display.

• Combined with signal generator function, can measure frequency, duty cycle, amplitude and offset.

• Data storage with USB interface, 2K storage depth.

• Triggering modes: Automatic, Normal, Single.

• Rising/falling edge trigger available, which can measure 50Hz to 40MHz.

• Time and voltage cursor, peak to peak/duty cycle/frequency measurement.

• Powered by 1*18650 3.7V lithium battery, with battery charger for convenient charging.

20MHz 200M Sa / s dual channel input

Input coupling: AC, DC (AC, DC)

Input impedance: 1MΩ 25pF

Maximum input voltage: 40V (probe X1); 400V (probe X10) can measure 220V voltage; (probe X100) can measure 2000V voltage

Probe attenuation: 1X, 10X

Probe attenuation coefficient setting: 1X, 10X, 100X

Signal acquisition system

Sampling method: real-time sampling, random sampling

Storage depth: 4K (2K per channel)

Acquisition mode: sampling, peak detection

Vertical system

Vertical Sensitivity: 10mV-5V (Probe 1X) 100mV-50V (Probe 10X) (1,2.5,5 step)

Vertical accuracy: +/- 3%

Vertical resolution: 8bit

Bandwidth: 20MHz

Horizontal system

Real-time sampling rate: 200 MSa / s

Horizontal scanning range: 10nS / div-5S / div

Trigger system

Mode: automatic, normal and single

Type: rising edge, falling edge

Automatic detection: support (50Hz-40MHz)

Mathematical operations: CH1 + CH2, CH1-CH2, CH2-CH1

measuring system

Cursor measurement: Supports time and voltage cursors

Measuring method: manual

Measurements: peak-to-peak and frequency

Equipment

Screen: 3.2 inch, 16 bit true color, TFT, 320 * 240

Battery: 3000 + mA lithium battery (single battery for 5 hours or so)

Size: 202 * 100 * 35 (mm)

Digital channels: 200M sampling

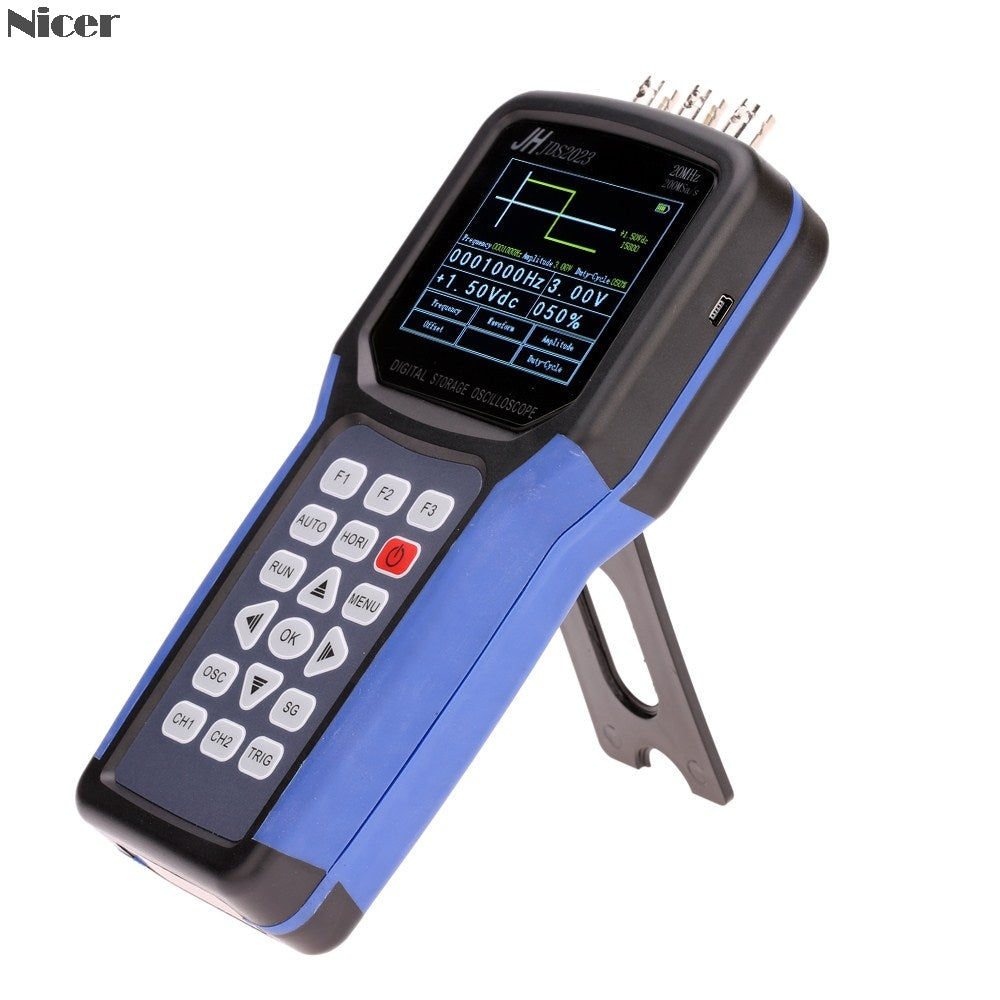

Signal generator

Frequency: sine wave (1Hz - 5MHz); other (1Hz-1MHz)

Duty Cycle: 0% - 100%

Amplitude: 100mV - 4V

Offset: + (0V -2V)

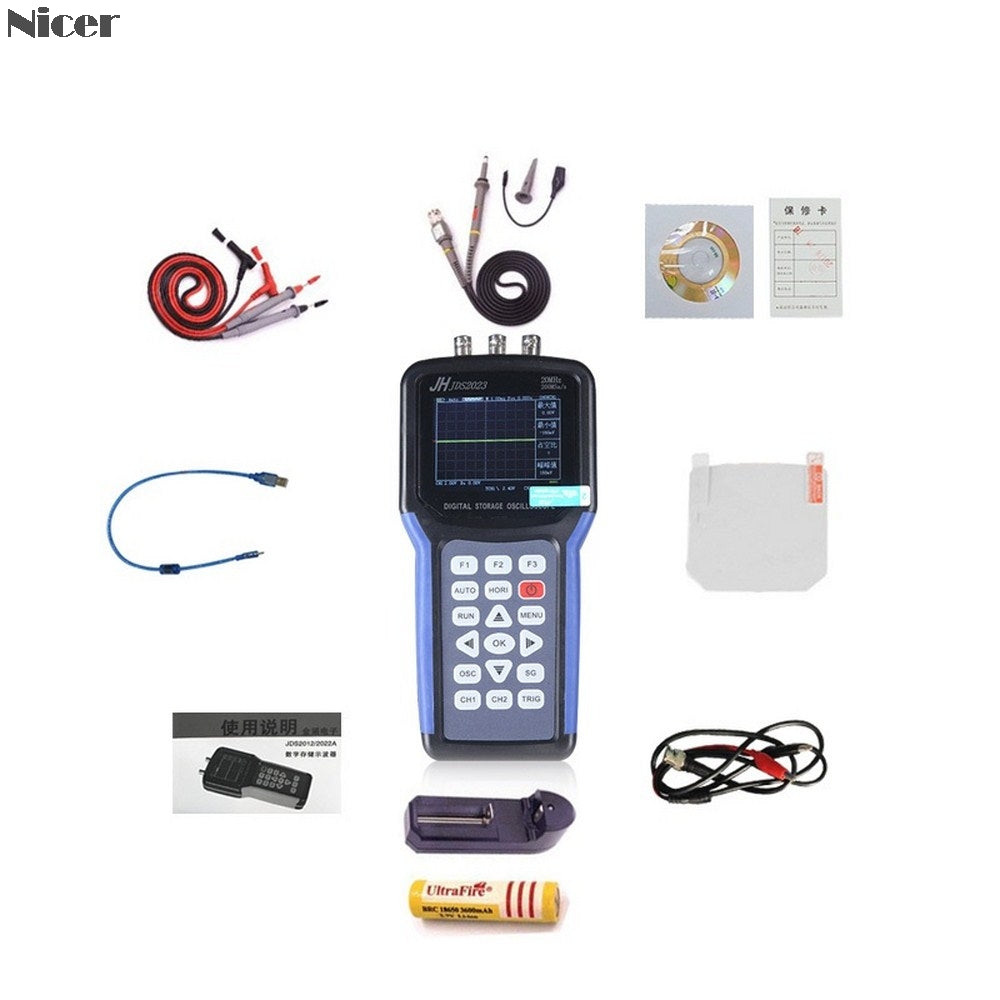

1 * JDS2023 Oscilloscope

1 * Signal Generator Probe

1 * Oscilloscope Probe

1 * Battery Charger

1 * USB Cable

1 * Screen Protector

1 * CD

1 * User manual

1 * 18650 lithium battery
