Features

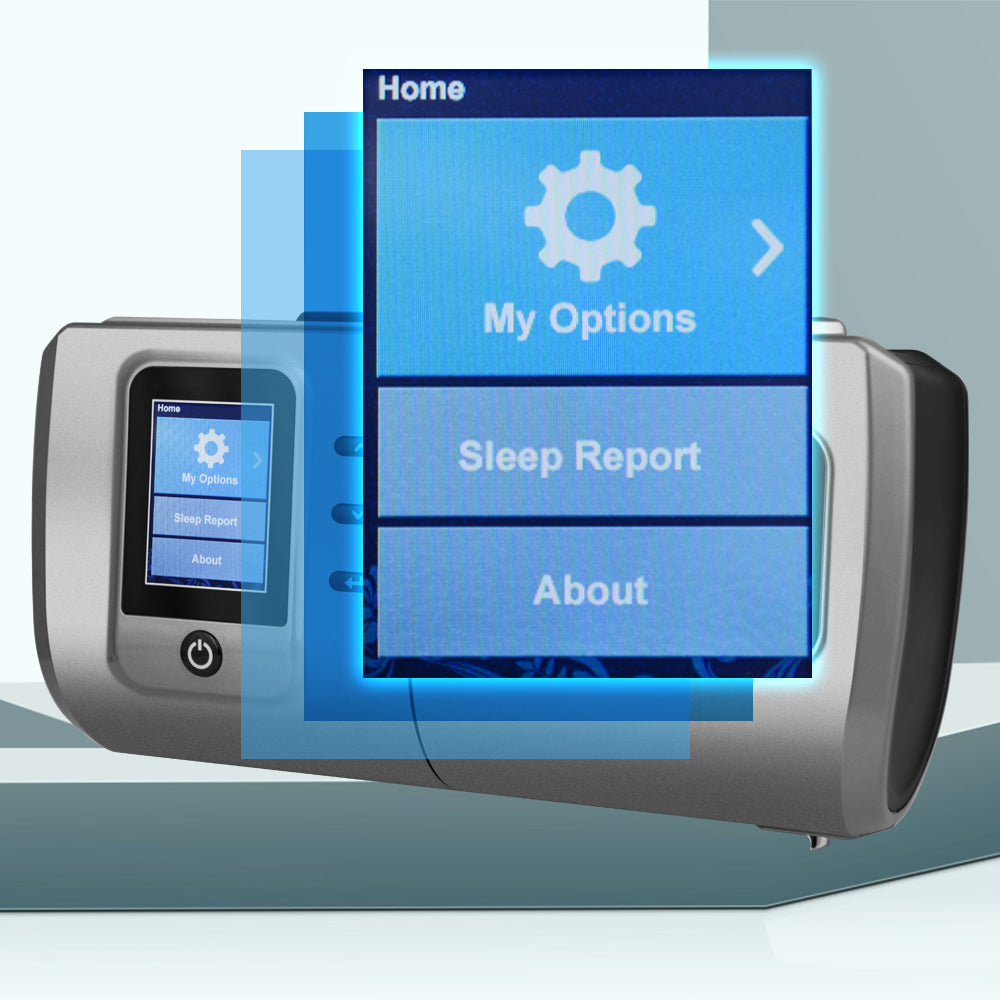

 2.8 inch TFT color screen, real-time display treatment date.ergonomic one-button operation design,simple and intuitive,convenient and simple.

Excellent noise reduction technology,high efficiency brushless DC motor,the noise is strictly controlled at less than 28dB,you can enjoy a quiet and comfortable sleep all night.

High flow compensation ability,even leakage,it can also achieve a normal therapeutic effect.

Excellent man-machine synchronization performance,unique algorithm to adjust pressure,breathing and leakage make you more comfortable.

Integration heating and humidifying to prevent ackflow and dry buring,5 levels of temperature and humidity adjustable,meet the needs of different customers and different environments.

360° anti-backflow technology,effectively prevent the movement and water back-flow to burn the internal motor to avoid the risks.

The main machine is less then 1.6kg,the machine and humidifiers can be quickly detached,easy for home and travel.

 Specifications

 Working Mode：CPAP, Auto, S, T, ST, APCV

Color：Dark Grey

Screen：2.8 inch TFT, 320 x 240

Pressure Range：4-30cmH2O

IPAP：4-30 cmH2O

EPAP：4-20 cmH2O

Screen Auto Sleep：Auto sleep in 15 minutes,press any button to highlight screen

Data Storage：SD Card

Pressure Compensation：Yes

Backup Rate：5-50/min, adjustable

I/E：10-80%

Ramp Item：0-60min adjustable 1min/Step

Inspirate Triggle：1-5 level

Expirate Level：1-5 level

Inspirate Sensitivity：1-5 level

Auto ON/OFF：Yes

EPR：Yes

Auto-Altitude：Yes

Leak Compensation：Yes

Awake Detection：Yes

Breath Event Detection：Yes

Auto Pressure Titration：Yes

Alarm：Mask off ,power off

Water Capacity：220ML max

Humidifier Level：0-5 level

Humidifier：Integrated Heated Humidifier

Lock Function：Yes

Dimensions(cm)：28L x 14W x 9.5H

Weight：1.6KG(Net Weight),3.9KG (Gross Weight)

Power Supply：Input 100-240V, 50-60Hz, 2-1A; Output +24V, 2.5A

 Effective Treatment

 AST (Automatic Synchronization Technology) anticipates respiratory waveform and provides corresponding EPAP and IPAP to ensure patient’s comfort and mechanical synchrony.

 Package Include

 Host Device with Integrated Humidifier 1Piece

Water tank 1Piece

Full Face mask 1Piece

Air filter 5 Piece

SD Card 1 Pieces

Air tubing 1 Piece

Power cord 1 Piece

User manual 1 Piece

Travel bag 1 Piece
