Power HD have announced the release of HV brushless high torque servos T50-BHV, T70-BHV. Both servos feature all-aluminium housings, with high-power brushless motor as the core power, offering amazing torque output. T50 is ideal for 1/8th nitro off-road, T70 is ideal for large truggy, rock crawler and 1/5th scale cars.
1. Full CNC metal case

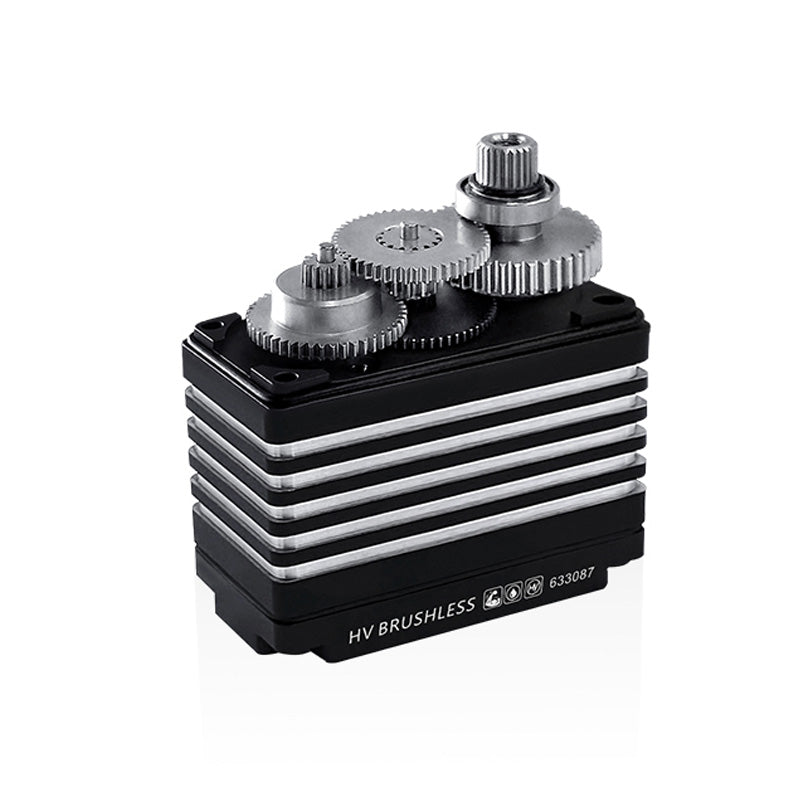

2. 303+416 imported steel teeth
3. Potentiometer imported from Japan
4. American imported ST 32-bit MCU chip
5. High voltage brushless motor, compatible with 6-8.4V voltage
6. Two-year long after-sales service with factory warranty

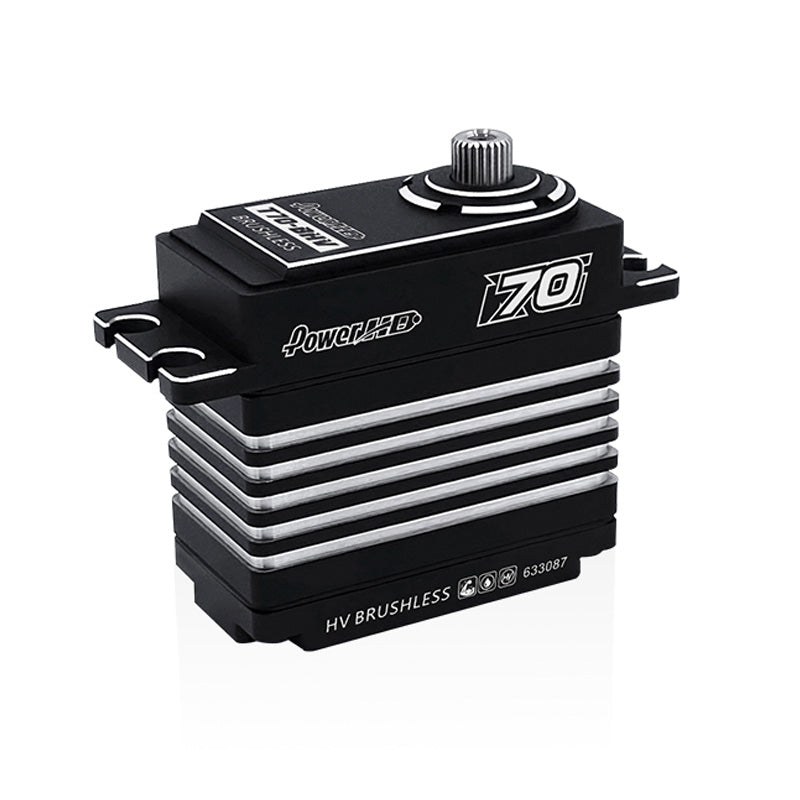

Specification(T70BHV):
Torque(6.0V): 55.0 kg-cm / (763.8 oz/in)
Torque(7.4V): 60.0 kg-cm / (833.2 oz/in)
Torque(8.4V): 70.0 kg-cm / (972.1 oz/in)
Speed: 0.160 sec (6.0V) │ 0.140 sec (7.4V)
Speed: 0.120 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 83 g (2.93 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: Steel & Aluminium
Operating Temperature: -20℃~60℃
Working frequency: 1520μs / 333hz
Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)

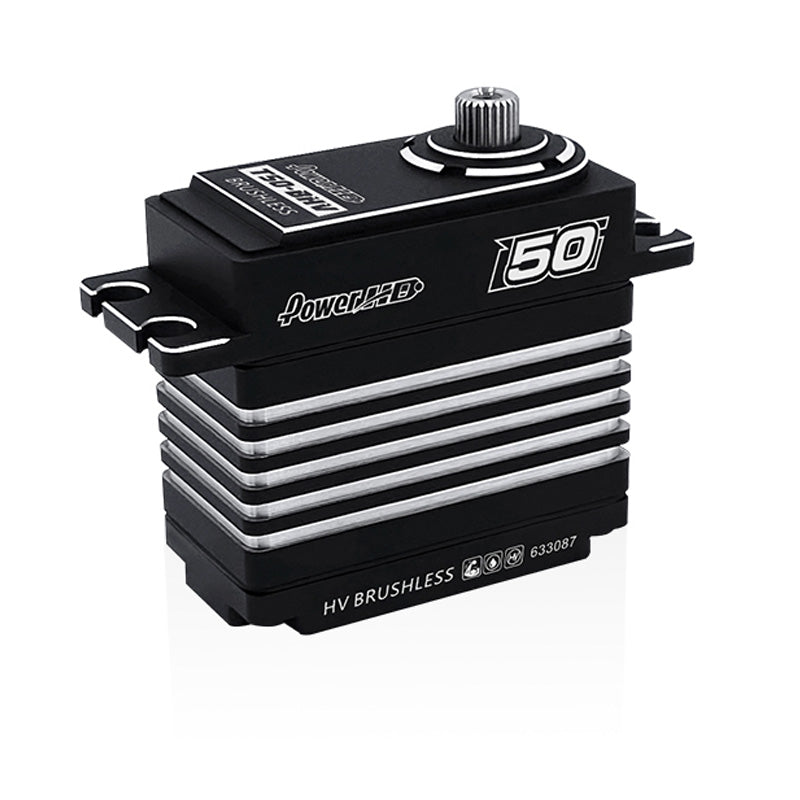

Specification(T50BHV):
Torque(6.0V): 39.0 kg-cm / (541.6 oz/in)
Torque(7.4V): 40.0 kg-cm / (555.5 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Speed: 0.092 sec (6.0V) │ 0.074 sec (7.4V)
Speed: 0.065 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 83 g (2.93 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: Steel & Aluminium
Operating Temperature: -20℃~60℃
Working frequency: 1520μs / 333hz
Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
