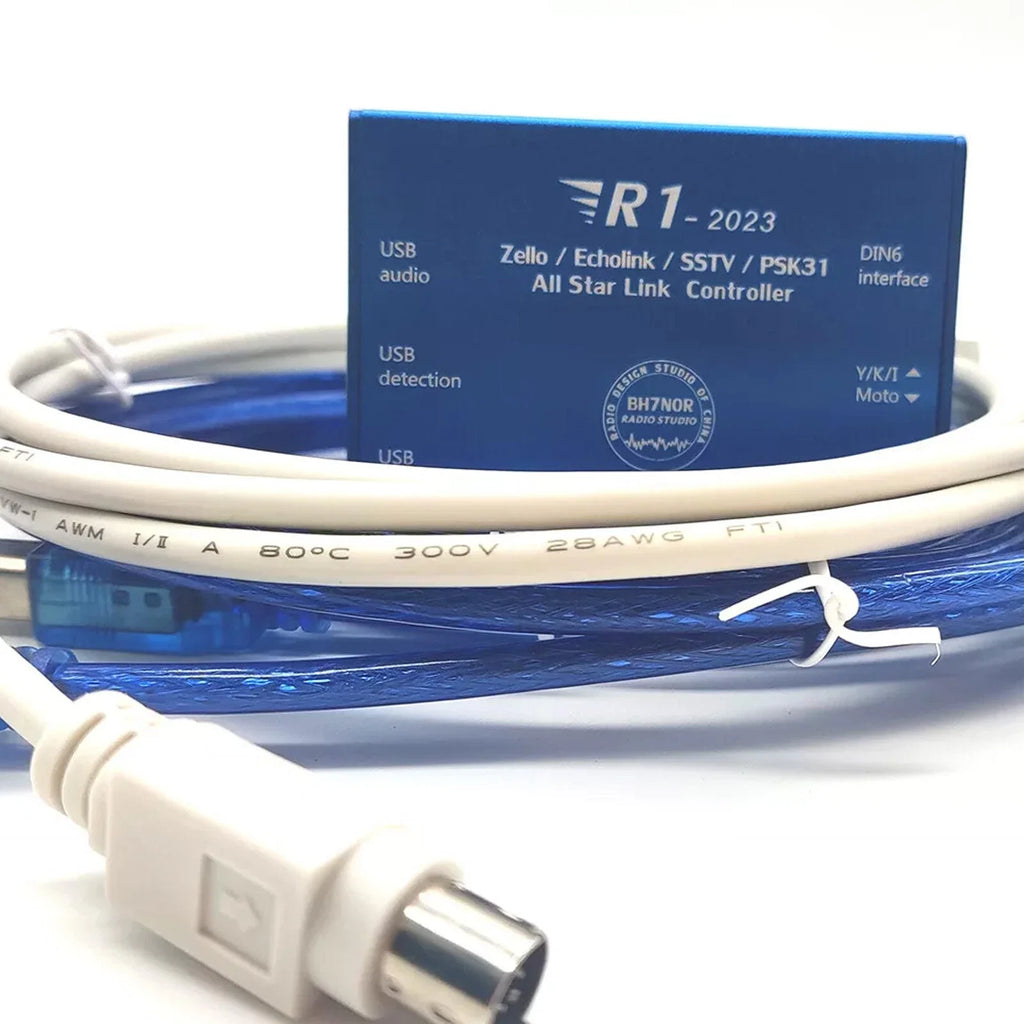

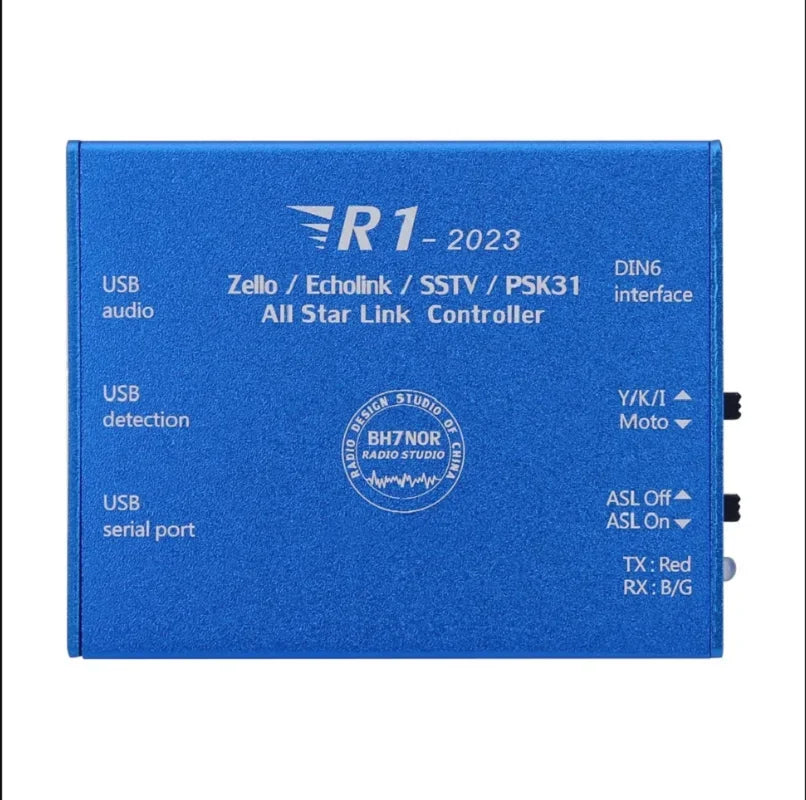

1. “TX: RED” and “RX:B/G”: This is LED status indictors.
When R1 controls an external radio, R1 lights up red.
When the external radio receives the signal, R1 blue light or green light.
2. Switch position-MOTO:

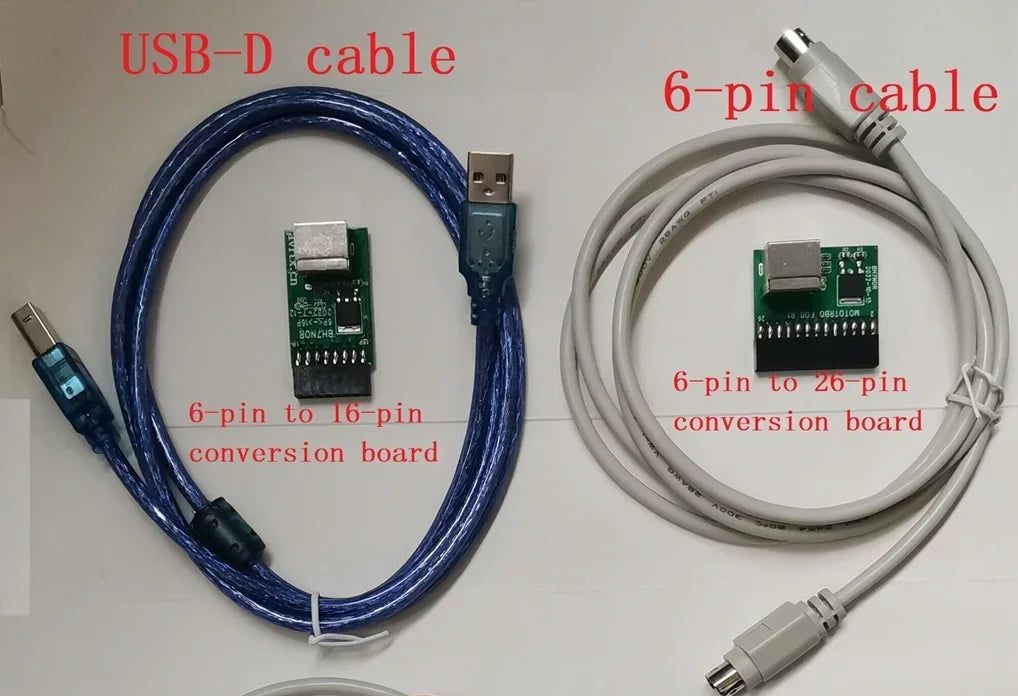

Connect 6-pin to 16-pin converter board, used by Motorola radio stations（16-pin interface）,(Default accessories)
Connect 6-pin to 26-pin converter board, used by Motorola radio stations（26-pin interface）,(Optional accessories)
3. Switch position -Y, K, C:
Direct connection, YAESU、Kenwood、 ICOM ... Radio use （6-pin TNC interface）
4. Switch position-ASL OFF:
AllStarLink is disabled, the USB sound card chip stops detecting COS / CTCSS and controlling PTT.
5. Switch position –ASL ON:
AllStarLink is enabled, USB sound card chip detects COS / CTCSS and controls PTT.
Note: “ASL ON”, Only use AllStarLink to connect with Raspberry Pi. In other states, the switch position must be in ASL OFF !!!

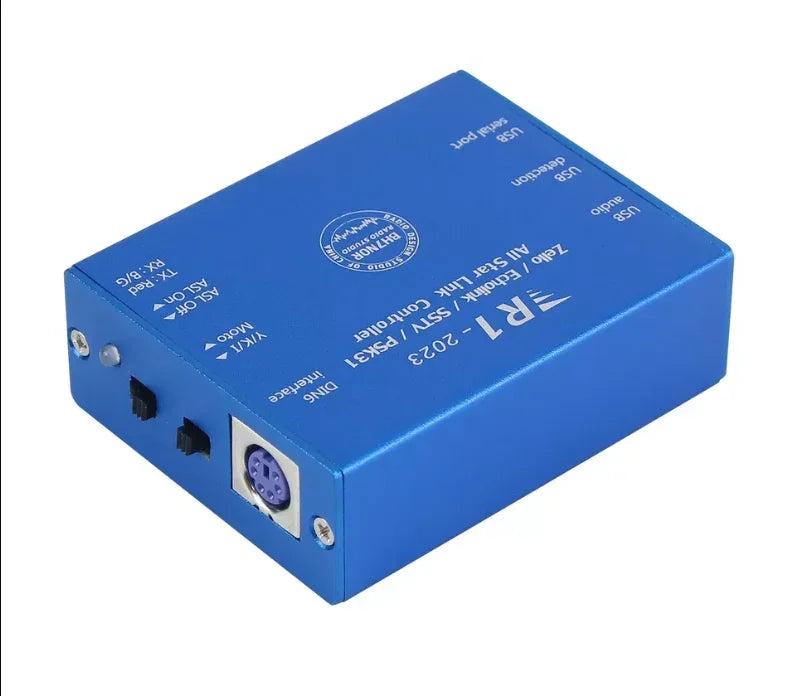

6. DIN 6 Interface:
Use 6-pin Cable.R1 to connect YAESU / Kenwood / ICOM-radio;
Use 6-pin cable and "6-pin-16 pin conversion board". R1 connect Motorola-radio;
Use 6-pin cable and "6-pin-26 pin conversion board". R1 connect MotoTRBO-radio;
7. USB Audio:
USB-Radio Interface, Connect to PC or Raspberry Pi;
8. USB Detection:
USB mouse middle button detection, connect to PC when running ZELLO or YY...;
9. USB Serial Port:
USB serial port, connect to PC when running ECHOLINK / PSK31 / SSTV ...;
10. About squelch (SQL) control enable, valid or invalid:
YAESU, Kenwood, ICOM radio internal, the value of the SQL signal on the resistance will be less than 10K (max 10K), then the test will pass. If the SQL signal on the resistance value is greater than 10K (<10K) , then it will not support.
The use of the following schematic is for YAESU FT-7800, the SQL on the resistance number R1202 is 4.7K, which is supported by R1.

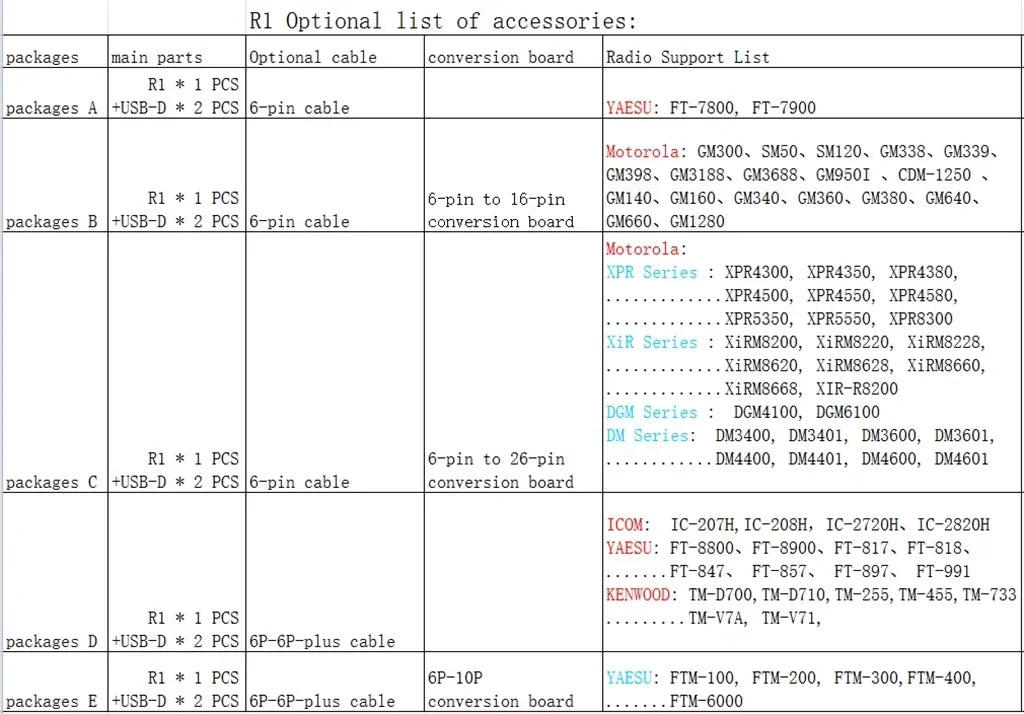

Package:

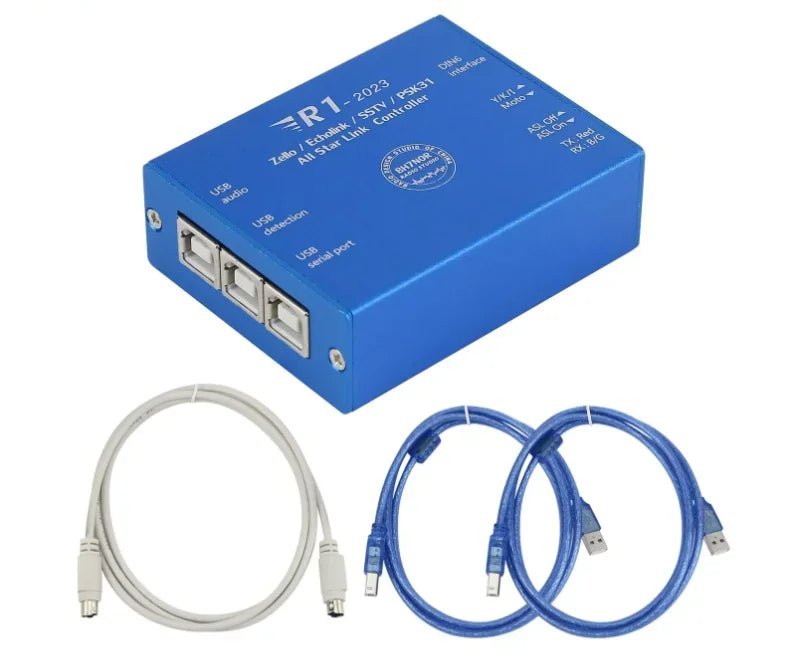

Host * 1
USB cable *2
6-pin data line *1
optional 1pcs 6-pin -16-pin conversion board ， or 6-pin26-pin conversion board
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
