The R106 fingerprint reader is a fingerprint authentication software development tool which is designed for the android application developers to apply the fingerprint recognition functions in developing of fingerprint recognition programs based on fingerprint international standard,like ISO19794-2,ISO19794-4,ANSI 378,ANSI 381 and WSQ.
It can be used in the personal identification applications on phone and pocket PC, mobile, etc.
Ultrathin Structure: Easy to integrate product structure design
Fast Acquisition Speed: Single frame image acquisition time less than equal 0.25s;
High Image Quality: Capacitive fingerprint acquisition technology, clear image quality;
Strong adaptability: ID Finger fingerprint recognition algorithm adopts adaptive adjustment mechanism to make dry, wet and rough fingers have good imaging effect;
Support systems: Support for Windows, Android, and other embedded operating systems;

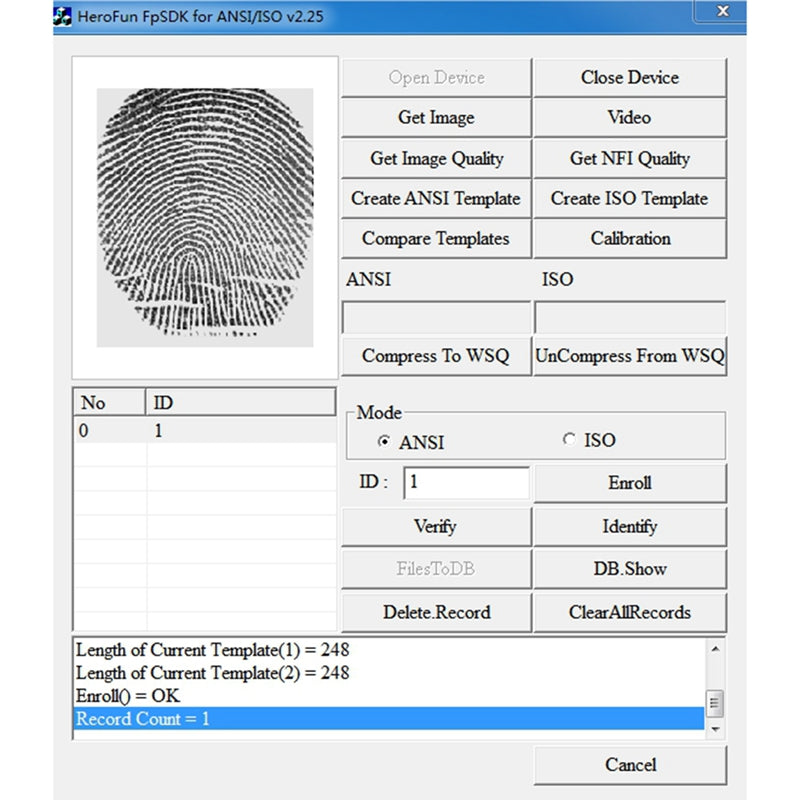

Simple development: Complete SDK development package, no drive installation, plug and play.
Model:R106
Type:USB Capacitive Fingerprint Reader

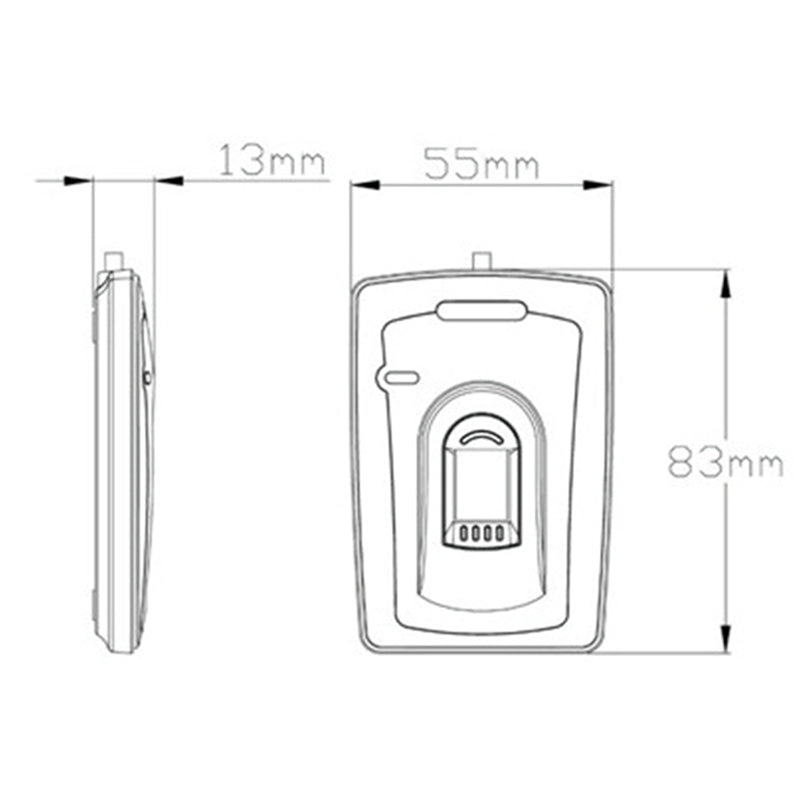

Dimension:83x55x13 mm(LxWxH)
Sensing Array:208*288 pixel
Resolution:508 DPI
Voltage:5V
Woking Current:50mA
Interface:USB1.1/2.0
Support System:Windows, Android
Contact Discharge:±8KV
Air Discharge:±15KV
Work Temperature:0°C ~ 55°C
Storage Temperature:-40°C ~ 60°C
Working Humidity: Less than 90% R.H
Storage Humidit:20% ~ 93% R.H
Material:Metal + plastic
colour:black
Package Contents:
1 * Fingerprint Reader
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
