Gross weight 425g, packaging box size: 215 * 170 * 55mm

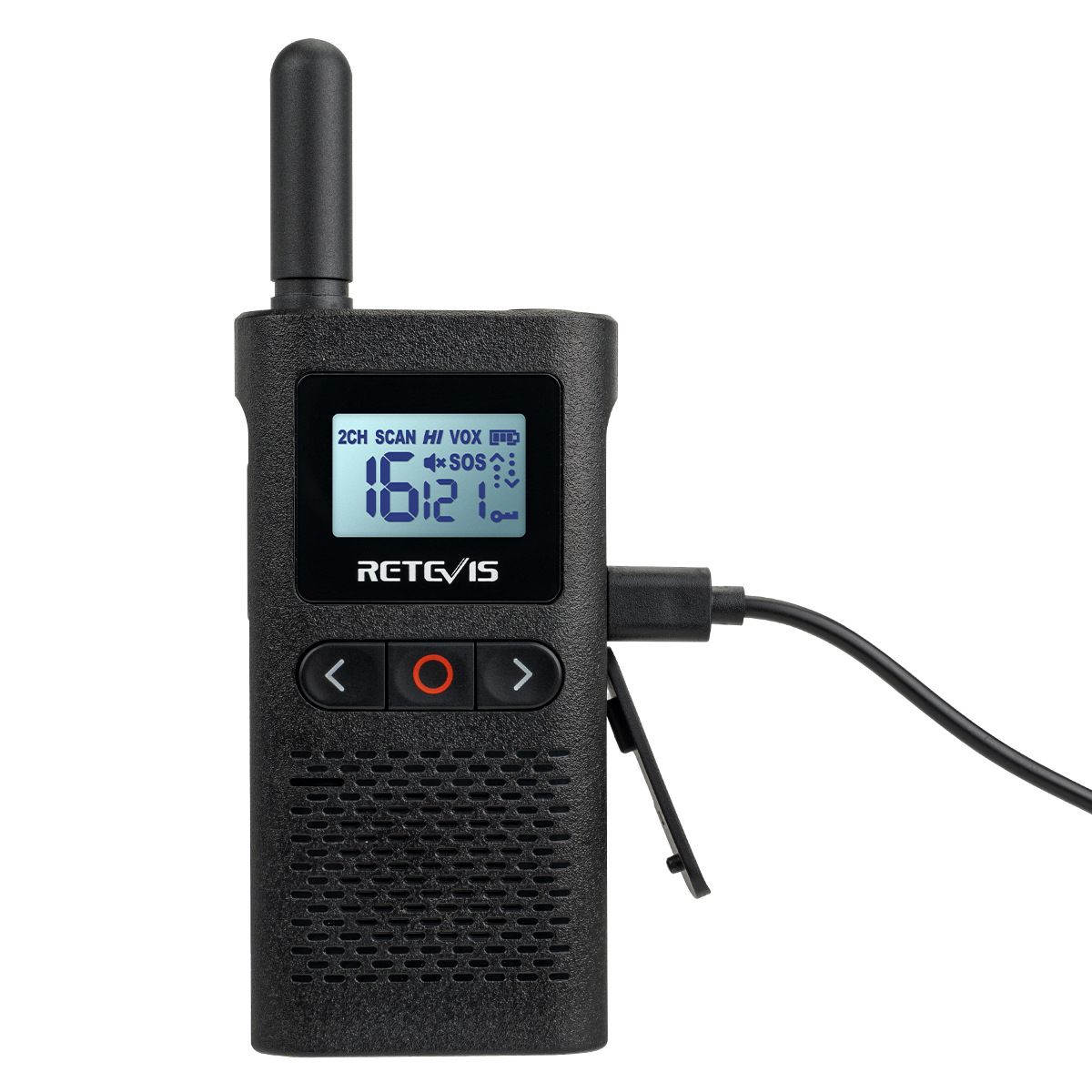

Equipped with a 1.28-inch screen and Type-C charging cable (1-2)
Features:
1. Timeout Timer (TOT)
2. VOX function
3. Busy channel locking
4. Keyboard lock (automatic/manual)
5. Quiet noise level (0-9 levels)
6. Automatic powersaving function
7. Audio compression expansion
8. Monitoring function
9. Coding/Decoding of CTS/DCS
10. Low battery indicator/alarm
11. Scanning function
12. Ringtones for incoming calls (10 sets)
13.2 Pin Jianwu Pin
Specifications:
1. Frequency range: 446.00625~446.19375MHz (RX TX)
2. Memory channel: 16 channels
3. Working voltage: DC3.7V ± 10%
4. Battery capacity: 1500mAh (lithiumion)
Step frequency: 12.5KHz
6. Working hours (5:5:9): 12 hours
7. Antenna impedance: 50ohm

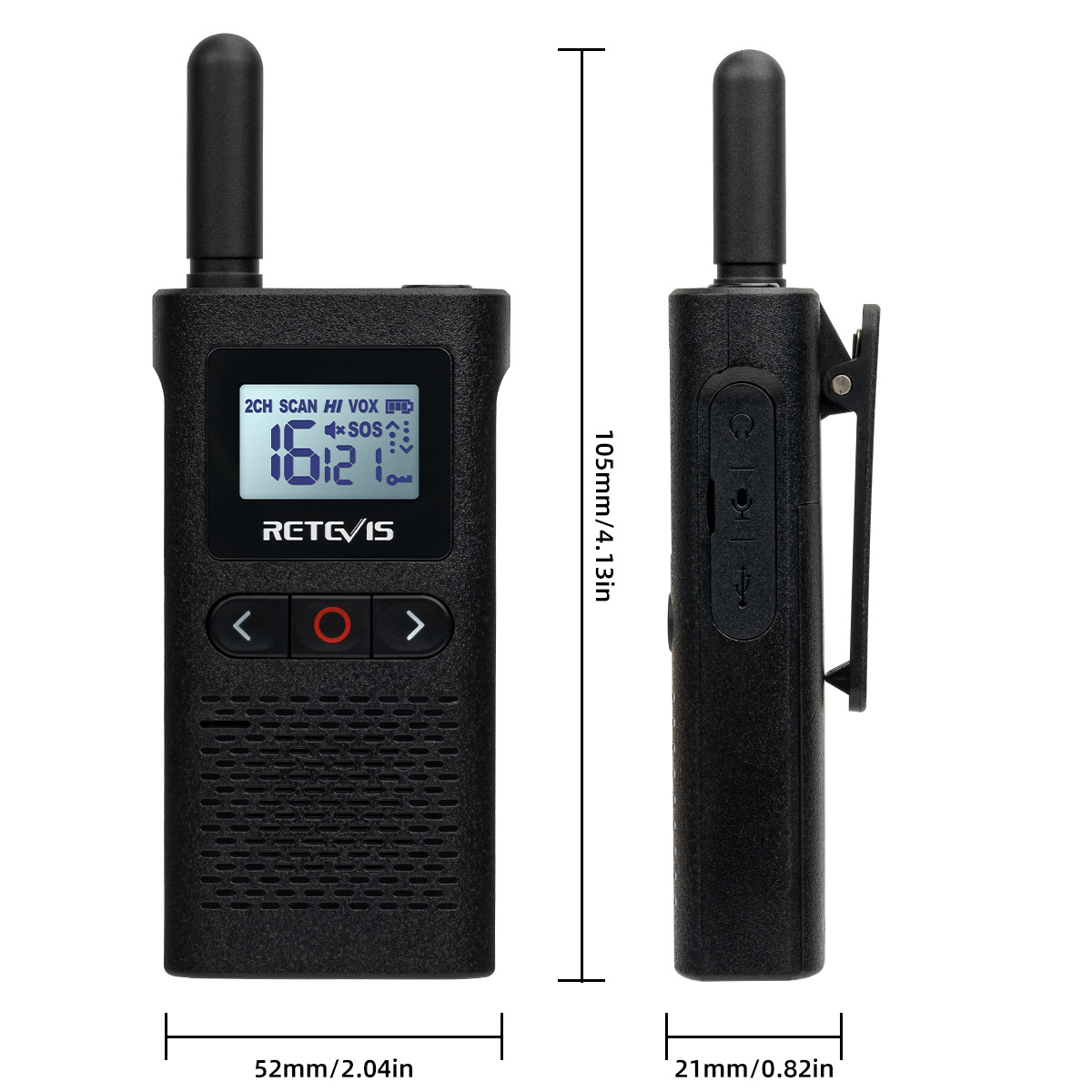

8. Item size: 105 * 52 * 21 millimeters
9. Weight: 82.7g body, 38.3g battery, total 128g (including battery and belt clip)
Electrical characteristics:
Universal transmitter receiver
Frequency range 446.00625~446.19375MHz Output power ≤ 0.5 W RF sensitivity ≤ 0.25uV
Channel capacity 16 CH, adjacent channel power ≥ 60dB, opening sensitivity ≤ 0.20uV
Working voltage 3.7 V TX current ≤ 1.35A Audio output ≥ 300mW
Antenna impedance 50 Ω, stray radiation ≤ 7.5 µ W, receiving current ≤ 410 mA
Step frequency 12.5KHz modulation limit ≤ 2.5kHz waiting current ≤ 20mA

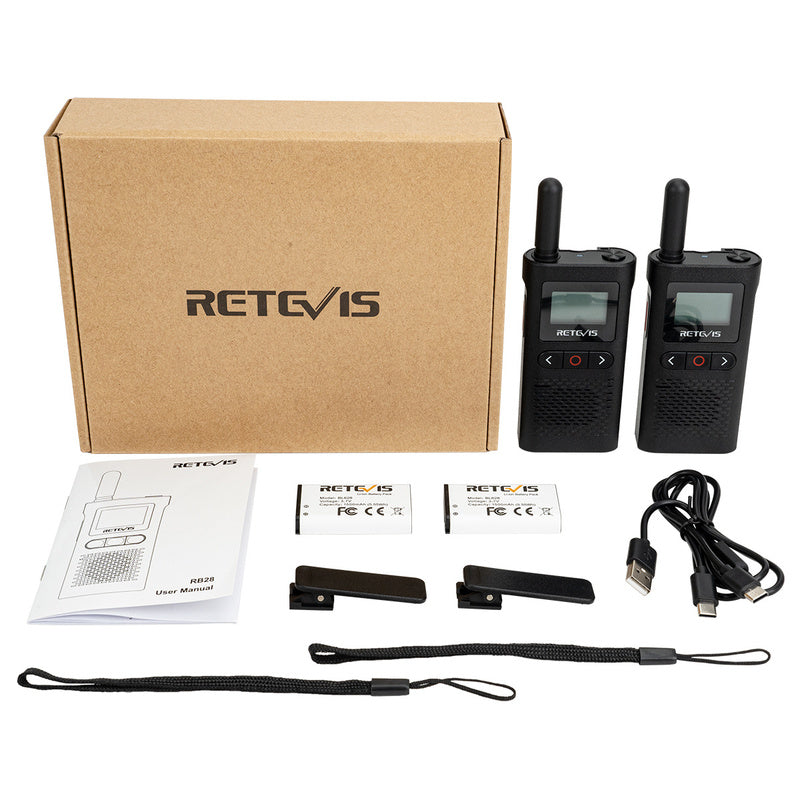

Standard accessories:
2 * RB628 PMR446 Radio
2 * Lithium ion battery
2 * Belt clamp
1 * USB charging cable
1 * User manual
