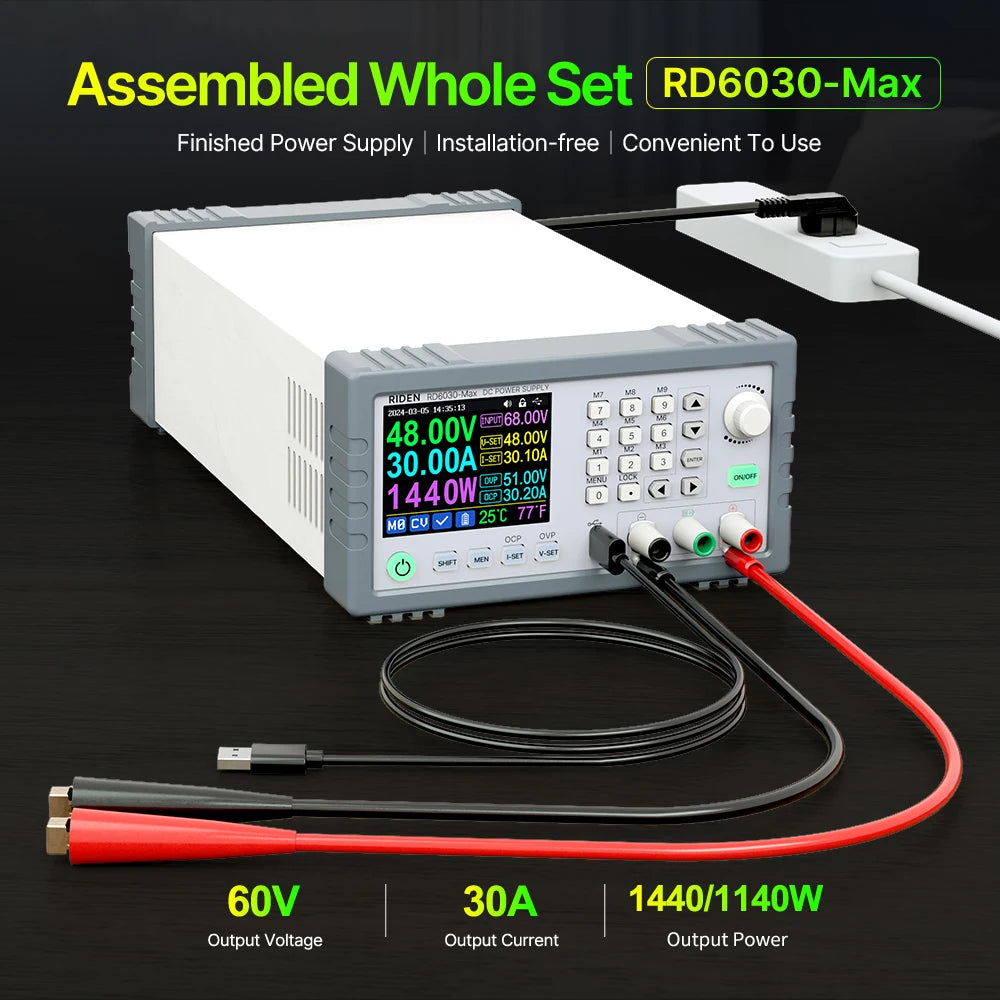

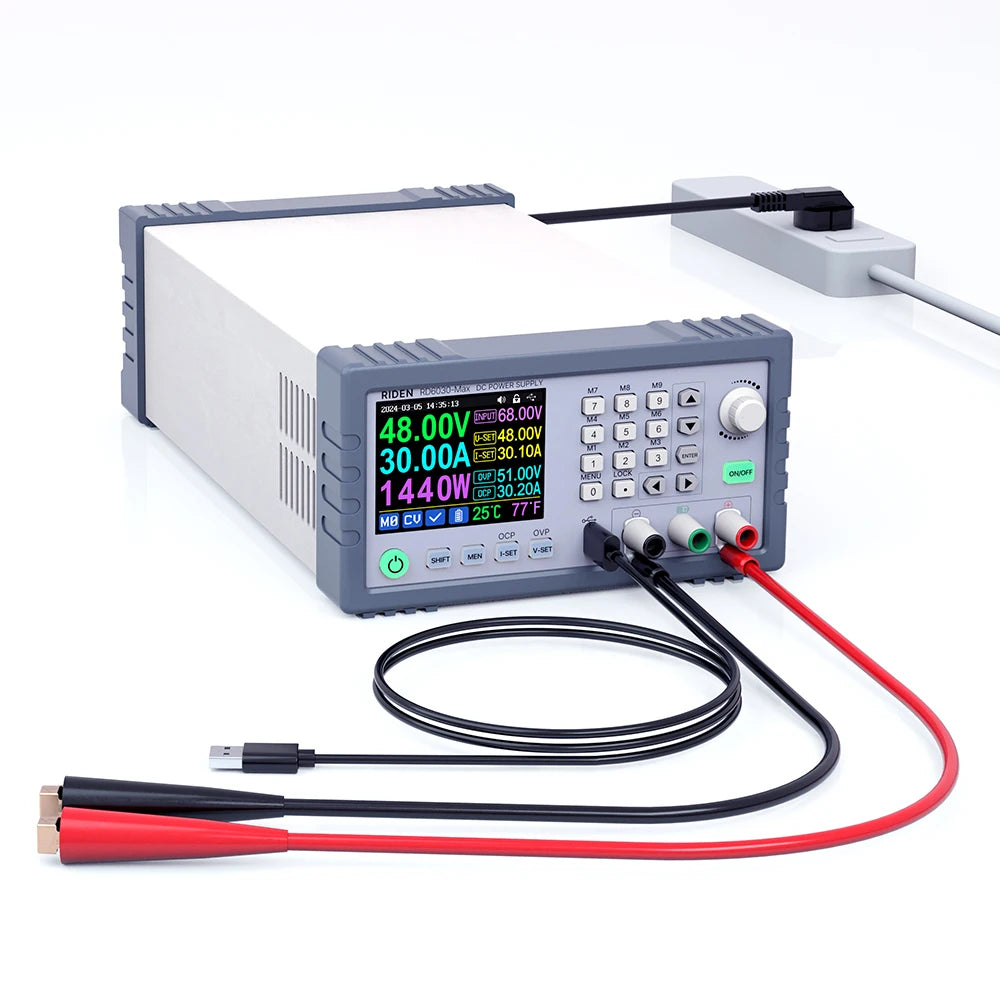

RD RD6030-Max Complete Set 60V 30A AC to DC Adjustable Digital Control Lab Charge Battery Bench Lab Power Supply 1140W/1440W

RD RD6030-Max Complete Set 60V 30A AC to DC Adjustable Digital Control Lab Charge Battery Bench Lab Power Supply 1140W/1440W

Name: RD RD6030-Max Complete Set 60V 30A AC to DC Adjustable Digital Control Lab Charge Battery Bench Lab Power Supply 1140W/1440W
Brand: mickcara
SKU: wurenjiww00042
Price: 858.66 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: wurenjiww00042

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$858.66

Other

Quantity:

Subtotal: $858.66

283 customers are viewing this product

Tags:

Description

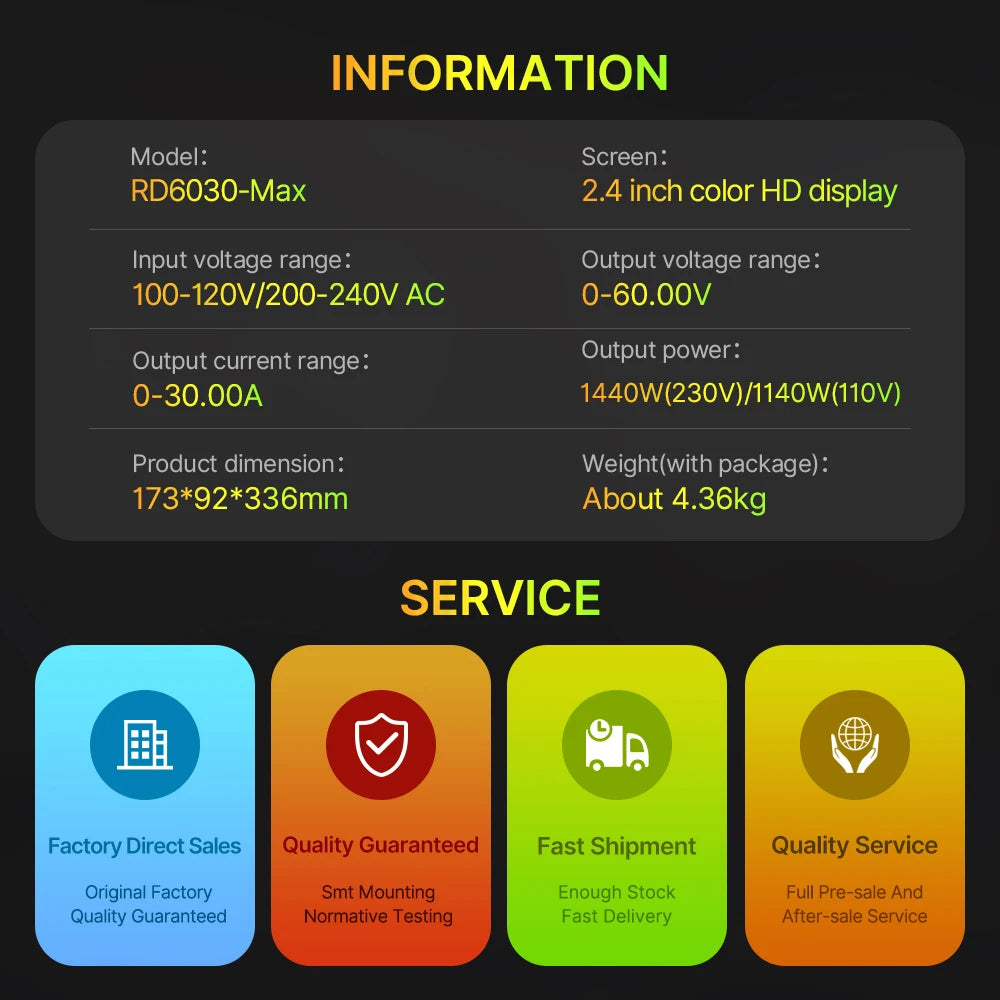

1.Technical parameters: Model: RD6030 full set assembled(1500W PSU) Input voltage range: 100-120V/200-240V AC Output voltage range: 0-60.00V Output current range: 0-30.00A Output power range: (AC220V)0-1440W/(AC110V)0-1140W(the max power shows in the option title) Output voltagesetting measurement resolution: 0.01V Output current setting measurement resolution: 0.01A Battery voltage measurement resolution: 0.01V Output voltage accuracy:±(0.3%+3digits) Output currentaccuracy:±(0.5%+5digits) Battery voltage measurement accuracy: ±(0.5%+3 digits) Automatic cut off current valuewhen charging: Set by yourself(higher than 100mA) Output ripple typical: 50mV@15A, 90mV@30A VPP Working temperature range: -10鈩儈40鈩� External sensor Temperature detection range:-10鈩儈100鈩�/0鈩墌200鈩� External sensor Temperature detection accuracy:±3鈩�/±6鈩� Constant voltage moderesponse time: 2ms锛�0.1A-5A Load锛� Constant voltage mode load regulation: ±(0.1%+2 digits) Constant current mode load regulation: ±(0.1%+3 digits) Capacity measurement range: 0-9999.99Ah Energy measurement range: 0-9999.99Wh Capacity and energy statistical error: ±2锛� Over temperature protection: System temperature>80鈩� Screen brightness setting: 0-5(6 level in total) Screen: 3.2 inch color HD display Cooling fan start condition: Output current>8A or System temperature>45鈩� Cooling fan shut down condition:Output current <7.9A and System temperature <40鈩� 2.Detailed operating instructions, PC software zipfile, refer to the URL: https://drive.google.com/drive/folders/1_pv3ctOA_koShQ6Qiu1CZVCluHVD47TL?usp=sharing
