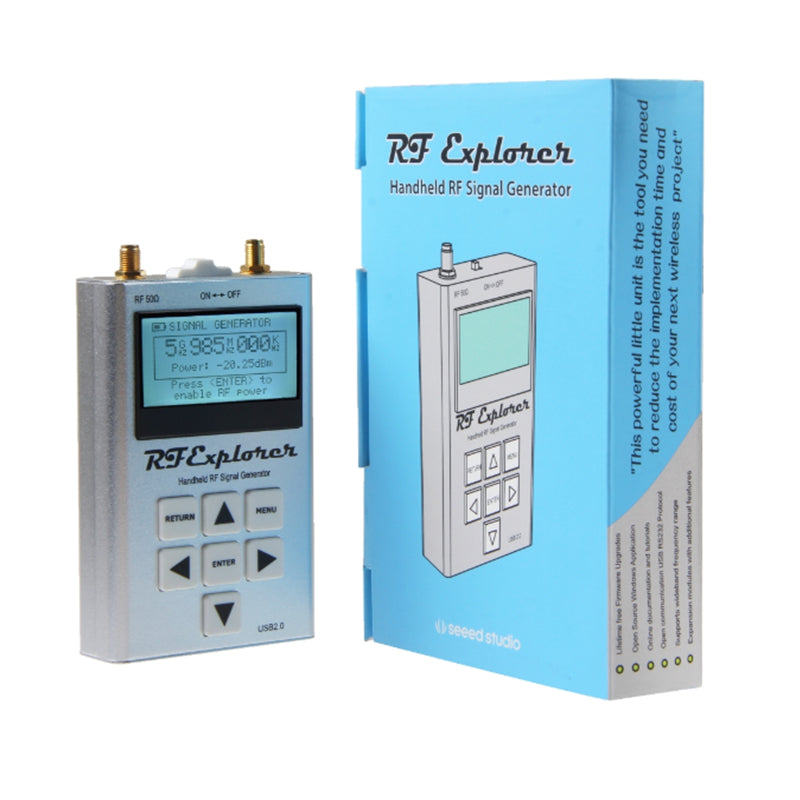

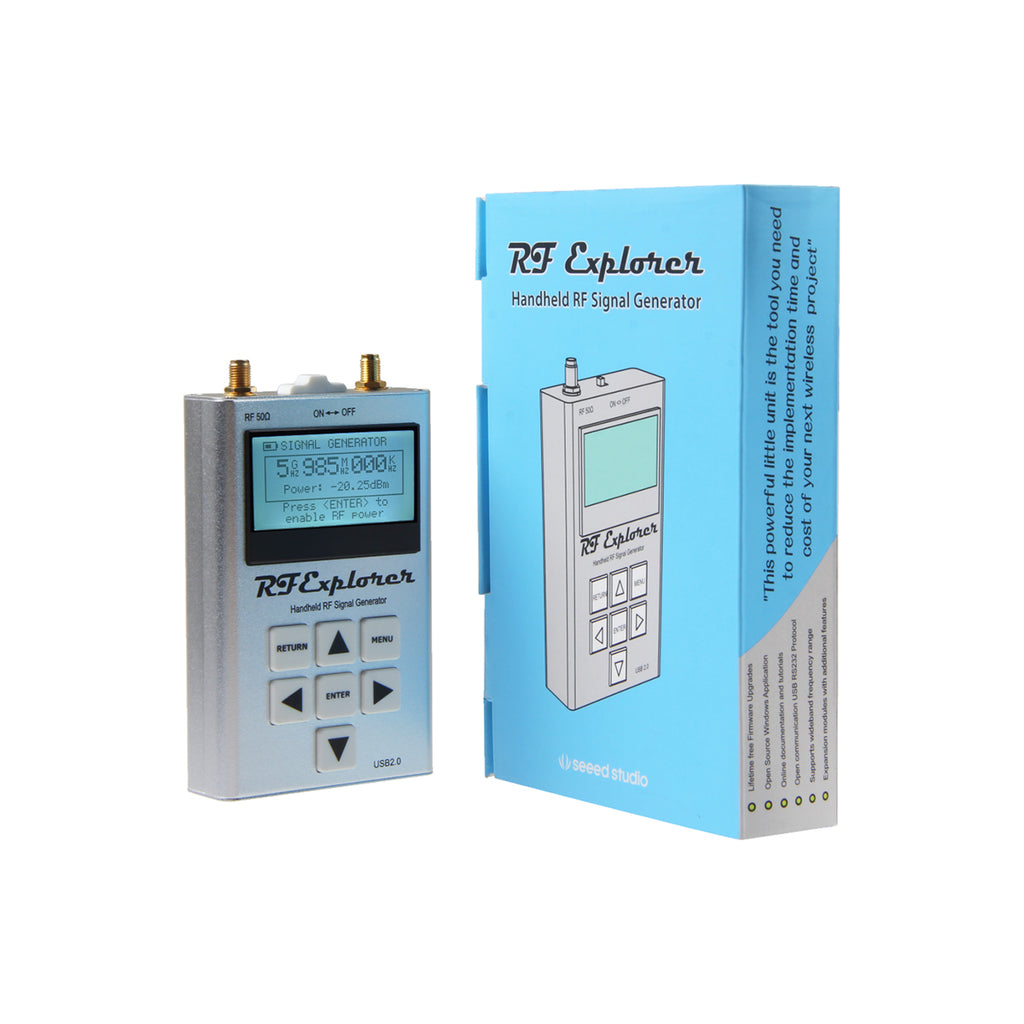

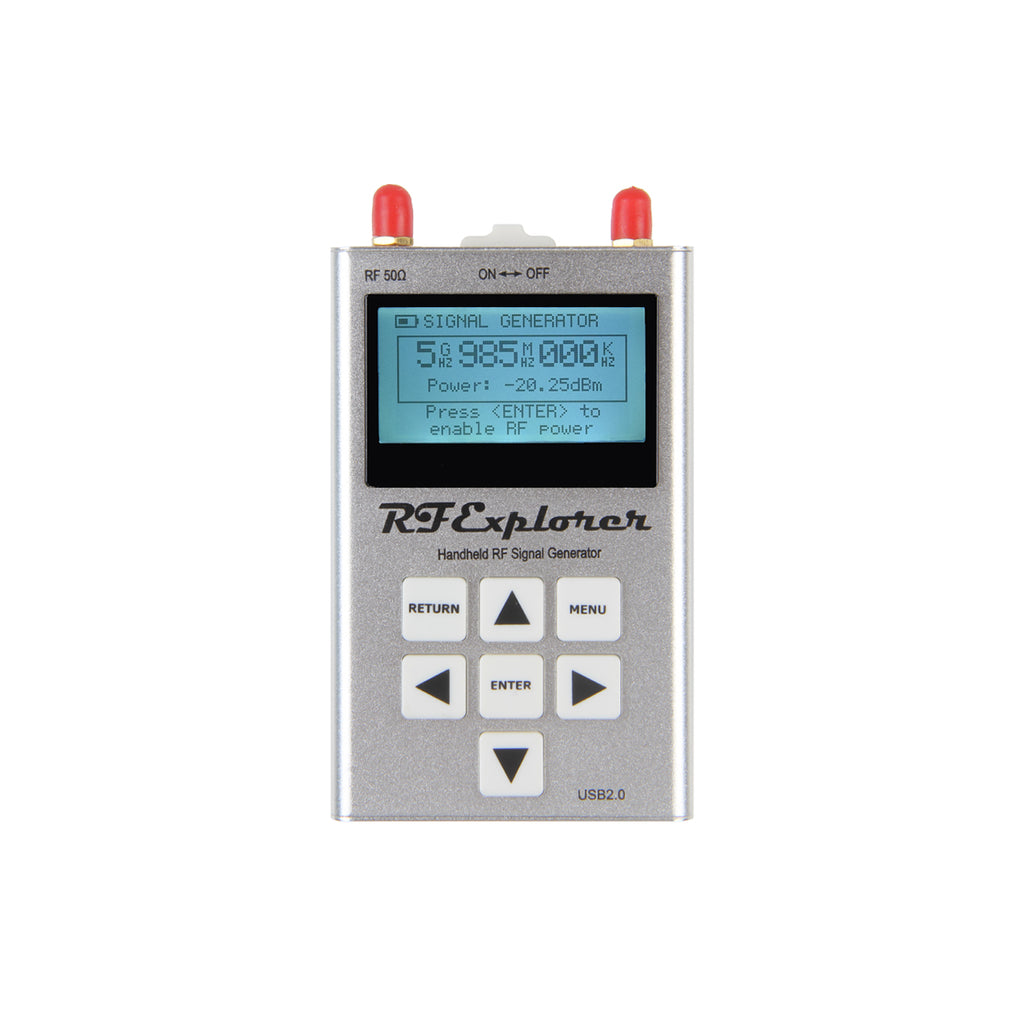

RF Signal Generator COMBO Wireless Signal Generator 100Khz to 6GHz
Analyzer RF Explorer Signal Generator COMBO
Features:

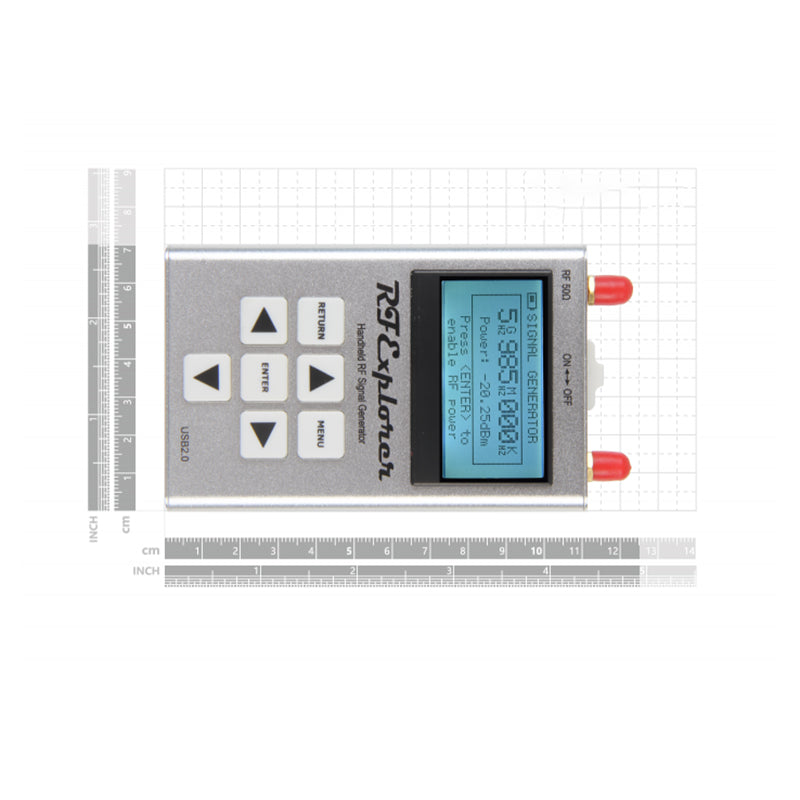

Pocket size and lightweight

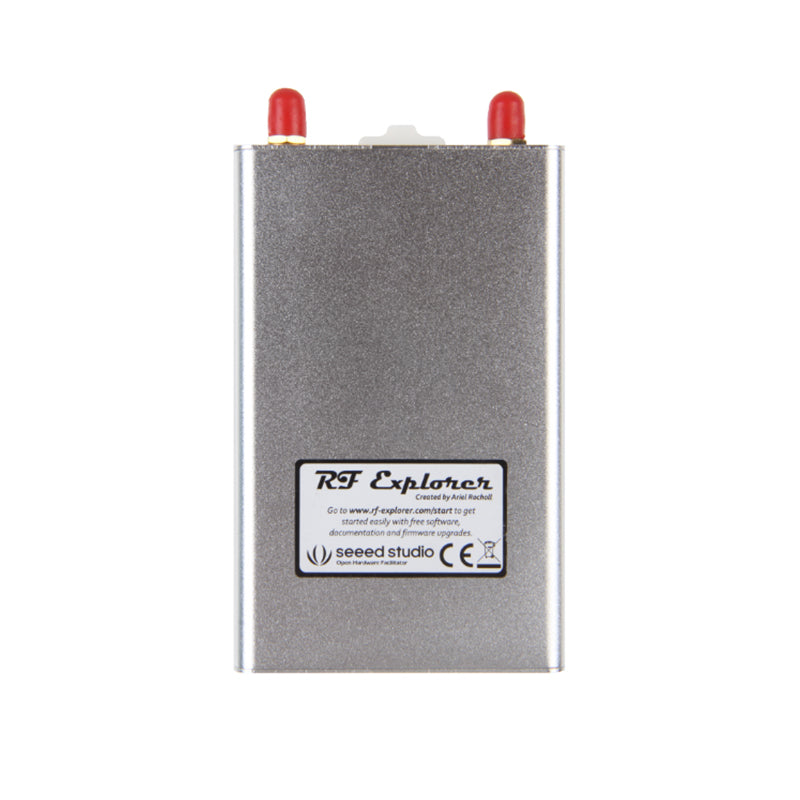

Solid aluminum metal case
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 10hs+ of continuous run, rechargeable by USB
RF Explorer for Windows free software for CW, Sweep and Tracking SNA control
Automation libraries available in Python and .NET, free USB API for any programming language
Wideband support, very stable CW signal output
Fine amplitude adjustment 0.25dB
High output power up to +18dBm
Optional recalibration procedure available upon request
Specification:
Frequency range supported: 100KHz to 6000 MHz
Calibrated Amplitude range: -40 to +10dBm
Uncalibrated extended Amplitude range: -60 to +18dBm
Amplitude step/resolution: 0.25dB over calibrated range
Amplitude accuracy (typical): +/-2dB in most frequency and power ranges
Frequency step/resolution: 1KHz
Frequency stability: 0.5ppm
Temperature compensated (0-45C)
Backlight for great indoor visibility and high contrast LCD for outdoor visibility
Standard SMA 50 ohms connector
Spurs: Internal fractional PLL configuration in some cases create spurs typically -50dBc or less.
Harmonics: typical values range about -40dBc for 2nd harmonic, -50dBc for third and higher harmonics.
Switch measurement point speed < 10ms
Graphics LCD 128x64 pixels, great visibility outdoors
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
Functional modes:
CW signal generator at any frequency in the range
Tracking generator functionality working together with RF Explorer Spectrum Analyzer when connected to the same PC
Sweep generator between any to frequencies in the range, with selectable step size and speed
CE / FCC / RoHS compliant
