Specifications:
Working Voltage DC 12V/24V;
Standby current (all relays closed) 5MA, 1 relay ON 49MA, ...,ALL relay ON 1500MA
''ON'' ''OFF'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
MODBUS RTU command, Write 05/06/15/16, Read 01/03
Under the ''Delay'' command ,the maximum delay is 255 seconds;

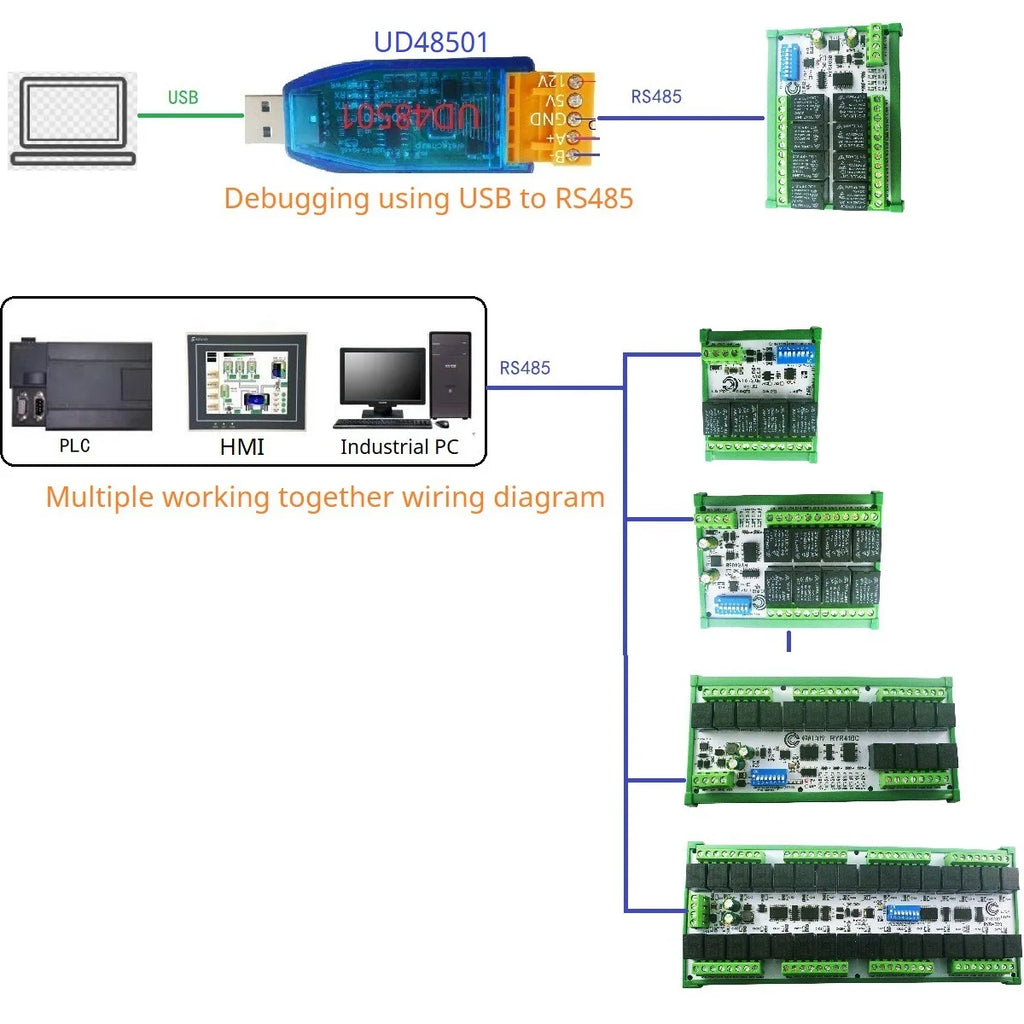

MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

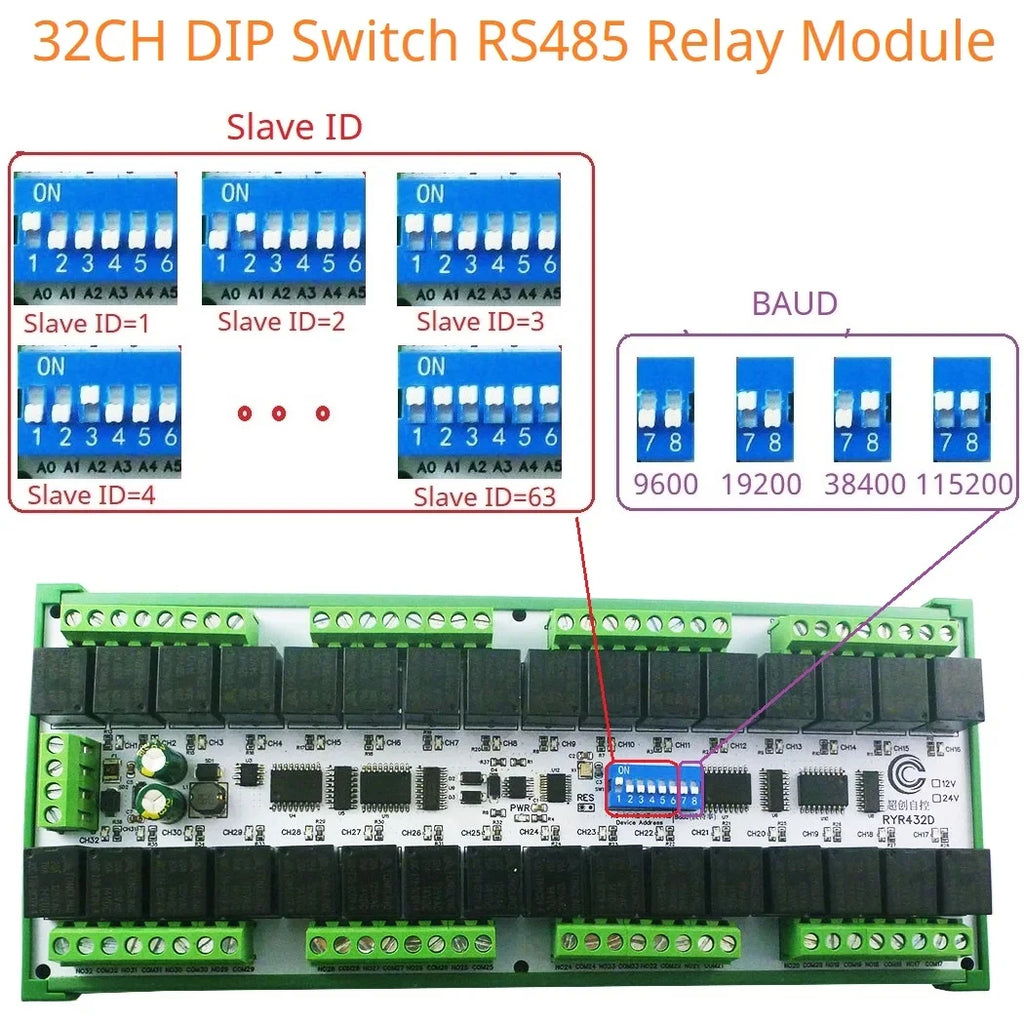

Set the Slave ID through the DIP Switch: 1-63 ID
Set BaudRate via DIP switch : 9600/19200/38400/115200BPS
Parity :None(Default)/Even/Odd

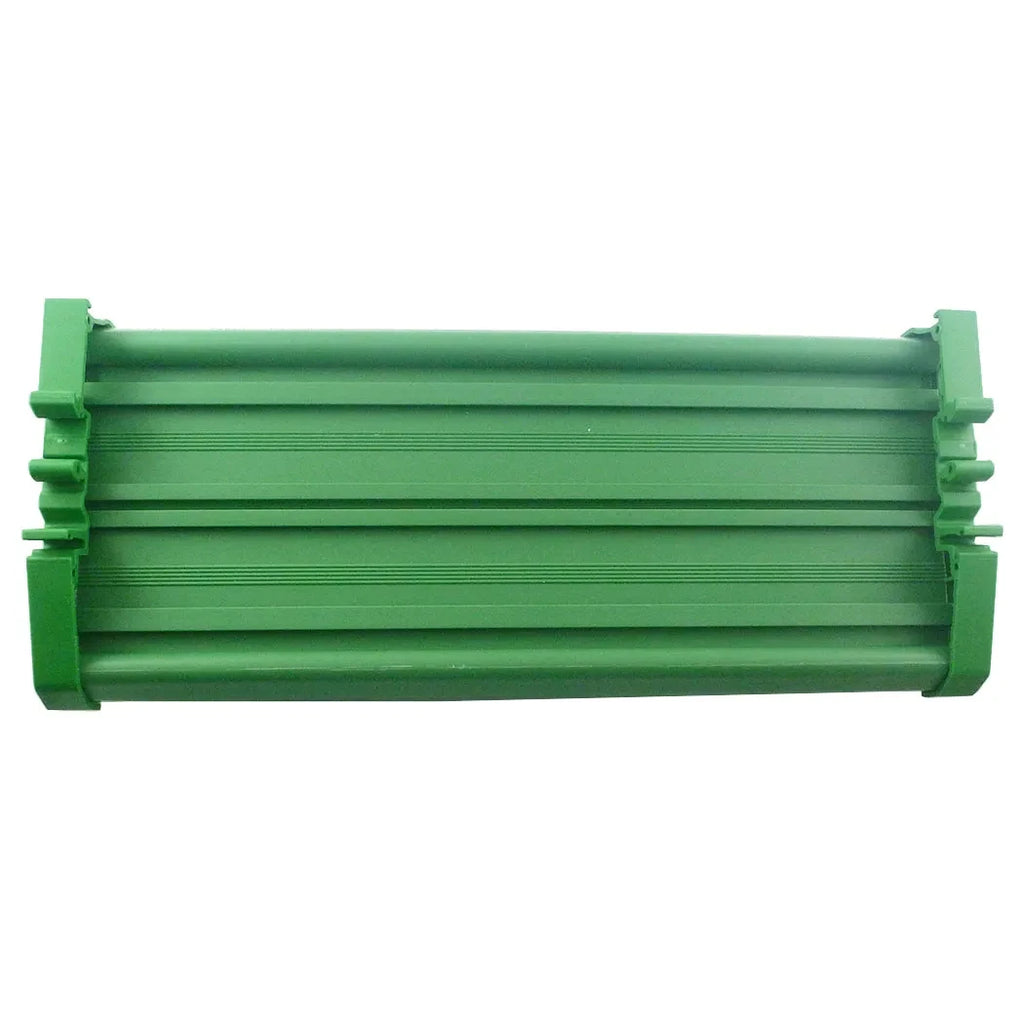

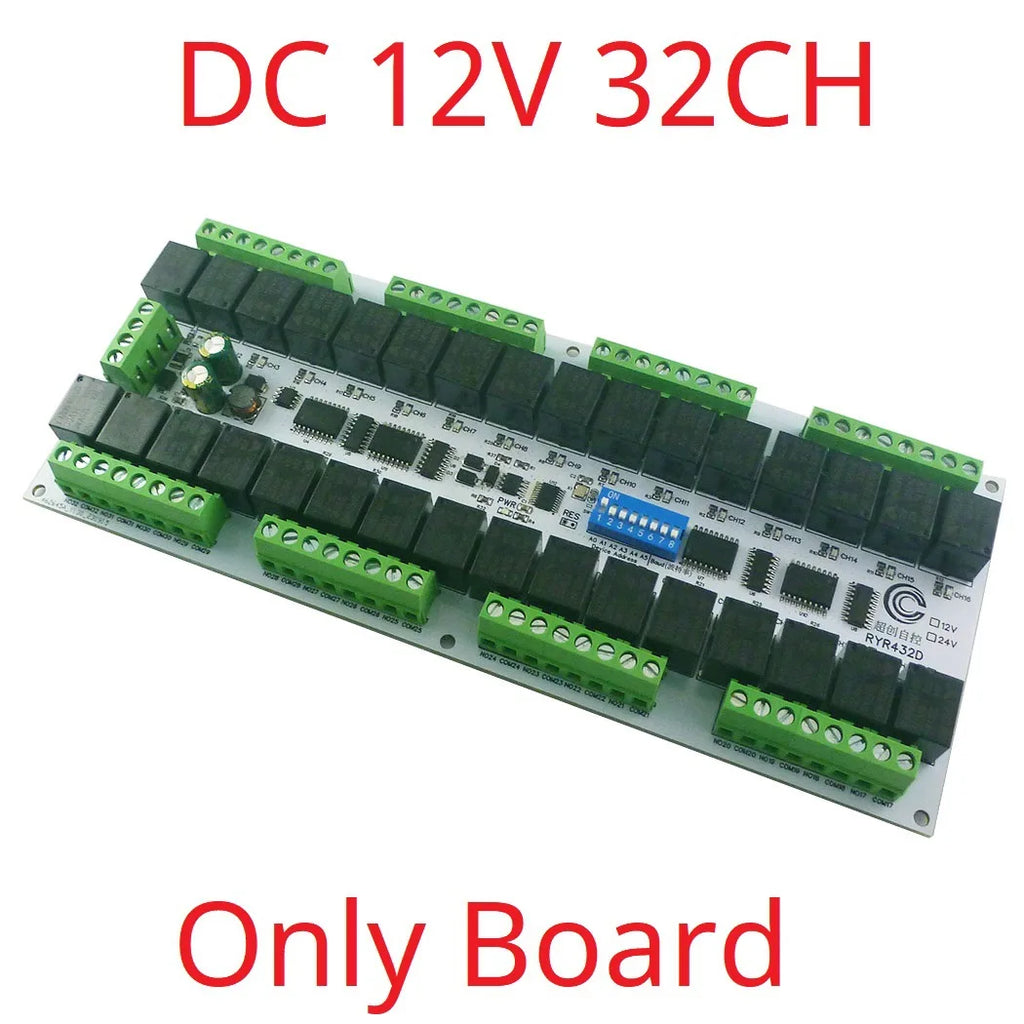

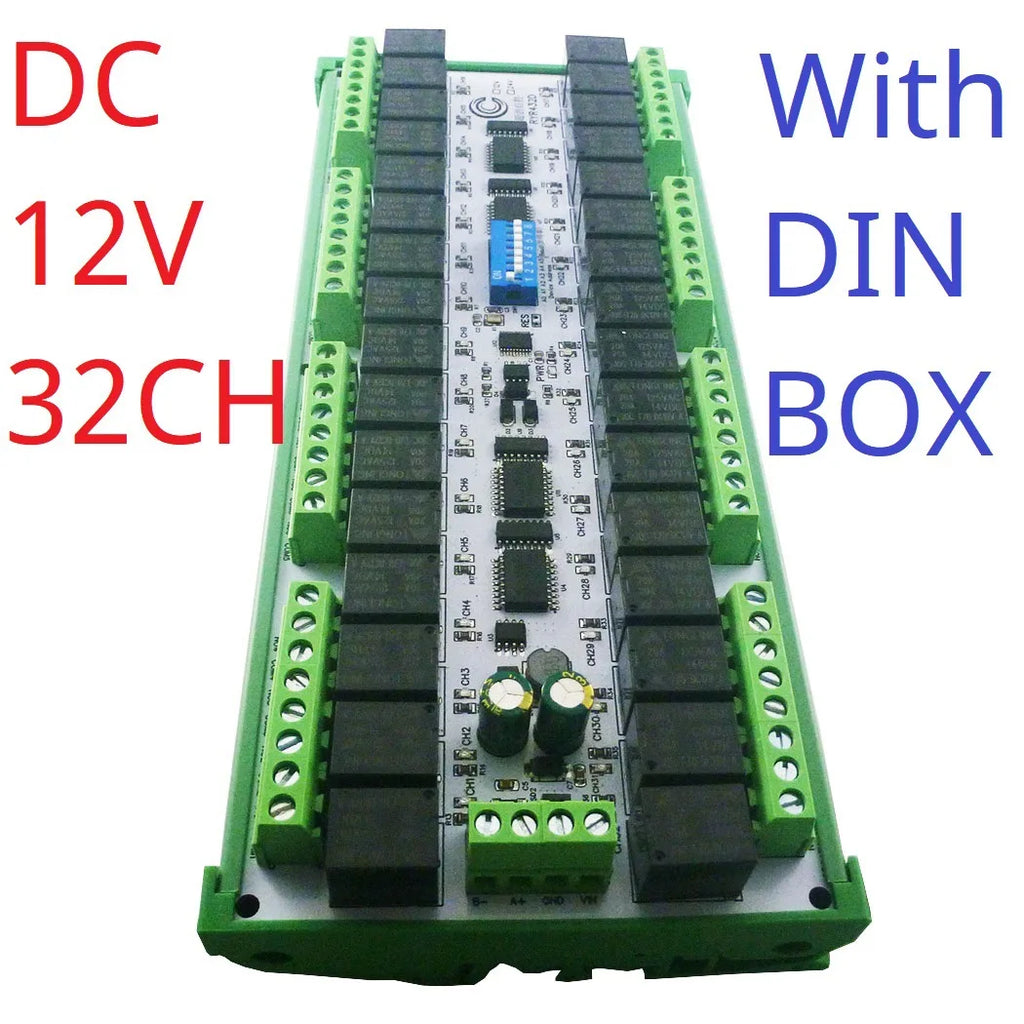

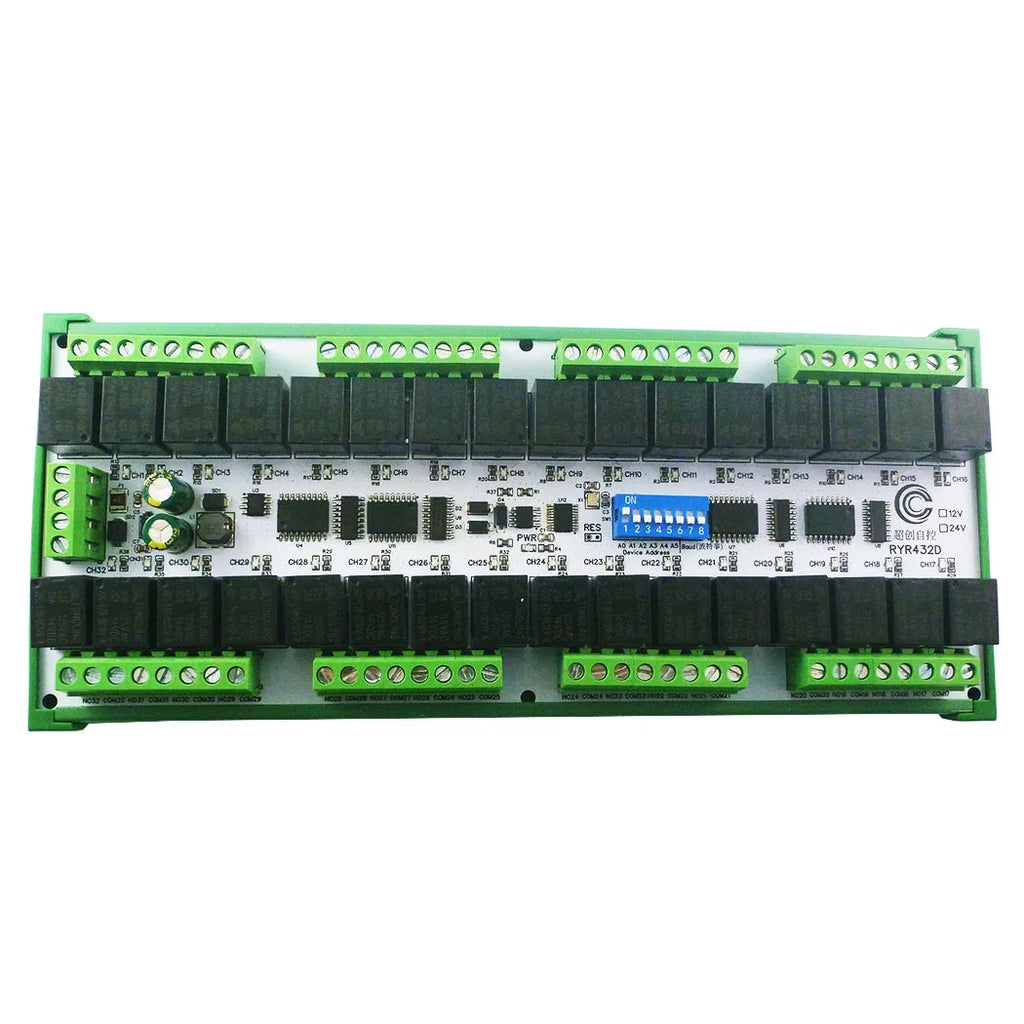

Size : 224*90*16MM(Only Board);228*106*36MM(With DIN Box);
Weight : 330g(Only Board),447g(With DIN Box)
Maximum load: 7A 120VAC;10A 28VDC
Application:
PLC IO Expansion Board
HMI Configuration Software
Smart Home,Home Automation ,Automated industry;
PTZ CCTV Camera
Security Monitoring
Identification system;
Automatic curtain control
LED Control
Farm water supply system
Stirring system
