Feature:

 1. Come with low noise, the carrier frequency is continuously adjustable from 1.0KHz‑16.0KHz to minimize motor noise

 2. Automatic voltage stabilization, you can select dynamic stabilization, static stabilization, and unregulated stabilization as needed

 3. Low frequency and large torsion, starting torsion hits twice the rated torsion and constant torsion output within 50HZ

 4. Possess soft start and stop, energy saving and power saving, motor protection, stepless speed regulation, low noise operation

 5. Support overload, overheat, overvoltage, overcurrent, undervoltage, phase loss, grounding, short circuit, and stall protection, flame retardant/moisture‑proof/anti‑corrosion/salt‑spray proof

     Specification:

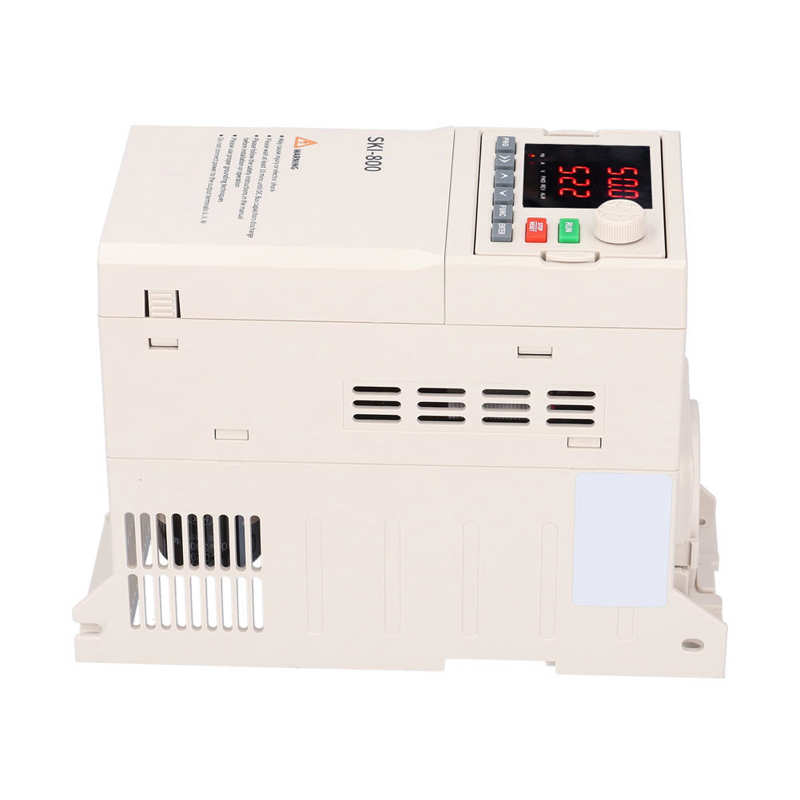

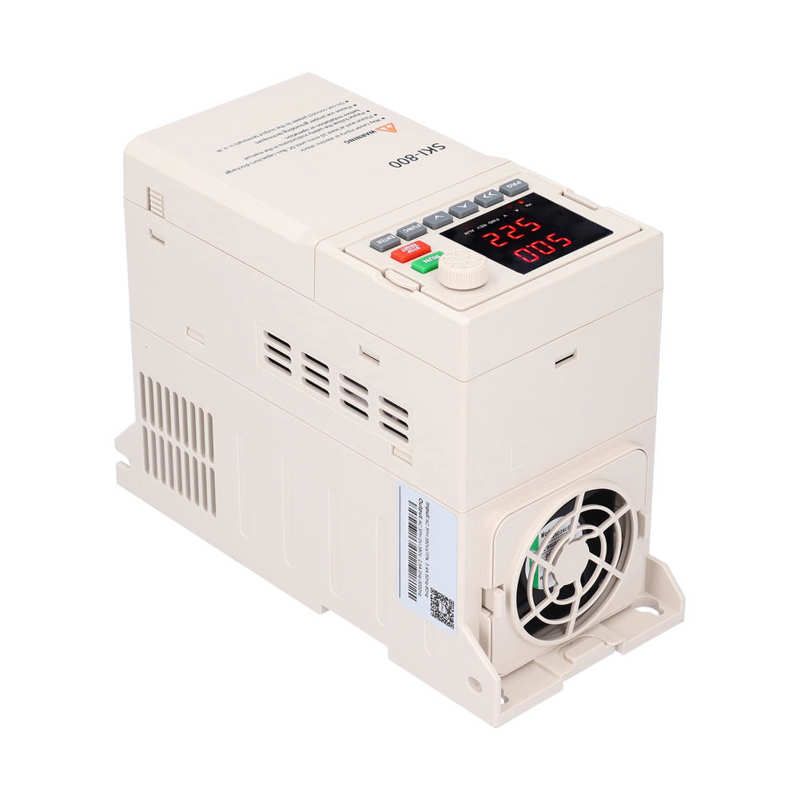

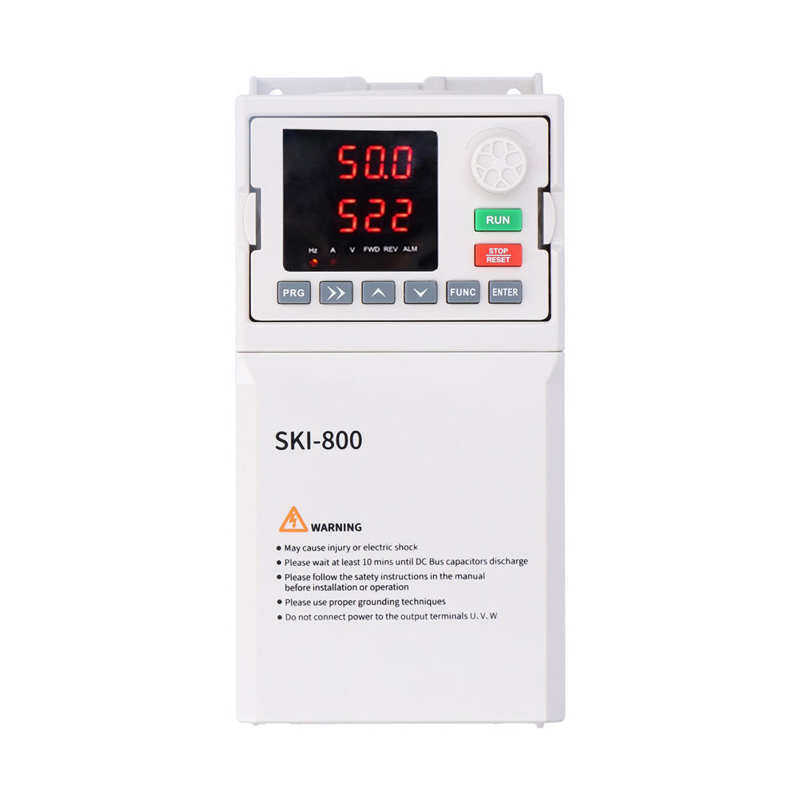

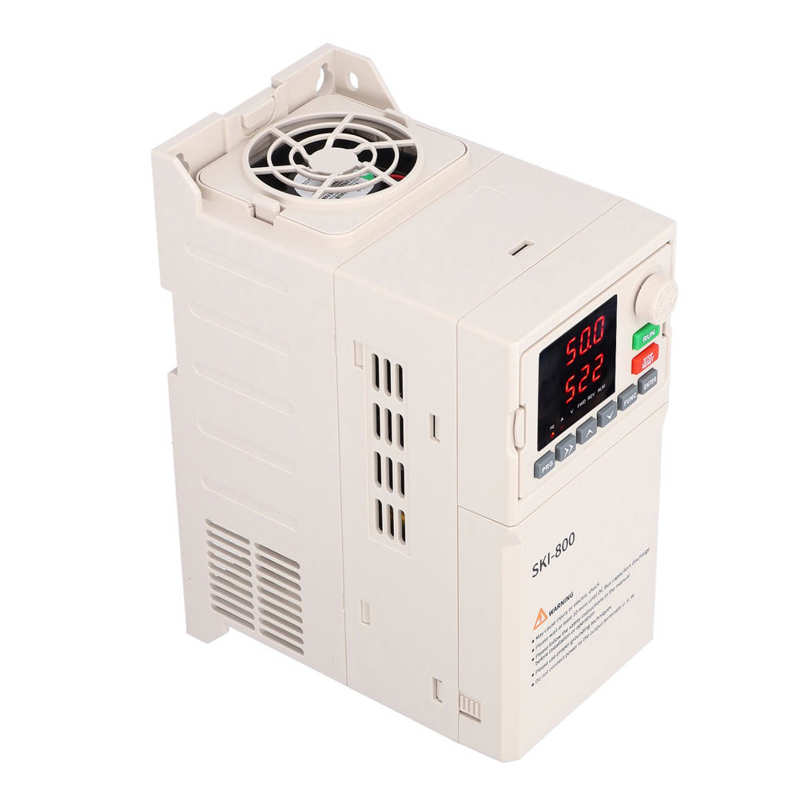

     Item Type: Vector Frequency Converter

                       Model         Power(KW)         Input Voltage（V）         Output Voltage（V）         Frequency Modulation Range （Hz）                     SKI800-0D75G-4         0.75         380±15%         0-380         0-3000                     SKI800-1D5G-4         1.5         380±15%         0-380         0-3000                     SKI800-2D2G-4         2.2         380±15%         0-380         0-3000                     SKI800-4D0G/5D5P-4         4         380±15%         0-380         0-3000

     Filter: Built-in filter

 Control Mode: V/F control, advanced V/F control, V/F separation control, open loop current vector control;

 Multi-Speed Operation: 16-Segment programmable multi-speed operation

 Simple PLC Operation: 16-Speed automatic operation can be set, and the running time of each section can be set

 PID Control: Built-in PID control, widely used in constant pressure water supply, wind pressure and constant pressure control, etc.

 RS485 Communication: Standard configuration RS485 communication function, multiple communication protocols are optional, with linkage synchronization control function;

 Analog Input and Analog Output:

 Two analog signal inputs, flexible setting between 0-10V and 0-20MA;

 Two analog signal outputs, 0-10V and 0-20MA are optional.

 Digital Output: 2 Relay outputs and 1 transistor output, up to 55 protocols can be selected;

 Automatic Voltage Stabilization Function: According to needs, you can choose dynamic voltage stabilization, static voltage stabilization, and no voltage stabilization to obtain the most stable operation effect;

 Low Noise Operation: The carrier frequency is continuously adjustable from 1.0KHz to 16.0KHz to minimize motor noise;

 Acceleration and Deceleration Time Setting: 0.1S-3600S continuous setting, S-type and linear mode are optional;

 Protection Level: IP20

 Machine Size: Approx. 215 x 95 x 150mm / 8.5 x 3.7 x 5.9in

 Panel Hole Size: Approx. 61 x 81mm / 2.4 x 3.2in

 Output Frequency Range: Wide range, Low Frequency Mode: 0-300Hz; High Frequency Mode: 0-3000Hz

 Built-in Brake Unit: The built-in brake unit of the machine does not need to be purchased separately (0.75KW-18.5KW)

 Application:

 Construction sites, factories, water plants, hotel communities, baths, central air-conditioning water systems, paper machinery plants, shopping malls escalators, breeding farms, sewage treatment plants, fire hospital transportation, machine tools, automation equipment, etc.

 Application Machine:

 Motors, mixers, ball mills, water pumps, cranes, conveyors, air compressors, fans, CNC machine tools

     Package List:

     1 x Vector Frequency Converter

     1 x User Manual
