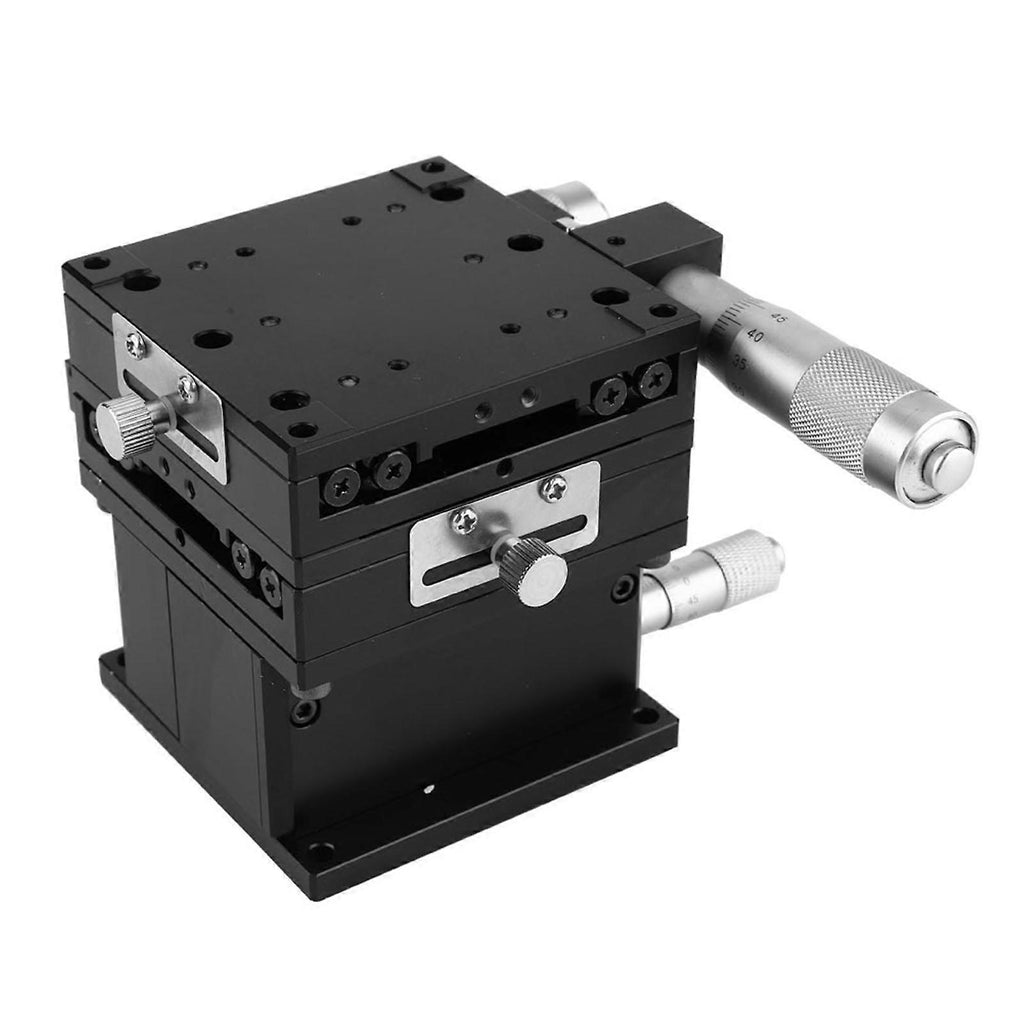

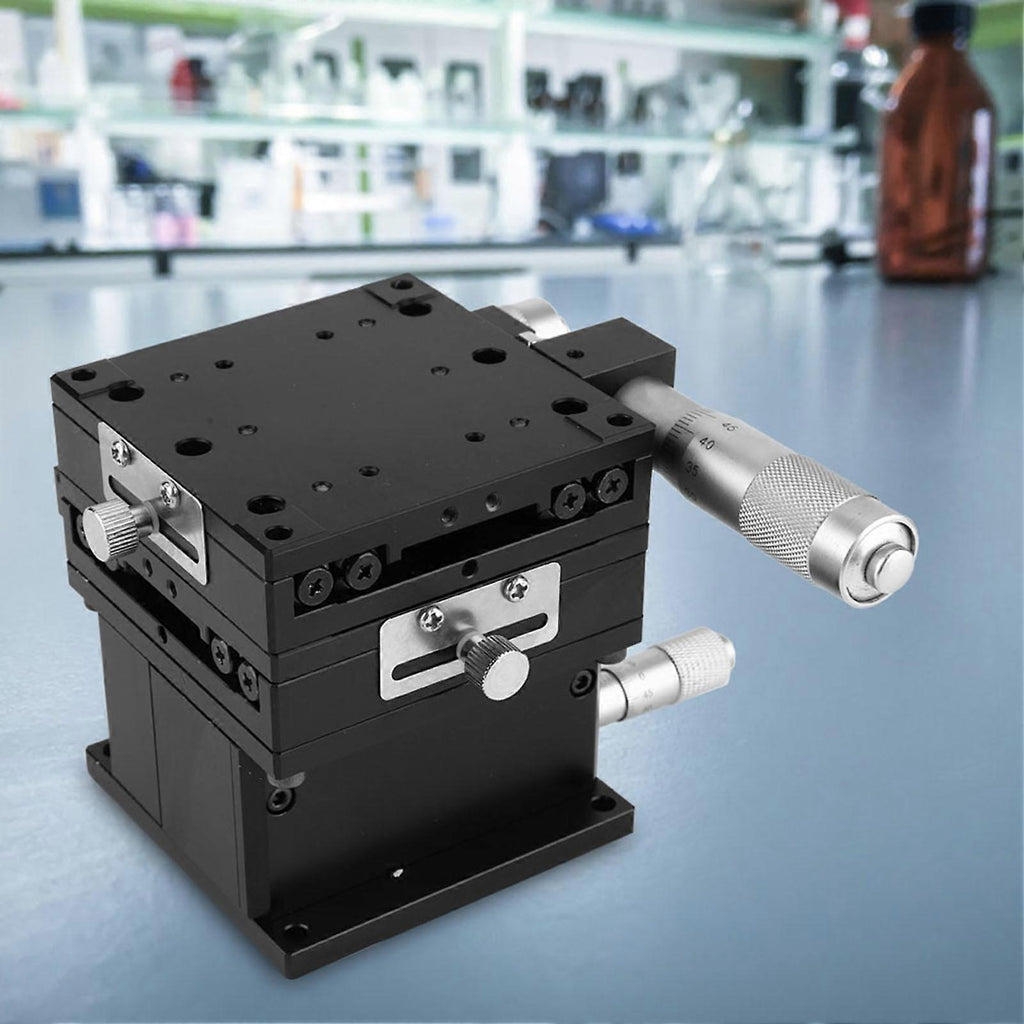

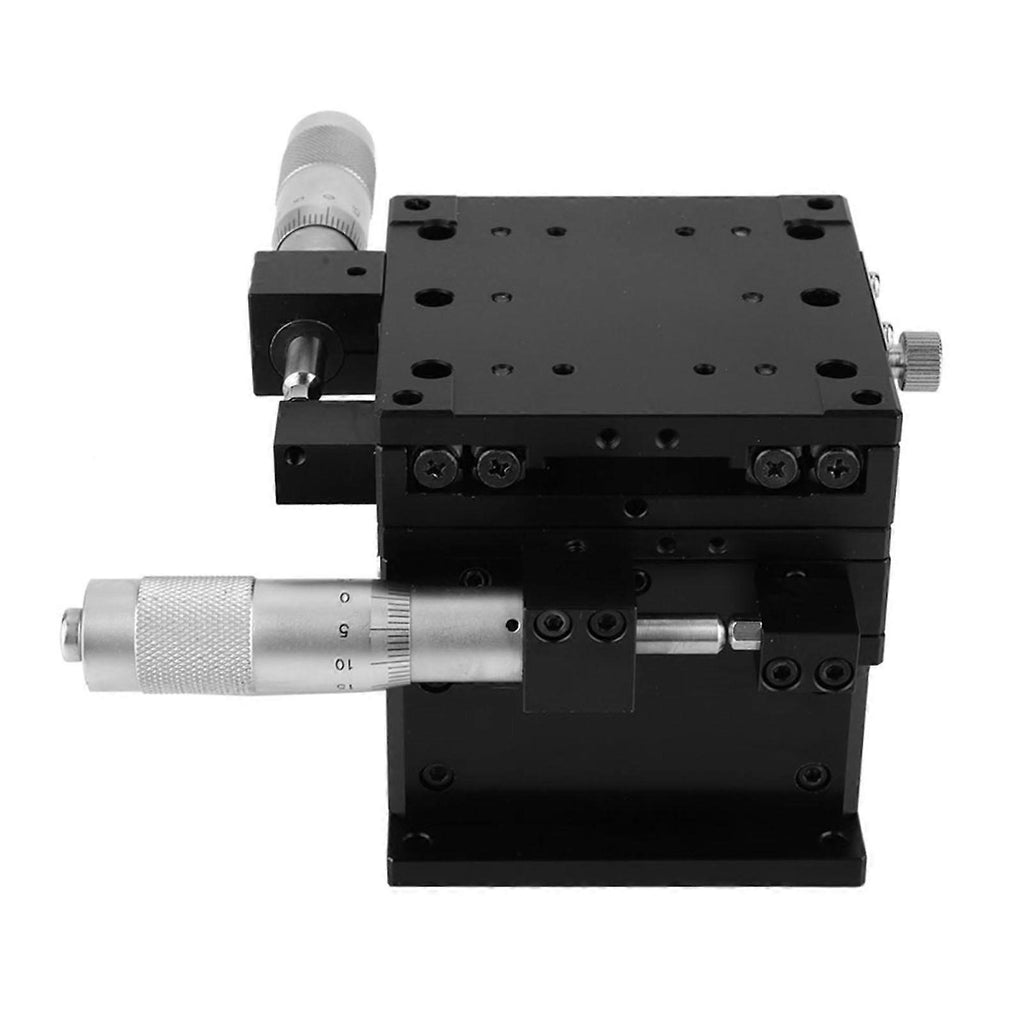

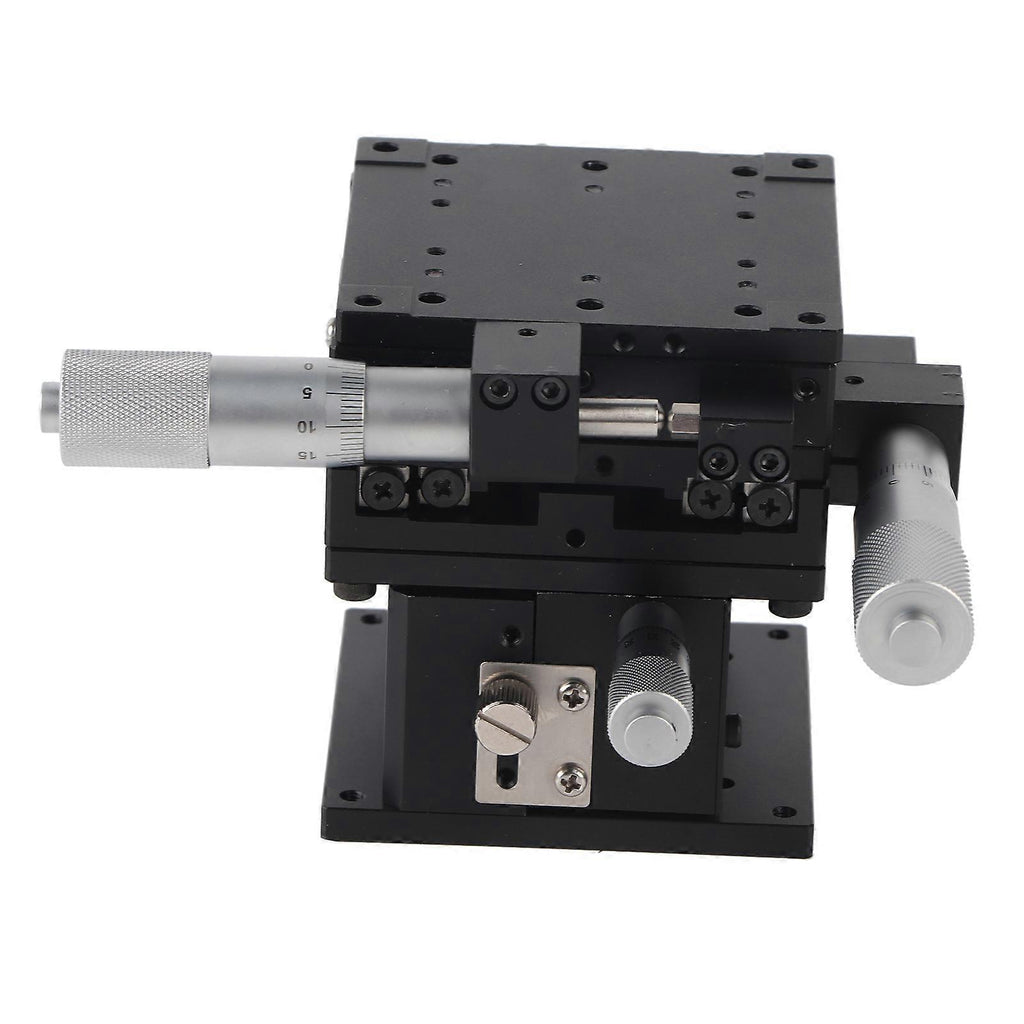

SEMXYZ-80 XYZ Linear Stage Trimming Platform Bearing FinE tuning Sliding Table 80*80mm

Name: SEMXYZ-80 XYZ Linear Stage Trimming Platform Bearing FinE tuning Sliding Table 80*80mm
Brand: mickcara
SKU: 8316634763474
Price: 401.40 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 8316634763474

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$401.40

Quantity:

Subtotal: $401.40

283 customers are viewing this product

Tags:

Description

Features: 1. It uses cross roller guide can achieve high accuracy, smooth movement. 2. Made of aluminium alloy material with black anodized surface,it is durable to use. 3. This is a XYZ linear guide sliding track, used for capacitive touch screen production equipment, fixtures, optical instruments, etc. 4. Precision machining and stable performance, good using effect. 5. Suitable for laboratory accuracy inspection, mechanical equipment positioning and movement, various fiber coupling, core adjustment, packaging system, etc. Specification: Condition: Item Type: Trimming Platform Model: SEMXYZ-80 Table Size (Length * Width): Approx. 80 * 80mm / 3.1 * 3.1in Product Height: Approx. 90mm / 3.5in Load: 91.5N(9.0kgf) Stroke: Horizontal Lifting: 13mm Xy Transmission: ??12.5mm Accuracy: 0.01mm (the differential head rotates one turn and moves 0.5mm) Parallelism: 80??m Moving parallelism: 10??m True straightness: 3??m Moving Distance Adjustment: Micrometer Differential Head Material: Aluminum Alloy (Black Anodized) Sliding Track: Linear Guide Rail Type: Cross Roller Type Scope of Application: various fiber coupling, optical waveguide alignment, alignment, packaging system, capacitive touch screen production equipment, fixtures, optical instruments, non-standard equipment Package List: 1 * Platform Note: 1. Please allow slight error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard. 3.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. .
