Features:
1. Widely used, can be used for stairs, aisles, corridors, toilets, office buildings, schools in various buildings

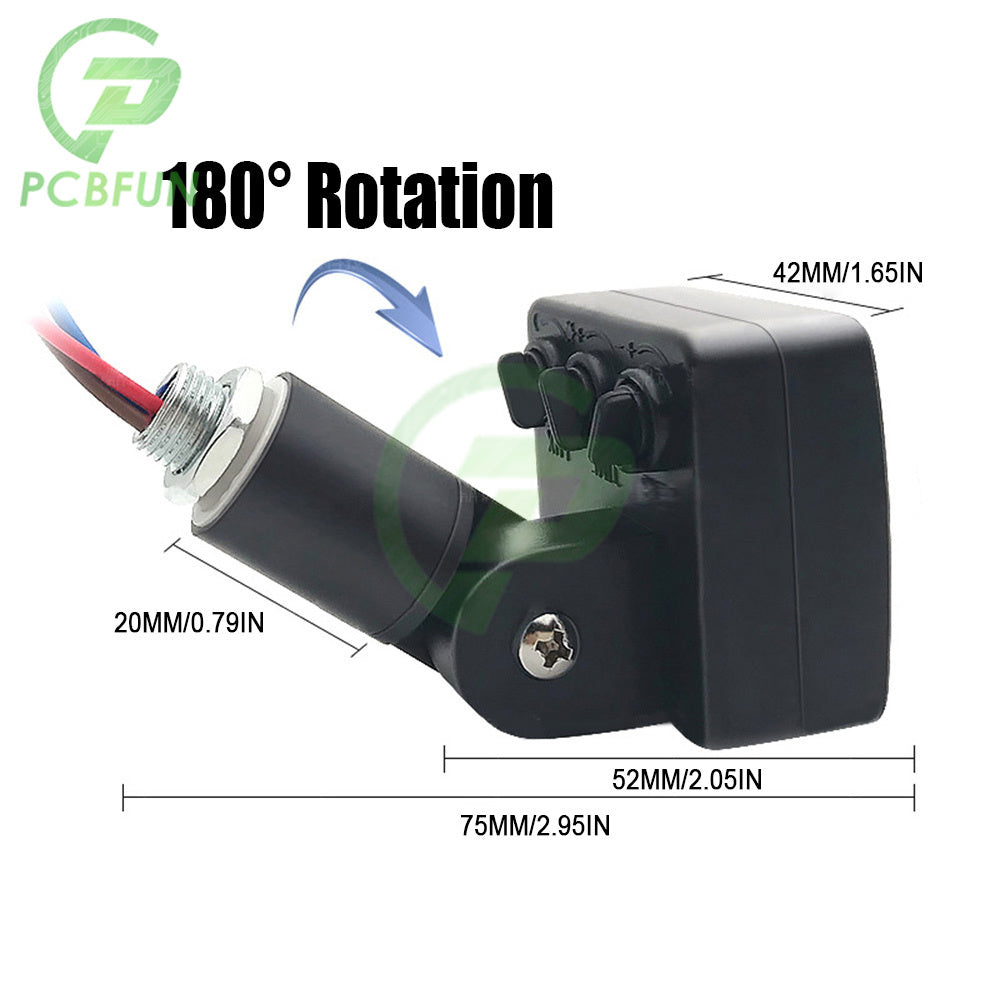

3. The horizontal direction can be rotated 180°, and the vertical direction can be rotated 180°

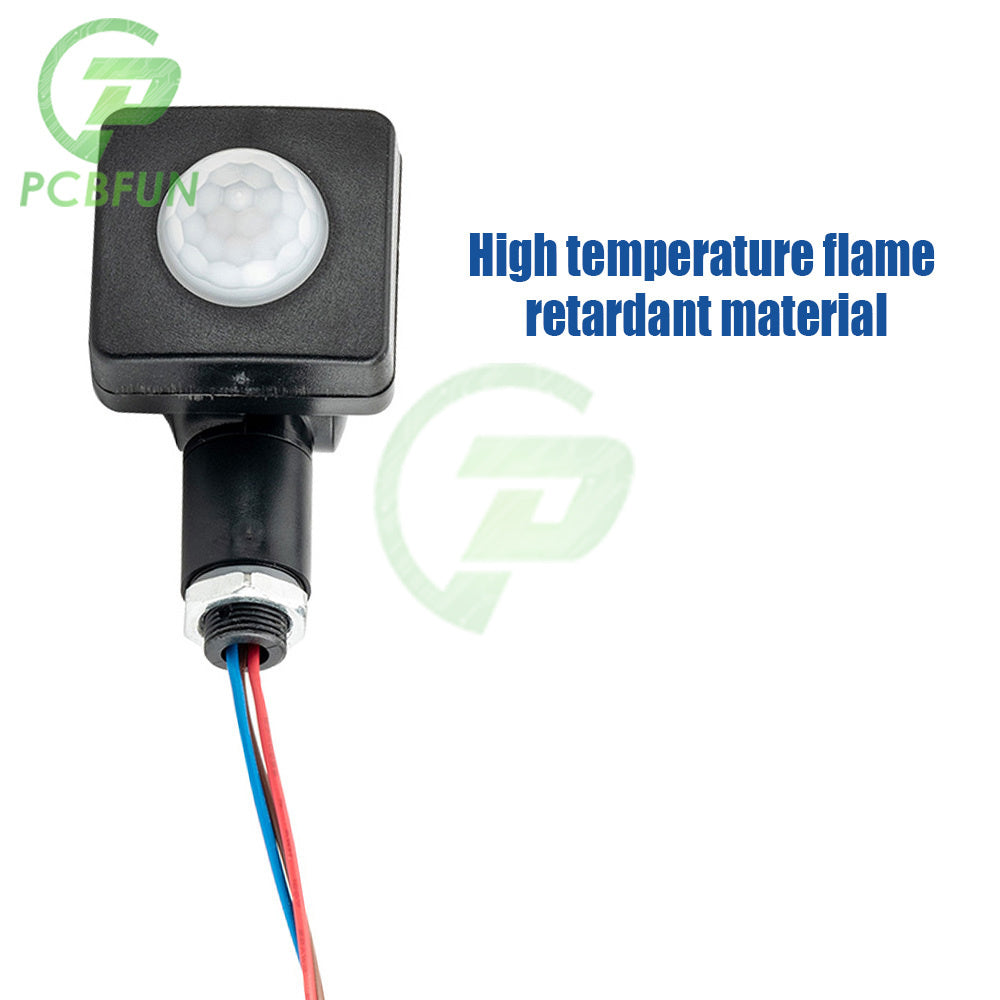

4. High temperature flame retardant material
5. High sensitivity
Product parameters:

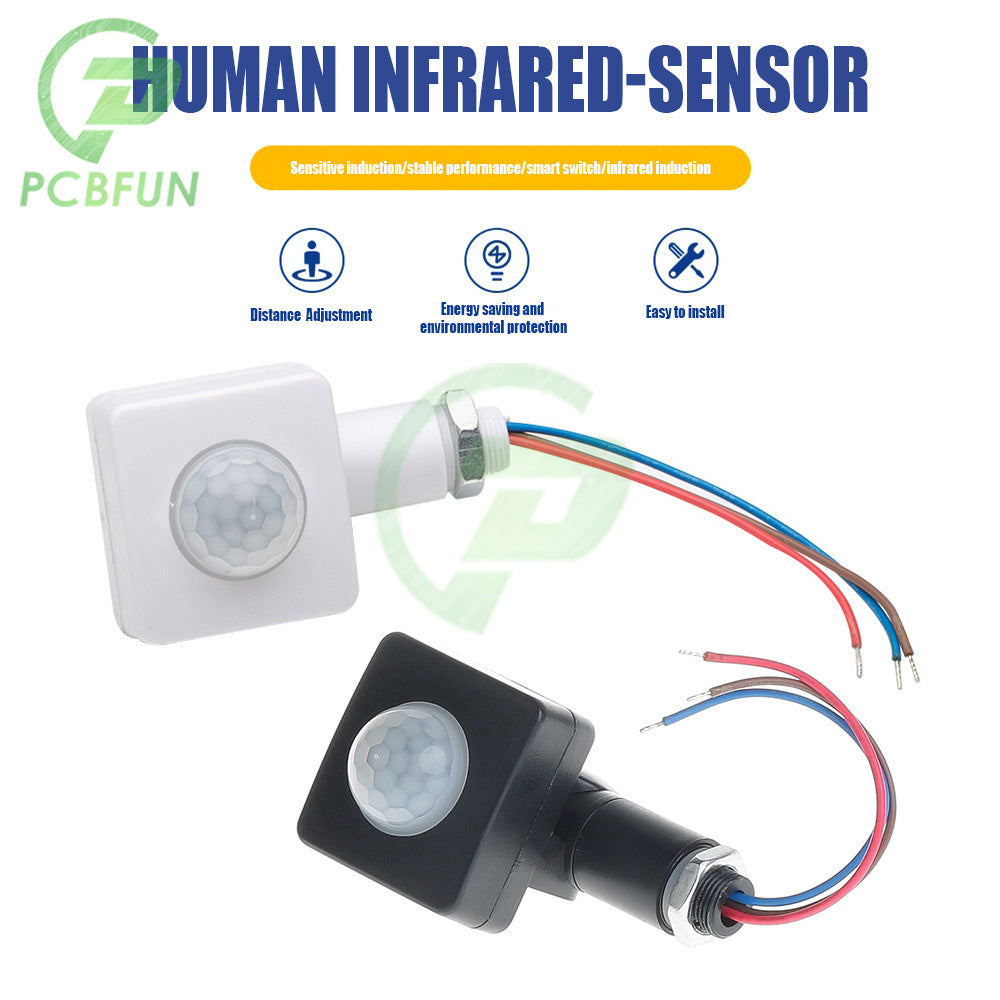

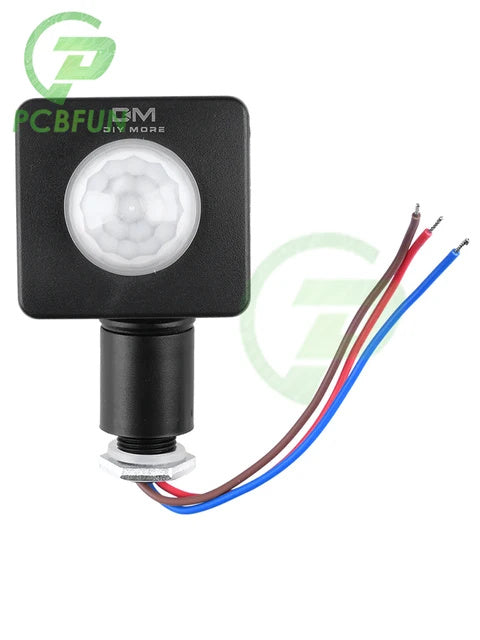

Product name: Human body infrared sensor
Material: flame retardant ABS
Product color: black/white

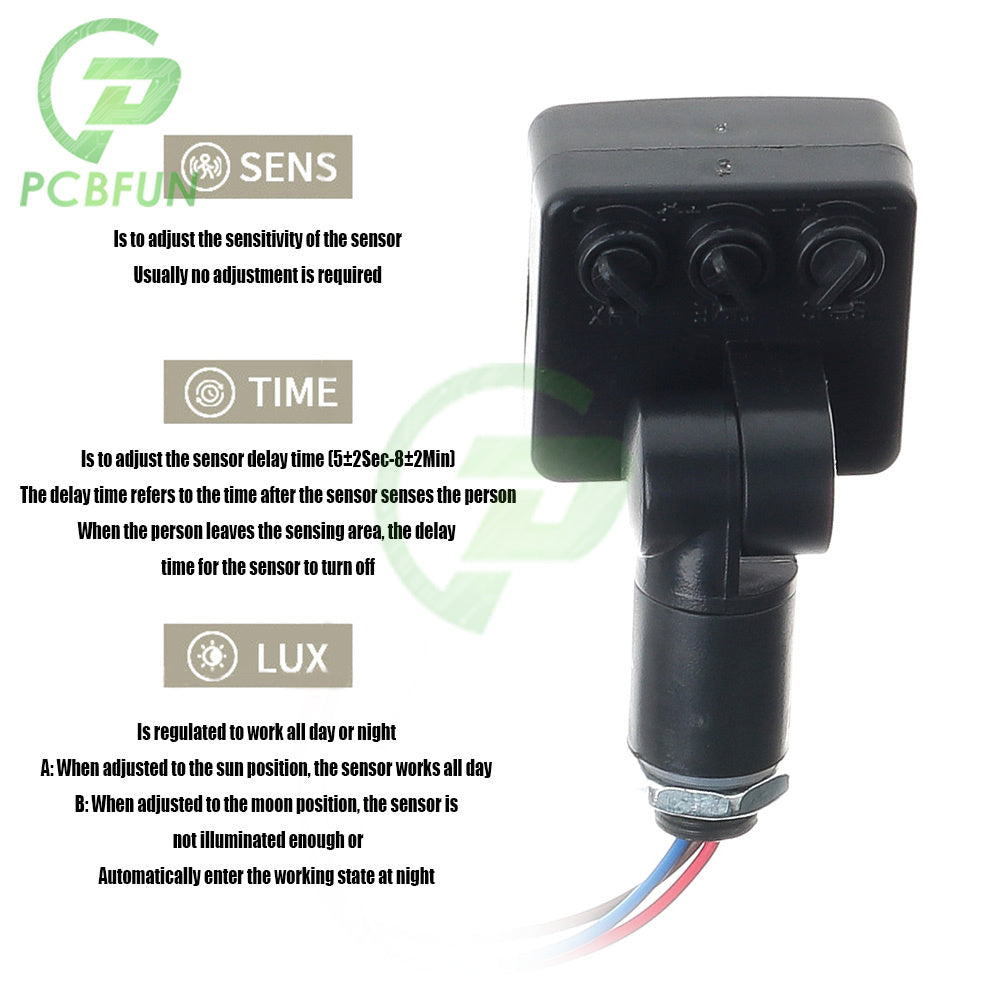

Delay time: 5 seconds - 8 minutes (adjustable)

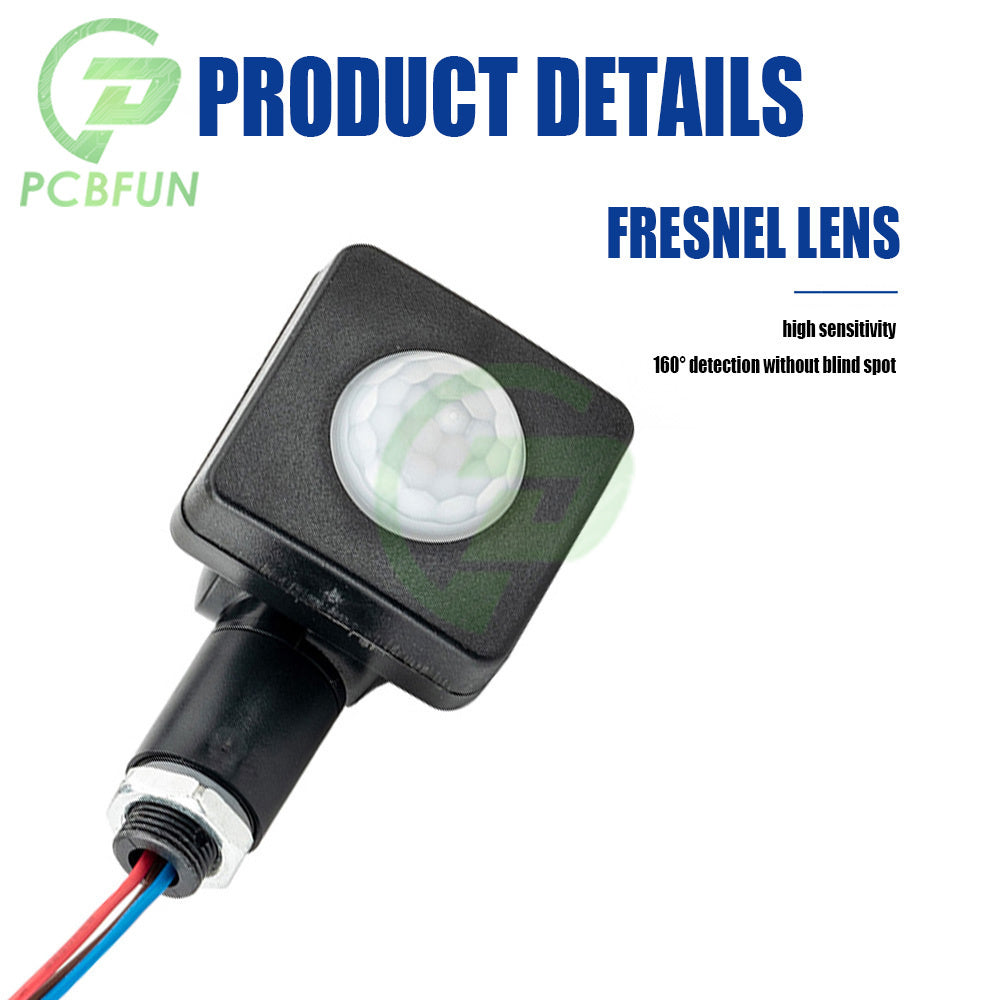

Detection angle: 160°
Installation height: 1.8-2.5M
Ambient light: 2-200OLUX (adjustable)
Working humidity: 93% RH
Operating temperature: -10°C~+40°C
Product size: 75*42*52mm
Product weight: 45g
Detection distance: 5-12M (24°C) adjustable
Opening size: opening 12mm, 10mm
Power consumption: 0.4W
Working voltage: AC85-265V (support customization)
Working frequency: 50/60Hz
Rated load: 300W tungsten lamp; 60W energy saving lamp.LED lamp

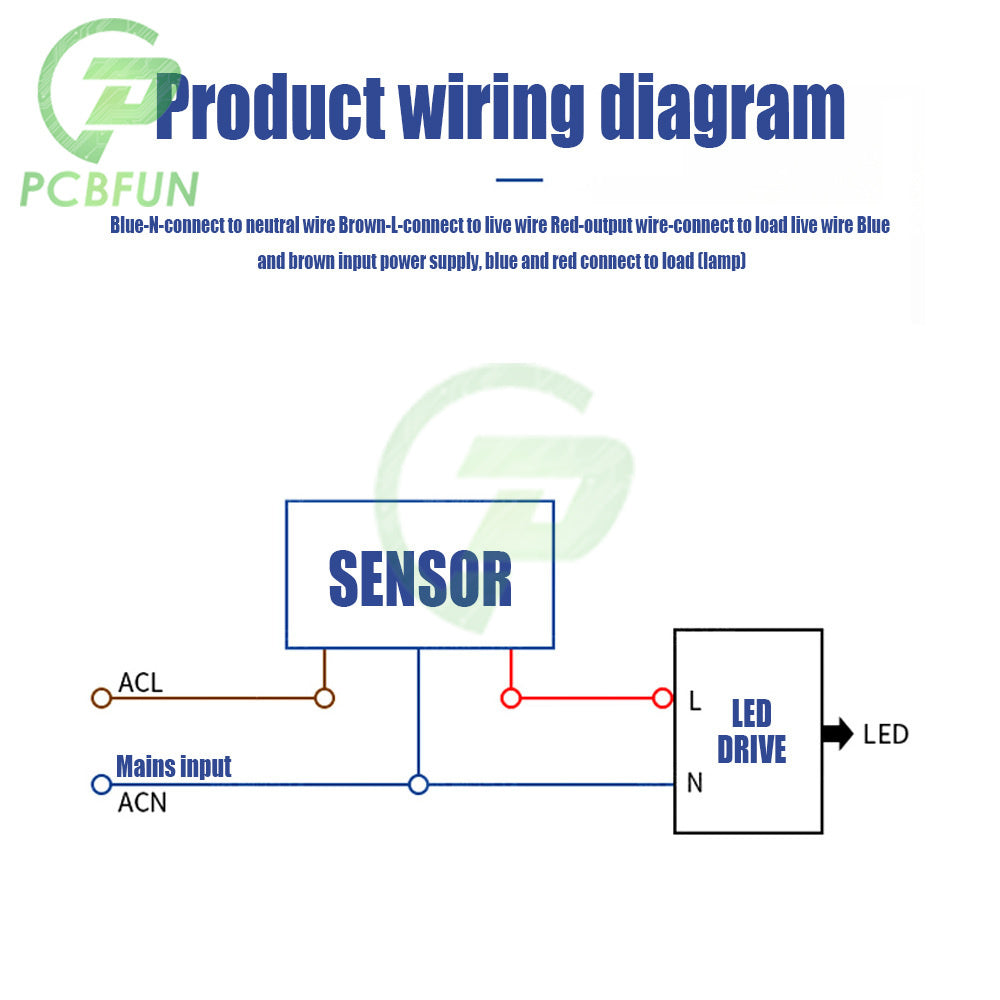

Wiring instructions: N-blue (connected to neutral wire) L-brown (connected to live wire) output a red sensor output wire)
Blue and brown input power blue and red connected to load (lamp)
Packing list:

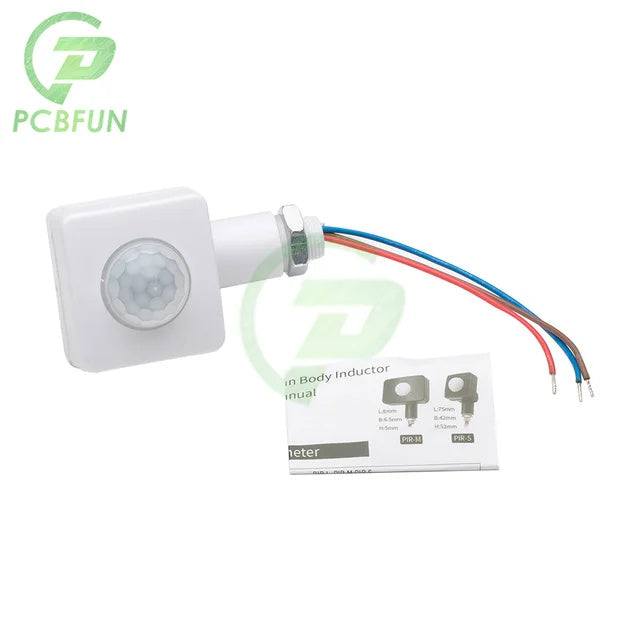

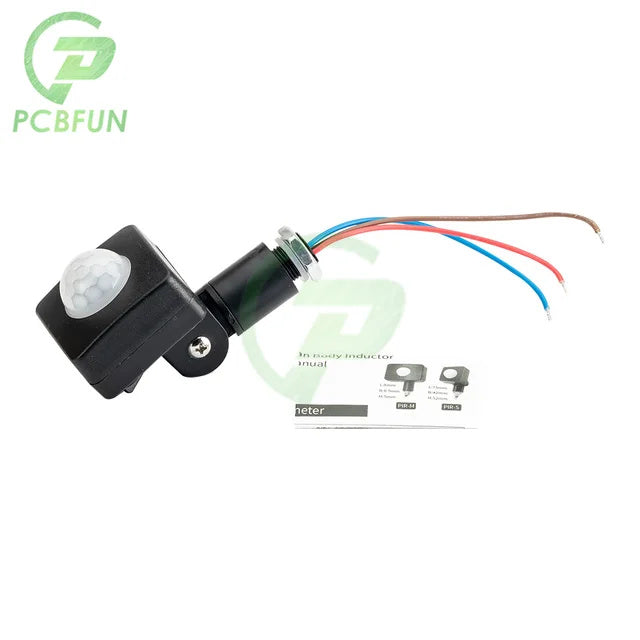

1*AC85-265V mini trumpet human body infrared sensor switch opening 12MM
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
