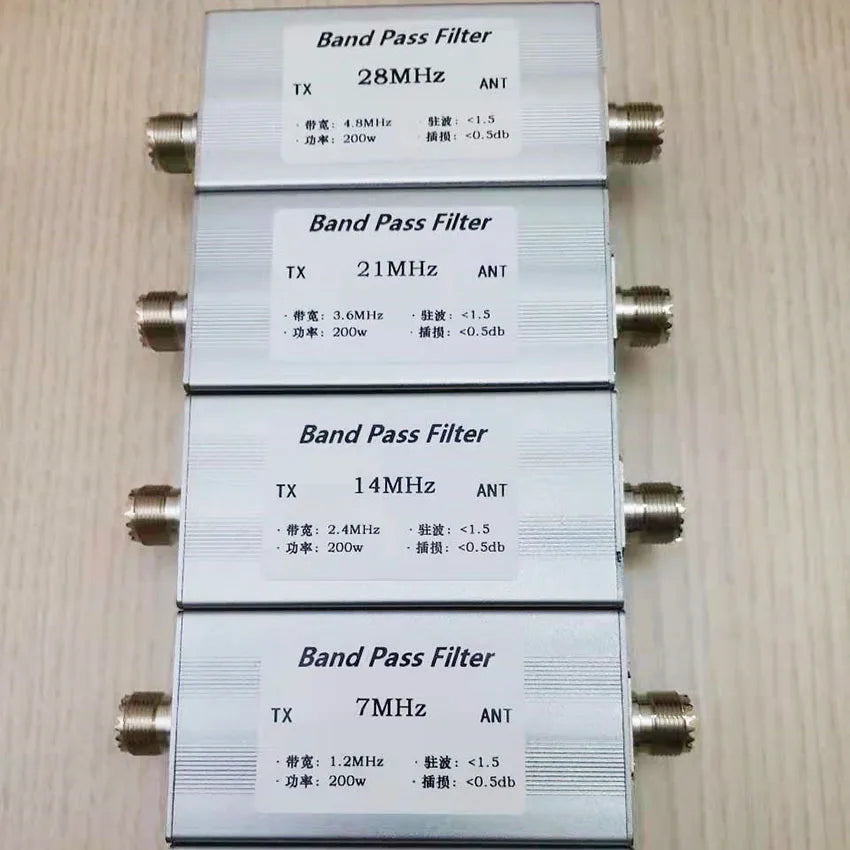

Name: Band Pass Filter

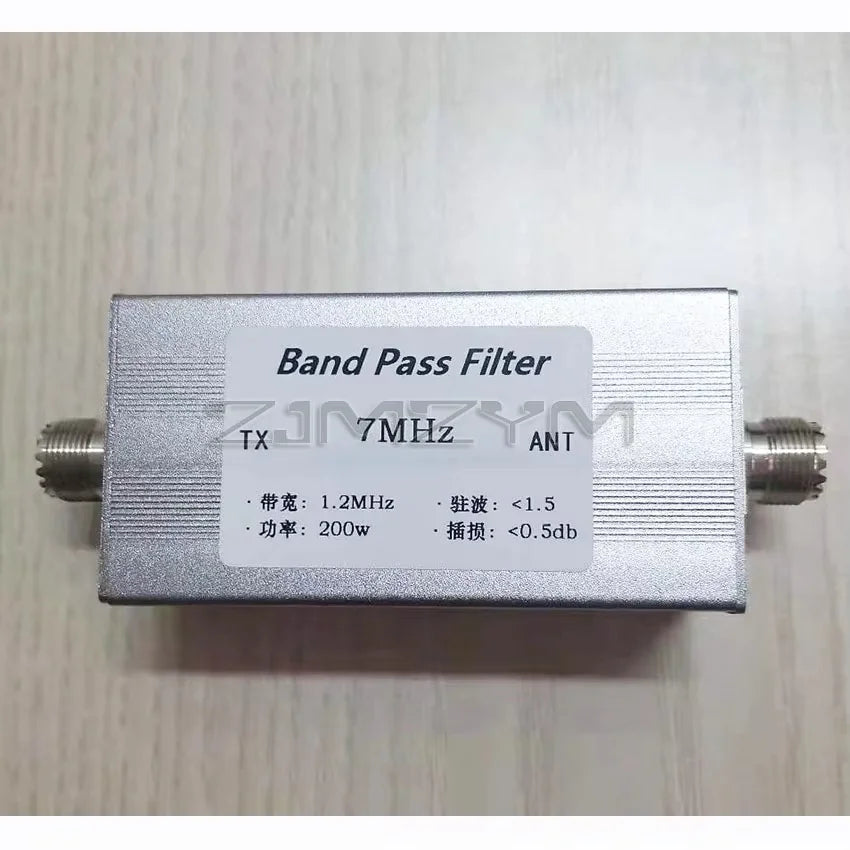

7MHz Parameters:
Short Wave Band Pass Filter (BPF) BPF-7-200
1. Input impedance: 50 ohms; Output impedance: 50 ohms.
2. Power: 200w (SSB CW AM FM FSK) Higher power can be customized.
3.VSWR: less than 1.5
4. Interface: SL16-F (M Block)
5.Frequency: 7MHz (Other frequencies can be customized according to user requirements.)
6. Bandwidth: 1.2MHz
7. Outer size: 140*53*38mm (mounting hole size: 110*34mm)

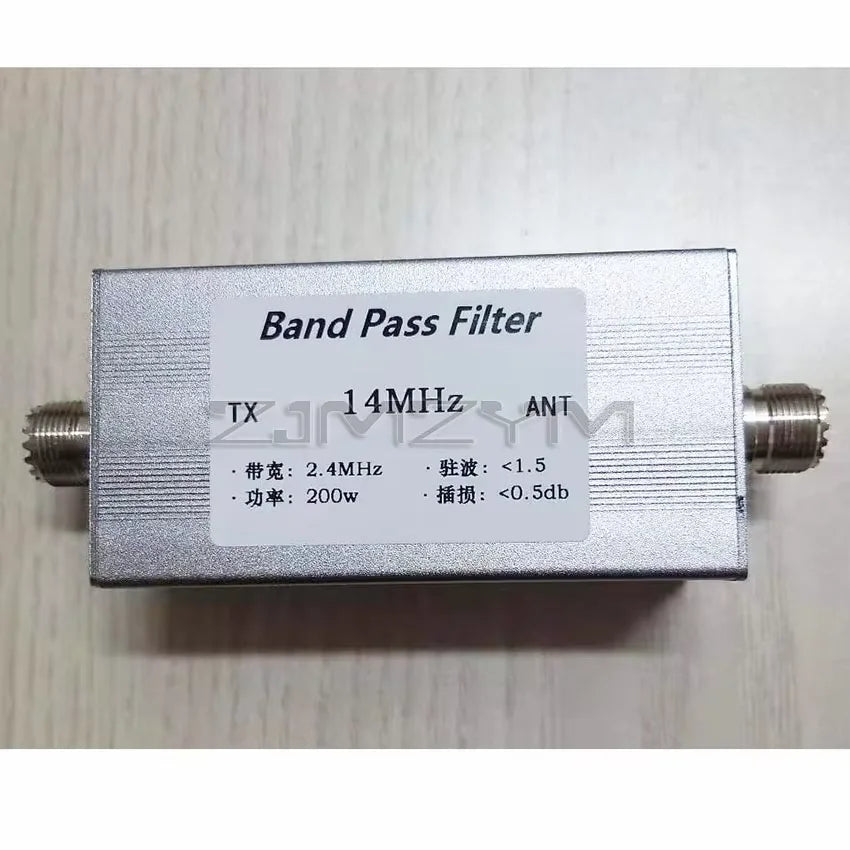

14MHz Parameters:
Short wave bandpass filter (BPF): BPF-14
1. Center frequency: 14MHz
2. Input impedance: 50 ohms; Output impedance: 50 ohms.
3. Power: 200w (SSB CW AM FM) Higher power can be customized.
4. VSWR: less than 1.5
5. Interface: SL16-F (M seat)
6. Insertion loss: less than 0.5db
7. Frequency: 14MHz (can also be customized according to user requirements).
8. Bandwidth: 2.4MHz
9. Outer size: 140*53*38mm (mounting hole size: 34*110mm)

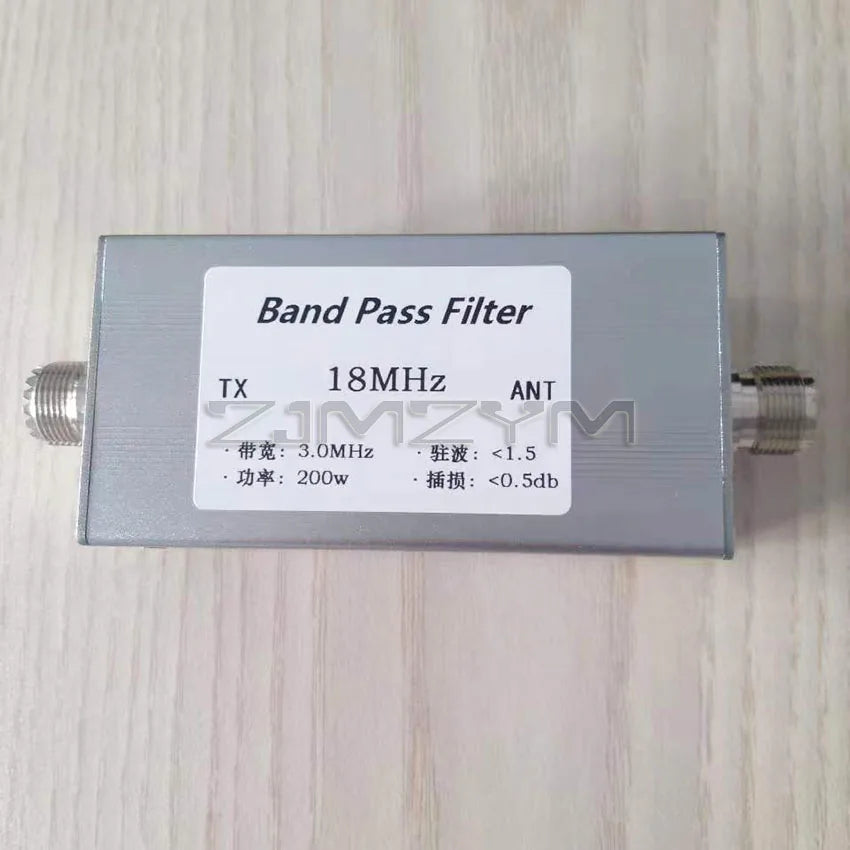

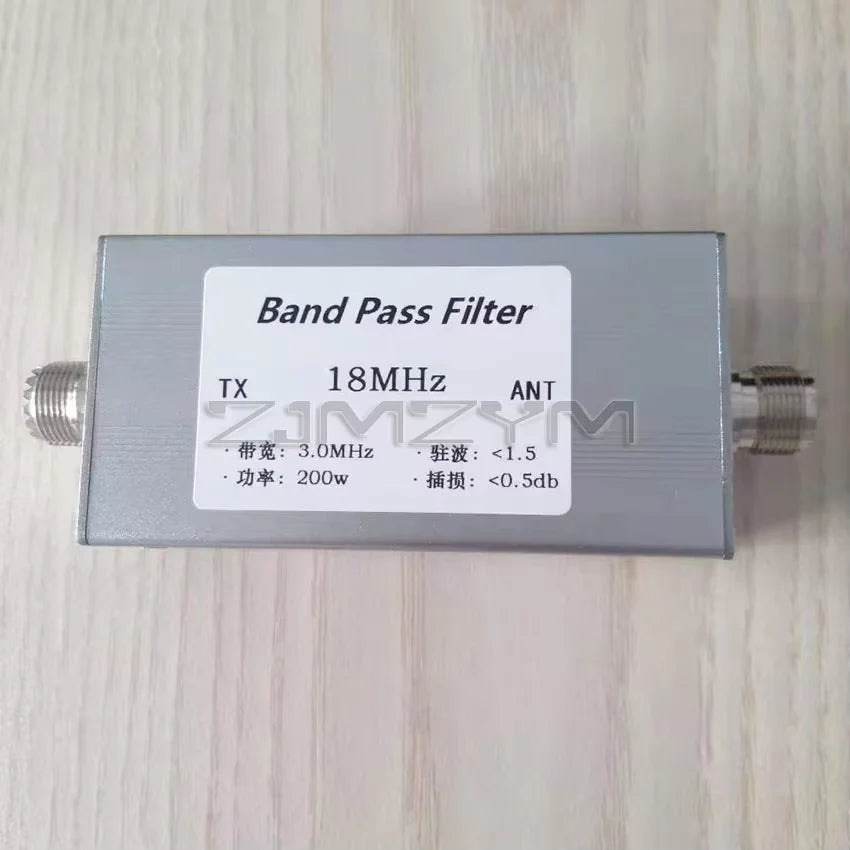

18MHz Parameters:
High Isolation Short Wave Band Pass Filter (BPF): BPF-18M-200WM
1. Center frequency: 18MHz
2.Bandwidth: 3.0MHz
3. Power: 200w (SSB CW AM FM) Higher power can be customized.
4. Insertion loss: less than 0.5db
5. Standing wave: less than 1.5

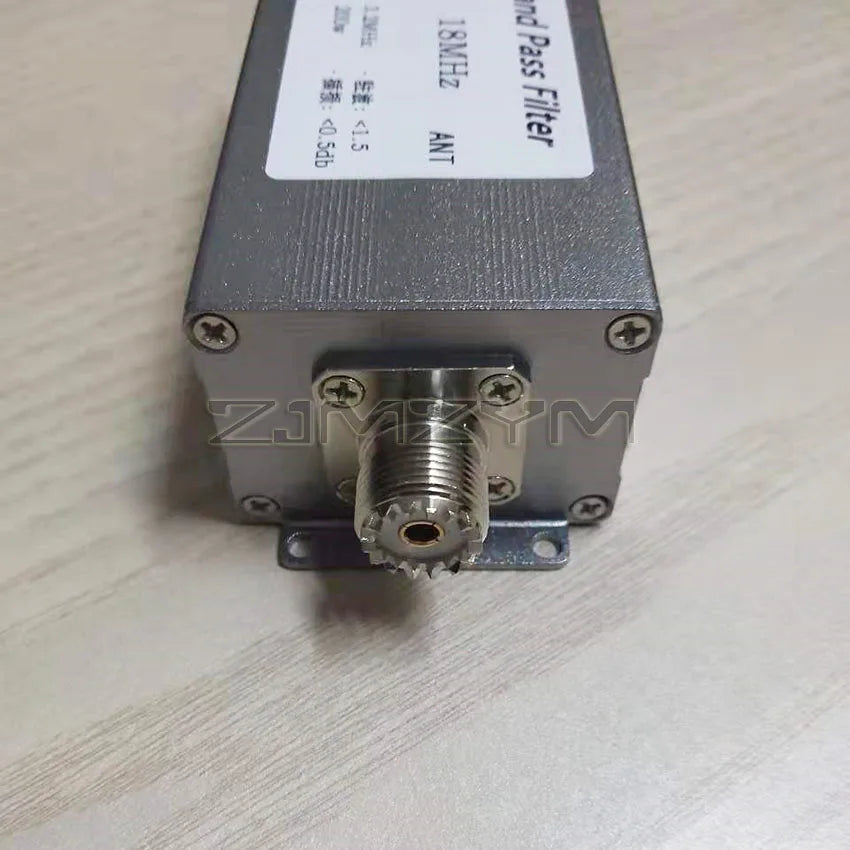

6. Interface: SL16-F (M seat)
7. Input impedance: 50 ohms; output impedance: 50 ohms
8.Outer size: 140*53*38mm (mounting hole size: 110*34mm)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
