Product Description

Building on the foundation of the popular Evostar PRO line of doublet ED refractors, Sky-Watcher has developed the all-new Evolux ED series of compact high end refractors. The ED82 is designed for the discerning astrophotographer looking for a lightweight scope that still provides superb perfomance. Naturally, Evolux ED models offer excellent performance for visual use too with thier excellent optics. Evolux ED models have key upgrades in the optics and the mechanics, making them the perfect fit for a widefield grab-and-go setup.

The Evolux 82 optics have been exclusively designed by Lichtenknecker Optics of Belgium. Evolux ED apochromatic doublet refractors are the perfect blend of superior extra-low dispersion glass and affordability. The doublet lens assembly utilises a proprietary combination of optically matched lenses, including one ED lens element, that delivers sharp stars with inky black, contrast-rich skies, whilst virtually eliminating any false colour. All lens elements feature Sky-Watcher's proprietary Metallic High-Transmission Coatings™ (MHTC™) which are the finest photon anti-rejection coatings in their class, optimising light transmission to up to 99.5%.

Next generation performance

The Evolux-82ED optical tube assembly comes in a foam-lined aluminum case with a 2.4-inch 11:1 dual-speed rack-and-pinion focuser with non marring 2" compression fitting, 45mm dovetail bar, clamshell ring, and adjustable dew shield. An optional 0.9x two-element focal reducer/field flattener, which includes one ED lens element and adaptor/field rotator, is available separately, which when combined makes the Evolux-82ED into a four-lens fast optical system comprising two ED elements for outsatanding results for imagers. Adding the Skywatcher Evoguide guidescope is an excellent option for auto-guiding with a second camera, the Evoguide will fit directly and securely to the shoe on the Evoilux clamshell.

Included in the box

Optical tube assembly with 2.4" dual speed focuser (compression fitting) and sliding dew shield

Clamshell with finder shoe

Dovetail bar

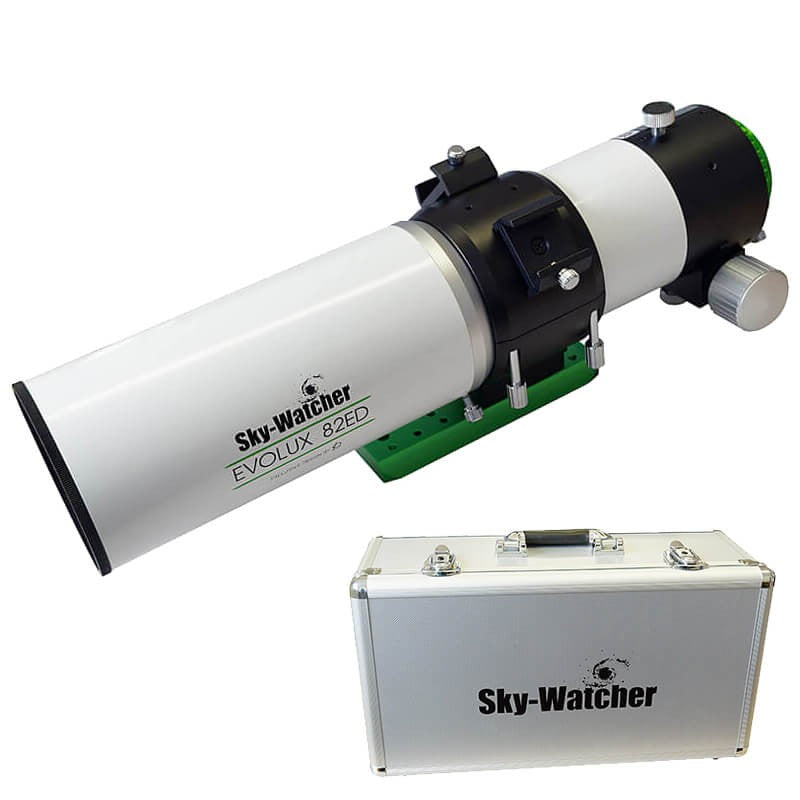

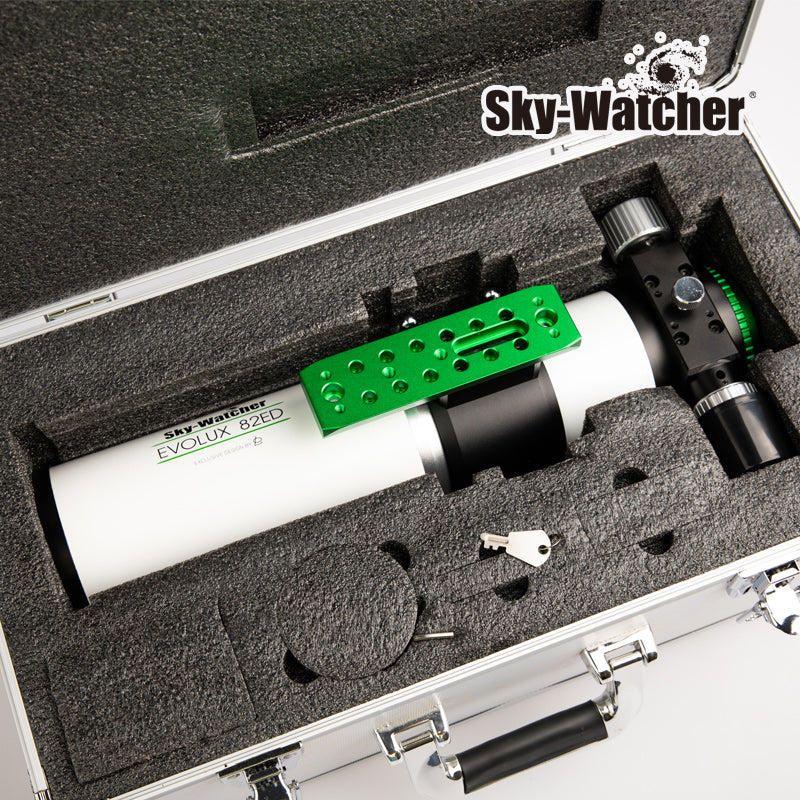

Aluminium case

Specifications

Optical Design: Apochromatic ED Doublet Refractor, Air Spaced, Fully Multi-Coated

Objective Lens Diameter: 82mm

Telescope Focal Length: 530mm (f/6.45)

Focal Length with optional 0.9x Reducer/Flattener: 477mm (f/5.8)

Field of View with optional 0.9x Reducer/Flattener: 4.34°

Dual-Speed 2.4” Rack & Pinion Focuser with Indexed Drawtube

2" (50.8mm) Visual Adaptor with Compression Ring

Clamshell Ring with 45mm Dovetail Mounting Bar

Supplied with two fitted finderscope shoes (Note: Photos only show one shoe)

Supplied without Star Diagonal, Finderscope or Eyepieces

Aluminium Carrying Case

Tube Length Retracted/Extended: 425mm/580mm

OTA Weight: 2.92kg with supplied accessories
