6100U series power station automation controller integrated digital, ligent, networked technology, for single generating set automation and monitoring system, realize the generator automatic start / stop, measurement data, alarm protection and "three remote" function. Controller adopts the large sn liquid crystal display (LCD), a Chinese, English, Spanish and Russian optional interface, simple operation, reliable operation.

6100U series power station automation controller using microprocessor technology, the various parameters of the precision measurement, fixed value adjustment, timing, threshold setting and other functions, all the parameters of the controller can be from the controller front panel adjustment, or the use of PC through the adjustment of programming interface, also can use the PC through RS485 interface adjustment and monitoring.

The utility system has the advantages of compact structure, simple connection and high reliability, and can be widely used in the automatic system of various types of generating units. Has the power down, idle speed control, pre heating control, speed control function, and all of the relay output;

Parameter setting function allows the user to change the setting of its parameters. At the same time, memory in the internal flash memory, isn't lost in the system is out of power, all the parameters of the controller can from controller front panel adjustment, or the use of PC through the programming interface to adjust (using SG72 adapter), use the PC through RS485 interface to adjust;

A variety of temperature, pressure, level sensor can be used directly, and can customize the parameters; A variety of starting conditions (speed sensor, oil pressure, power generation) can be selected; Wide power supply range (8~35) VDC, can adapt to different starting battery voltage environment; All parameters are digitally adjusted, and the simulation adjustment method of the conventional potentiometer is abandoned, and the reliability and stability of the whole machine is improved

material: Plastic

Colour: Black

Performance and characteristics

The main features are as follows:

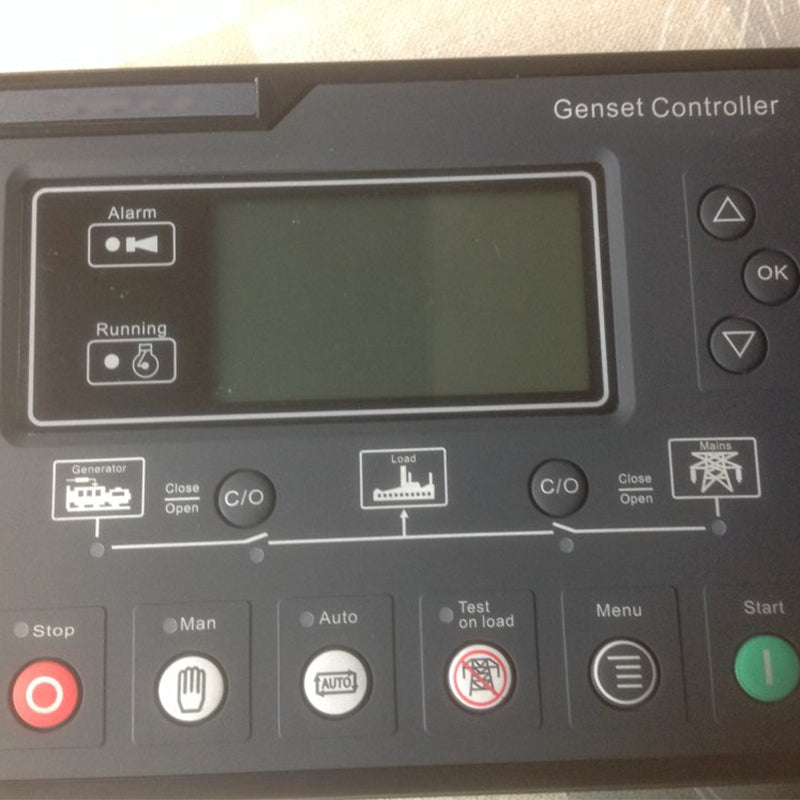

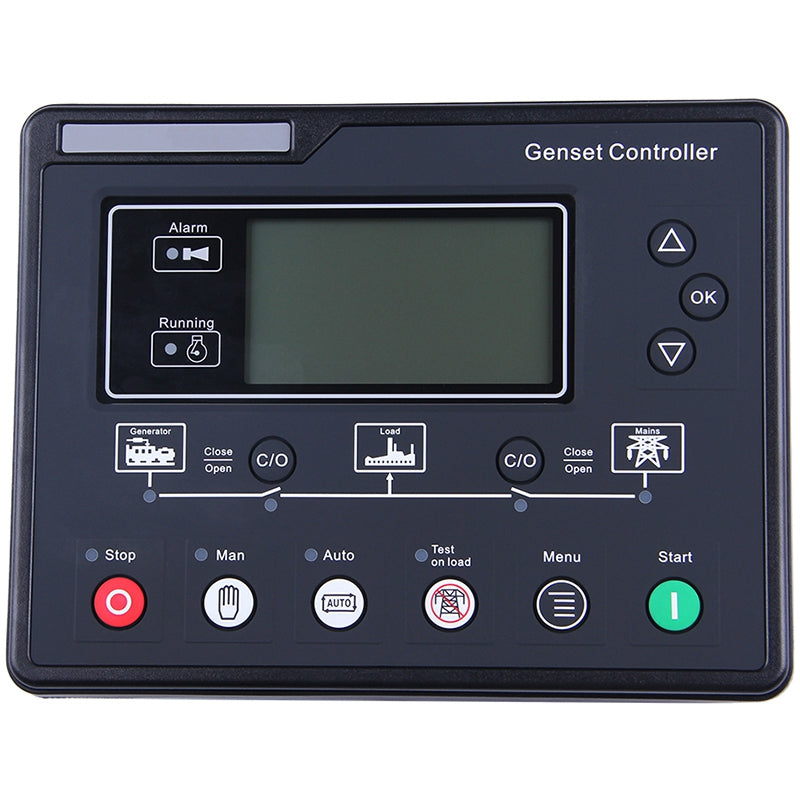

Liquid crystal display LCD 132x64, with backlight, display four (Simplified Chinese, English, Spanish and Russian) language, Press button operation.

The sn saver by hard sn acrylic material, wear resistance and scratch resistance;

Using the silica gel plate and key press, to adapt to the environment of high temperature and low temperature;

With RS485 communication interface, the use of MODBUS protocol can achieve the "three remote" function;

Suitable for three-phase four wire, three-phase three wire, single phase two wire, two phase three wire (120V/240V) power supply 50Hz/60Hz system;

Collection and display of the three phase voltage, three-phase current, frequency and power parameters;

The city electricity has the function of over voltage, under voltage and phase, and the power generation has the function of over voltage, under voltage, over frequency, under frequency, over current function;

Precision acquisition of various parameters of the engine:

Control protection function: to achieve the automatic power on / off of diesel generating set, ATS switch and perfect the function of fault display and protection;

Package Contents:1pcs Generator Set Controller

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
