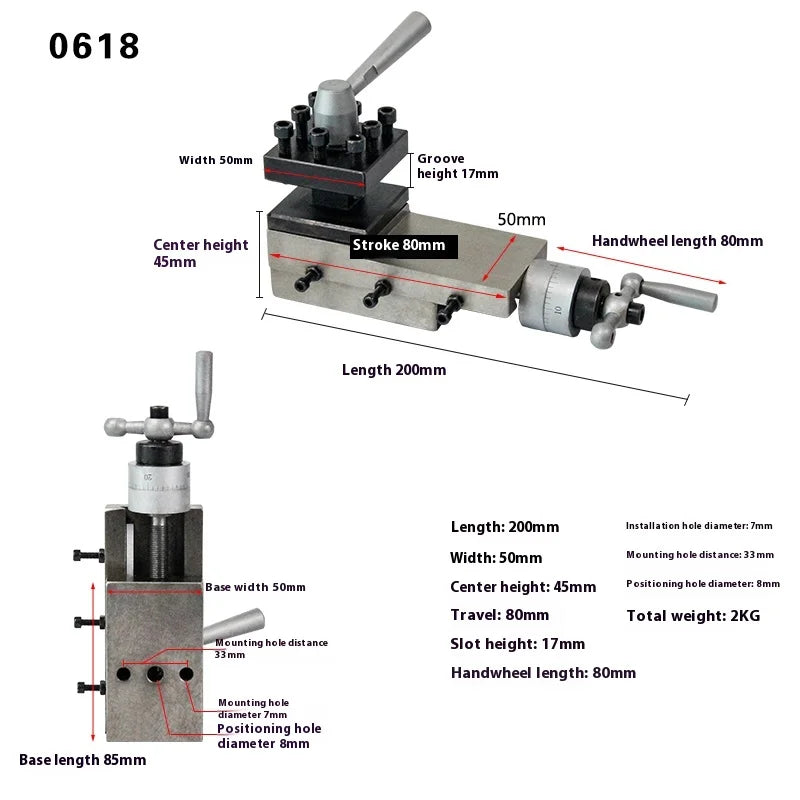

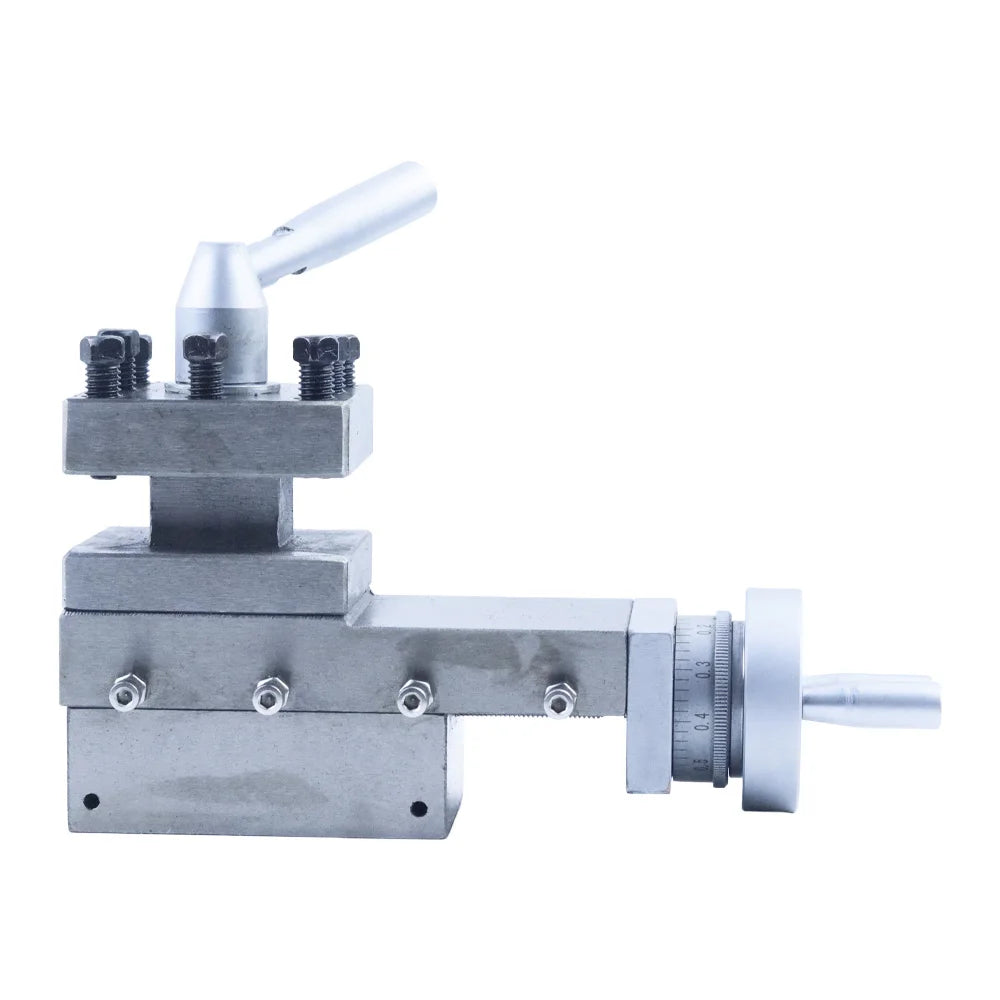

Model:0618
Length: 200mm
Width: 50mm
Center Height: 45mm
Stroke: 80mm
Groove Height: 17mm
Handwheel Length: 80mm
Mounting Hole Diameter: 7mm
Mounting Hole Distance: 33mm
Positioning Hole Diameter: 8mm
Total Weight: 2KG

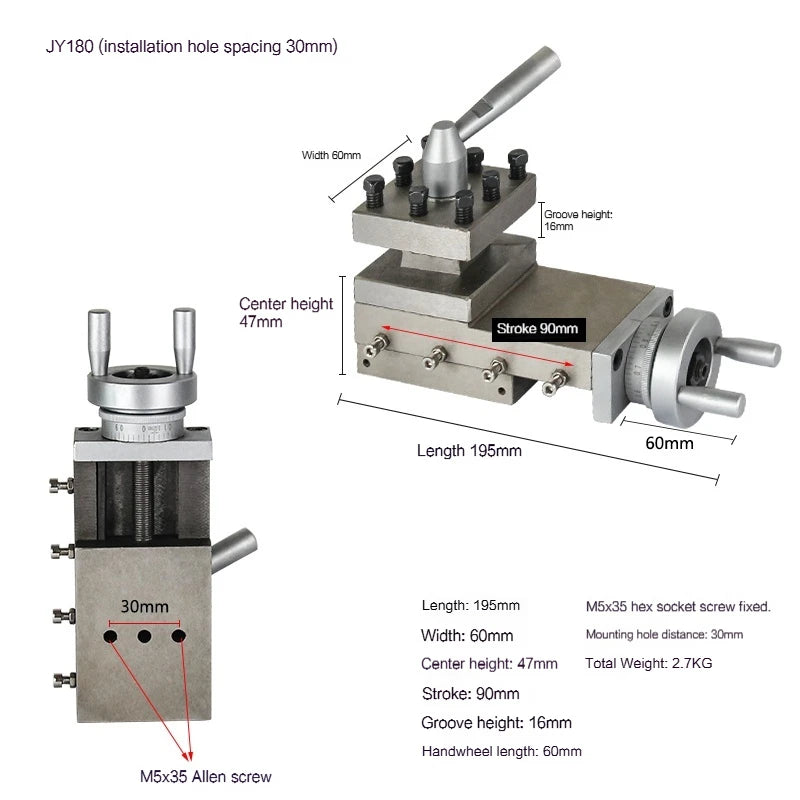

Model:JY180 hole30mm
Length: 195mm
Width: 60mm
Center Height: 47mm
Stroke: 90mm
Groove Height: 16mm
Handwheel Length: 60mm
Fixed with M5×35 Hexagon Socket Screws
Mounting Hole Distance: 30mm
Total Weight: 2.7KG

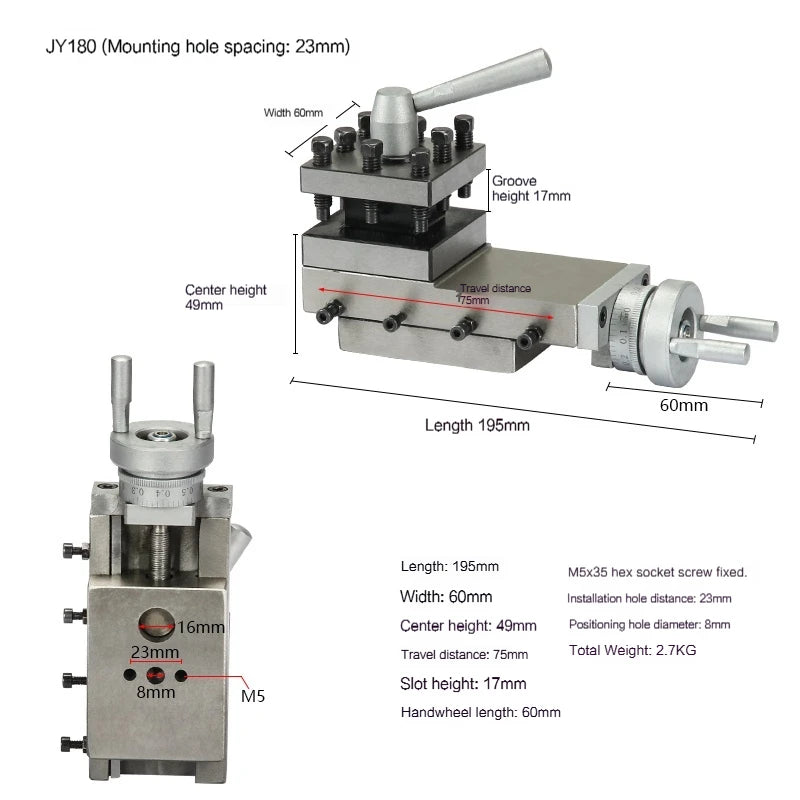

Model:JY180 hole23mm
Length: 195mm
Width: 60mm
Center Height: 49mm
Stroke: 75mm
Groove Height: 17mm
Handwheel Length: 60mm
Fixed with M5×35 Hexagon Socket Screws
Mounting Hole Distance: 23mm
Positioning Hole Diameter: 8mm
Total Weight: 2.7KG

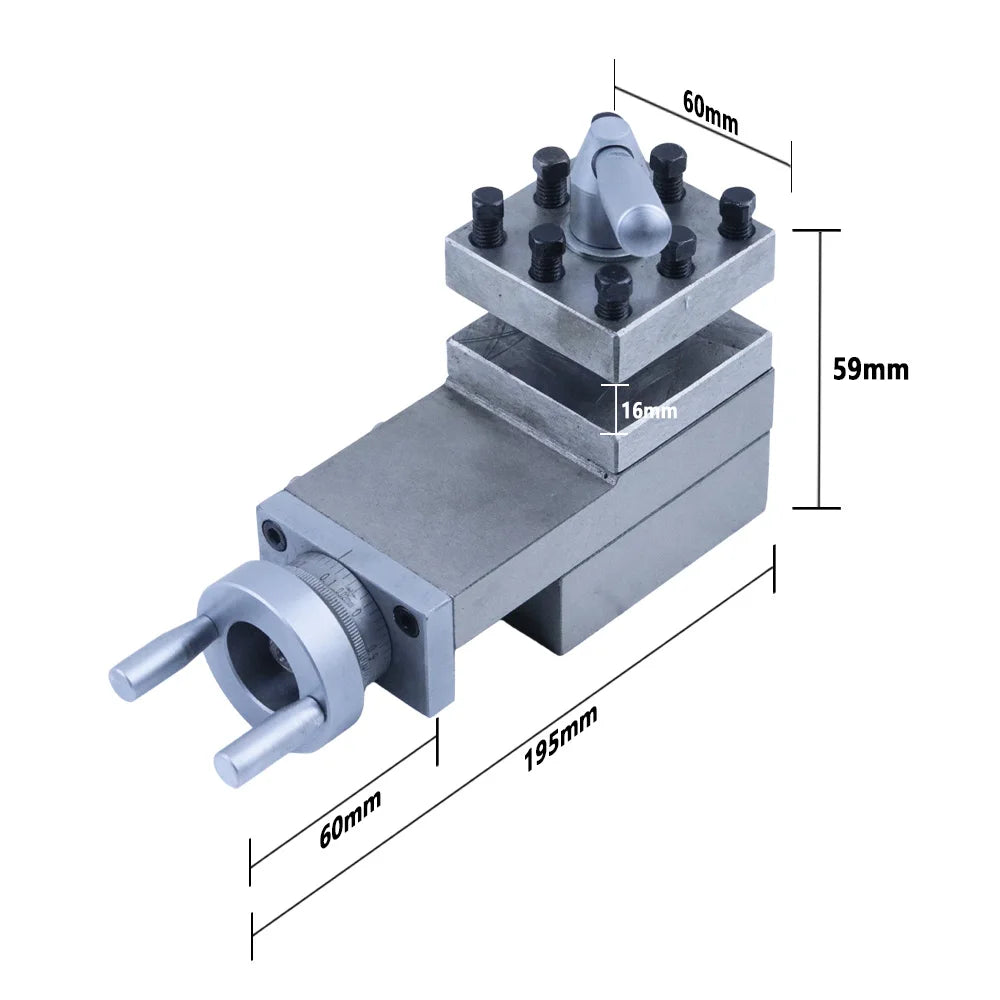

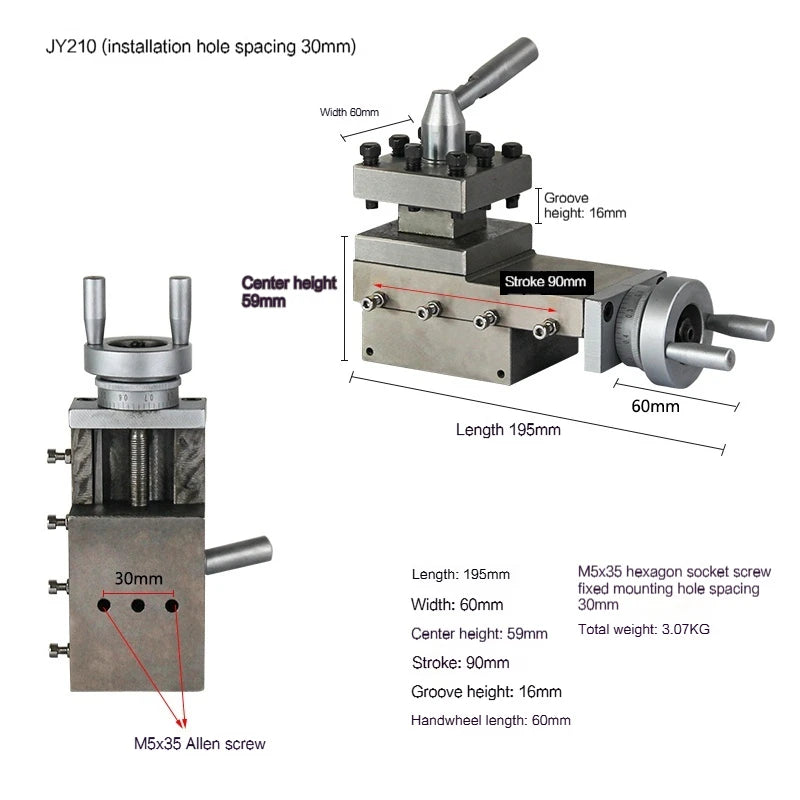

Model:JY210 hole30mm
Length: 195mm
Width: 60mm
Center Height: 59mm
Stroke: 90mm
Groove Height: 16mm
Handwheel Length: 60mm
Fixed with M5×35 Hexagon Socket Screws
Mounting Hole Distance: 30mm
Total Weight: 3.07KG

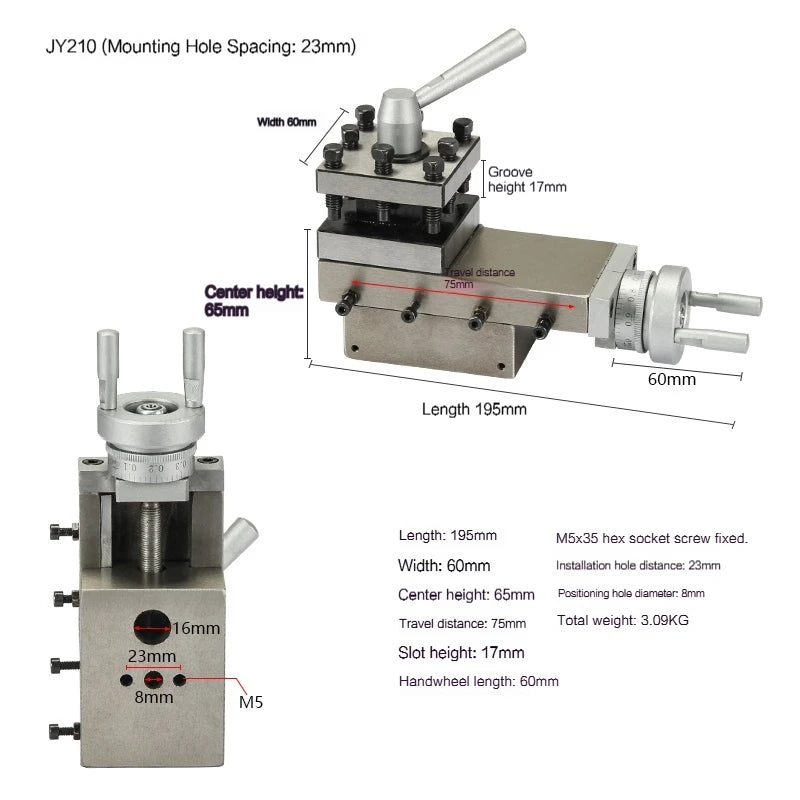

Model:JY210 hole23mm
Length: 195mm
Width: 60mm
Center Height: 65mm
Stroke: 75mm
Groove Height: 17mm
Handwheel Length: 60mm
Fixed with M5×25 Hexagon Socket Screws
Mounting Hole Distance: 23mm
Positioning Hole Diameter: 8mm
Total Weight: 3.09KG
