Smart Touching Screen Ultra-thin Multimeter Automatic Digital Multimeter 6000 Counts Intelligent Scanning AC DC NCV True RMS Measurement

   Descriptions:

1.6000counts is a pocket type 3 5 / 6-digit pocket type real effective value intelligent scanning digital instrument;

2.the series is triple display: main display, secondary display, analog bar. Except for the display frequency of AC voltage measurement sub display, other function sub display is normal temperature.

3.In the process of using, users can operate continuously.

4.There is no need to turn the dial to select the function.

5.The meter will automatically recognize and measure based on the input AC or DC currentesistance.

6.It has stable performance, high precision, high reliability, clear reading and overload protection.

7.Driven by AAA 1.5V battery（not included）, the instrument adopts large screen LCD display and adopts boost power supply. Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight.

8.The meter is easy to carry and is very popular among users.

9.This series of instruments can manually switch and measure DC voltage and AC voltage, capacitance, NDV, diode, continuity test, live wire judgment and true RMS. It is a superior tool and an ideal tool for laboratories, factories, radio enthusiasts and families.

General Characteristics:

1-1. Display mode: triple display LCD; main display, sub display, analog bar;

1-2. Maximum display: 5999 (5 5/6) bit automatic polarity display;

1-3. Measurement method: double integral A/D conversion;

1-4. Sampling rate: about 3 times per second;

1-5. Over range display: The highest position shows ''OL'';

1-6.Continuous power operation function;

1-7. Low voltage display;

1-8. Working environment:(0～40)℃,relative humidity＜80%;

1-9. Power: AAA 2* 1.5V battery（Not included）;

1-10. Volume (size): 139×68×18mm (L×W×H);

1-11. Weight:about 220g.

Function:

DC voltage DCV: 6V/60V/600V/1000V

AC voltage ACV: 6V/60V/600V/750V

Resistor: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

Capacitor: 10nF/100nF/1uF/10uF/100uF/1mF/10mF/60mF

Diode /Continuity test: √

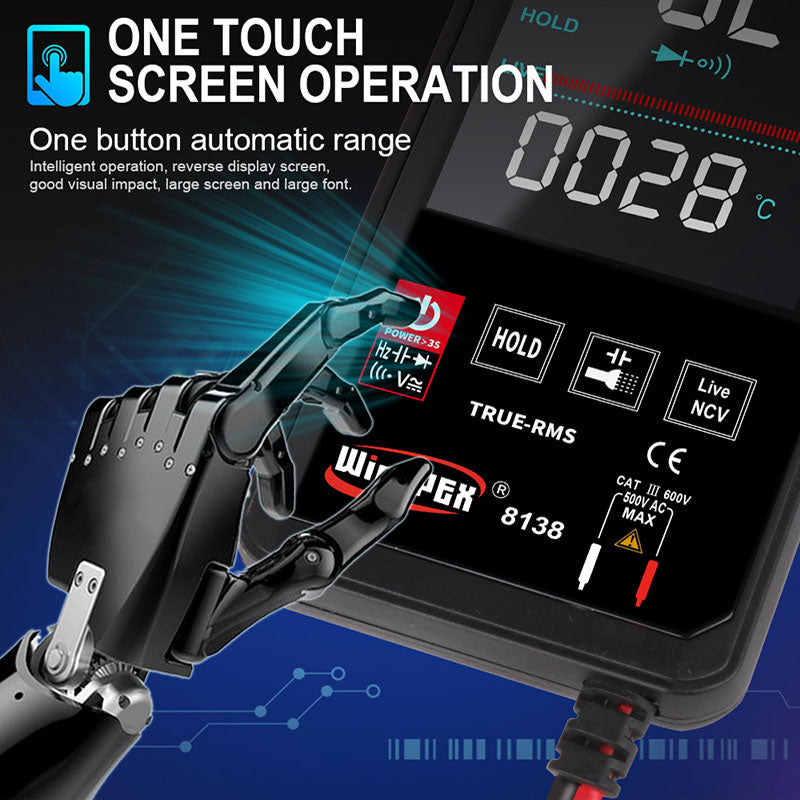

Touch key: √

Continuous power operation: √

NCV : √

Zero line / Fire line test: √

Full unit symbol: √

Backlight manual/Auto off: √

True RMS measurement: √

Temperature(℃/℉): √

Flashlight lighting: √
