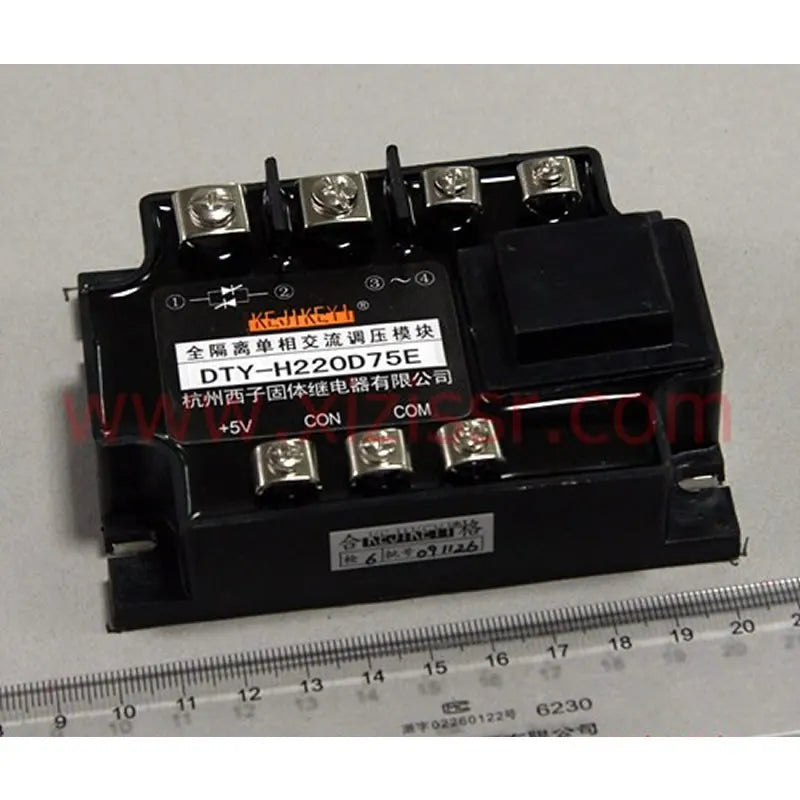

Solid State Relay DTY-H220D75E/F/H Fully Isolated Single Phase AC Voltage Module

Solid State Relay DTY-H220D75E/F/H Fully Isolated Single Phase AC Voltage Module

Name: Solid State Relay DTY-H220D75E/F/H Fully Isolated Single Phase AC Voltage Module
Brand: mickcara
SKU: cwc0000164
Price: 107.82 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: cwc0000164

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$107.82

15 mm

20 mm

Quantity:

Subtotal: $107.82

283 customers are viewing this product

Tags:

Description

DTY-H380D75E DTY-H380D75F DTY-H380D75G DTY-H380D75H

The last digit of the model is the input control signal type, E means 0-5V; F means 0-10V; G means 4-20mA; H means 1-5V.

Product introduction:

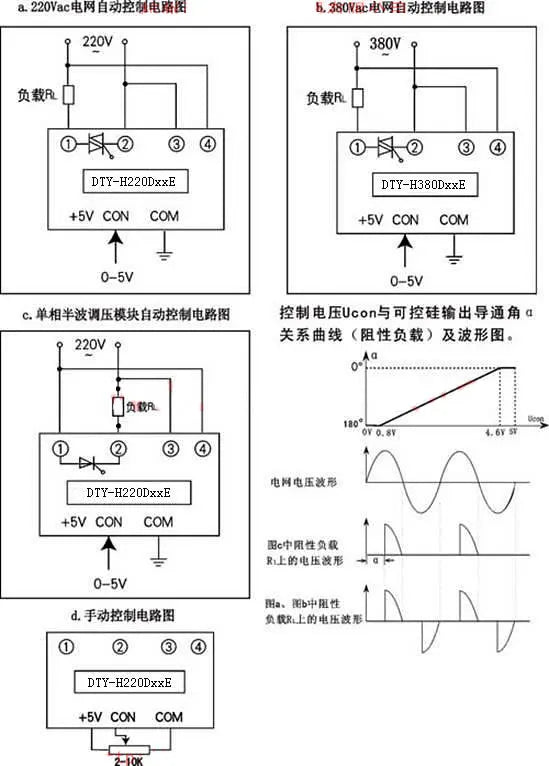

The fully isolated single-phase AC voltage regulating module (hereinafter referred to as the single-phase voltage regulating module DTY) is a synchronous transformer, a phase detecting circuit, a phase shifting trigger circuit and an output thyristor. When the control voltage is changed, the output can be changed. The trigger phase angle of the thyristor is the voltage regulation of the single-phase alternating current. According to the output thyristor device, a common type of two-way thyristor, two unidirectional thyristor anti-parallel enhancement type and one unidirectional thyristor half-wave type are classified into three types. According to the rated voltage of single-phase AC load, it is divided into 220V and 380V. According to the different control signals, it is divided into four categories: E, F, G, H, etc. The following is the specification model table: (Note: The current level is the internal thyristor of the module. Maximum current RMS)

2 model list
