Feature:

 1. With Controller and LED Display: The bathroom sauna machine is equipped with controller and LED to display temperature and time.

 2. Temperature Setting: The steam generator can realize automatic temperature setting within the range of 35 to 55℃, 95 to 131℉, and can also realize automatic shutdown time within 1 to 60 minutes.

 3. Multi Protections: The bathroom sauna steamer has water shortage protection and over temperature protection to prevent dry burning.

 4. 50m Control Distance: Long distance control signal transmission, the controller can control the machine operation within 50m.

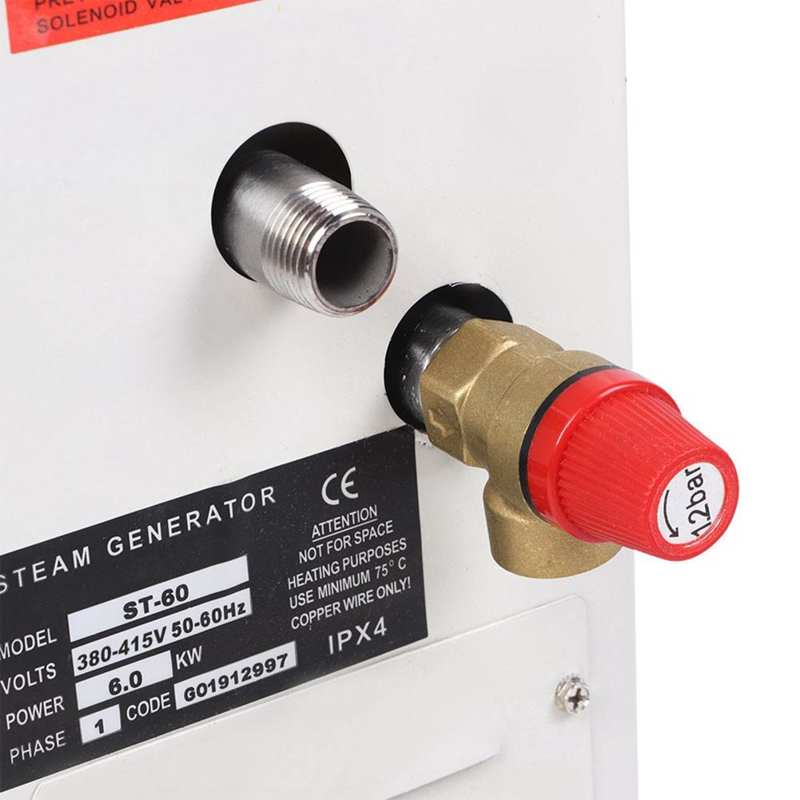

 5. Pressure Reducing Valve: The steam shower system is designed with a pressure reducing valve device, which is safer and more reassuring to use.

     Specification:

     Item Type: Bathroom Sauna Steamer

 Material: Stainless steel

 Gross Weight: 10000g/22.0lb

 Voltage: 380-415V, 50-60Hz

 Power: 6KW

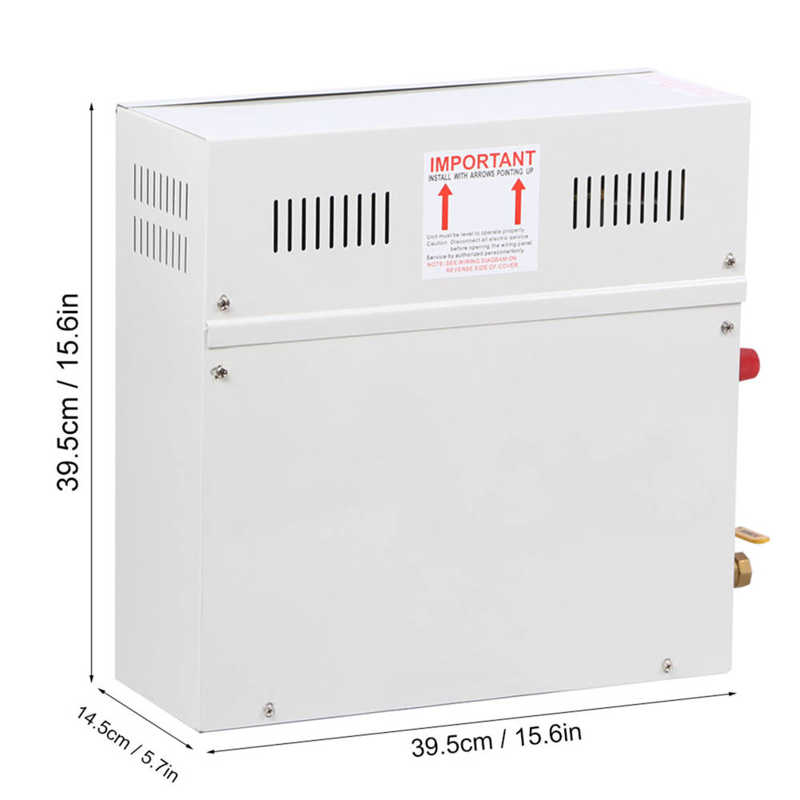

 Size: 39.5x39.5x14.5CM/15.6x15.6x5.7in

 Place of Use: Steam room

 Attention shall be paid during steam bath:

 1. The equipment cannot be used by the elderly, pregnant women or patients with heart disease, hypertension, diabetes or other unhealthy reasons. Unless directed by a physician.

 2. It is forbidden to smoke, exercise or drink alcoholic beverages in the steam bath.

 3. Please exit the steam room immediately when you feel unwell, nauseated or sleepy.

 4. Take care of your children at any time during the steam bath.

 5. It is necessary to install an exhaust fan outside the steam room to circulate air.

 Warning:

 1. If the machine is installed in a place that is difficult for users to access, the water supply valve must be installed in a place that is easy to operate in case of emergency.

 2. The bearing pressure of the solenoid valve is 2Kg/cm2. If the water pressure is too high, the water inlet valve can be properly turned down or a water inlet pressure reducing valve can be installed to avoid damage to the solenoid valve.

 3. Saddle valve or needle valve cannot be installed on the water inlet pipe. The water pipe shall be dredged and flushed before the final connection.

 4. Blocking valve shall not be installed in the steam pipe. Obstructions or bending of the "U" channel are strictly prohibited. Otherwise, condensate will be generated to block the flow of steam. When the steam pipe is horizontally laid, it shall be inclined to a certain extent so that the condensate can return to the steam generator or flow to the steam nozzle.

 5. The steam generator shall not be installed outdoors to prevent icing inside. It must be installed in a place convenient for maintenance. The machine should be installed horizontally and the arrow direction should be upward, otherwise it cannot be started.

 6. Copper pipe materials must be used for pipe installation, and plastic, acrylic, aluminum plastic pipes or other similar materials are prohibited as steam pipes. The allowable temperature of these materials cannot reach 150 ℃ or higher.

 7. The steam pipe inlet, all other inlets and gaps shall be sealed to prevent the steam from seeping out and damaging the machine and other objects.

 8. Draining the water in the water tank into the steam room may cause scalding accidents and damage the building materials used in the steam room.

 Before use, please check according to the following terms:

 1. The machine is properly grounded, and the diameter of the grounding wire is greater than 4mm².

 2. Whether the machine model is properly selected. If not, the matching steam room may not reach the preset temperature.

 3. 3. The connection voltage of the steam generator is well selected (380V). If the 380V steam generator is connected to 220V voltage, the power of the machine will be reduced by 25 percents. The connection of the 380V steam generator zero line should not be mistaken, that is, the zero line should not be connected to the phase line. Otherwise, the circuit board and electric heating tube will be damaged.

 4. The steam generator must be installed vertically and horizontally.

 5. Select the cables and circuit breakers with the correct wire numbers.

     Package List:

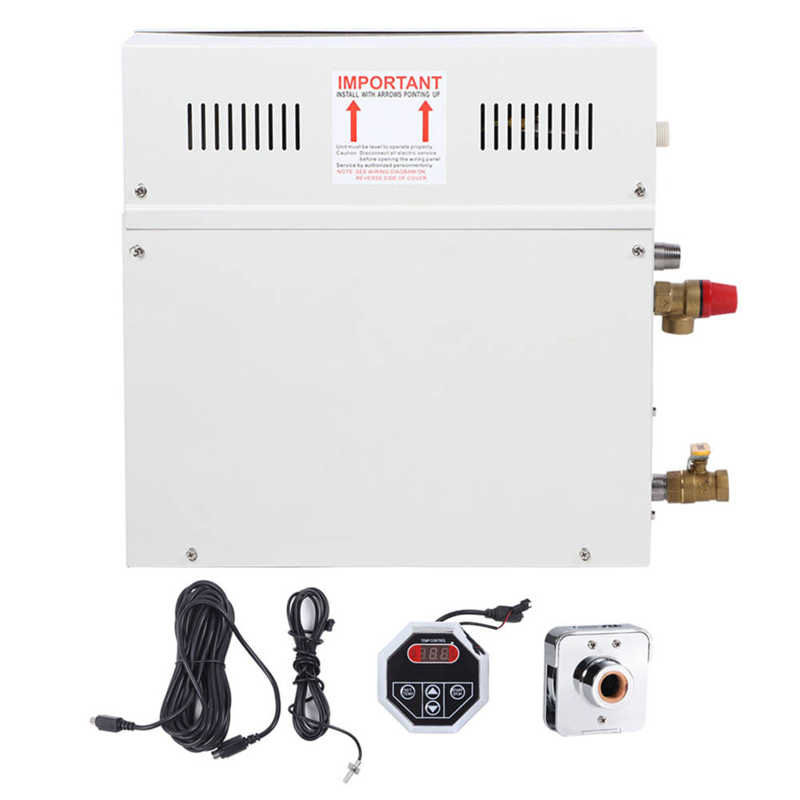

 1 x Bathroom Sauna Steamer     1 Box x Accessories(4PCS)
